Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330130-085-00-00 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Cable Length Option: |
8.5 meters (27.9 feet) |
|
Connector Protector and Cable Option: |
Standard cable |
|
Agency Approval Option: |
Not required |
|
Extension Cable Material: |
75 Q triaxial, fluoroethylene propylene (FEP) insulated |
|
Dimension: |
20x20x2cm |
|
Weight: |
0.28kg |
Description

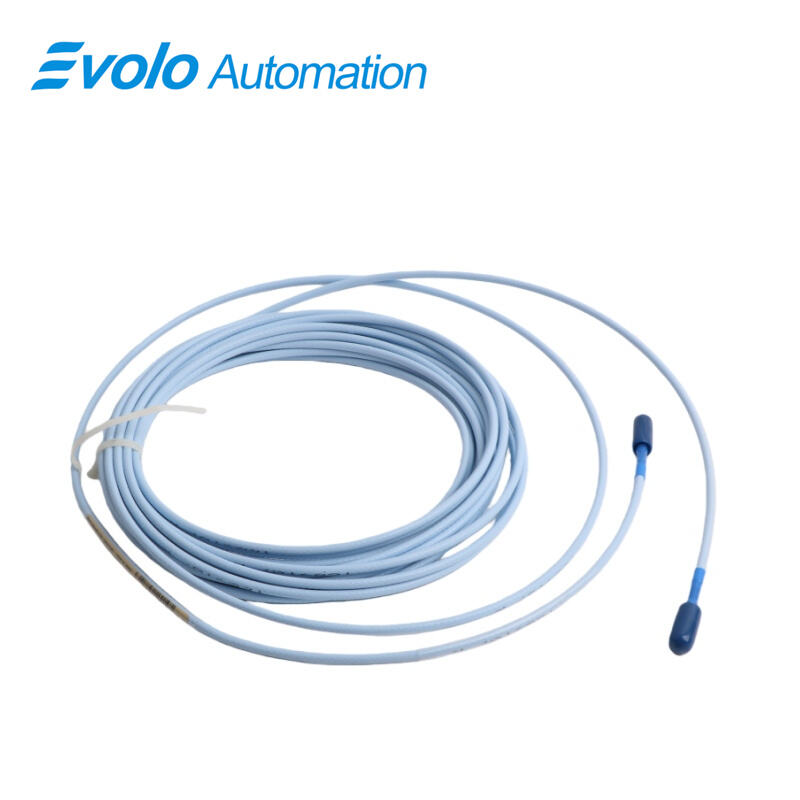

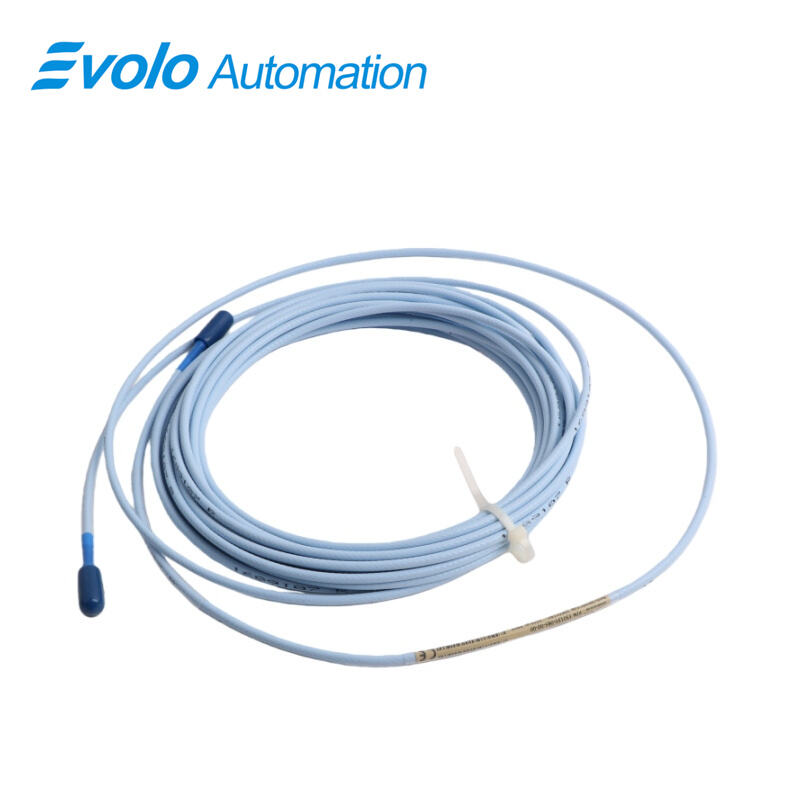

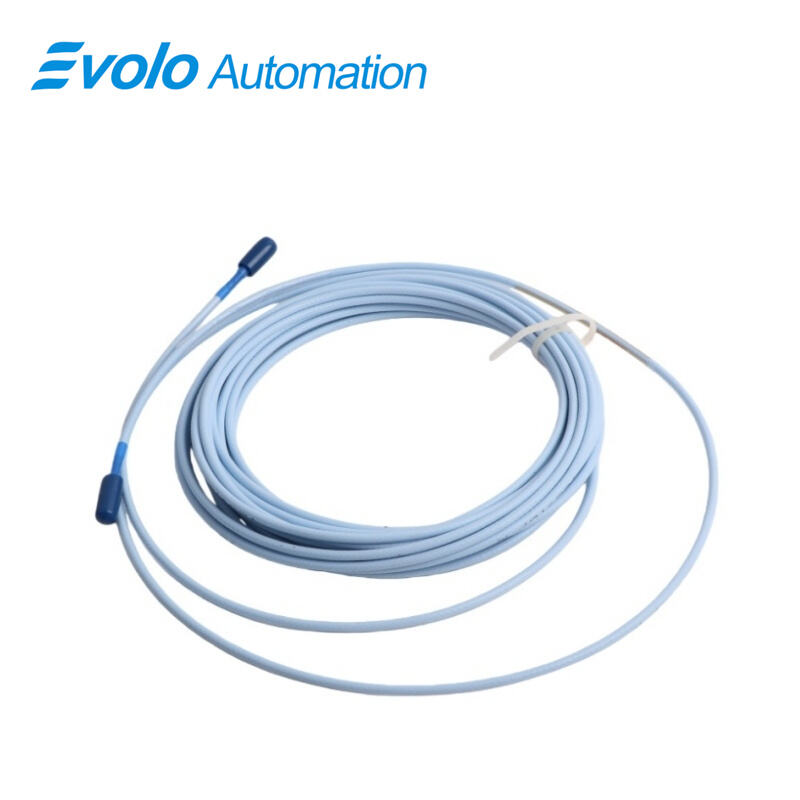

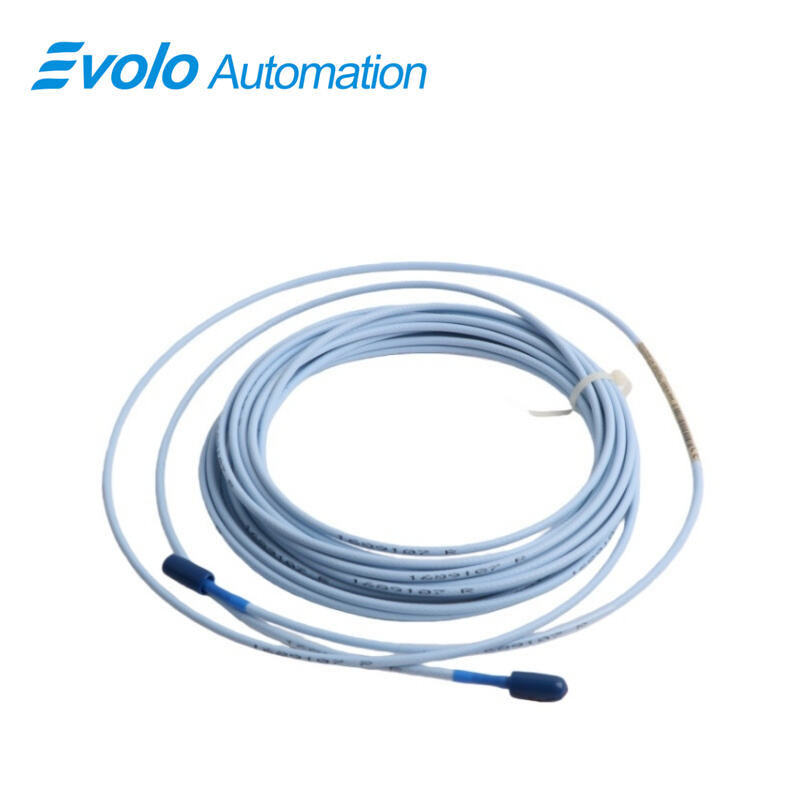

The 330130-085-00-00 3300 XL Standard Extension Cable provides precise signal transmission for 3300 XL 8 mm Proximity Transducer Systems in industrial automation. With an 8.5-meter (27.9 ft) standard cable, the 330130-085-00-00 3300 XL Standard Extension Cable maintains 50 Ω output resistance and 69.9 pF/m (21.3 pF/ft) capacitance. Its 75 Q triaxial FEP insulation keeps supply sensitivity under 2 mV per volt input change. Field wiring supports 0.2–1.5 mm² (16–24 AWG) up to 305 meters (1000 ft) while preserving a 2 mm (80 mils) linear range and frequency response from 0 to 10 kHz. The 330130-085-00-00 3300 XL Standard Extension Cable enables vibration, position, speed, and Keyphasor measurements on fluid-film bearing machines. Patented TipLoc and CableLoc designs provide 330 N (75 lbf) pull strength for secure probe attachment. The 330130-085-00-00 3300 XL Standard Extension Cable integrates seamlessly with 3300 XL probes and Proximitor sensors, allowing automated monitoring without bench calibration.
Applications
Vibration Monitoring on Fluid-Film Bearings
The 330130-085-00-00 3300 XL Standard Extension Cable connects 3300 XL probes to Proximitor sensors, allowing vibration measurement on shafts and rotors with 2 mm linear range and frequency response up to 10 kHz, ensuring precise automated monitoring.
Position Sensing in Rotating Equipment
Use the 330130-085-00-00 3300 XL Standard Extension Cable to transmit displacement signals from 3300 XL probes across field wiring up to 305 meters (1000 ft) while maintaining 50 Ω output resistance and 69.9 pF/m capacitance for accurate position readings.
Speed and Keyphasor Signal Transmission
The 330130-085-00-00 3300 XL Standard Extension Cable delivers Keyphasor and rotational speed signals from 3300 XL probes with less than 2 mV supply sensitivity per volt, supporting automated turbine and generator monitoring.
Long-Distance Remote Monitoring
The 330130-085-00-00 3300 XL Standard Extension Cable allows installation in remote areas while preserving 2 mm linear range, 0–10 kHz frequency response, and consistent output from 3300 XL probes.
Specifications
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
|
Frequency Response: |
(0 to 10 kHz), +0, -3 dB, with up to 305 meters (1000 feet) of field wiring |
|
Minimum Target Size: |
15.2 mm (0.6 in) diameter (flat target) |
Competitive Advantage
High-Precision Signal Transmission
The 330130-085-00-00 3300 XL Standard Extension Cable preserves 2 mm linear range, frequency response up to 10 kHz, and voltage accuracy across long field wiring, supporting precise automated monitoring.
Durable Probe Connection
Patented TipLoc and CableLoc designs secure probe attachment under 330 N (75 lbf) tension. The 330130-085-00-00 3300 XL Standard Extension Cable resists mechanical stress and maintains signal integrity in industrial environments.
Seamless System Integration
Fully compatible with 3300 XL probes and Proximitor sensors, the 330130-085-00-00 3300 XL Standard Extension Cable enables plug-and-play installation and replacement without bench calibration.
Extended Automation Reach
Field wiring up to 305 meters (1000 ft) is supported by the 330130-085-00-00 3300 XL Standard Extension Cable while maintaining linear range, frequency response, and capacitance for long-distance monitoring.
