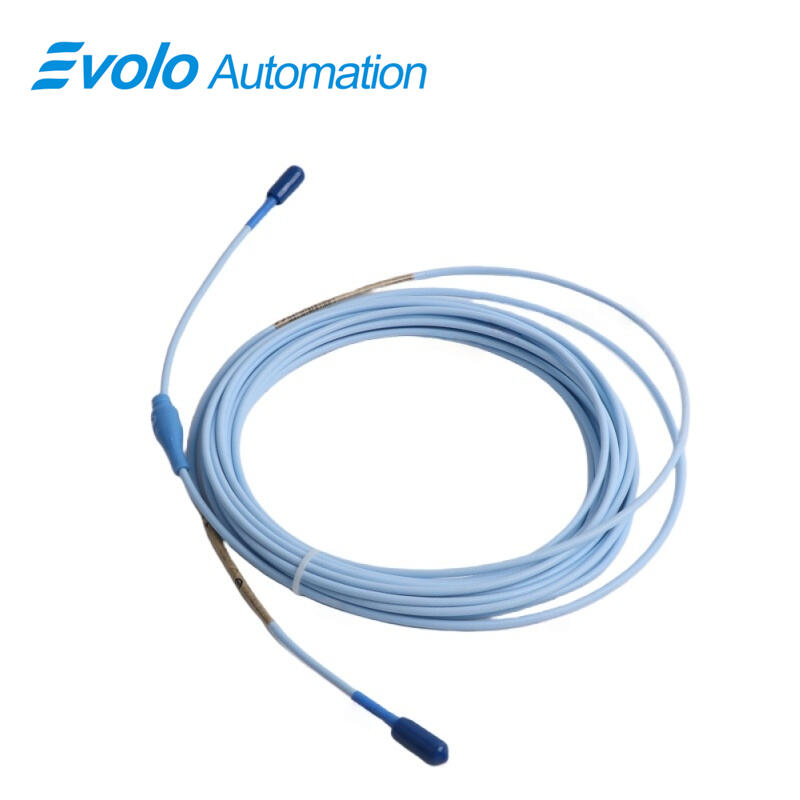

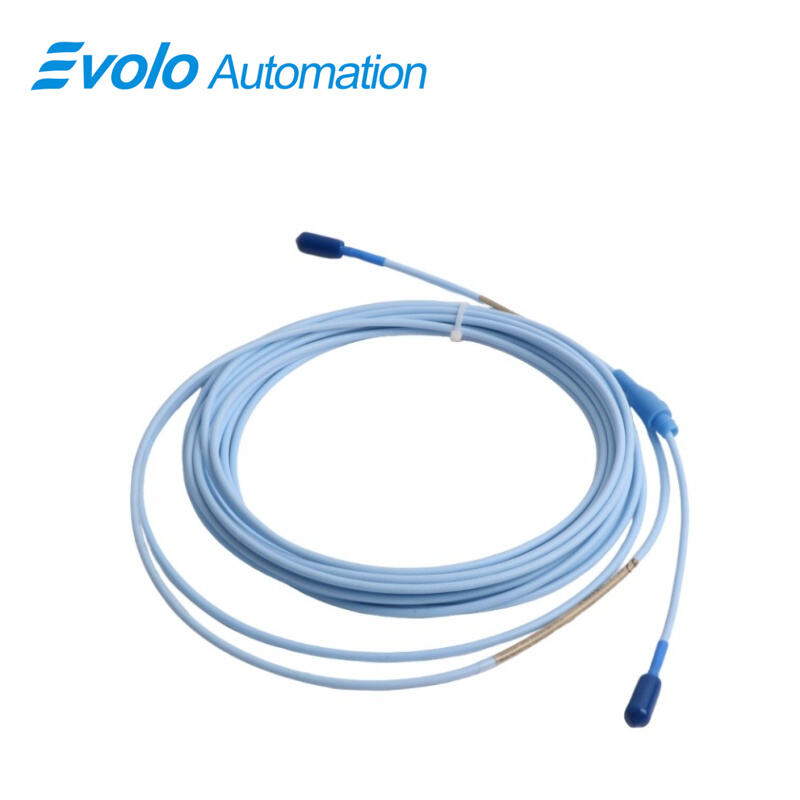

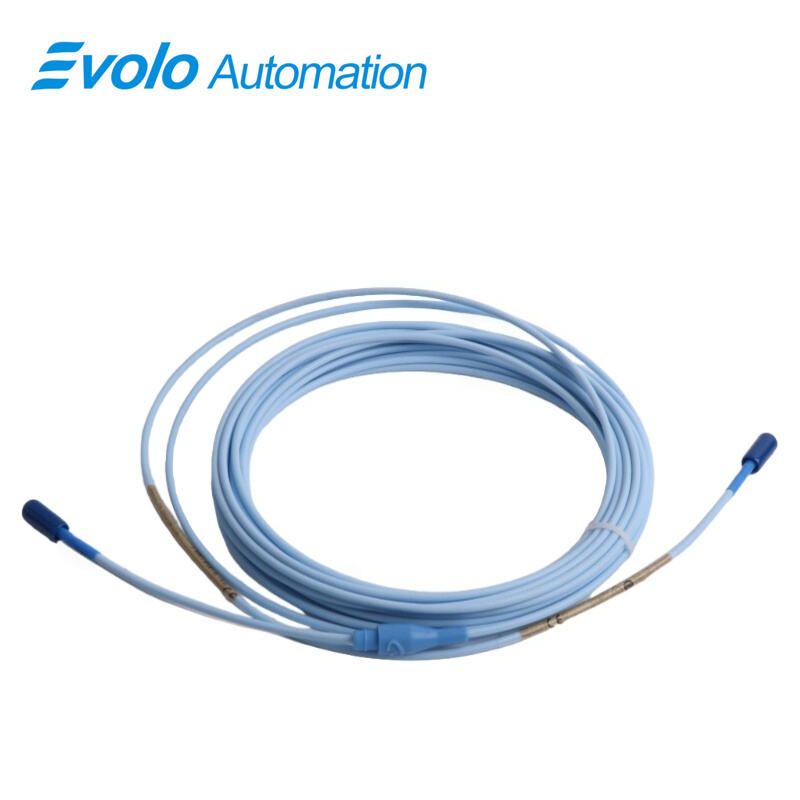

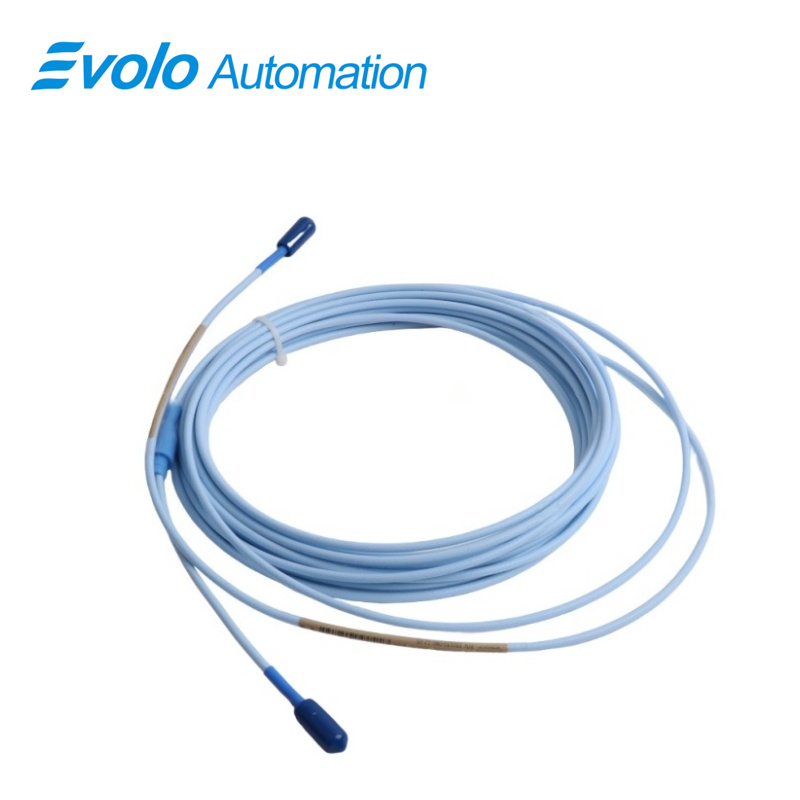

330130-080-12-CN 3300 XL Standard Extension Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330130-080-12-CN
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330130-080-12-CN 3300 XL Standard Extension Cable delivers precise signal transmission for 3300 XL 8 mm Proximity Transducer Systems in industrial automation. With an 8.0-meter (26.2 ft) FluidLoc cable and connector protector, the 330130-080-12-CN 3300 XL Standard Extension Cable maintains output resistance at 50 Ω and typical capacitance of 69.9 pF/m (21.3 pF/ft). Its 75 Q triaxial FEP insulation keeps supply sensitivity under 2 mV per volt input change. Field wiring supports 0.2–1.5 mm² (16–24 AWG) up to 305 meters (1000 ft) while preserving linear range of 2 mm (80 mils) and frequency response up to 10 kHz. The 330130-080-12-CN 3300 XL Standard Extension Cable enables accurate vibration, position, speed, and Keyphasor measurements on fluid-film bearing machines. Patented TipLoc and CableLoc features provide 330 N (75 lbf) pull strength and secure probe attachment. CSA, ATEX, and IECEx approvals allow deployment in hazardous environments. The 330130-080-12-CN 3300 XL Standard Extension Cable integrates seamlessly with 3300 XL probes and Proximitor sensors, supporting automated monitoring and long-distance signal routing without bench calibration.

Applications

Vibration Monitoring on Fluid-Film Bearings
The 330130-080-12-CN 3300 XL Standard Extension Cable connects 3300 XL probes to Proximitor sensors to measure shaft and rotor vibration with 2 mm linear range and frequency response up to 10 kHz.

Position Sensing in Rotating Equipment
Use the 330130-080-12-CN 3300 XL Standard Extension Cable to transmit precise shaft displacement signals from 3300 XL probes over field wiring up to 305 meters (1000 ft).

Speed and Keyphasor Signal Transmission
The 330130-080-12-CN 3300 XL Standard Extension Cable delivers accurate Keyphasor and rotational speed signals for turbine and generator automation, maintaining output voltage variation under 2 mV per volt.

Remote Monitoring in Hazardous Environments
CSA, ATEX, and IECEx approvals allow the 330130-080-12-CN 3300 XL Standard Extension Cable to provide safe signal transmission in explosive or high-risk areas while keeping 330 Ω cable integrity.

Specifications

Competitive Advantage

High-Accuracy Signal Transfer
The 330130-080-12-CN 3300 XL Standard Extension Cable preserves linearity, frequency response, and output voltage across long distances, supporting automated machinery monitoring.

Durable Probe Connection
Patented TipLoc and CableLoc designs secure probe attachment under 330 N (75 lbf) tension. The 330130-080-12-CN 3300 XL Standard Extension Cable prevents fluid ingress using FluidLoc cable protection.

Seamless System Integration
Fully compatible with 3300 XL probes and Proximitor sensors, the 330130-080-12-CN 3300 XL Standard Extension Cable allows plug-and-play installation and replacement without bench calibration.

Long-Distance Automation Reach
Field wiring up to 305 meters (1000 ft) preserves 2 mm linear range and 10 kHz frequency response. The 330130-080-12-CN 3300 XL Standard Extension Cable enables flexible layout and extended automation coverage.
