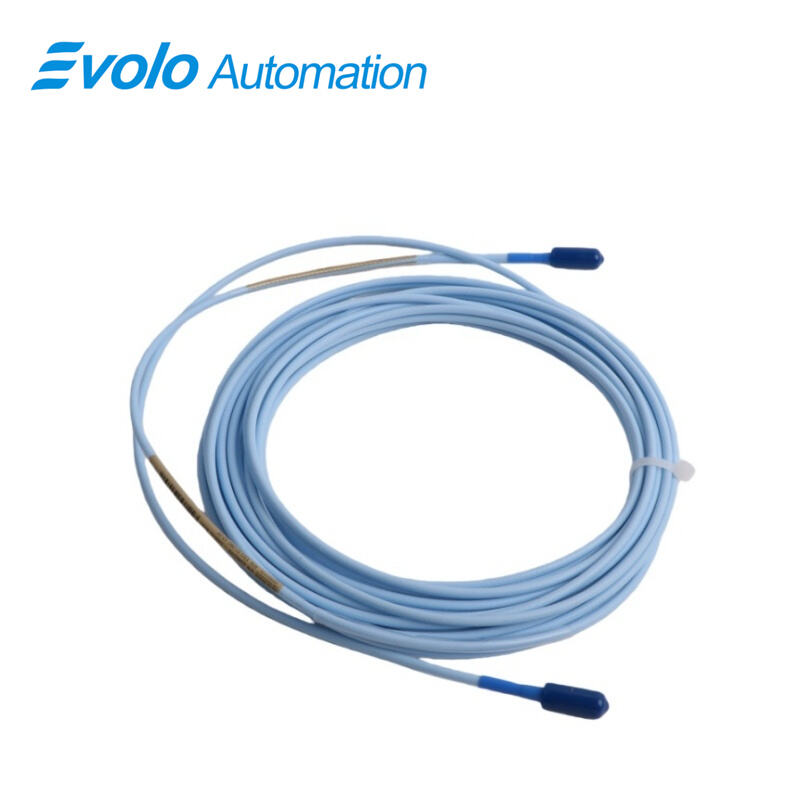

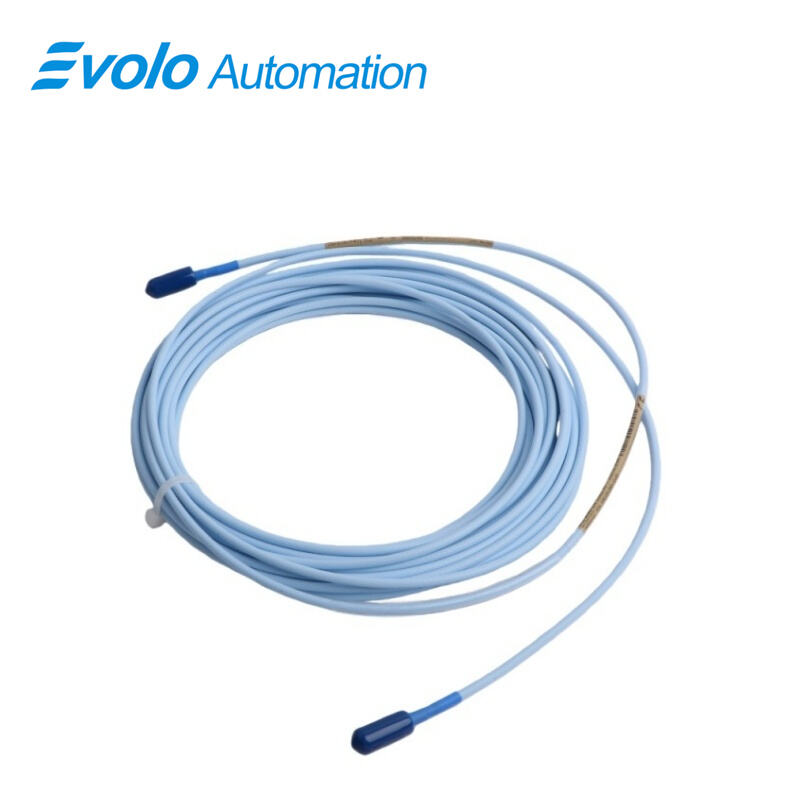

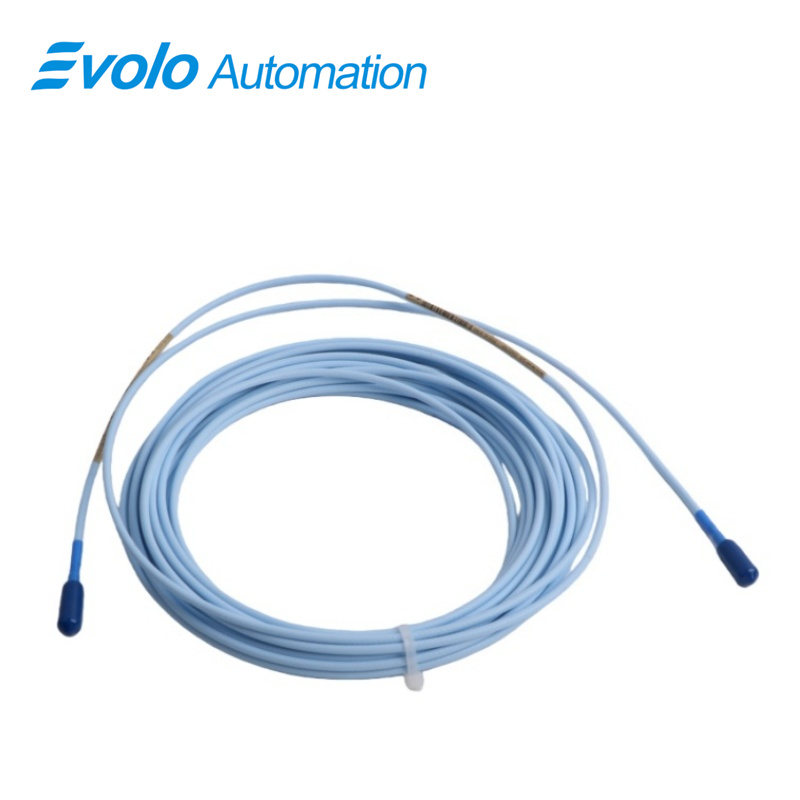

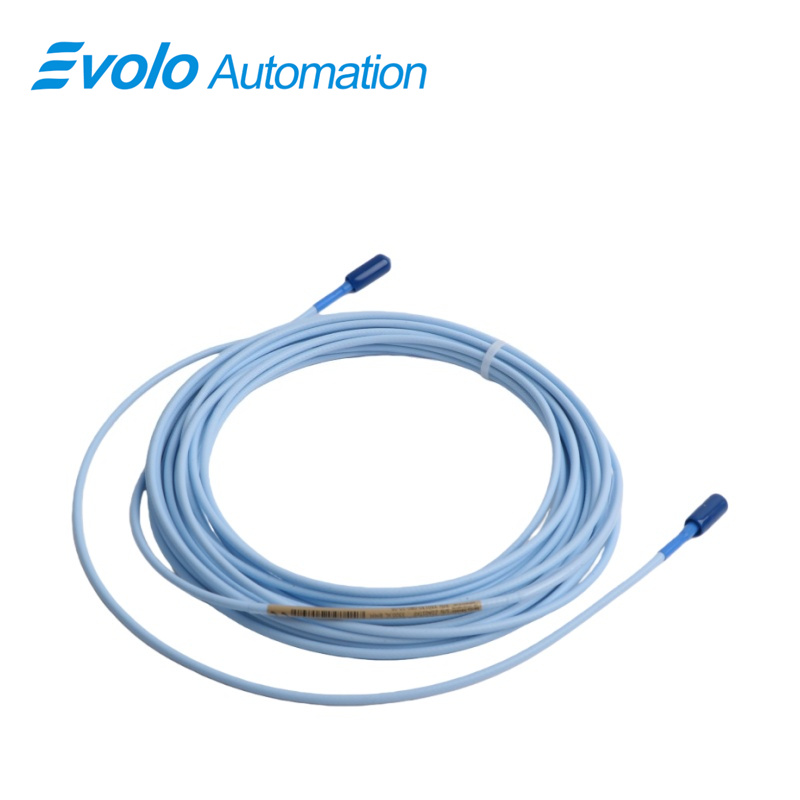

330130-080-10-05 3300 XL Standard Extension Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330130-080-10-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330130-080-10-05 3300 XL Standard Extension Cable is a high-performance signal transmission component designed specifically for the 3300 XL 8 mm Proximity Transducer System used in advanced industrial automation and machinery protection applications. Engineered to maintain precise signal integrity, this 8.0-meter extension cable ensures stable and accurate transmission between proximity probes and Proximitor sensors in vibration and position monitoring systems.

Manufactured with 75 Ω triaxial cable construction and FEP insulation, the 3300 XL extension cable offers excellent resistance to electrical noise, chemical exposure, and high-temperature environments commonly found in oil & gas, power generation, and heavy rotating machinery. With a typical capacitance of 69.9 pF/m, the cable preserves the linear response of the proximity measurement system across its 2 mm linear range, ensuring accurate displacement and vibration data acquisition.

The FluidLoc cable option integrated into this model effectively prevents oil and process fluids from migrating through the cable core, significantly improving equipment safety and long-term reliability. Certified with CSA, ATEX, and IECEx approvals, the 330130-080-10-05 extension cable is suitable for hazardous area installations while maintaining full compliance with API 670 mechanical and performance standards. Its wide operating temperature range from -52°C to +177°C allows consistent operation in extreme industrial environments, making it an essential component for automated machinery protection and condition-based maintenance systems.

Applications

Application 1: Turbine Shaft Vibration Monitoring

In steam and gas turbine automation systems, the 330130-080-10-05 extension cable supports continuous vibration signal transmission over 8.0 meters, maintaining signal stability with 69.9 pF/m capacitance, which is critical for detecting early-stage rotor imbalance and misalignment.

Application 2: Fluid-Film Bearing Position Measurement

Used in compressors and pumps with fluid-film bearings, this extension cable enables accurate axial and radial position monitoring within a 2 mm linear range, ensuring real-time feedback for automated protection systems and preventing bearing damage.

Application 3: Hazardous Area Machinery Protection

With CSA, ATEX, and IECEx approvals, the extension cable is ideal for automated monitoring systems in explosive environments such as refineries and petrochemical plants, ensuring safe signal transmission under strict compliance requirements.

Application 4: Keyphasor and Speed Reference Systems

The low-noise triaxial design supports precise phase reference and rotational speed measurements, allowing control systems to correlate vibration data with shaft speed in high-speed automated machinery.

Application 5: High-Temperature Industrial Automation Equipment

The -52°C to +177°C operating temperature range allows deployment in boilers, turbines, and enclosed machinery where thermal stability is essential for long-term automated condition monitoring.

Specifications

Competitive Advantage

Competitive Advantage 1: Superior Signal Integrity

The 75 Ω triaxial FEP-insulated cable minimizes electromagnetic interference, maintaining consistent output voltage proportionality and improving vibration data accuracy by reducing signal distortion over long distances.

Competitive Advantage 2: FluidLoc Leakage Prevention Technology

The integrated FluidLoc cable design prevents oil migration through the cable core, reducing the risk of environmental contamination and lowering maintenance costs in automated rotating equipment.

Competitive Advantage 3: Extended Mechanical Reliability

With enhanced mechanical strength and compatibility with patented CableLoc designs, the extension cable supports robust installation and resists mechanical stress in dynamic industrial environments.

Competitive Advantage 4: Wide Environmental Adaptability

Certified for operation from -52°C to +177°C, the cable maintains stable electrical characteristics across extreme temperature variations, outperforming standard industrial cables in harsh automation settings.

Competitive Advantage 5: Full System Interchangeability

The 330130-080-10-05 extension cable is fully interchangeable within the 3300 XL 8 mm transducer system, eliminating calibration requirements and simplifying automated system upgrades while maintaining API 670 compliance.
