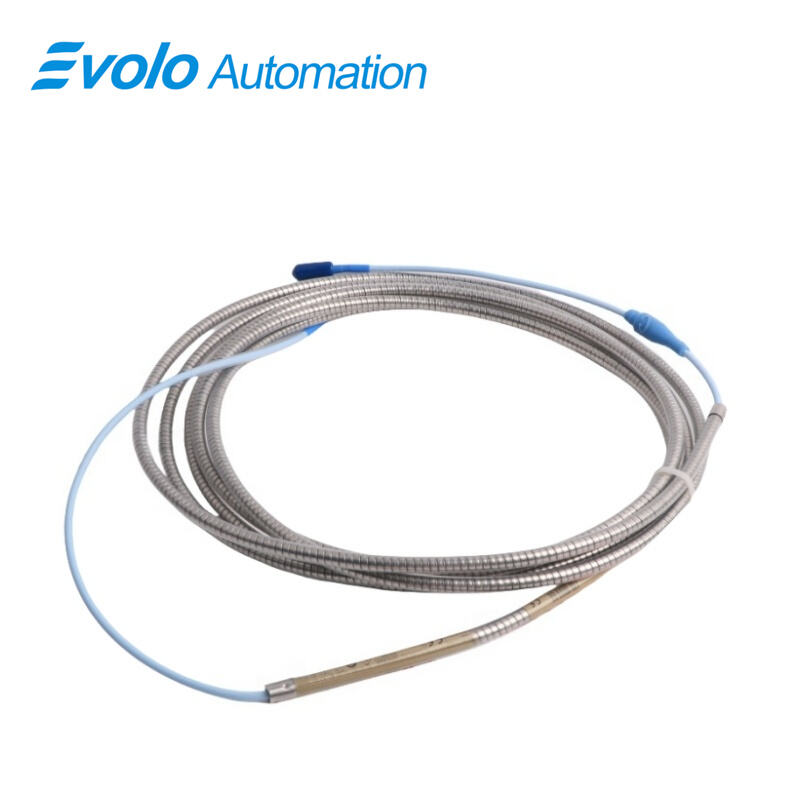

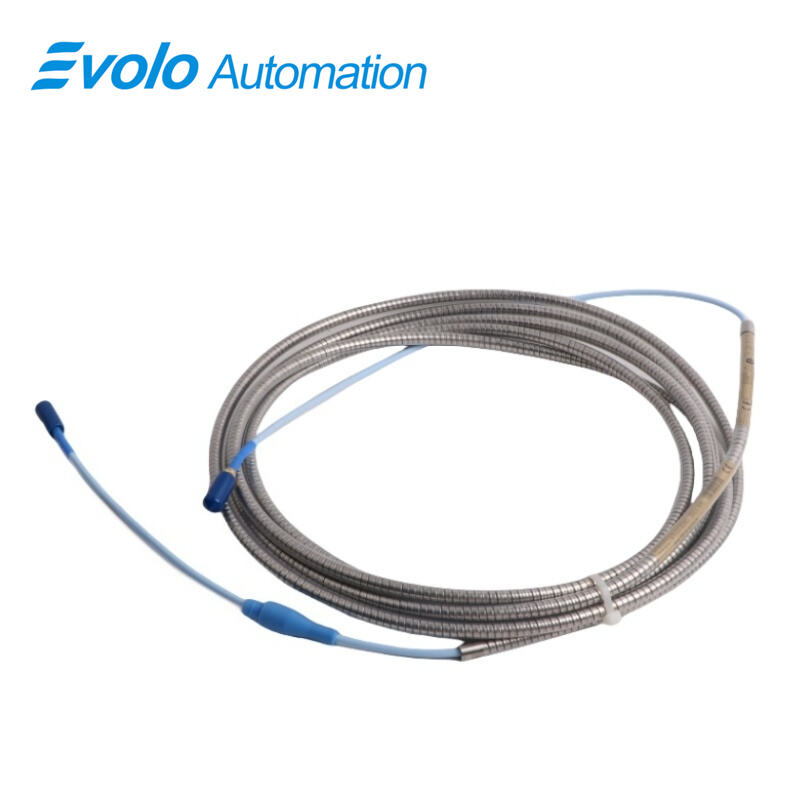

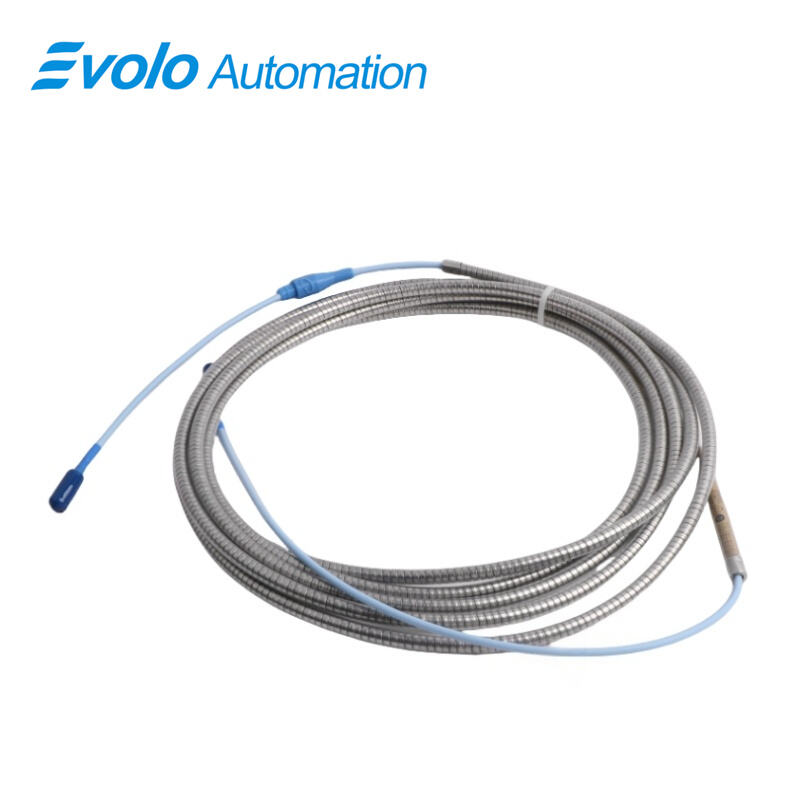

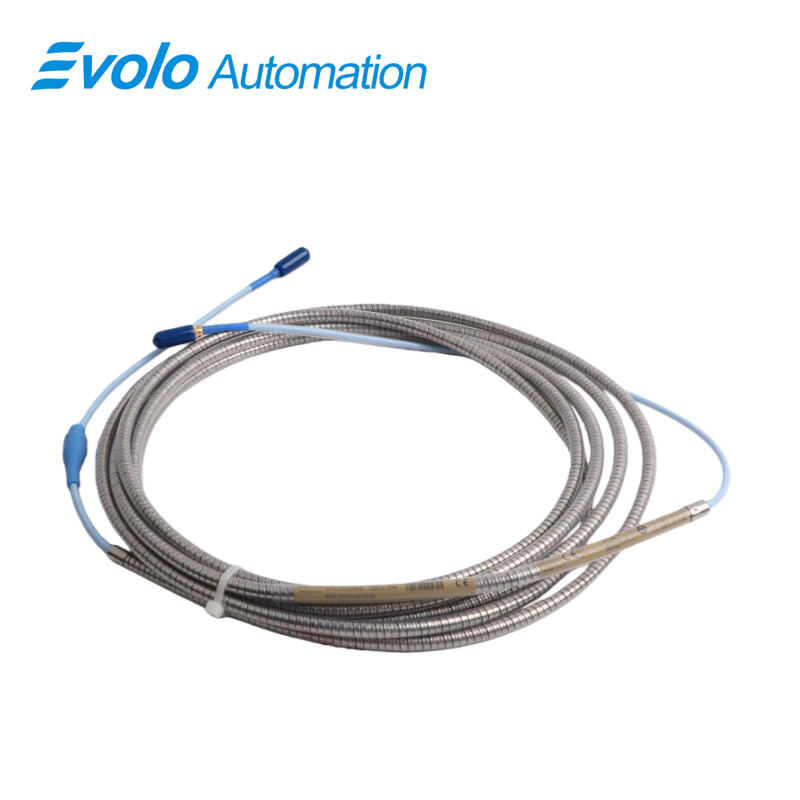

330130-040-11-05 3300 XL Standard Extension Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330130-040-11-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330130-040-11-05 3300 XL Standard Extension Cable is a high-performance accessory specifically engineered for the 3300 XL 8 mm Proximity Transducer System, enabling precise position and vibration measurements in industrial automation environments. With a cable length of 4.5 meters (14.8 feet), this extension cable provides flexible routing and installation options while maintaining optimal signal fidelity. Constructed with armored FluidLoc protection, the cable resists mechanical damage and prevents fluid leakage, making it ideal for harsh operating conditions. The cable’s 75 Q triaxial, FEP insulation ensures excellent noise immunity and low capacitance of 69.9 pF/m (21.3 pF/ft), supporting frequency response up to 10 kHz over long field wiring distances of up to 305 meters (1000 feet).

Engineered for precision, the extension cable maintains less than 2 mV change in output voltage per volt change in input voltage and features an output resistance of 50 Ω, guaranteeing accurate signal transmission for both static (position) and dynamic (vibration) measurements. Its compact dimensions (28x26x2 cm) and lightweight design (0.5 kg) simplify installation in confined spaces, while the linear range of 2 mm (80 mils) and minimum target size of 15.2 mm (0.6 in) enable reliable proximity detection. Compatible with field wiring from 0.2 to 1.5 mm² (16 to 24 AWG), this extension cable fully supports the interchangeable modularity of the 3300 XL system, eliminating the need for component-specific calibration.

Approved under CSA, ATEX, and IECEx standards, the 330130-040-11-05 extension cable meets international safety requirements for industrial automation and hazardous area applications. Its patented TipLoc probe molding and CableLoc connector design provide enhanced mechanical robustness, ensuring secure attachment of probes under high vibration and mechanical stress. This extension cable, when paired with the 3300 XL 8 mm proximity transducer, delivers superior reliability, durability, and precision for advanced machinery monitoring, predictive maintenance, and critical condition measurement in fluid-film bearing machines, turbines, and other high-speed industrial equipment.

Applications

The 330130-040-11-05 3300 XL Standard Extension Cable is engineered for high-precision vibration and position monitoring in industrial machinery. It is specifically designed for use with the 3300 XL 8 mm Proximity Transducer System, allowing measurements of both static positions and dynamic vibrations on fluid-film bearing machines. The cable’s 4.5-meter length (14.8 feet) provides flexible installation distances, while the armored FluidLoc construction ensures protection in harsh environments. Its triaxial FEP insulation and low extension cable capacitance of 69.9 pF/m (21.3 pF/ft) enable reliable signal transmission with minimal interference over long runs, supporting frequency responses up to 10 kHz with up to 305 meters (1000 feet) of field wiring. The system’s compliance with API 670 standards ensures accurate linear measurements within 2 mm (80 mils) and high sensitivity (less than 2 mV change per volt of input variation), making it ideal for critical machinery monitoring, Keyphasor speed measurements, and predictive maintenance applications.

Specifications

Competitive Advantage

The 330130-040-11-05 extension cable offers several key advantages over standard industrial cabling solutions. Its CSA, ATEX, and IECEx approvals make it suitable for hazardous and explosive environments. The patented TipLoc probe molding and CableLoc connector design enhance mechanical robustness, providing a pull strength of 330 N (75 lbf) and preventing probe or cable disconnection under high-vibration conditions. The optional FluidLoc cable prevents fluid leakage through the cable interior, ensuring operational safety and reducing maintenance costs. Additionally, full backward compatibility with other 3300 series probes and Proximitor sensors eliminates the need for recalibration or custom matching, reducing downtime and simplifying inventory management. Combined with its precise electrical characteristics—output resistance of 50 Ω, linear range of 2 mm, and support for field wiring from 0.2 to 1.5 mm² (16–24 AWG)—this extension cable ensures optimal signal integrity, reliability, and versatility in demanding industrial monitoring applications.
