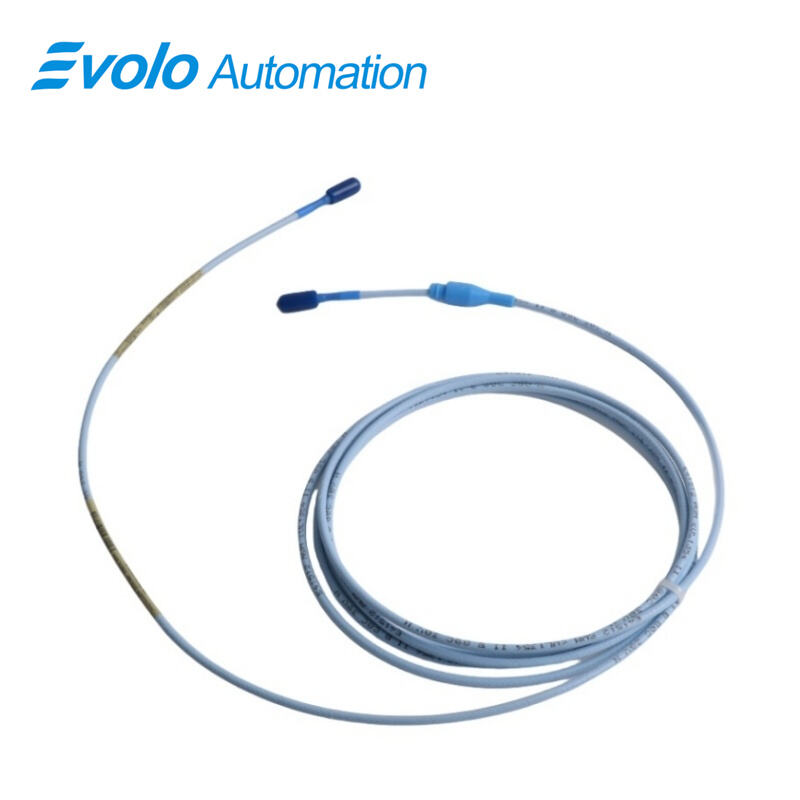

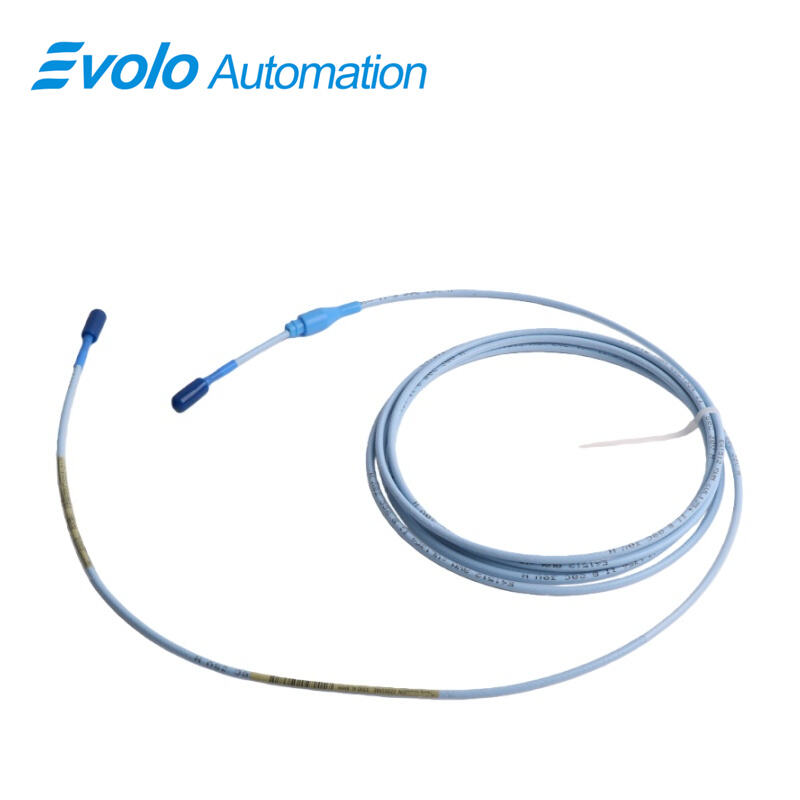

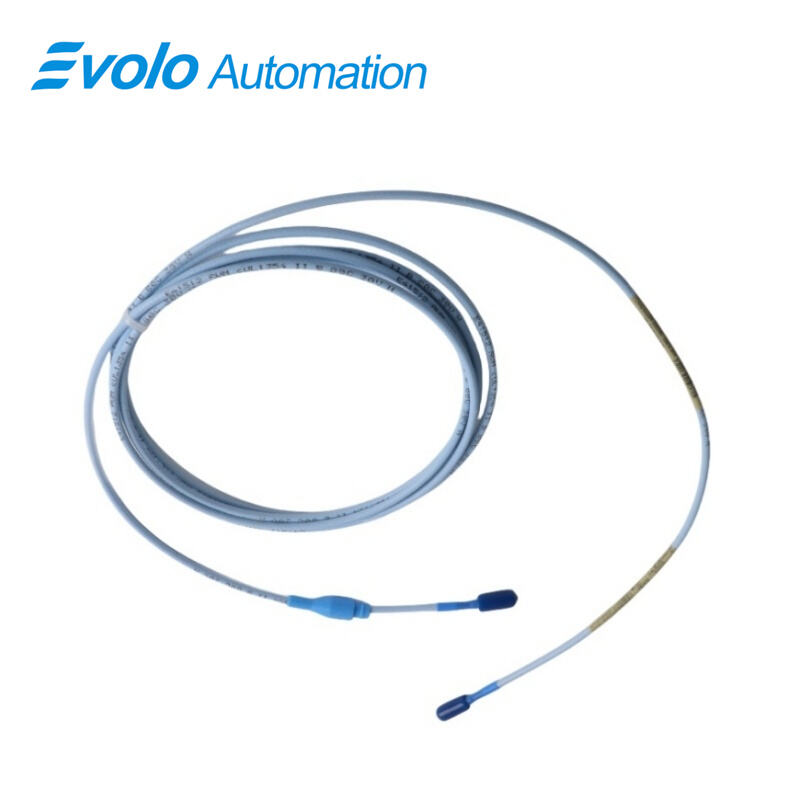

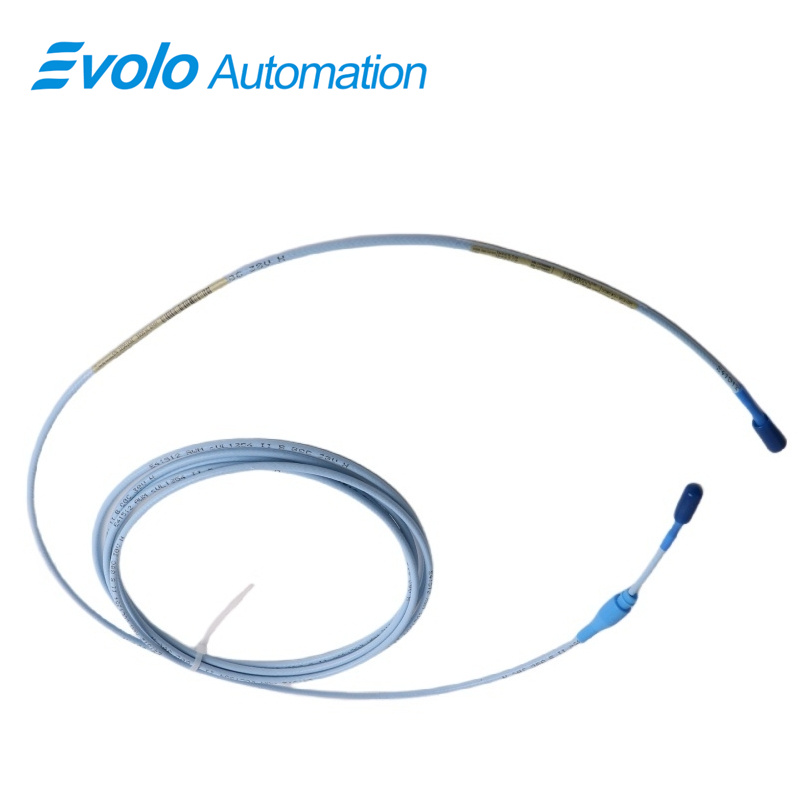

330130-030-02-05 3300 XL Standard Extension Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330130-030-02-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330130-030-02-05 3300 XL Standard Extension Cable is a 3.0-meter (9.8 feet) triaxial cable with FEP insulation and a standard connector protector, designed for use with the 3300 XL 8 mm Proximity Transducer System. The 330130-030-02-05 3300 XL Standard Extension Cable supports field wiring from 0.2 to 1.5 mm² (16–24 AWG) and delivers a linear range of 2 mm (80 mils) with an output resistance of 50 Ω. With capacitance of 69.9 pF/m (21.3 pF/ft) and frequency response of 0–10 kHz over up to 305 meters (1000 feet) of field wiring, the 330130-030-02-05 3300 XL Standard Extension Cable ensures accurate position and vibration signals. Minimum target detection is 15.2 mm (0.6 in), and supply sensitivity remains under 2 mV per volt input. Agency approvals include CSA, ATEX, and IECEx. The 330130-030-02-05 3300 XL Standard Extension Cable enables secure and precise connection between probes and Proximitor sensors in automated monitoring systems.

Applications

Extend probe signals over long distances
The 330130-030-02-05 3300 XL Standard Extension Cable allows accurate transmission of vibration and position signals up to 305 meters (1000 feet) from the 3300 XL 8 mm Proximity Probe to Proximitor sensors.

Measure machine shaft vibration
Use the 330130-030-02-05 3300 XL Standard Extension Cable with 0.2–1.5 mm² field wiring to transmit probe outputs without signal loss, enabling the monitoring of turbine, pump, and compressor vibration.

Transmit Keyphasor signals for speed analysis
The 330130-030-02-05 3300 XL Standard Extension Cable maintains a frequency response from 0–10 kHz and output resistance of 50 Ω, supporting precise Keyphasor signals for rotational speed measurement in automated systems.

Monitor small targets in tight spaces
With minimum detectable target size of 15.2 mm (0.6 in) and a linear range of 2 mm, the 330130-030-02-05 3300 XL Standard Extension Cable supports high-resolution measurements in compact or restricted machinery areas.

Specifications

Competitive Advantage

Maintain accurate signals under variable supply
The 330130-030-02-05 3300 XL Standard Extension Cable delivers less than 2 mV change in output per volt change in supply, ensuring precise data transmission from 3300 XL 8 mm Proximity Probes.

Support approved industrial environments
With CSA, ATEX, and IECEx certifications, the 330130-030-02-05 3300 XL Standard Extension Cable can be installed safely in hazardous locations, extending probe signals while meeting global regulatory standards.

Prevent mechanical damage with connector protector
The standard connector protector on the 330130-030-02-05 3300 XL Standard Extension Cable protects connections from pulling or bending forces, securing probe connections in automated monitoring setups.

Transmit signals over long wiring runs without degradation
The 330130-030-02-05 3300 XL Standard Extension Cable with 69.9 pF/m capacitance ensures linear response and minimal signal loss for distances up to 305 meters, allowing flexible sensor placement in industrial facilities.

Integrate with 3300 XL system components
The 330130-030-02-05 3300 XL Standard Extension Cable works seamlessly with 3300 XL 8 mm Proximity Probes and Proximitor sensors, enabling quick setup and consistent signal transfer without additional calibration.
