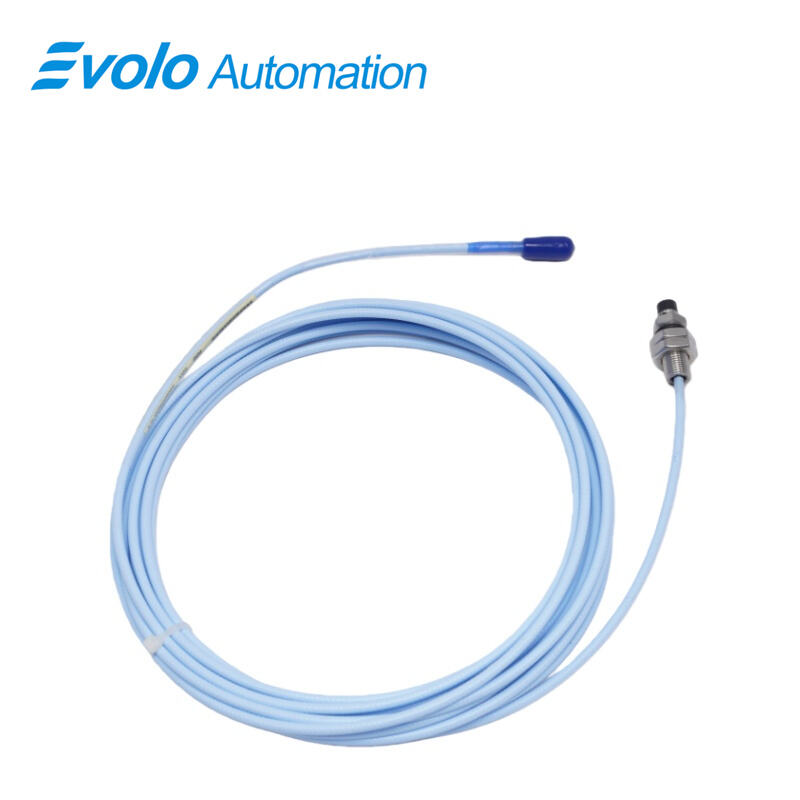

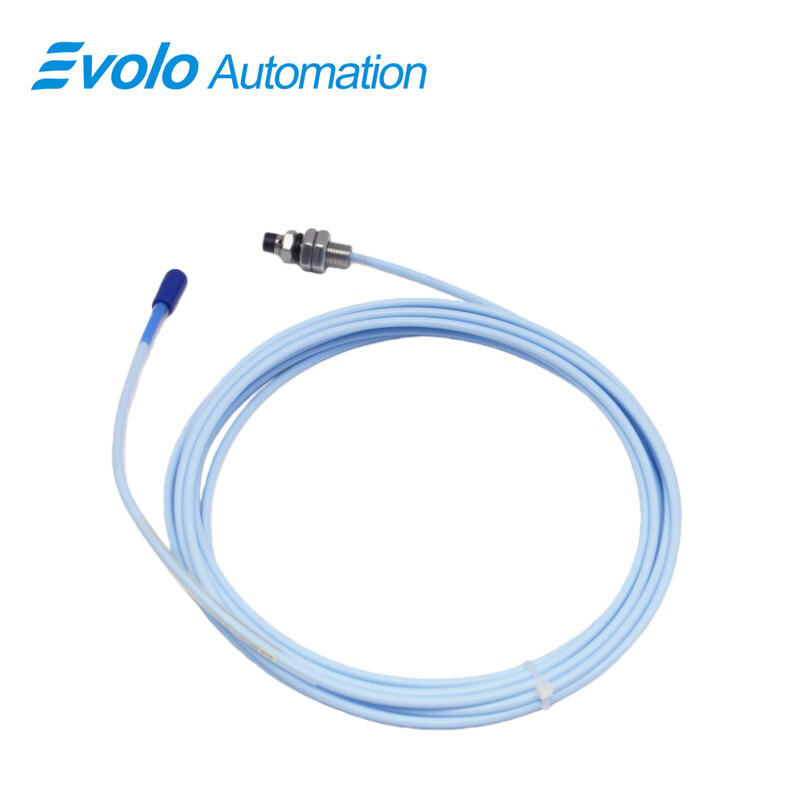

330106-05-30-50-02-00 3300 XL 8 mm Reverse Mount Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330106-05-30-50-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330106-05-30-50-02-00 3300 XL 8 mm Reverse Mount Probe is a high-precision component in the Bently Nevada 3300 XL series, specifically engineered for industrial automation and machinery monitoring. Designed for tight installation spaces, this reverse mount probe ensures reliable measurement of radial vibration and axial position on fluid-film bearing machines, compressors, turbines, and pumps. The probe outputs a voltage directly proportional to the gap between the probe tip and the conductive target, supporting both static and dynamic measurements. With a total length of 5.0 meters (16.4 feet) and M10 x 1 threaded mounting, the probe can be easily installed in compact machinery housings. Constructed from AISI 303/304 stainless steel and equipped with a polyphenylene sulfide (PPS) tip, the 3300 XL Reverse Mount Probe delivers outstanding chemical and thermal resistance across an operating range of -52°C to +177°C (-62°F to +350°F). Its 2 mm (80 mils) linear range and patented TipLoc molding ensure robust mechanical bonding, while the CableLoc design provides 330 N (75 lbf) pull strength, securing the connection between the probe cable and the probe body. Optional FluidLoc cable configuration prevents oil or liquids from escaping through the cable, making this probe ideal for demanding automation environments requiring high reliability, minimal maintenance, and consistent data for condition monitoring and process control.

Applications

1. Centrifugal Compressor Vibration Monitoring
The reverse mount design allows installation in tight compressor housings while maintaining accurate radial vibration measurements up to 2 mm linear range.

2. Turbine Shaft Axial Position Measurement
Supports precise axial (thrust) position detection on turbine shafts smaller than 51 mm (2 in) in constrained side-view environments.

3. Pump Condition Monitoring
Enables continuous monitoring of small pumps in process automation systems, ensuring early detection of misalignment or imbalance.

4. Keyphasor and Speed Measurement
Provides reference signals for Keyphasor systems and speed monitoring in automated control loops for turbines, compressors, or motors.

5. Retrofit Upgrades in OEM Machinery
Mechanically compatible with older 3300 and non-XL probes, allowing seamless upgrades in OEM automation without recalibration of existing Proximitor sensors.

Specifications

Competitive Advantage

1. Reverse Mount Capability
Designed for installations with counter bore or rear-view restrictions, enabling measurement in tight or confined automation spaces.

2. Enhanced Mechanical Durability
TipLoc molding and CableLoc designs provide robust mechanical bonding and 330 N pull strength, reducing maintenance and failure risk in industrial environments.

3. Extended Temperature and Chemical Resistance
Constructed with PPS tip and stainless steel casing, the probe operates reliably from -52°C to +177°C, resistant to process fluids and harsh chemicals.

4. Backward Compatibility
Interchangeable with previous 3300 series probes and extension cables, reducing upgrade costs and downtime in existing automation systems.

5. Optional FluidLoc Feature
Prevents leakage of oil or other liquids through the cable interior, enhancing reliability in lubricated machinery and reducing contamination risk for automated sensors.
