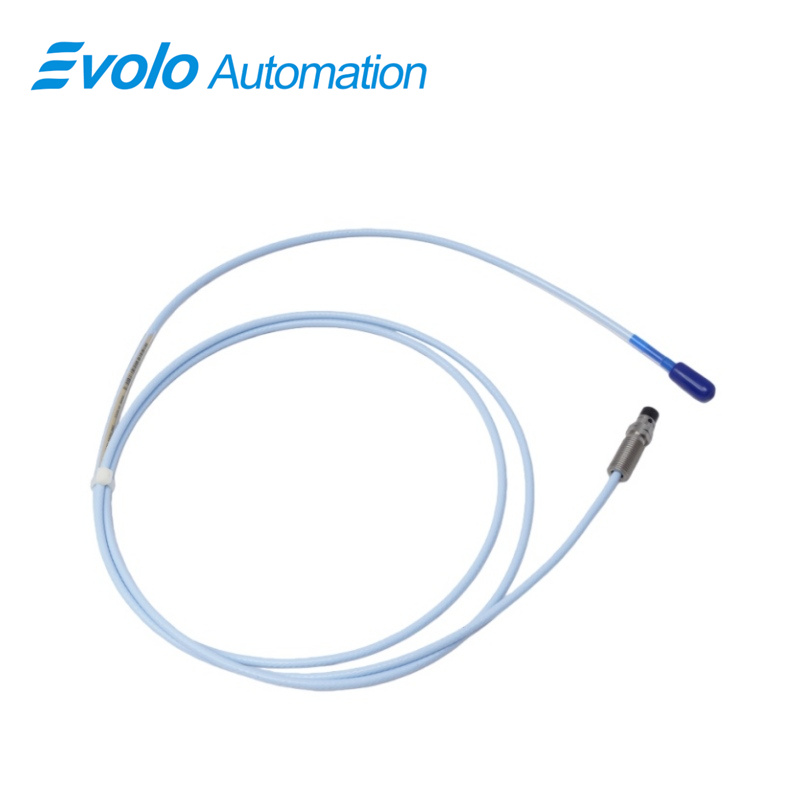

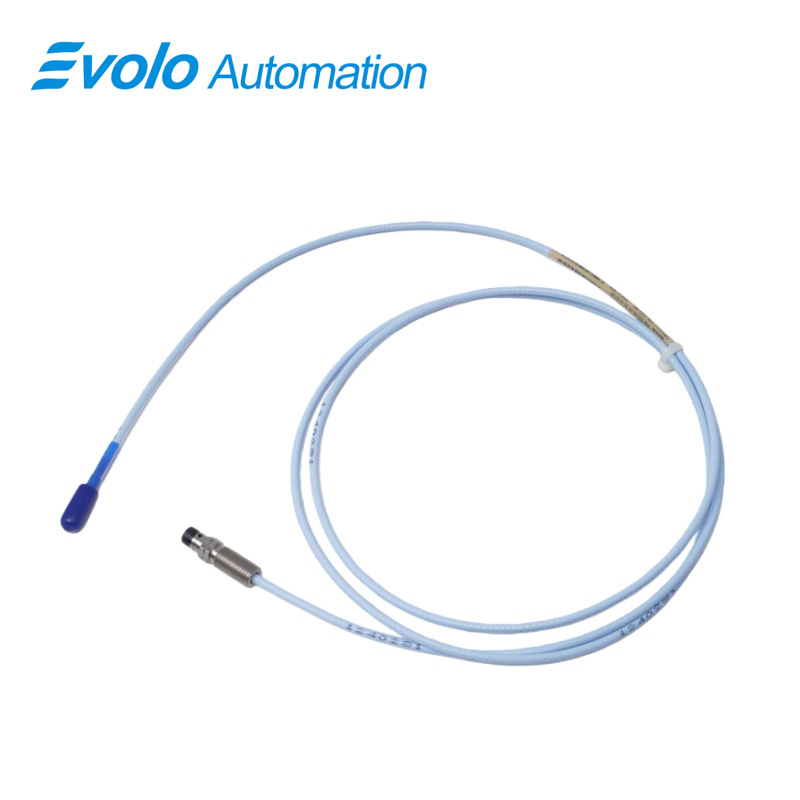

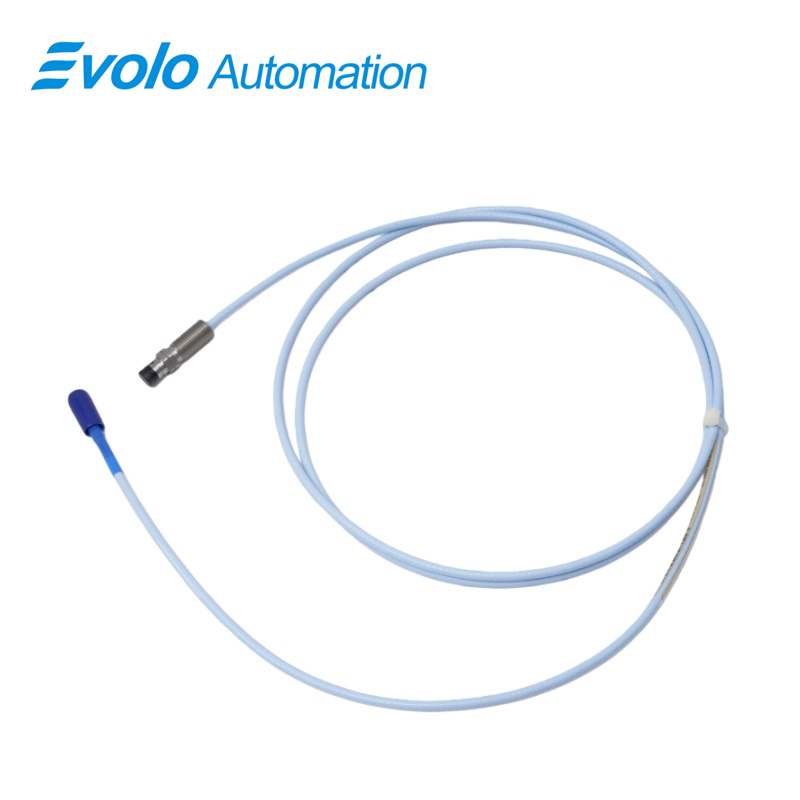

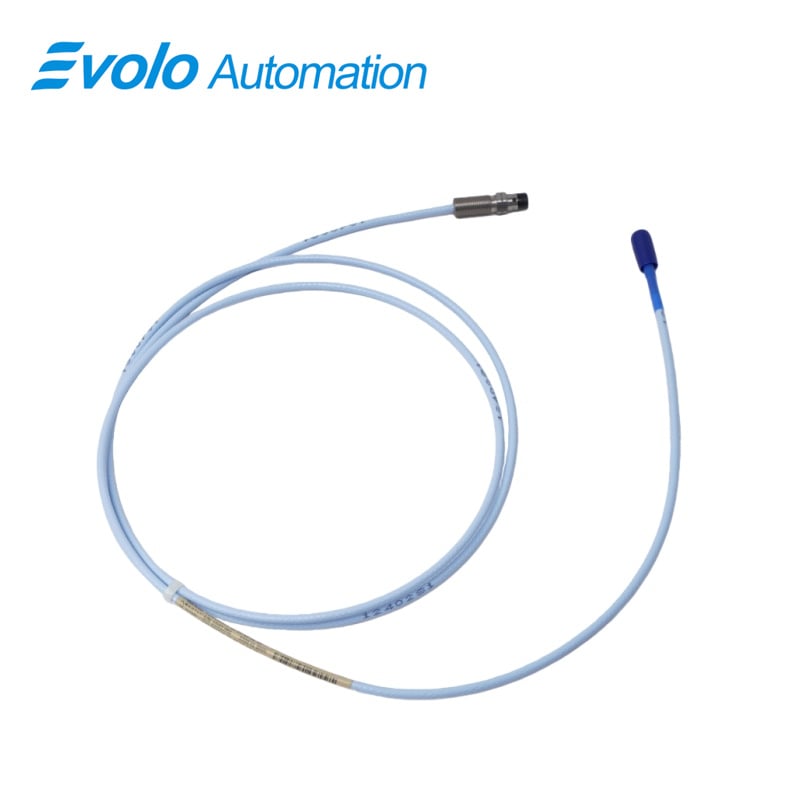

330106-05-30-15-02-00 3300 XL 8 mm Reverse Mount Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330106-05-30-15-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330106-05-30-15-02-00 3300 XL 8 mm Reverse Mount Probe is designed for automated rotating machinery that requires accurate non-contact measurement of shaft position and vibration. The 330106-05-30-15-02-00 uses eddy current sensing to convert the distance between the probe tip and a conductive target into a proportional voltage signal, supporting real-time data input for control and protection systems.

With a linear range of 2 mm (80 mils), the 330106-05-30-15-02-00 captures small shaft movements generated by imbalance, thrust load, or thermal expansion. The reverse mount structure and M10 × 1 stainless-steel threaded probe case allow up to 15 mm of thread engagement, supporting installation in compact bearing housings commonly found in automated compressors, pumps, and turbines. A total probe length of 1.5 meters enables direct routing to monitoring modules without additional extension cables.

The 330106-05-30-15-02-00 operates across a temperature range of –52°C to +177°C, supporting use near hot bearings and enclosed machine zones. The Polyphenylene sulfide probe tip maintains controlled spacing near the shaft surface, while the Miniature ClickLoc coaxial connector supports secure signal transmission. The 330106-05-30-15-02-00 is suited for automation systems where agency approvals are not required, focusing on direct measurement performance within industrial environments.

Applications

Radial Shaft Vibration Measurement on Pumps

The 330106-05-30-15-02-00 is reverse mounted adjacent to pump shafts to capture radial vibration within a defined linear range of 2 mm (80 mils). By maintaining a controlled probe-to-shaft gap, the 330106-05-30-15-02-00 converts micrometer-level shaft movement into a proportional voltage signal for automated monitoring systems. The M10 × 1 threaded probe case allows up to 15 mm of thread engagement, enabling accurate placement inside compact pump bearing housings where axial space is limited.

Axial Displacement Monitoring on Compressors

In centrifugal and axial compressors, the 330106-05-30-15-02-00 tracks axial shaft movement caused by thrust load variation. Operating from –52°C to +177°C, the 330106-05-30-15-02-00 can be installed near hot thrust bearings without signal interruption. The Polyphenylene sulfide probe tip supports close clearance measurement across the full 2 mm range, allowing automation logic to react to thrust position changes in real time.

Speed Pulse Input for PLC and DCS Systems

The 330106-05-30-15-02-00 detects changes in shaft surface geometry to generate reference pulses for speed calculation. The 1.5 meter integrated cable of the 330106-05-30-15-02-00 allows direct routing to Proximitor sensors or control cabinets, reducing signal loss caused by additional connectors. The Miniature ClickLoc coaxial connector supports secure electrical contact under continuous vibration.

Specifications

Competitive Advantage

Reverse Mount Geometry for Confined Bearing Zones

The 330106-05-30-15-02-00 reverse mount structure supports installation behind bearing housings where front access is restricted. The M10 × 1 stainless-steel probe case and 15 mm maximum engagement depth allow controlled insertion without interfering with shaft rotation or lubrication paths.

Wide Thermal Operating Window Near Rotating Parts

With an operating and storage range of –52°C to +177°C, the 330106-05-30-15-02-00 remains functional during cold start conditions and high-temperature steady operation. This range supports deployment in enclosed machinery where localized heat exceeds standard sensor limits.

Extended Cable Length for Direct Signal Routing

The 330106-05-30-15-02-00 includes a 1.5 meter cable, reducing the need for extension cables in automated layouts. This length supports cleaner routing from the probe location to monitoring electronics while maintaining signal integrity.

Probe Tip Material for Close Target Spacing

The Polyphenylene sulfide probe tip on the 330106-05-30-15-02-00 supports controlled spacing near conductive targets across the full 2 mm measurement range. This material allows the 330106-05-30-15-02-00 to operate in oil-exposed bearing environments without dimensional deformation.
