330106-05-30-10-12-00 3300 XL 8 mm Reverse Mount Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330106-05-30-10-12-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

330106-05-30-10-12-00 3300 XL 8 mm Reverse Mount Probe is designed for automated vibration and position monitoring in fluid-film bearing machinery where reverse mounting is required. 330106-05-30-10-12-00 provides a 2 mm (80 mils) linear measurement range, delivering output voltage proportional to probe-to-target distance for both static and dynamic readings in automation systems.

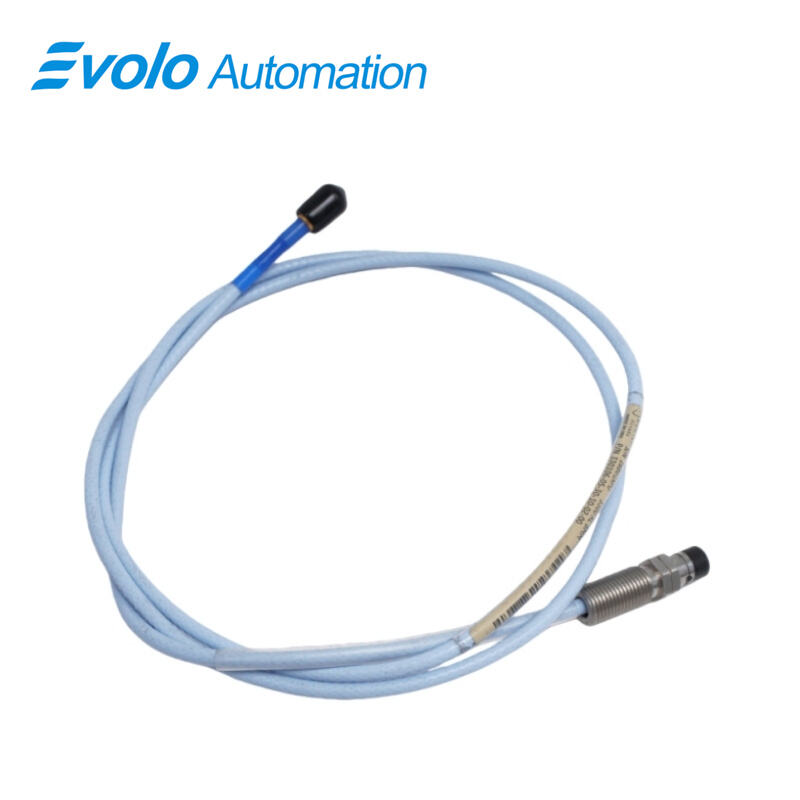

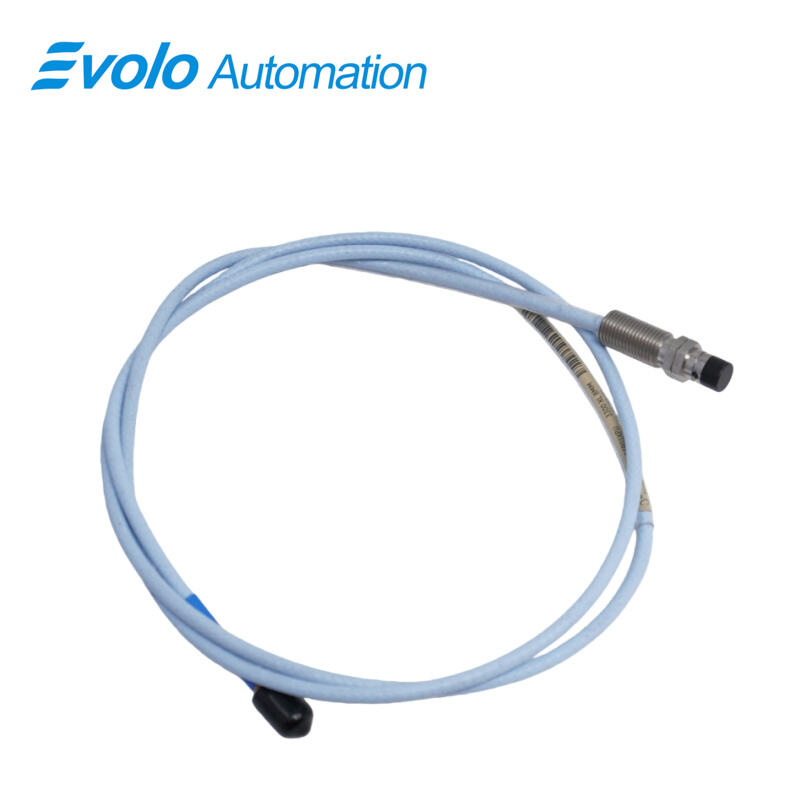

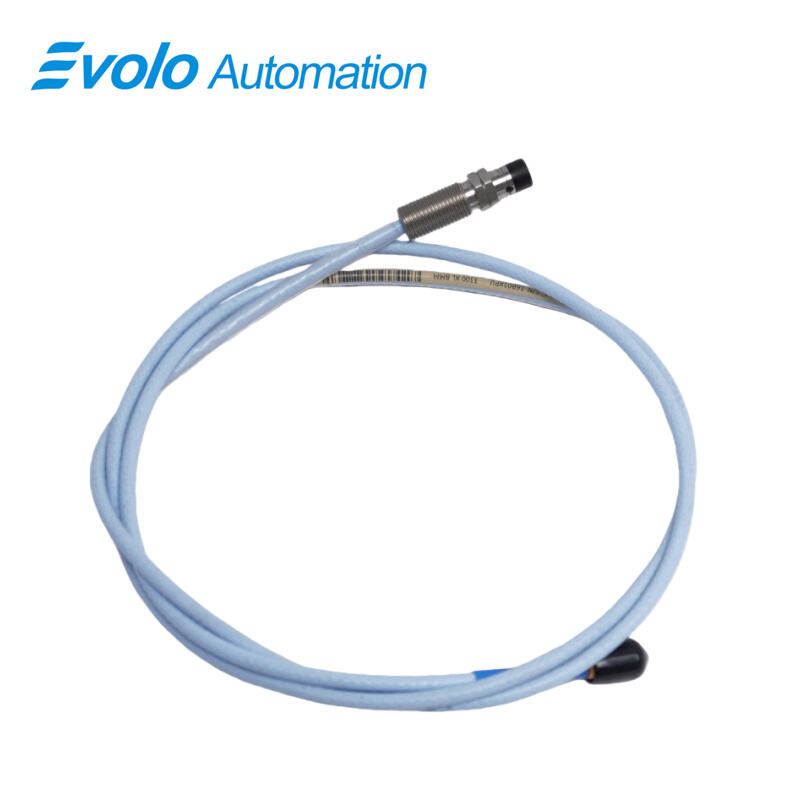

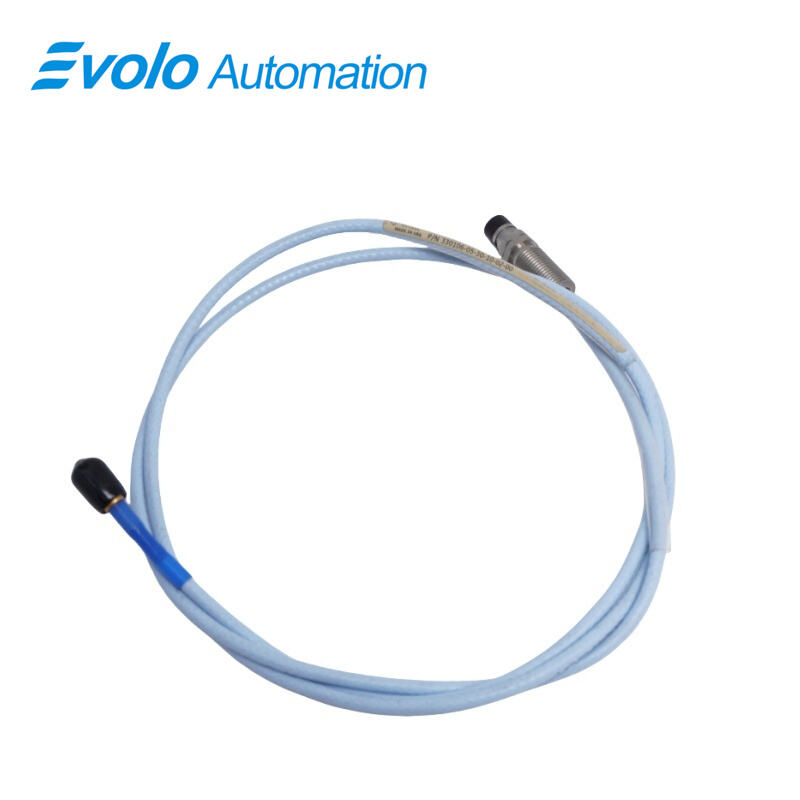

The 330106-05-30-10-12-00 probe has a 1.0-meter FluidLoc cable with miniature ClickLoc coaxial connector, M10x1 threaded case with 15 mm maximum engagement, and polyphenylene sulfide probe tip inside AISI 303/304 stainless steel case. Patented TipLoc and CableLoc designs provide 330 N (75 lbf) pull strength to secure the probe tip and cable in high-vibration industrial environments.

Operating from −52°C to +177°C, 330106-05-30-10-12-00 ensures reliable data transmission through field wiring of 16–24 AWG (0.2–1.5 mm²). The probe supports Keyphasor reference, rotor speed, axial position, and shaft vibration measurements, making 330106-05-30-10-12-00 ideal for real-time automation, condition monitoring, and performance optimization of rotating machinery in turbines, pumps, and compressors.

Applications

Measure Shaft Vibration in Reverse-Mount Installations
The 330106-05-30-10-12-00 3300 XL 8 mm Reverse Mount Probe captures radial and axial shaft vibrations on turbines, pumps, and compressors. Its 2 mm (80 mils) linear range and output proportional to probe-to-target distance allow automation systems to detect rotor imbalance and misalignment.

Monitor Axial Shaft Position
330106-05-30-10-12-00 transmits precise axial displacement signals from fluid-film bearings to PLCs or DCS systems. The 1.0-meter FluidLoc cable with ClickLoc coaxial connector and M10x1 thread ensures secure installation in confined or reverse-mount applications.

Provide Keyphasor Reference and Speed Signals
The 330106-05-30-10-12-00 probe supports rotor speed and phase reference measurement for automated monitoring and control. Its 50 Ω output resistance and <2 mV/V supply sensitivity maintain consistent signal transmission over 16–24 AWG field wiring.

Operate in Harsh Industrial Conditions
330106-05-30-10-12-00 works reliably from −52°C to +177°C with a polyphenylene sulfide tip and AISI 303/304 stainless steel case, suitable for high-temperature rotating equipment monitoring.

Specifications

Competitive Advantage

Secure Probe Tip and Cable Attachment
330106-05-30-10-12-00 uses patented TipLoc and CableLoc designs, providing 330 N (75 lbf) pull strength, ensuring probe tip and cable remain attached in high-vibration reverse-mount installations.

Accurate and Consistent Signal Transmission
The 330106-05-30-10-12-00 probe maintains precise output across field wiring lengths up to 1.0 meter, leveraging 50 Ω output resistance and <2 mV/V supply sensitivity for reliable automation readings.

Quick and Flexible Installation
330106-05-30-10-12-00 features a miniature ClickLoc coaxial connector with protector, simplifying installation in tight reverse-mount spaces without special tools.

Supports Full Automation Monitoring
330106-05-30-10-12-00 delivers both static (position) and dynamic (vibration) measurements for real-time rotor monitoring, Keyphasor reference, and speed measurement, enabling automated control and protection of rotating machinery.
