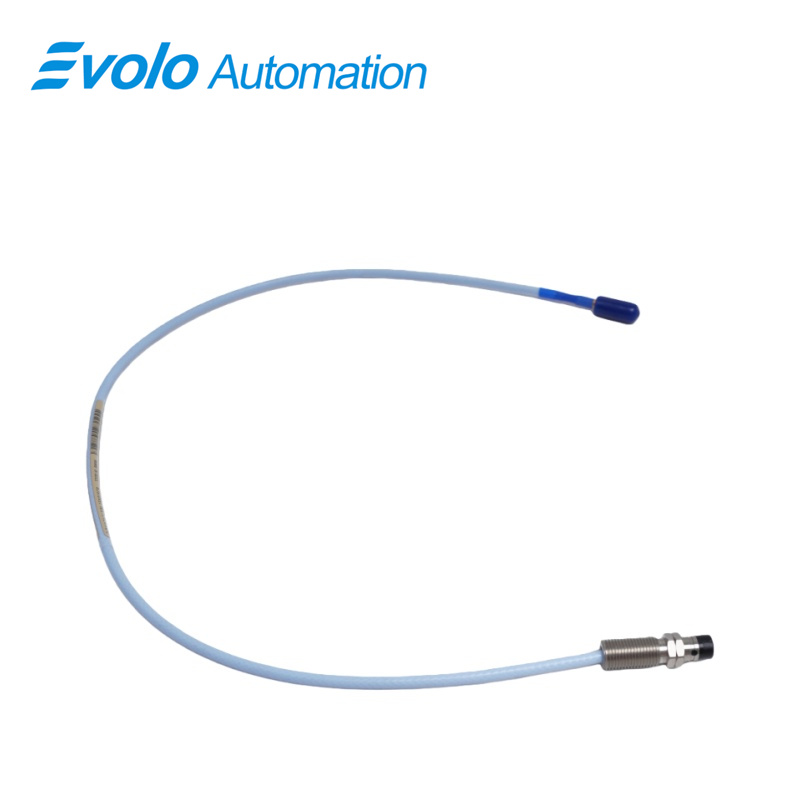

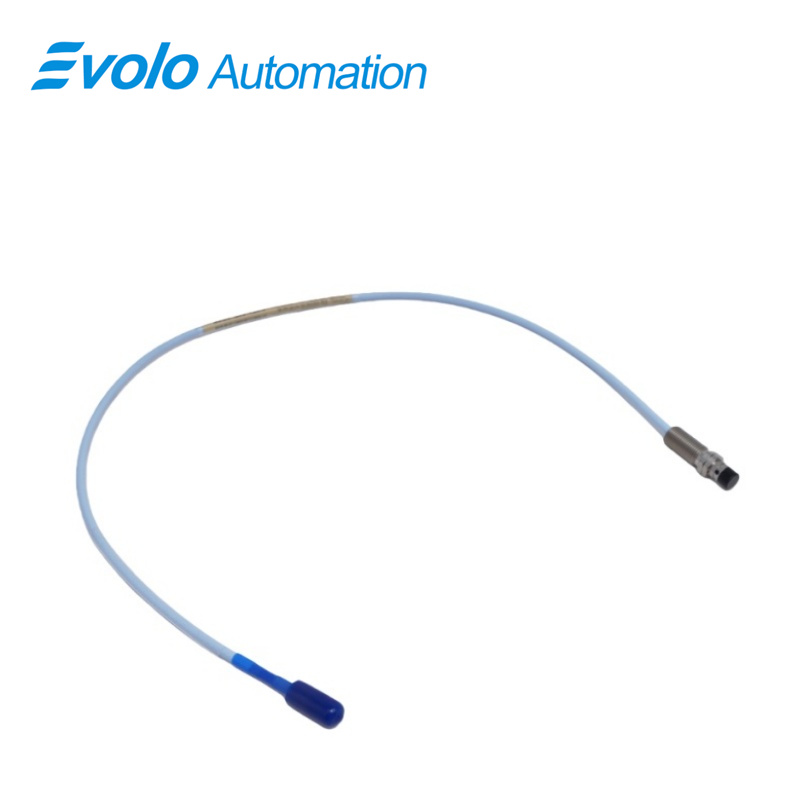

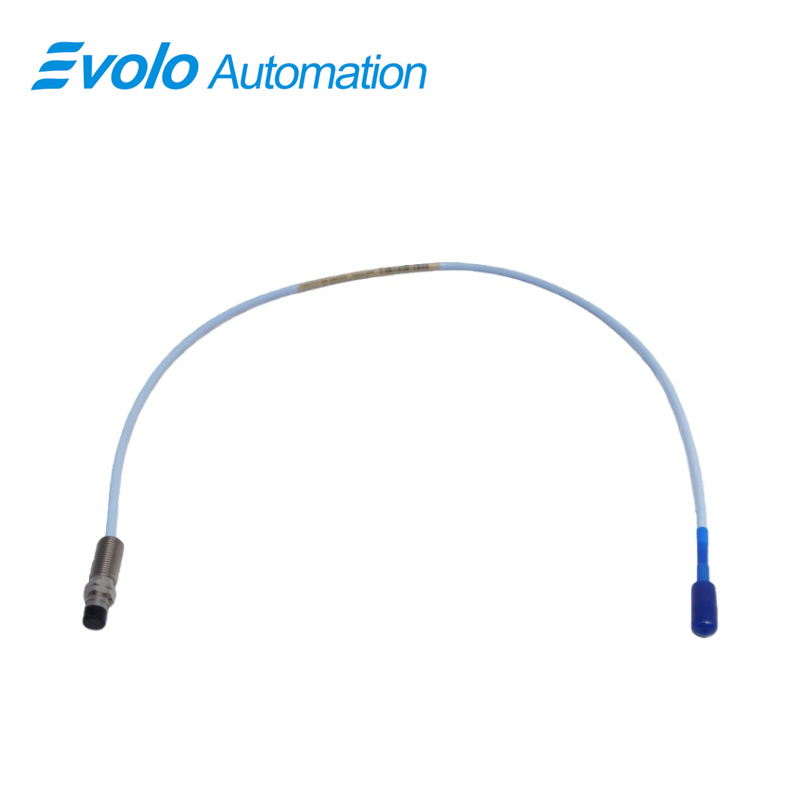

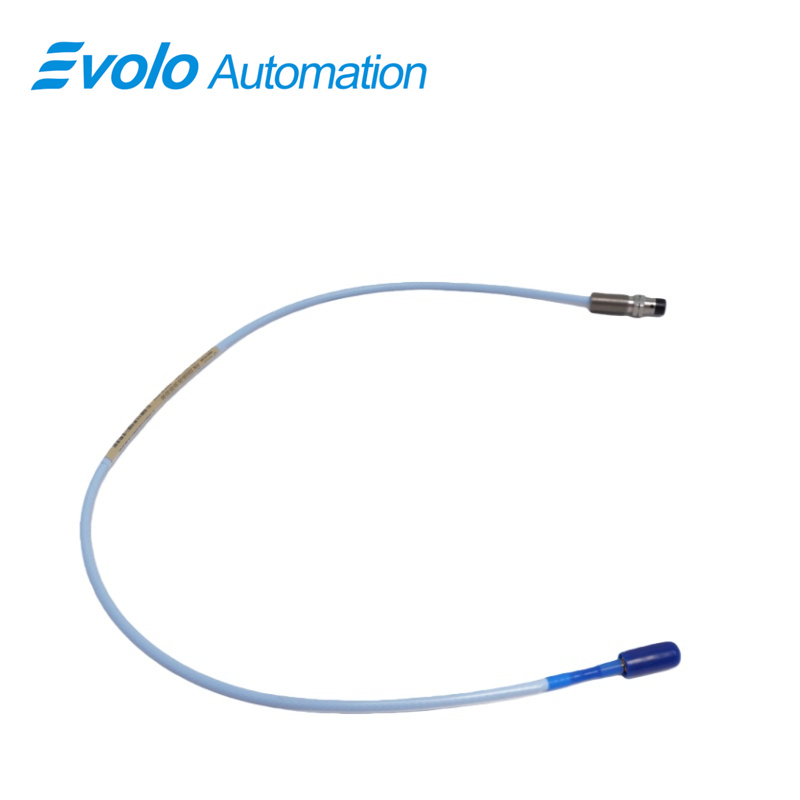

330106-05-30-05-02-CN 3300 XL 8 mm Reverse Mount Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330106-05-30-05-02-CN
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330106-05-30-05-02-CN 3300 XL 8 mm Reverse Mount Probe outputs voltage directly proportional to the distance between its probe tip and the measured conductive surface, enabling both static (position) and dynamic (vibration) monitoring. It features a 0.5-meter total length, M10 x 1 threaded case, 15 mm maximum thread engagement, and 2 mm (80 mils) linear range for precise measurements in confined spaces. The miniature ClickLoc coaxial connector supports 0.2–1.5 mm² (16–24 AWG) field wiring, while the polyphenylene sulfide tip and AISI 303/304 stainless steel case ensure durability from –52°C to +177°C (–62°F to +350°F). Certified with CSA, ATEX, and IECEx approvals, the 330106-05-30-05-02-CN 3300 XL 8 mm Reverse Mount Probe integrates seamlessly with DCS, PLC, and Keyphasor systems for automated vibration detection, shaft position tracking, and speed measurement. Optional FluidLoc cable prevents oil or liquid leakage along the probe path, maintaining accurate signal output. The probe and cable assembly provide 330 N pull strength, ensuring secure installation in rotating equipment, fluid-film bearings, and high-speed machinery.

Applications

Vibration Monitoring on Rotating Equipment
The 330106-05-30-05-02-CN 3300 XL 8 mm Reverse Mount Probe measures shaft vibration within a 2 mm linear range for turbines, compressors, and pumps, supporting real-time automated vibration control.

Shaft Position Tracking in Fluid-Film Bearings
Using the 0.5-meter total length and 15 mm thread engagement, the 330106-05-30-05-02-CN 3300 XL 8 mm Reverse Mount Probe tracks axial and radial shaft movement, feeding position data to DCS or PLC systems.

Speed Detection and Keyphasor Synchronization
By producing a precise voltage output proportional to shaft movement, the 330106-05-30-05-02-CN 3300 XL 8 mm Reverse Mount Probe supports automated speed measurement and Keyphasor pulse generation for timing applications.

Automated Safety Monitoring in High-Temperature Environments
Operating from –52°C to +177°C, the 330106-05-30-05-02-CN 3300 XL 8 mm Reverse Mount Probe continuously feeds data to automated control systems in extreme environments without requiring manual inspection.

Specifications

Competitive Advantage

High-Temperature and Wide Range Operation
The probe maintains accurate voltage output across –52°C to +177°C (–62°F to +350°F), enabling long-term deployment in turbines, pumps, and compressors.

Robust Mechanical Bonding
Patented TipLoc molding ensures the 330106-05-30-05-02-CN 3300 XL 8 mm Reverse Mount Probe tip remains firmly attached under high-vibration conditions.

Secure Installation Force
With a 330 N pull strength on the cable assembly, the 330106-05-30-05-02-CN 3300 XL 8 mm Reverse Mount Probe can be mounted securely even in high-speed rotating machinery.

Flexible Integration with Automation Systems
The probe’s miniature ClickLoc connector and 0.2–1.5 mm² wiring support seamless connection to PLCs, DCS, and Keyphasor modules.
