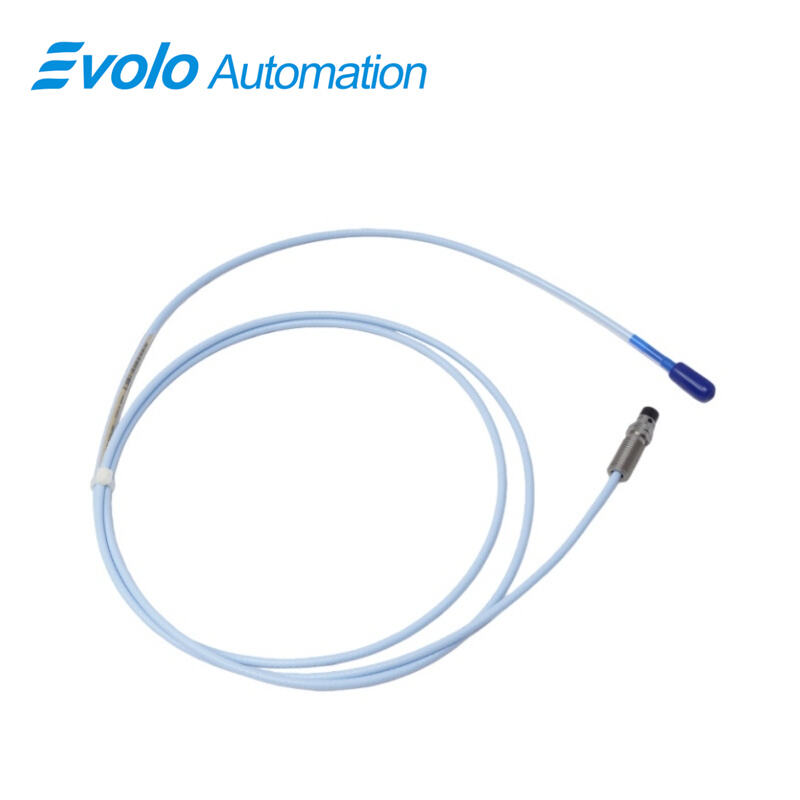

330106-00-24-10-02-05 3300 XL 8 mm Reverse Mount Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330106-00-24-10-02-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

330106-00-24-10-02-05 3300 XL 8 mm Reverse Mount Probe is a high-precision eddy current displacement sensor designed for automation and machinery monitoring in fluid-film bearing machines. The 330106-00-24-10-02-05 measures both static (position) and dynamic (vibration) values, delivering output voltage directly proportional to the distance between the probe tip and the conductive target. With a linear range of 2 mm, 1.0 meter total cable length, M10 x 1 threaded case, and operating temperatures from -52°C to +177°C, the 330106-00-24-10-02-05 ensures reliable performance in harsh industrial environments. Its polyphenylene sulfide probe tip and AISI 303/304 stainless steel case provide chemical and mechanical durability, while the miniature ClickLoc connector and patented TipLoc/CableLoc designs offer secure probe-to-cable attachment. Optional FluidLoc protection prevents oil or fluid leakage, making the 330106-00-24-10-02-05 ideal for automated vibration, position, Keyphasor reference, and speed monitoring in constrained mounting locations.

Applications

Radial Vibration Measurement in Confined Machinery
330106-00-24-10-02-05 measures radial vibration on turbines, compressors, and pumps where traditional probe installation is restricted. With a linear range of 2 mm and operating temperatures from -52°C to +177°C, it provides precise displacement signals for automated monitoring and control systems.

Axial Position Tracking on Thrust Bearings
The 330106-00-24-10-02-05 monitors axial (thrust) movement of shafts in fluid-film bearing machines. Its polyphenylene sulfide probe tip and AISI 303/304 stainless steel case allow accurate measurement of shaft position, enabling automated adjustments and protection functions.

Keyphasor Reference and Speed Sensing
330106-00-24-10-02-05 transmits Keyphasor and speed signals through a 1.0 meter miniature ClickLoc cable, providing reliable input for automated speed monitoring, phase detection, and machine protection systems.

Specifications

Competitive Advantage

Install in Tight Spaces
The M10 x 1 threaded case and compact design of 330106-00-24-10-02-05 allow reverse mounting in areas with limited clearance, supporting automation in complex machinery layouts.

Secure Cable and Probe Connection
Patented TipLoc and CableLoc designs provide 330 N pull strength, ensuring 330106-00-24-10-02-05 remains mechanically and electrically attached during continuous automated operation.

Measure in Harsh Industrial Environments
The AISI 303/304 stainless steel case and polyphenylene sulfide tip allow 330106-00-24-10-02-05 to perform accurate measurements in environments with temperature extremes, oil exposure, or mechanical stress.
