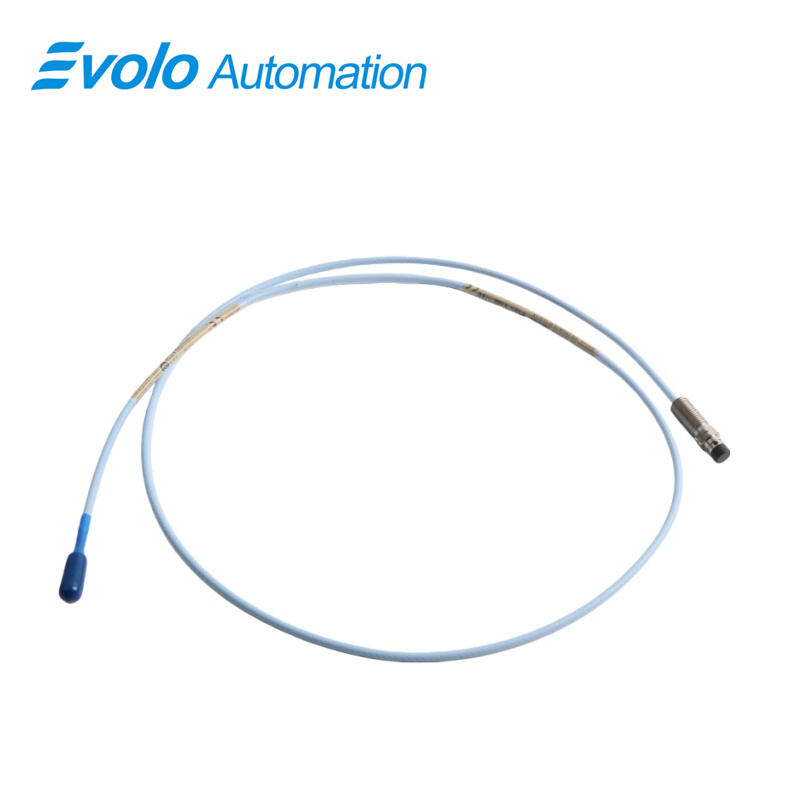

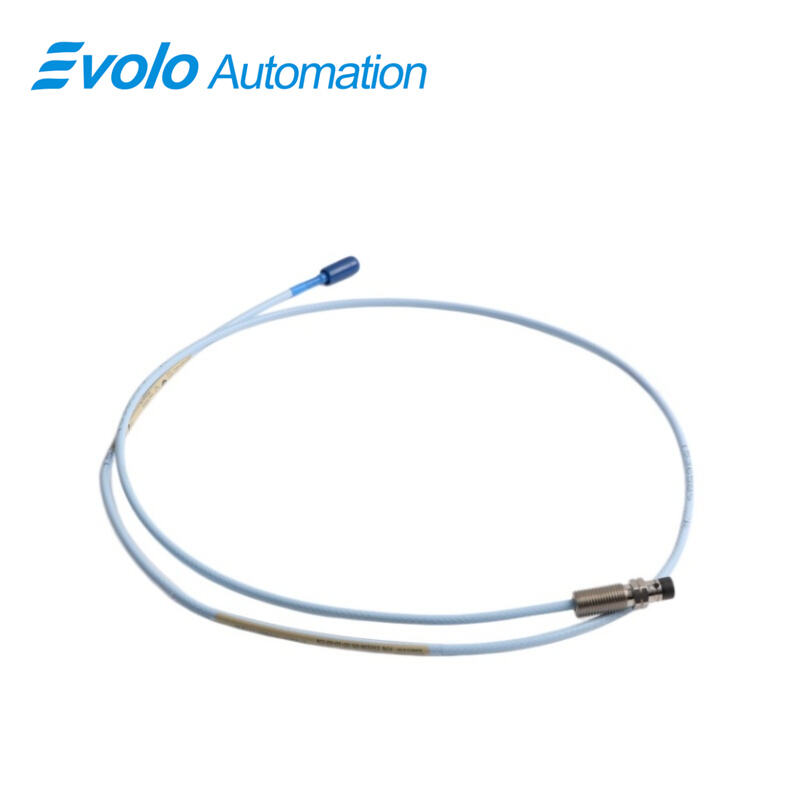

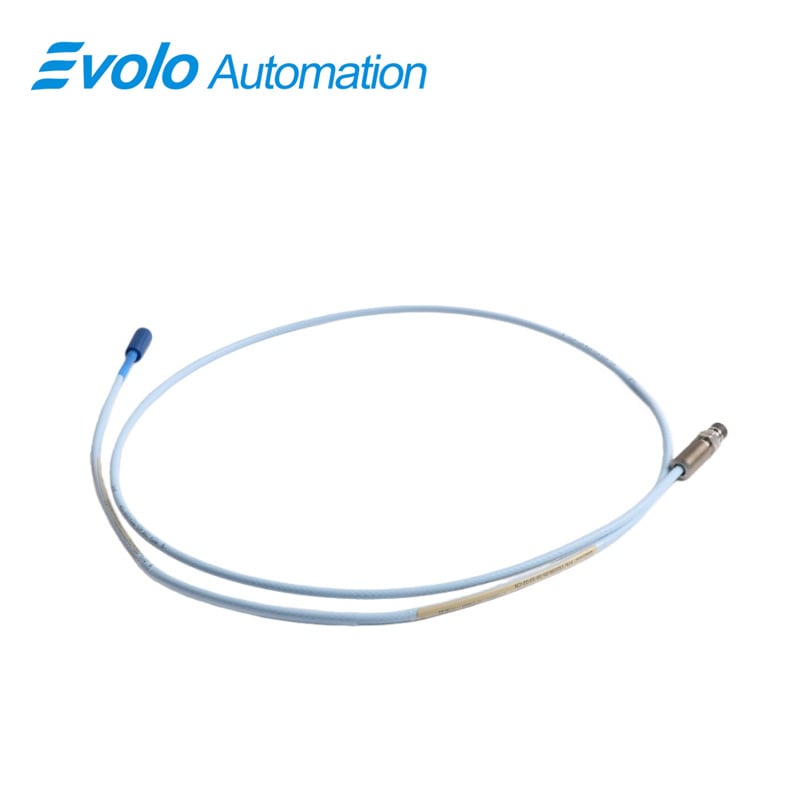

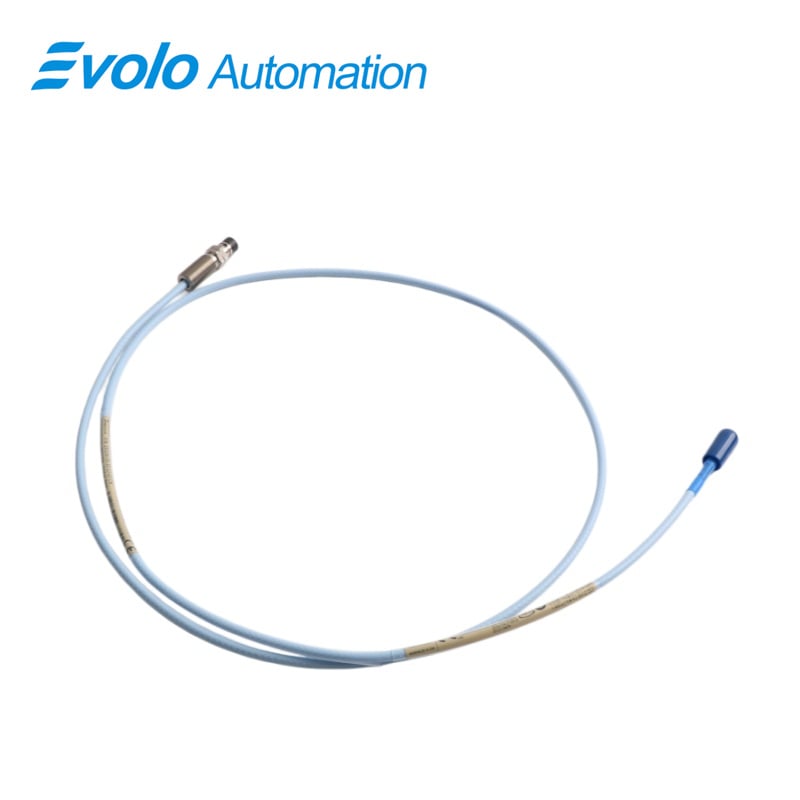

330106-00-04-10-02-00 3300 XL 8 mm Reverse Mount Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330106-00-04-10-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330106-00-04-10-02-00 3300 XL 8 mm Reverse Mount Probes measure both static position and dynamic vibration in automated machinery, delivering output voltage directly proportional to the distance between the probe tip and conductive surfaces. With a total length of 1.0 meter (3.3 feet) and M10x1 threaded case with 15 mm engagement, the 330106-00-04-10-02-00 3300 XL 8 mm Reverse Mount Probes mount securely in tight or reverse configurations. Field wiring supports 0.2–1.5 mm² (16–24 AWG) cables, while the probe tip is made of polyphenylene sulfide and the case of AISI 303/304 stainless steel. Operating across -52°C to +177°C (-62°F to +350°F) with a linear range of 2 mm (80 mils), the 330106-00-04-10-02-00 3300 XL 8 mm Reverse Mount Probes provide accurate Keyphasor signals, rotor vibration measurement, and position monitoring for fluid-film bearings, turbines, and rotating industrial equipment, supporting automated process control and machine diagnostics.

Applications

Measure Rotor Vibration in Turbines
The 330106-00-04-10-02-00 3300 XL 8 mm Reverse Mount Probes detect rotor displacement with a linear range of 2 mm (80 mils) and output voltage proportional to distance, enabling dynamic vibration measurement in steam and gas turbines.

Monitor Bearing Position in Pumps
With a total length of 1.0 meter (3.3 feet) and M10x1 threaded case with 15 mm engagement, the 330106-00-04-10-02-00 3300 XL 8 mm Reverse Mount Probes measure static bearing positions in fluid-film pumps. Field wiring supports 0.2–1.5 mm² (16–24 AWG) cables for easy integration.

Check Shaft Alignment in Industrial Motors
Operating from -52°C to +177°C (-62°F to +350°F), the 330106-00-04-10-02-00 3300 XL 8 mm Reverse Mount Probes monitor shaft offset and vibration in motors, turbines, and compressors for automated diagnostics.

Specifications

Competitive Advantage

Direct Voltage Output with Minimal Supply Change
The 330106-00-04-10-02-00 3300 XL 8 mm Reverse Mount Probes maintain less than 2 mV output change per volt input, allowing precise measurements without calibration adjustments.

Quick Probe and Cable Installation
Equipped with a miniature ClickLoc coaxial connector, the 330106-00-04-10-02-00 3300 XL 8 mm Reverse Mount Probes mount rapidly and securely, supporting reverse configurations in tight machinery spaces.

Durable Probe Tip and Case Materials
The 330106-00-04-10-02-00 3300 XL 8 mm Reverse Mount Probes use a polyphenylene sulfide tip and AISI 303/304 stainless steel case, withstanding mechanical stress for continuous monitoring in industrial automation.

Operate in Extreme Temperature Conditions
The 330106-00-04-10-02-00 3300 XL 8 mm Reverse Mount Probes function across -52°C to +177°C (-62°F to +350°F), ensuring accurate position and vibration measurement in rotating equipment under extreme conditions.
