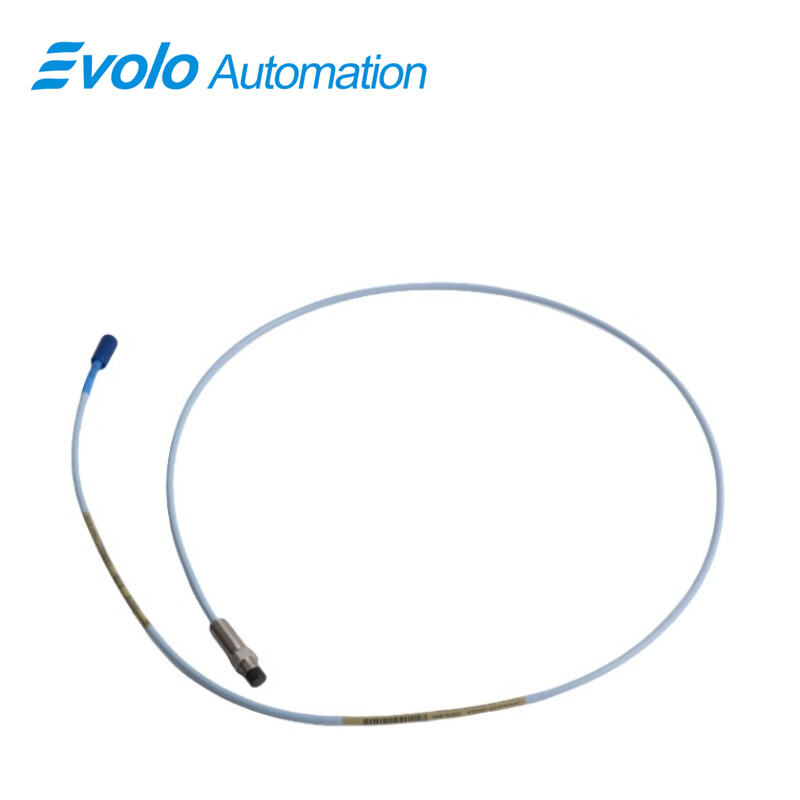

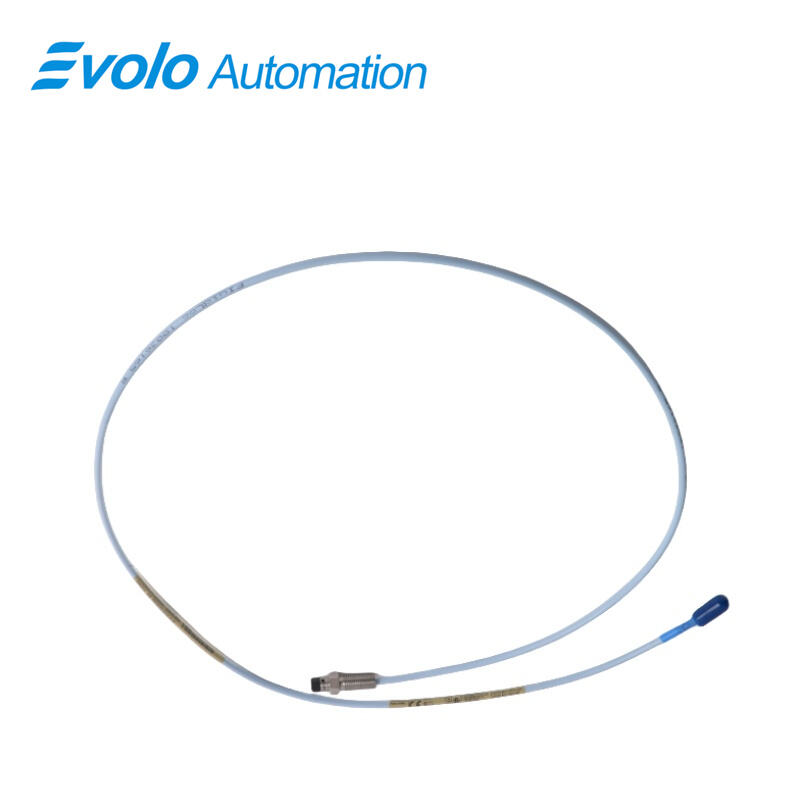

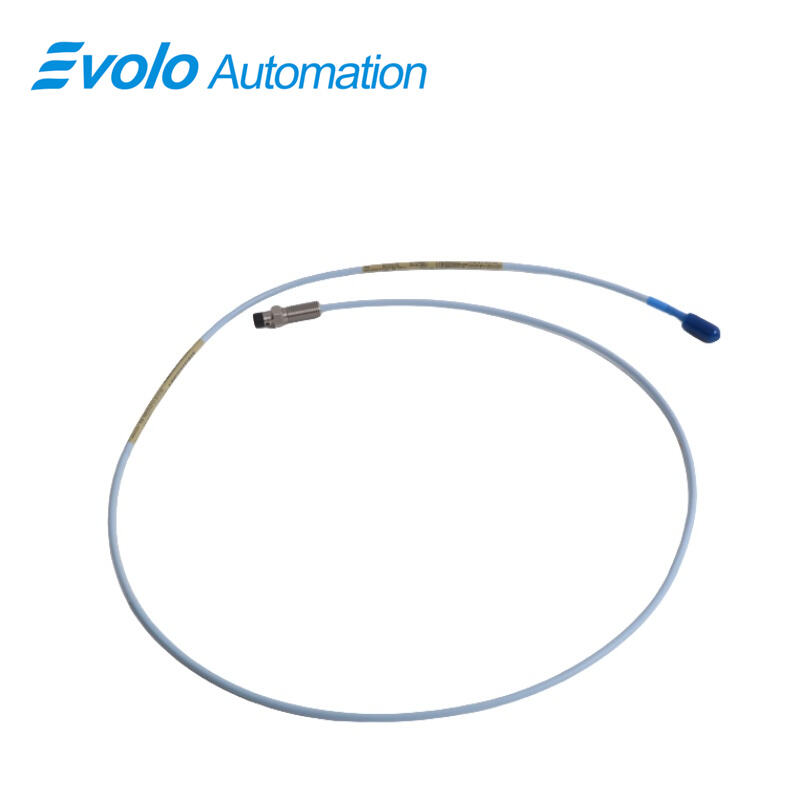

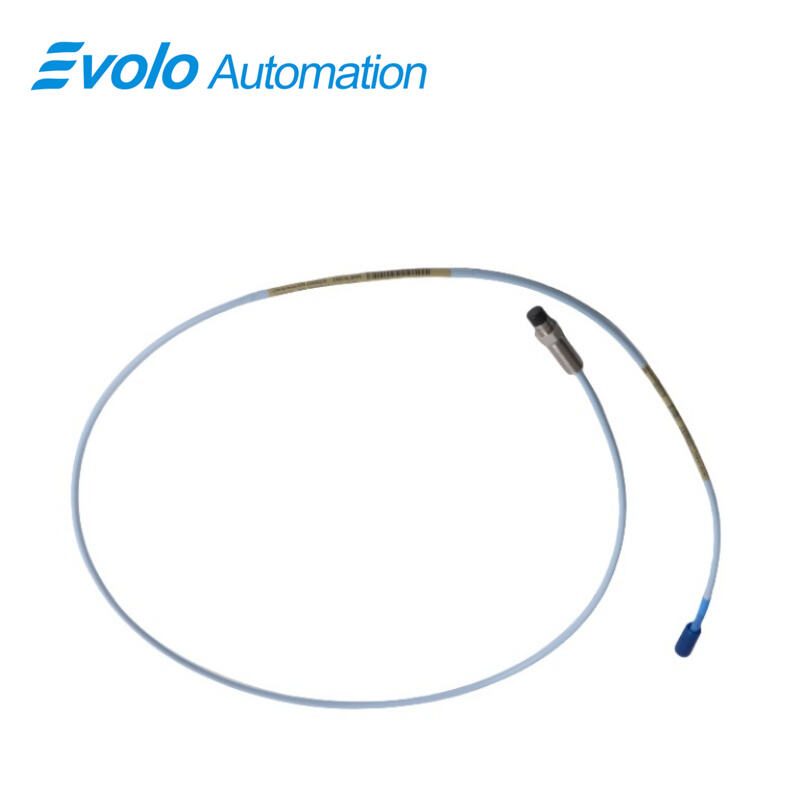

330105-02-12-10-02-05 3300 XL 8 mm Reverse Mount Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330105-02-12-10-02-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330105-02-12-10-02-05 3300 XL 8 mm Reverse Mount Probe delivers precise distance measurement between the probe tip and conductive surfaces, converting motion into a 50 Ω output voltage. Designed for automation, the 330105-02-12-10-02-05 3300 XL 8 mm Reverse Mount Probe measures both static positions and dynamic vibrations with a 2 mm linear range. Its 1.0-meter cable and 3/8-24 UNF threaded stainless steel case allow integration into tight machine spaces. The probe tip is made from polyphenylene sulfide, ensuring durability under operating temperatures from –52°C to +177°C. Field wiring supports 0.2–1.5 mm² (16–24 AWG), and the ClickLoc coaxial connector simplifies installation. Certified with CSA, ATEX, and IECEx approvals, the 330105-02-12-10-02-05 3300 XL 8 mm Reverse Mount Probe is ideal for monitoring vibration, position, and Keyphasor signals in fluid-film bearings, and can feed accurate data directly to DCS or SCADA systems. The combination of threaded case, robust materials, and 1.0-meter cable ensures secure mounting and reliable data capture in automated industrial environments.

Applications

Vibration Monitoring on Bearings
The 330105-02-12-10-02-05 3300 XL 8 mm Reverse Mount Probe measures radial vibration in pumps, turbines, and compressors. Its 2 mm linear range converts mechanical displacement into 50 Ω output voltage signals, while the 1.0-meter ClickLoc coaxial cable transmits real-time data to PLCs or DCS for automated vibration analysis. Operating from –52°C to +177°C, it ensures accurate monitoring in extreme environments.

Shaft Position Measurement
Using the 330105-02-12-10-02-05 3300 XL 8 mm Reverse Mount Probe, shaft displacement is tracked with high precision. The 3/8-24 UNF probe thread with 0.563 in maximum engagement allows secure reverse mounting, ensuring consistent probe-to-shaft distance for automated control loops. Its 0.2–1.5 mm² field wiring supports fast integration into industrial controllers.

Keyphasor Reference Signal Generation
The 330105-02-12-10-02-05 3300 XL 8 mm Reverse Mount Probe generates Keyphasor pulses from rotating shafts, feeding real-time speed and phase data into SCADA and DCS systems. The polyphenylene sulfide tip maintains measurement precision even under high-speed or high-temperature operation.

Integration with Automation Control Systems
Voltage output from the 330105-02-12-10-02-05 3300 XL 8 mm Reverse Mount Probe can be directly connected to control systems. Its 2 mm linear range, 50 Ω output resistance, and 1.0-meter cable enable automated feedback loops for vibration suppression and shaft positioning without additional signal conditioning.

Specifications

Competitive Advantage

High Temperature Operation
The 330105-02-12-10-02-05 3300 XL 8 mm Reverse Mount Probe operates accurately from –52°C to +177°C, allowing reliable performance in extreme industrial environments.

Secure Reverse Mounting
With 3/8-24 UNF threads and a maximum 0.563 in engagement, the 330105-02-12-10-02-05 3300 XL 8 mm Reverse Mount Probe maintains precise alignment, reducing measurement errors in high-speed applications.

Durable Materials and Robust Cable Design
The AISI 303/304 stainless steel case and polyphenylene sulfide tip, combined with a 1.0-meter ClickLoc coaxial cable, provide long-lasting operation. The 330105-02-12-10-02-05 3300 XL 8 mm Reverse Mount Probe supports 0.2–1.5 mm² field wiring for fast automation integration.

Accurate Linear Measurement
The 2 mm linear range of the 330105-02-12-10-02-05 3300 XL 8 mm Reverse Mount Probe delivers precise output voltage for position and vibration measurement, improving control loop performance in automated systems.
