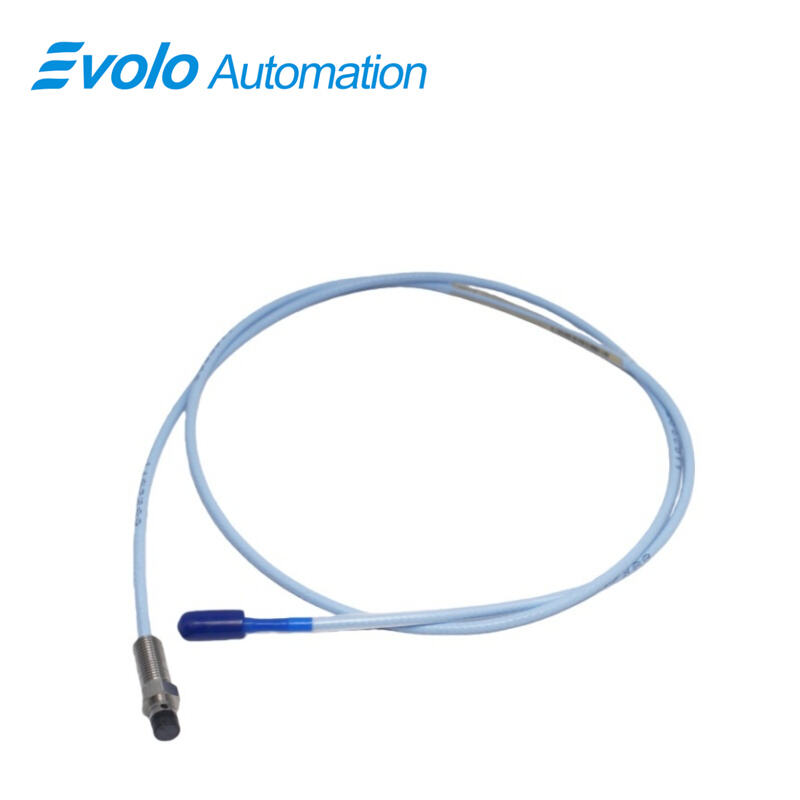

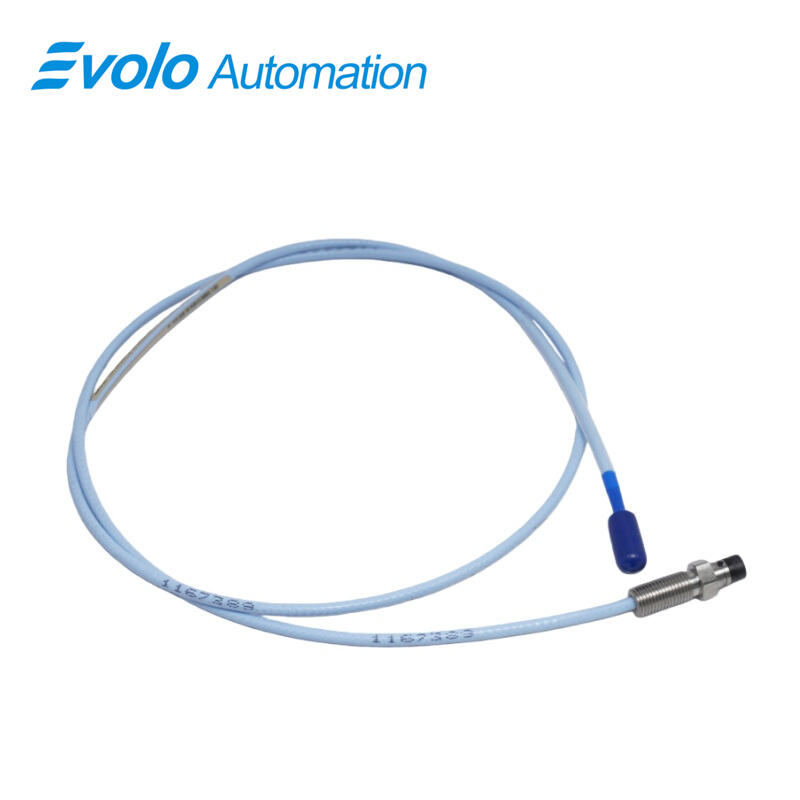

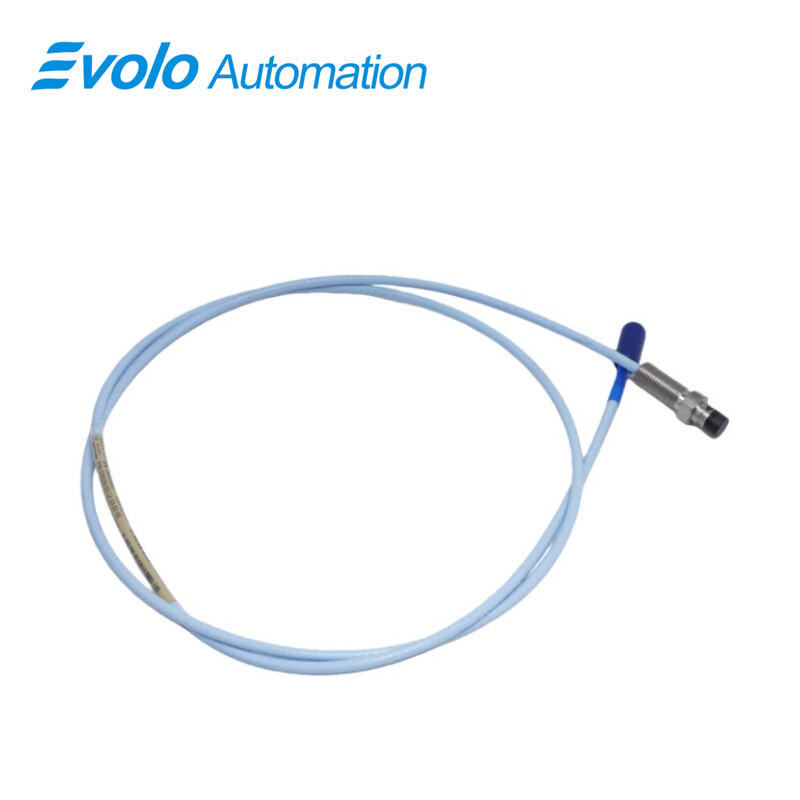

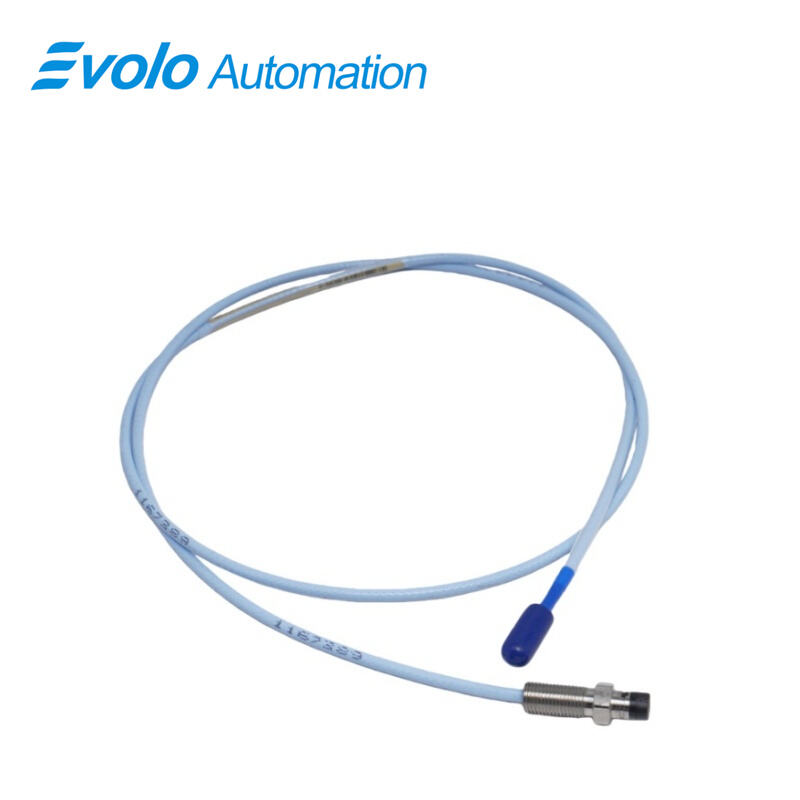

330105-02-12-10-02-00 3300 XL 8 mm Reverse Mount Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330105-02-12-10-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330105-02-12-10-02-00 3300 XL 8 mm Reverse Mount Probe delivers output voltage directly proportional to the distance between its 2 mm linear-range probe tip and the conductive surface. With a 1.0-meter total length, 3/8-24 UNF threaded case, and 0.563 in maximum engagement, the 330105-02-12-10-02-00 3300 XL 8 mm Reverse Mount Probe supports field wiring from 0.2 to 1.5 mm² (16–24 AWG) and output resistance of 50 Ω. The probe tip uses polyphenylene sulfide, while the AISI 303/304 stainless steel case ensures durability in automated industrial installations. Operating temperature ranges from –52°C to +177°C, and its miniature ClickLoc coaxial connector maintains secure connections. The 69.9 pF/m extension cable capacitance allows reliable signal transmission, enabling precise position and vibration measurements on fluid-film bearing machinery. The 330105-02-12-10-02-00 3300 XL 8 mm Reverse Mount Probe supports Keyphasor reference and speed measurements for automated process control, offering compact reverse-mount installation where space is constrained.

Applications

Vibration Monitoring in Fluid-Film Bearings
The 330105-02-12-10-02-00 3300 XL 8 mm Reverse Mount Probe measures dynamic shaft vibration with its 2 mm linear range and 50 Ω output, enabling precise automated monitoring of bearing performance in rotating machinery.

Position Measurement in Confined Spaces
Its 1.0-meter total length and reverse-mount design allow the 330105-02-12-10-02-00 3300 XL 8 mm Reverse Mount Probe to track rotor displacement accurately in compact automation setups.

Keyphasor Signal Generation for Speed Control
The 330105-02-12-10-02-00 3300 XL 8 mm Reverse Mount Probe provides high-fidelity Keyphasor signals, using its ClickLoc coaxial connector and 69.9 pF/m extension cable to integrate with automated speed control systems.

Integration into DCS or SCADA Systems
The 50 Ω output resistance of the 330105-02-12-10-02-00 3300 XL 8 mm Reverse Mount Probe ensures accurate real-time data feeding into distributed control or supervisory systems.

Specifications

Competitive Advantage

Wide Operating Temperature
The 330105-02-12-10-02-00 3300 XL 8 mm Reverse Mount Probe functions between –52°C and +177°C, maintaining accurate measurements under extreme industrial conditions.

Compact Reverse-Mount Design
The 3/8-24 UNF threaded case and 0.563 in maximum thread engagement let the 330105-02-12-10-02-00 3300 XL 8 mm Reverse Mount Probe fit into limited spaces without interfering with other automation equipment.

Durable Materials
Polyphenylene sulfide probe tip and AISI 303/304 stainless steel case provide the 330105-02-12-10-02-00 3300 XL 8 mm Reverse Mount Probe with high mechanical resistance and long service life in fluid-exposed environments.

Low Signal Degradation
With 50 Ω output resistance and 69.9 pF/m cable capacitance, the 330105-02-12-10-02-00 3300 XL 8 mm Reverse Mount Probe delivers consistent, accurate position and vibration data for automation systems.

Long Cable Reach
The 1.0-meter cable of the 330105-02-12-10-02-00 3300 XL 8 mm Reverse Mount Probe supports flexible routing to controllers or Proximitor sensors in automated installations.
