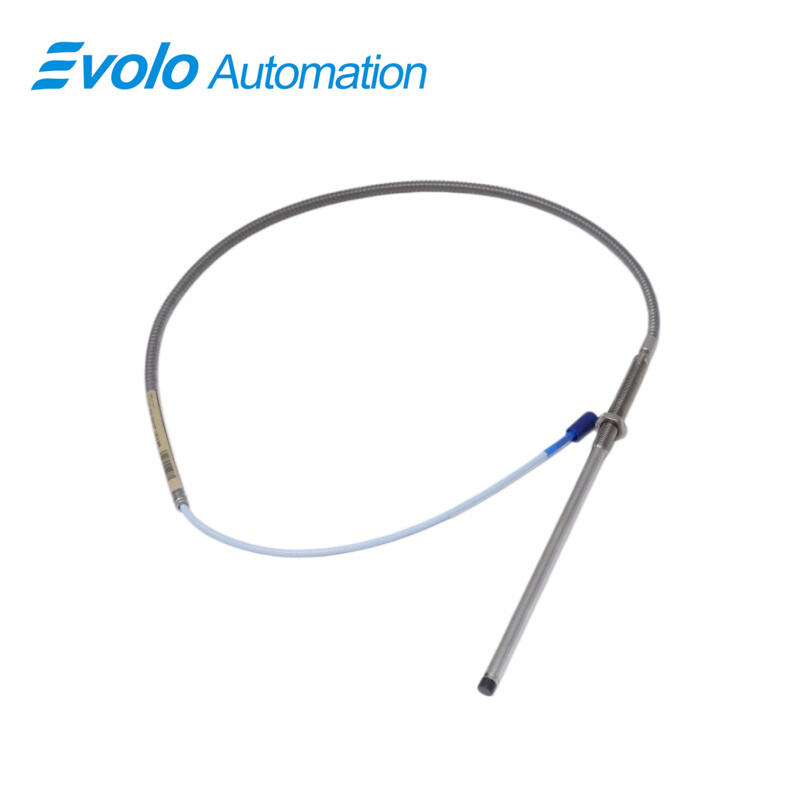

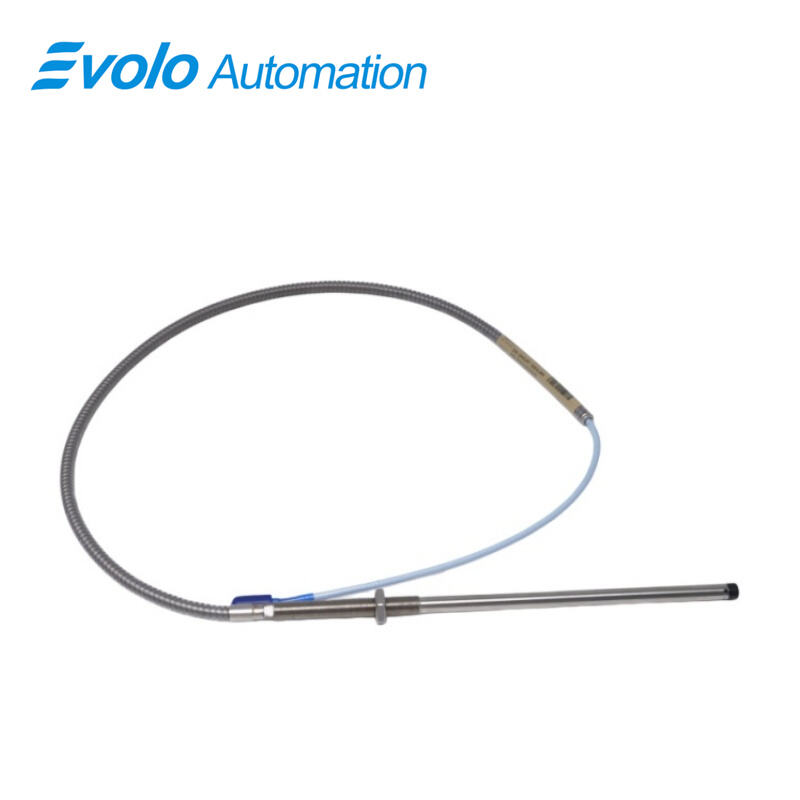

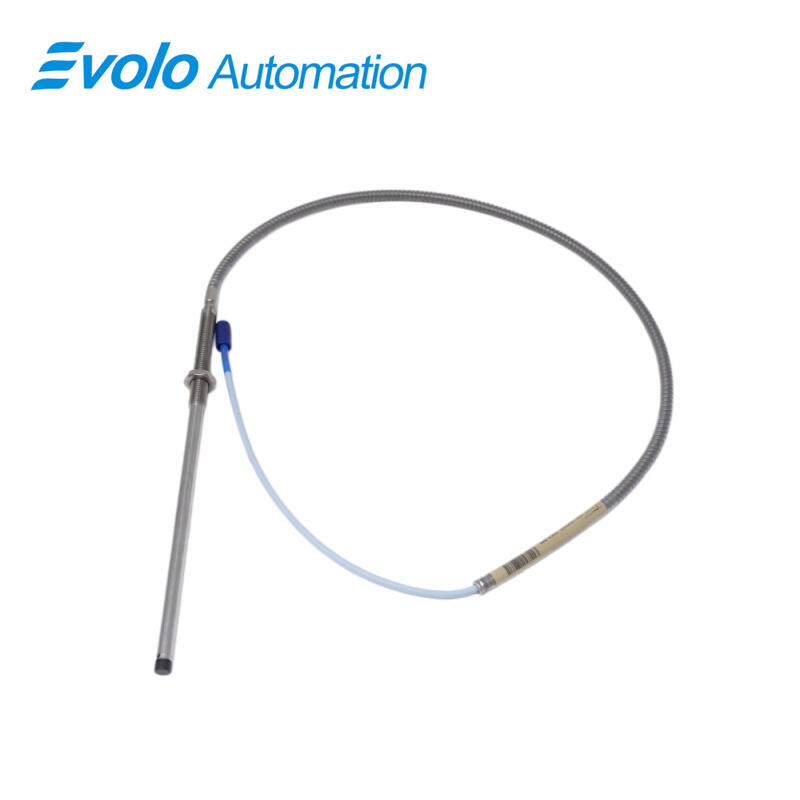

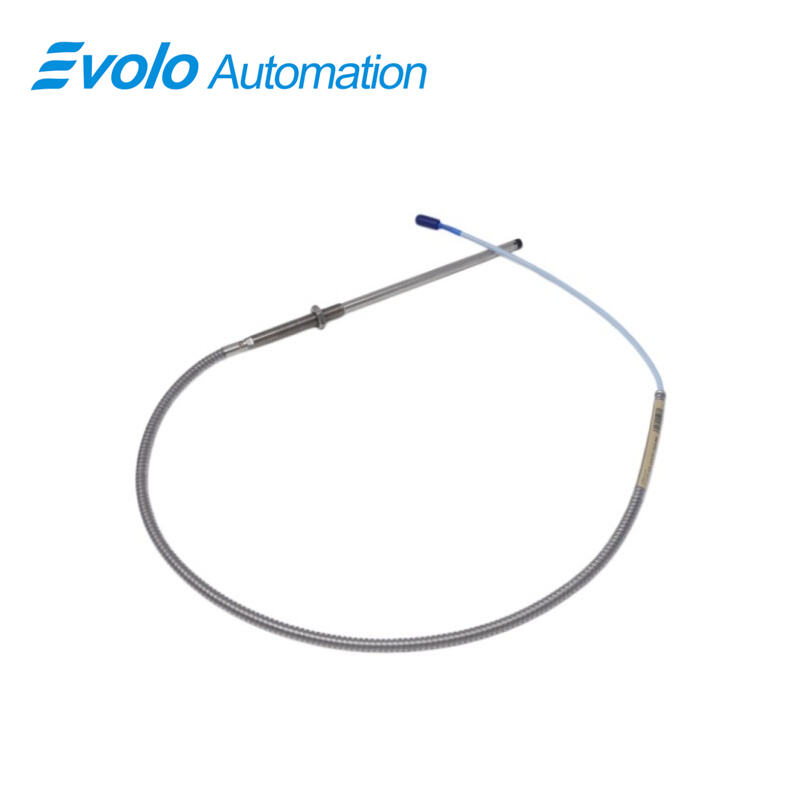

330104-15-23-10-02-00 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330104-15-23-10-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330104-15-23-10-02-00 3300 XL 8 mm Proximity Probe delivers precise measurement of position and vibration in automated machinery, providing an output voltage proportional to the distance between the probe tip and conductive surfaces. With an unthreaded length of 150 mm, overall case length of 230 mm, and total length up to 1.0 meter (3.3 feet), the 330104-15-23-10-02-00 3300 XL 8 mm Proximity Probe accommodates a wide range of industrial installations. The probe features an M10x1 threaded case, maximum thread engagement of 15 mm, and operates between -52°C and +177°C (-62°F to +350°F). Equipped with a miniature coaxial ClickLoc connector and standard cable, the 330104-15-23-10-02-00 3300 XL 8 mm Proximity Probe supports field wiring from 0.2 to 1.5 mm² (16–24 AWG) and maintains less than 2 mV output change per volt of input. Linear range is 2 mm (80 mils), output resistance is 50 Ω, and extension cable capacitance is 69.9 pF/m. Ideal for Keyphasor and speed measurements, the 330104-15-23-10-02-00 3300 XL 8 mm Proximity Probe integrates seamlessly with eddy current transducer systems, ensuring probe, cable, and sensor interchangeability without individual calibration. Optional FluidLoc cables prevent fluid leakage, supporting automated process monitoring in bearings, turbines, and rotating equipment.

Applications

Measure Rotor Vibration in Turbines
The 330104-15-23-10-02-00 3300 XL 8 mm Proximity Probe detects rotor displacement with a linear range of 2 mm (80 mils) and outputs voltage proportional to distance, enabling vibration monitoring in steam and gas turbines. Its M10x1 thread and 15 mm maximum engagement allow secure installation in tight spaces.

Monitor Bearing Position in Pumps
With an unthreaded length of 150 mm and total probe length up to 1.0 meter (3.3 feet), the 330104-15-23-10-02-00 3300 XL 8 mm Proximity Probe measures static positions on fluid-film bearings. Field wiring supports 0.2–1.5 mm² (16–24 AWG) cables, simplifying integration into automated pump systems.

Capture Keyphasor Signals for Rotating Machinery
The 330104-15-23-10-02-00 3300 XL 8 mm Proximity Probe provides Keyphasor reference signals with output resistance of 50 Ω and extension cable capacitance of 69.9 pF/m, enabling precise speed measurement for rotating equipment.

Detect Shaft Misalignment in Motors
Operating across -52°C to +177°C (-62°F to +350°F), the 330104-15-23-10-02-00 3300 XL 8 mm Proximity Probe measures shaft offset under extreme conditions in industrial motors and compressors.

Specifications

Competitive Advantage

Direct Voltage Output with Minimal Supply Sensitivity
The 330104-15-23-10-02-00 3300 XL 8 mm Proximity Probe produces less than 2 mV output change per volt input variation, providing accurate readings without external calibration.

Quick Probe and Cable Installation
Equipped with a miniature coaxial ClickLoc connector and standard cable, the 330104-15-23-10-02-00 3300 XL 8 mm Proximity Probe supports rapid assembly. Optional FluidLoc cables prevent oil leakage and reduce maintenance downtime.

Interchangeable with Existing 3300 Series Components
All 330104-15-23-10-02-00 3300 XL 8 mm Proximity Probe components can be swapped with previous 5 mm or 8 mm probes, allowing fast replacement without matching or bench calibration.

High Temperature and Mechanical Stress Tolerance
The 330104-15-23-10-02-00 3300 XL 8 mm Proximity Probe operates reliably from -52°C to +177°C (-62°F to +350°F), and its TipLoc molding and CableLoc design withstand mechanical stress for continuous monitoring in rotating machinery.
