Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330104-06-12-10-02-00 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option(Minimum unthreaded length): |
60 mm |
|
Overall Case Length Option(Minimum case length): |
120 mm |
|
Total Length Option: |
1.0 meter (3.3 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option: |
Not required |
|
Probe Case Thread: |
M10x1 |
|
Maximum Length of Thread Engagement: |
15 mm |
|
Dimension: |
1.8x1.5x123cm |
|
Weight: |
0.14kg |
Description

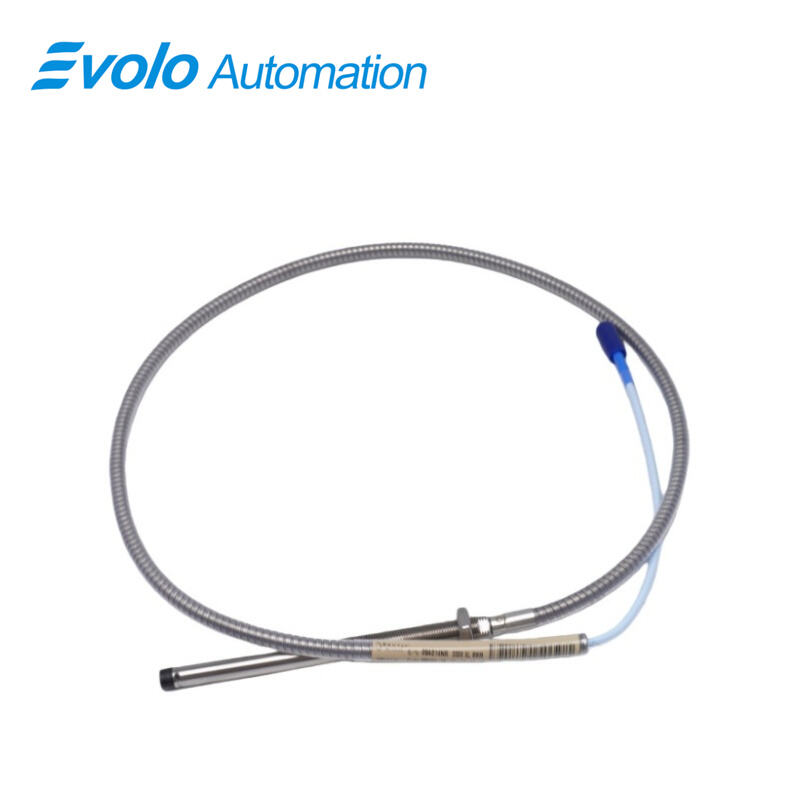

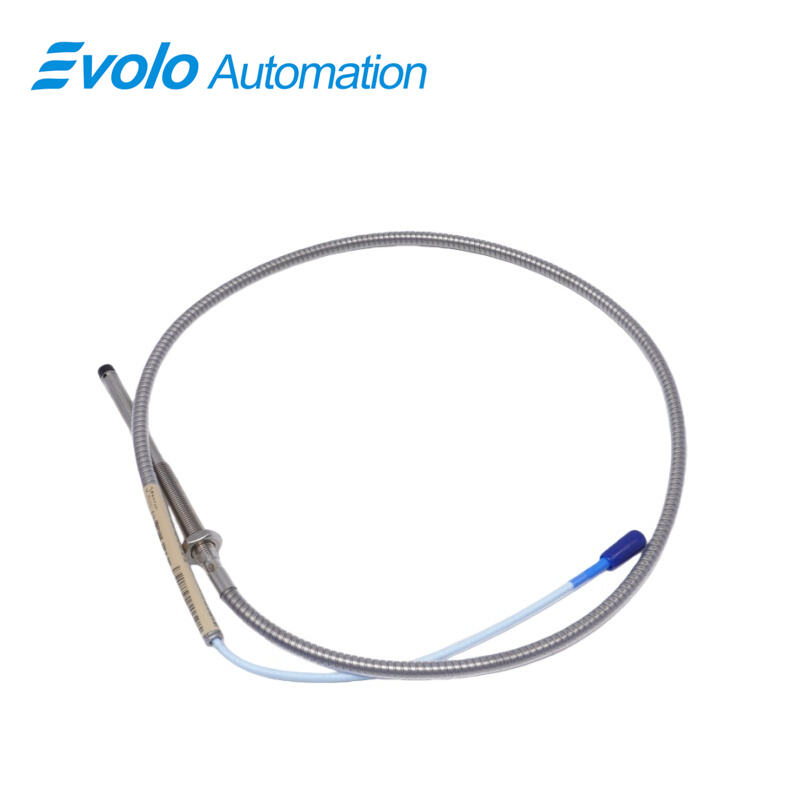

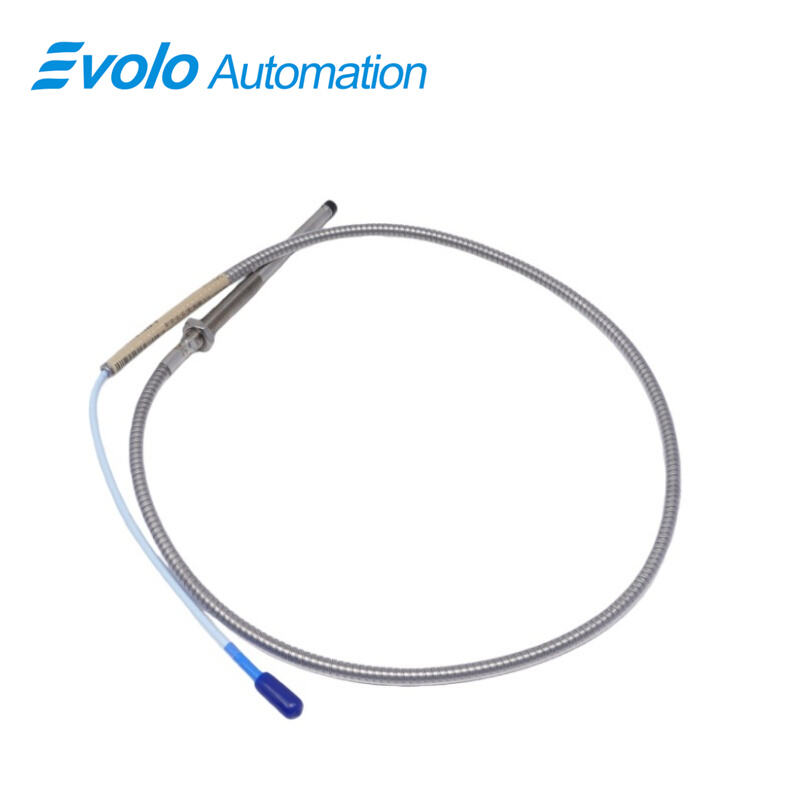

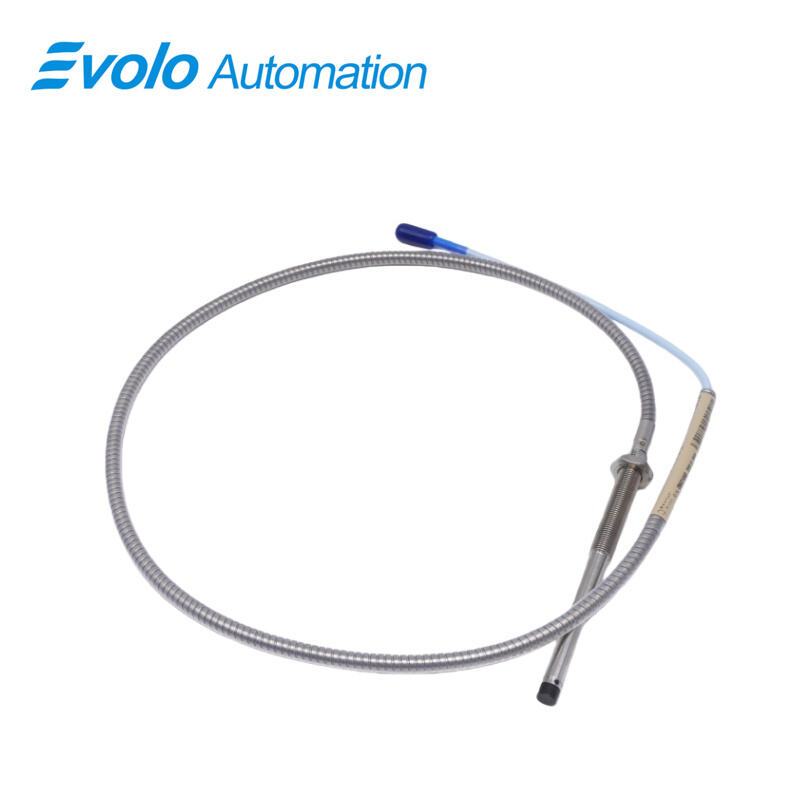

330104-06-12-10-02-00 3300 XL 8 mm Proximity Probe delivers precise measurement of shaft position and vibration for automated fluid-film bearing machinery. The 330104-06-12-10-02-00 3300 XL 8 mm Proximity Probe features a 1.0 m total length, M10x1 threads with 15 mm maximum engagement, 60 mm unthreaded length, 120 mm overall case length, 2 mm linear range, PPS probe tip, and AISI 303/304 stainless steel case. Operating from -52°C to +177°C, the 330104-06-12-10-02-00 3300 XL 8 mm Proximity Probe uses a miniature ClickLoc coaxial connector with patented TipLoc and CableLoc designs, providing 330 N pull strength to securely attach the probe tip and cable while preventing fluid ingress. It supports Keyphasor reference and speed measurements and integrates with extension cables and Proximitor sensors for fast automated installation in restricted spaces.
Applications
Measure Shaft Vibration on Fluid-Film Bearings
Install the 330104-06-12-10-02-00 3300 XL 8 mm Proximity Probe on rotating machinery shafts to monitor dynamic vibration. The 2 mm linear range and PPS probe tip ensure accurate readings in automated monitoring setups.
Track Axial and Radial Shaft Position
Use the 330104-06-12-10-02-00 3300 XL 8 mm Proximity Probe to measure both axial (thrust) and radial displacement. The M10x1 threads and 120 mm case length provide secure installation for automated position measurement.
Capture Keyphasor Reference and Speed Signals
Integrate the 330104-06-12-10-02-00 3300 XL 8 mm Proximity Probe with Keyphasor and tachometer systems for speed and phase monitoring. The 1.0 m cable and ClickLoc connector allow rapid connection in automated systems.
Specifications
|
Operating and Storage Temperature: |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
Competitive Advantage
Secure Probe and Cable Attachment
The 330104-06-12-10-02-00 3300 XL 8 mm Proximity Probe ClickLoc connector, TipLoc, and CableLoc designs prevent probe or cable loosening and block fluid entry in automated installations.
Operate Across Extreme Temperatures
With a range from -52°C to +177°C, the 330104-06-12-10-02-00 3300 XL 8 mm Proximity Probe enables continuous measurement in both high-heat and cold industrial machines.
Enable Rapid Installation in Confined Spaces
The 1.0 m cable, 60 mm unthreaded length, and 120 mm case of 330104-06-12-10-02-00 3300 XL 8 mm Proximity Probe allow fast installation in automated systems with restricted mounting space.
Measure Position and Vibration Simultaneously
The 2 mm linear range of 330104-06-12-10-02-00 3300 XL 8 mm Proximity Probe supports simultaneous measurement of static shaft position and dynamic vibration for real-time automated monitoring.
