Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330104-05-14-50-01-05 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option(Minimum unthreaded length): |
50 mm |
|
Overall Case Length Option(Minimum case length): |
140 mm |
|
Total Length Option: |
5.0 meters (16.4 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector with connector protector, standard cable |
|
Agency Approval Option: |
CSA, ATEX, IECEx Approvals |
|
Probe Case Thread: |
M10x1 |
|
Maximum Length of Thread Engagement: |
15 mm |
|
Dimension: |
2x1.5x59cm |
|
Weight: |
0.1kg |
Description

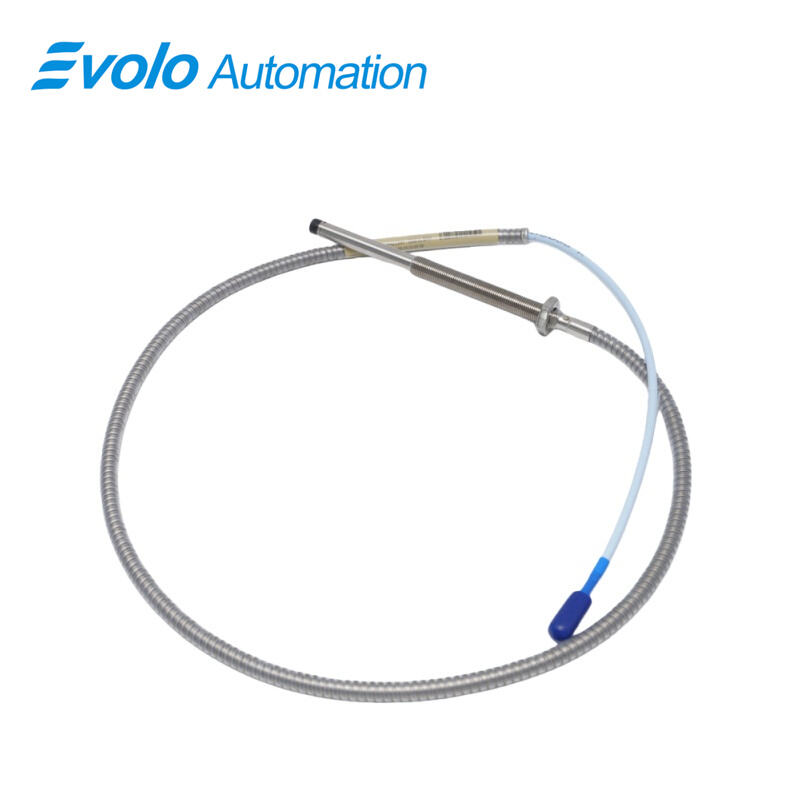

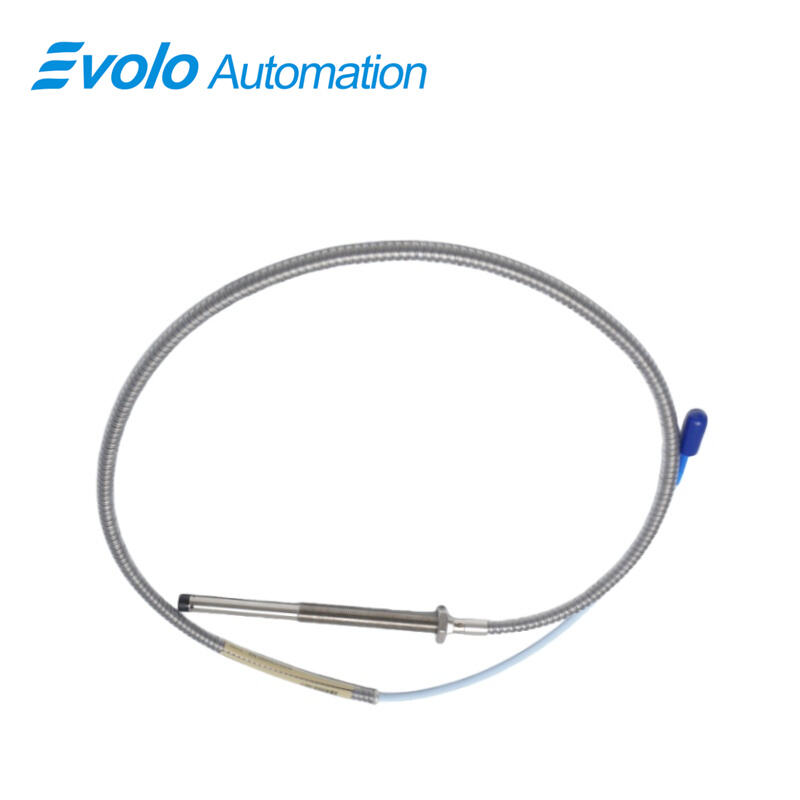

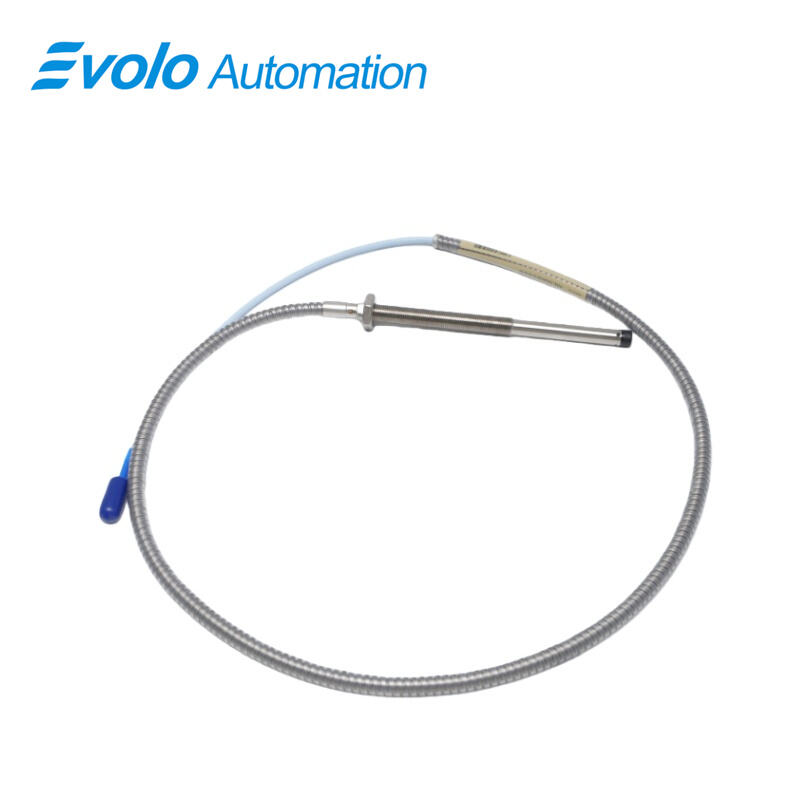

The 330104-05-14-50-01-05 3300 XL 8 mm Proximity Probe is engineered for high-performance industrial automation and machinery monitoring, delivering precise vibration and shaft position measurements on fluid-film bearing machines, turbines, and compressors. The 330104-05-14-50-01-05 probe provides linear output directly proportional to the distance between the probe tip and the conductive surface, supporting both static and dynamic measurements. With a 2 mm linear range, 140 mm overall case length, 5.0 meters total cable length, 50 mm unthreaded section, and M10x1 threaded mounting, the 330104-05-14-50-01-05 probe integrates easily into DCS, SCADA, and digital condition monitoring systems. Patented TipLoc and CableLoc designs ensure 330 N pull strength and robust tip bonding, while optional FluidLoc cable prevents fluid ingress. CSA, ATEX, and IECEx approvals make the 330104-05-14-50-01-05 probe ideal for automated monitoring in hazardous industrial environments.
Applications
Turbine Shaft Vibration Monitoring
The 330104-05-14-50-01-05 probe measures turbine rotor vibration across −52°C to +177°C with 2 mm linear range and 5.0 m total cable, providing Keyphasor and speed signals for fully automated DCS systems.
Compressor Bearing Position Control
In fluid-film compressors, the 330104-05-14-50-01-05 probe’s M10x1 thread and 140 mm case length allow precise axial shaft movement monitoring, enabling predictive maintenance and automated trip protection.
Industrial Pump Displacement Measurement
The 330104-05-14-50-01-05 probe provides accurate real-time shaft displacement feedback with ClickLoc connector and optional FluidLoc cable, supporting continuous automated condition monitoring.
Zero-Speed & Keyphasor Reference
With 50 Ω output resistance and <2 mV/V supply sensitivity, the 330104-05-14-50-01-05 probe delivers stable tachometer and Keyphasor signals for integration into automated industrial control systems.
Specifications
|
Operating and Storage Temperature: |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
Competitive Advantage
Automation-Ready Design
The 330104-05-14-50-01-05 probe, with FluidLoc cable, ClickLoc connector with protector, and robust TipLoc/CableLoc bonding, ensures stable output and mechanical reliability in SCADA and DCS monitoring.
Extended Cable & Probe Length
With 5.0 m total length and 140 mm case length, the 330104-05-14-50-01-05 probe fits large machinery housings while maintaining high measurement accuracy.
Thermal and Mechanical Reliability
Operating from −52°C to +177°C with 330 N pull strength, the 330104-05-14-50-01-05 probe withstands extreme vibration and thermal cycling in turbines, compressors, and pumps.
API 670 Compliance & Signal Accuracy
The 330104-05-14-50-01-05 probe ensures linear range, accuracy, and stable output, fully compatible with 3300 series 5 mm and 8 mm transducer systems for industrial automation applications.
