Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330104-05-11-90-11-00 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option(Minimum unthreaded length): |
50 mm |
|
Overall Case Length Option(Minimum case length): |
110 mm |
|
Total Length Option: |
9.0 meters (29.5 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector with connector protector, FluidLoc cable |
|
Agency Approval Option: |
Not required |
|
Probe Case Thread: |
M10x1 |
|
Maximum Length of Thread Engagement: |
15 mm |
|
Dimension: |
1.8x1.5x68cm |
|
Weight: |
0.1kg |
Description

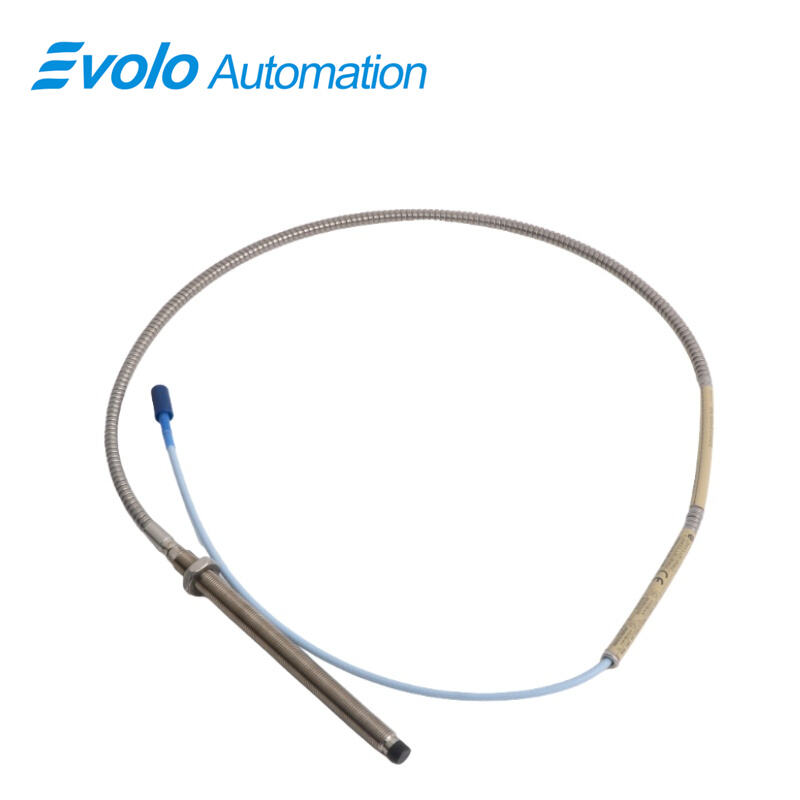

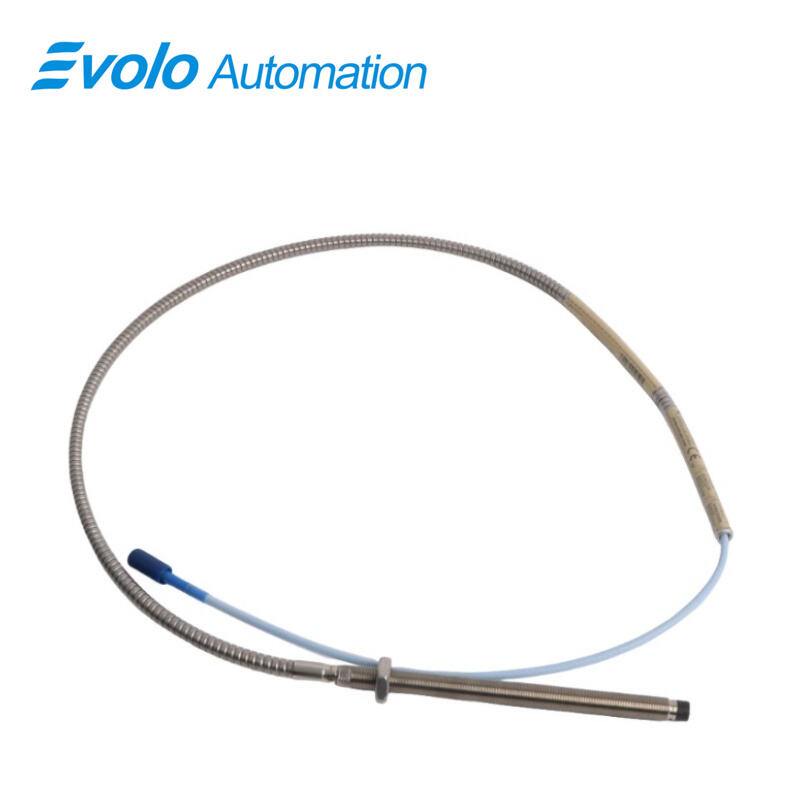

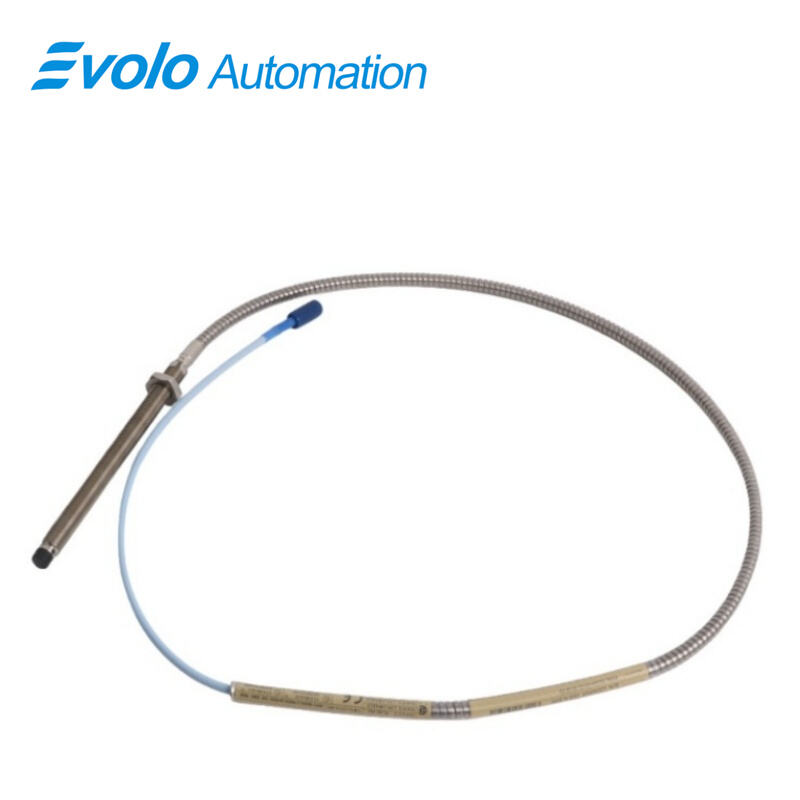

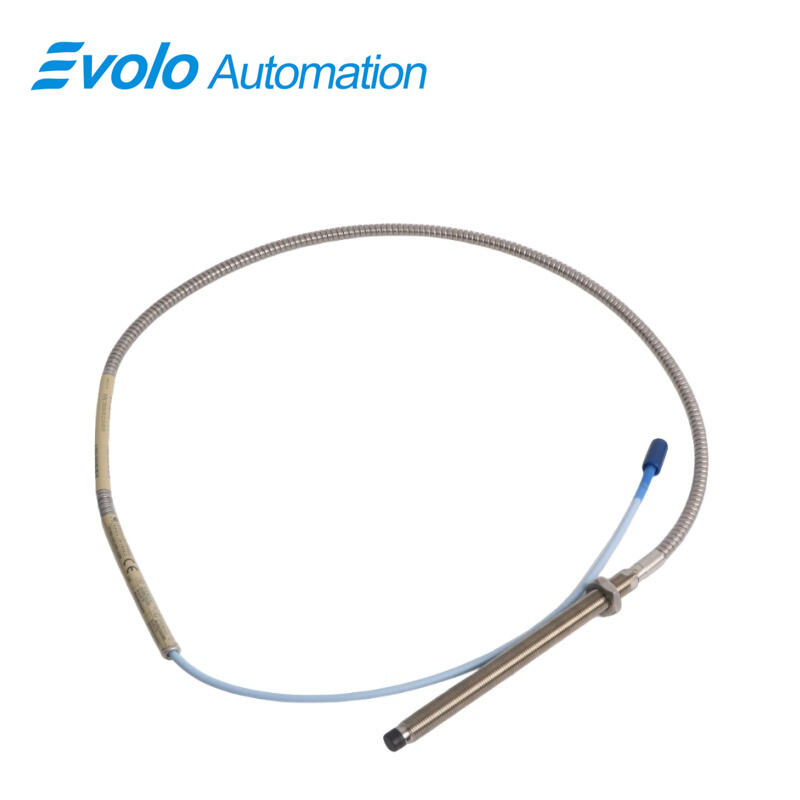

The 330104-05-11-90-11-00 3300 XL 8 mm Proximity Probe is an eddy current sensor designed for automated shaft position and vibration measurement in rotating machinery. The 330104-05-11-90-11-00 converts the distance between the probe tip and a conductive surface into a proportional voltage signal, enabling automation systems to track real-time shaft movement and vibration signals.
The 330104-05-11-90-11-00 features an M10×1 threaded probe body with a 50 mm unthreaded section and maximum thread engagement of 15 mm, allowing precise mounting near bearings. Its overall case length of 110 mm and 9.0-meter FluidLoc cable with miniature coaxial ClickLoc connector and connector protector allow the 330104-05-11-90-11-00 to transmit clean signals over long distances while preventing fluid ingress.
Operating from –52°C to +177°C, the 330104-05-11-90-11-00 provides a 2 mm linear range, 50 Ω output resistance, supply sensitivity below 2 mV per volt, and typical cable capacitance of 69.9 pF/m. These parameters allow the 330104-05-11-90-11-00 to deliver repeatable signals for automated monitoring modules, supporting shaft position tracking, vibration analysis, and speed reference input in industrial automation systems.
Applications
Measure Axial Shaft Position in Compressors
The 330104-05-11-90-11-00 is installed near thrust bearings to monitor axial shaft movement. The 2 mm linear range allows automation systems to detect shaft displacement and trigger control actions when thresholds are exceeded.
Capture Radial Vibration in Large Machinery
Mounted adjacent to journal bearings, the 330104-05-11-90-11-00 captures radial shaft vibration caused by imbalance or wear. Its 50 Ω output resistance and 69.9 pF/m cable capacitance enable accurate waveform transmission to vibration monitoring systems.
Provide Speed Reference for Rotating Equipment
The 330104-05-11-90-11-00 paired with a reference target generates speed signals for pumps, compressors, and turbines. Low supply sensitivity below 2 mV per volt ensures consistent speed signal output in automation systems.
Specifications
|
Operating and Storage Temperature: |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
Competitive Advantage
Install in High-Temperature Bearings
The 330104-05-11-90-11-00 operates up to +177°C, allowing direct installation in hot bearing zones for real-time shaft and vibration monitoring without relocating the probe.
Enable Long-Distance Signal Transmission
With a 9.0-meter FluidLoc cable and miniature coaxial ClickLoc connector, the 330104-05-11-90-11-00 transmits clean signals over extended distances while preventing fluid ingress.
Fit in Confined Spaces
The 110 mm case length and 50 mm unthreaded section allow the 330104-05-11-90-11-00 to be installed in tight bearing housings, enabling automated measurement in compact machinery.
