Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330104-04-10-10-02-00 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option(Minimum unthreaded length): |
40 mm |
|
Overall Case Length Option(Minimum case length): |
100 mm |
|
Total Length Option: |
1.0 meter (3.3 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option: |
Not required |
|
Probe Case Thread: |
M10x1 |
|
Maximum Length of Thread Engagement: |
15 mm |
|
Dimension: |
1.8x1.5x68cm |
|
Weight: |
0.1kg |
Description

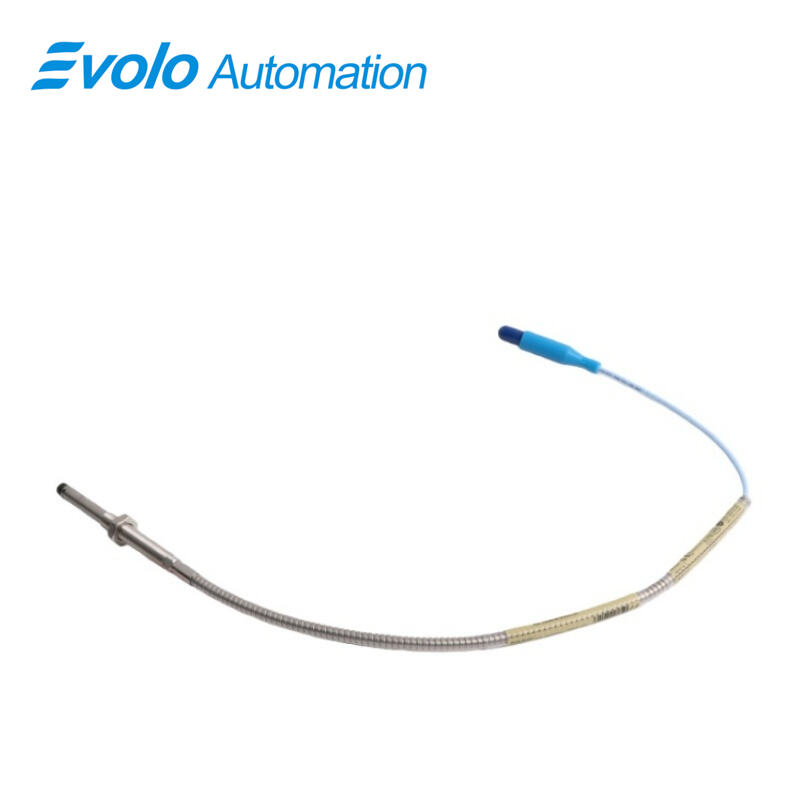

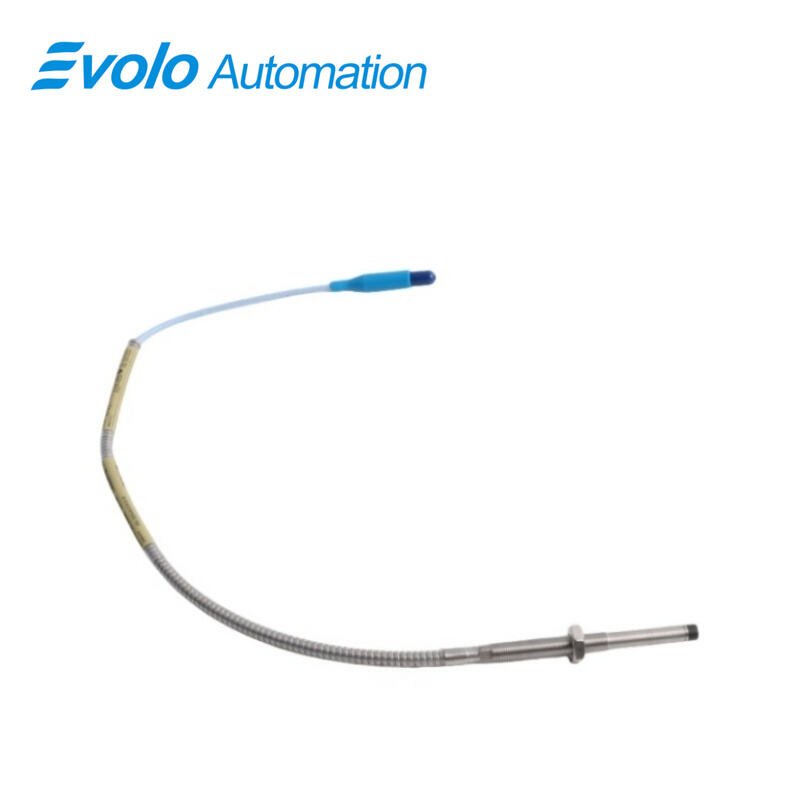

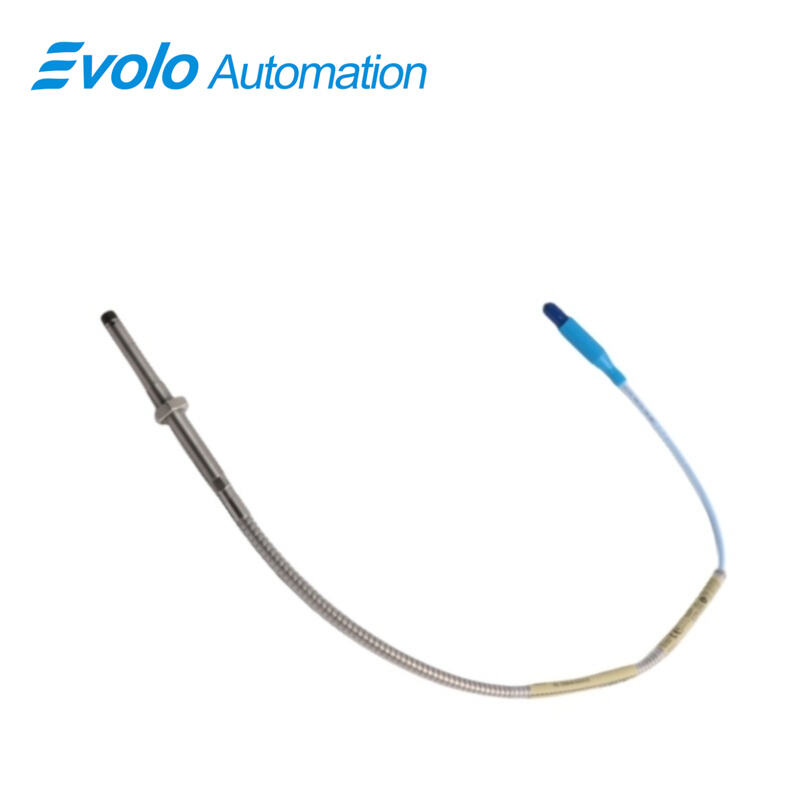

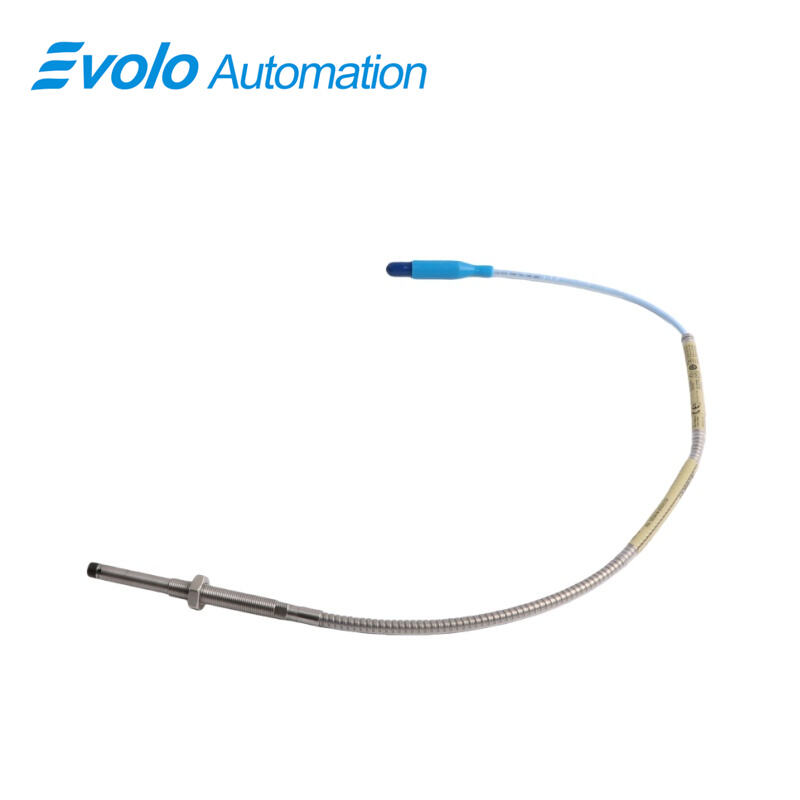

The 330104-04-10-10-02-00 3300 XL 8 mm Proximity Probe is an eddy current sensor designed for automated shaft position and vibration measurement in rotating machinery. The 330104-04-10-10-02-00 converts the distance between the probe tip and a conductive surface into a proportional voltage signal, allowing automation systems to monitor real-time shaft movement and vibration signals.
The 330104-04-10-10-02-00 features an M10×1 threaded probe body with a 40 mm unthreaded length and maximum thread engagement of 15 mm, enabling precise mounting near bearings. Its overall case length of 100 mm and 1.0-meter standard cable allow the 330104-04-10-10-02-00 to be installed in compact machine layouts with controlled cable routing. The miniature coaxial ClickLoc connector ensures secure signal transfer to monitoring modules.
Operating between –52°C and +177°C, the 330104-04-10-10-02-00 provides a 2 mm linear range, 50 Ω output resistance, supply sensitivity below 2 mV per volt, and typical extension cable capacitance of 69.9 pF/m. These parameters allow the 330104-04-10-10-02-00 to deliver repeatable, predictable signals for automated shaft position tracking, vibration analysis, and speed reference input in industrial automation systems.
Applications
Measure Axial Shaft Position in Turbines
The 330104-04-10-10-02-00 is mounted near thrust bearings to measure axial shaft displacement. The 2 mm linear range allows automation systems to detect shaft movement and trigger alarms when limits are exceeded.
Capture Radial Vibration in Bearings
Installed next to journal bearings, the 330104-04-10-10-02-00 captures radial shaft vibration caused by imbalance or wear. Its 50 Ω output resistance and controlled 69.9 pF/m cable capacitance enable accurate signal transmission to vibration monitoring modules.
Provide Speed Reference for Rotating Machines
Paired with a reference target, the 330104-04-10-10-02-00 generates speed signals for compressors, pumps, and generators. Supply sensitivity below 2 mV per volt ensures consistent speed signal output despite input voltage variations.
Specifications
|
Operating and Storage Temperature: |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
Competitive Advantage
Enable Installation in Compact Machinery
The 100 mm case length and 40 mm unthreaded section allow the 330104-04-10-10-02-00 to be installed in confined bearing housings without interference with adjacent components.
Operate Near High-Temperature Bearings
With an operating range up to +177°C, the 330104-04-10-10-02-00 can be positioned close to hot bearing housings for direct measurement without relocating the probe.
Deliver Predictable Electrical Signals
The 50 Ω output resistance, low supply sensitivity, and defined cable capacitance allow the 330104-04-10-10-02-00 to provide repeatable voltage signals for shaft position monitoring, vibration analysis, and speed reference input.
