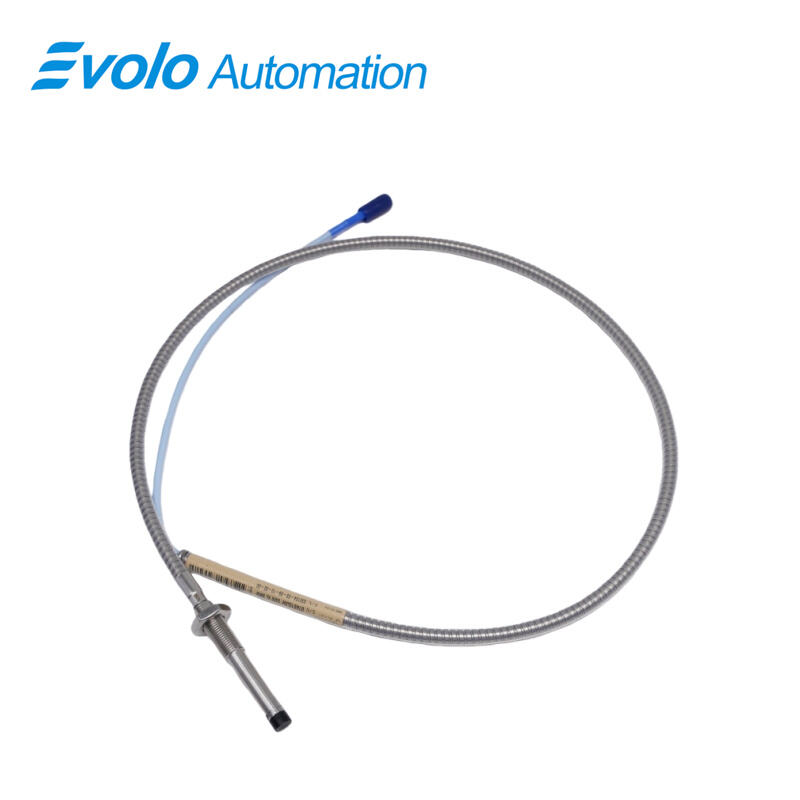

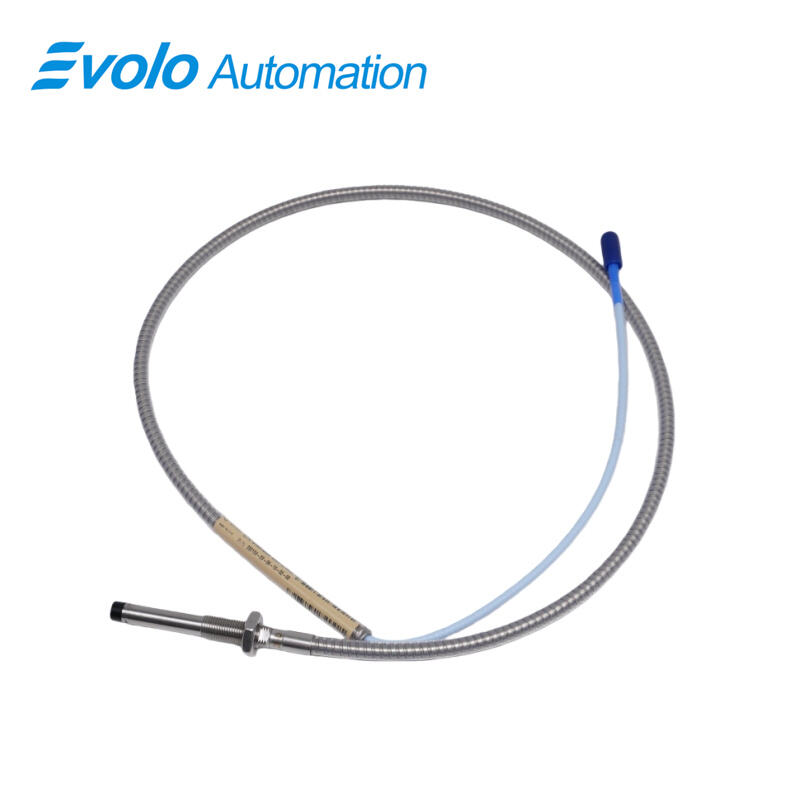

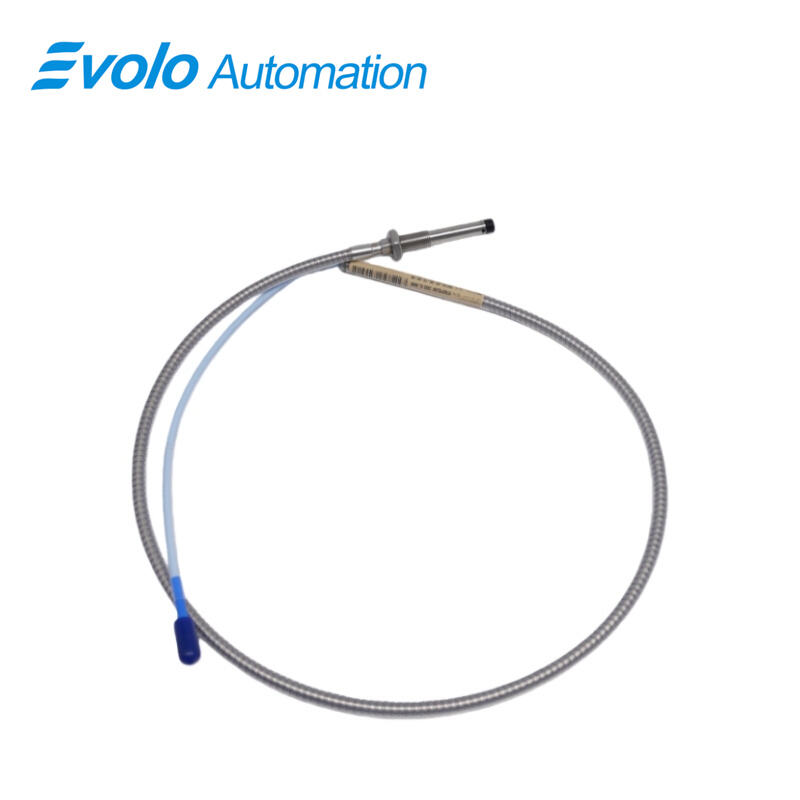

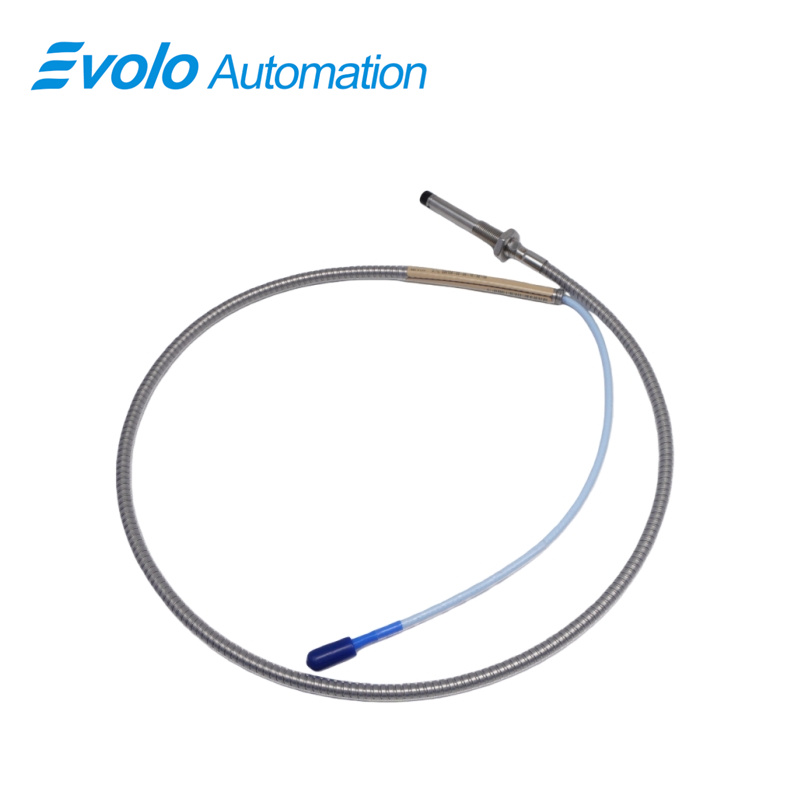

330104-03-12-10-02-00 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330104-03-12-10-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330104-03-12-10-02-00 3300 XL 8 mm Proximity Probe features a 120 mm overall case length with a 30 mm unthreaded section and a 1.0-meter standard cable, equipped with a Miniature coaxial ClickLoc connector. Designed for fluid-film bearing machines, the 330104-03-12-10-02-00 3300 XL 8 mm Proximity Probe delivers precise measurement of both static position and dynamic vibration. Its 2 mm linear range and 50 Ω output resistance provide accurate signal output, while supply sensitivity under 2 mV per volt ensures consistent readings. Operating between −52°C and +177°C, the 330104-03-12-10-02-00 3300 XL 8 mm Proximity Probe supports 0.2–1.5 mm² field wiring and standard 69.9 pF/m extension cable capacitance. This probe integrates with 3300 XL Proximitor Sensors and extension cables, enabling Keyphasor reference, speed, and axial position measurements. Patented TipLoc molding and CableLoc designs secure the probe tip and cable, while the optional FluidLoc cable prevents oil ingress, maintaining signal integrity in industrial automation environments. The 330104-03-12-10-02-00 3300 XL 8 mm Proximity Probe is fully compatible with non-XL 3300 series 5 and 8 mm systems, allowing upgrades or replacements without additional calibration.

Applications

Radial Vibration Measurement on Small Shafts
The 330104-03-12-10-02-00 3300 XL 8 mm Proximity Probe measures radial vibration on shafts smaller than 51 mm (2 in), providing real-time signals for machinery control systems. Its 2 mm linear range and high sensitivity allow precise monitoring of fluid-film bearing machines.

Axial Position (Thrust) Measurement
Use the 330104-03-12-10-02-00 3300 XL 8 mm Proximity Probe to track axial shaft movement. The 50 Ω output resistance and supply sensitivity under 2 mV per volt enable accurate detection of axial displacement for pump, fan, and compressor applications.

Keyphasor and Speed Reference Signal
The 330104-03-12-10-02-00 3300 XL 8 mm Proximity Probe provides Keyphasor output for speed and phase reference measurements. It supports both static and dynamic monitoring in fluid-film bearing machinery.

Integration with Existing Systems
The 330104-03-12-10-02-00 3300 XL 8 mm Proximity Probe is fully compatible with 3300 XL Proximitor Sensors and extension cables, allowing upgrades from older 5 mm and 8 mm systems without recalibration.

Specifications

Competitive Advantage

Robust Probe and Cable Connection
The patented TipLoc molding method and CableLoc design on the 330104-03-12-10-02-00 3300 XL 8 mm Proximity Probe deliver 330 N pull strength, securing the probe tip and cable under industrial vibration.

High-Temperature Operation
The 330104-03-12-10-02-00 3300 XL 8 mm Proximity Probe operates from −52°C to +177°C, ensuring functionality in high-temperature machinery and harsh environments.

FluidLoc Cable Option
Optional FluidLoc cable for the 330104-03-12-10-02-00 3300 XL 8 mm Proximity Probe prevents oil or liquid ingress, maintaining signal quality and measurement accuracy.

Compact Installation in Limited Spaces
With a 120 mm overall case length and M10x1 thread, the 330104-03-12-10-02-00 3300 XL 8 mm Proximity Probe fits into tight machinery spaces while providing a 2 mm linear measurement range.

High-Fidelity Signal Output
The 50 Ω output resistance and 69.9 pF/m extension cable capacitance of the 330104-03-12-10-02-00 3300 XL 8 mm Proximity Probe deliver precise analog signals for automation monitoring systems.
