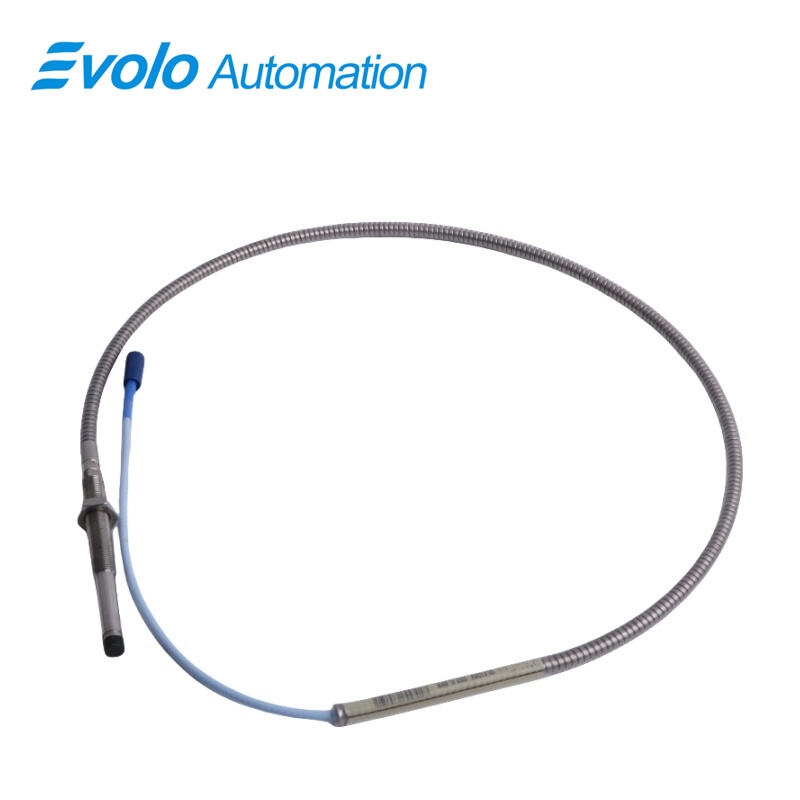

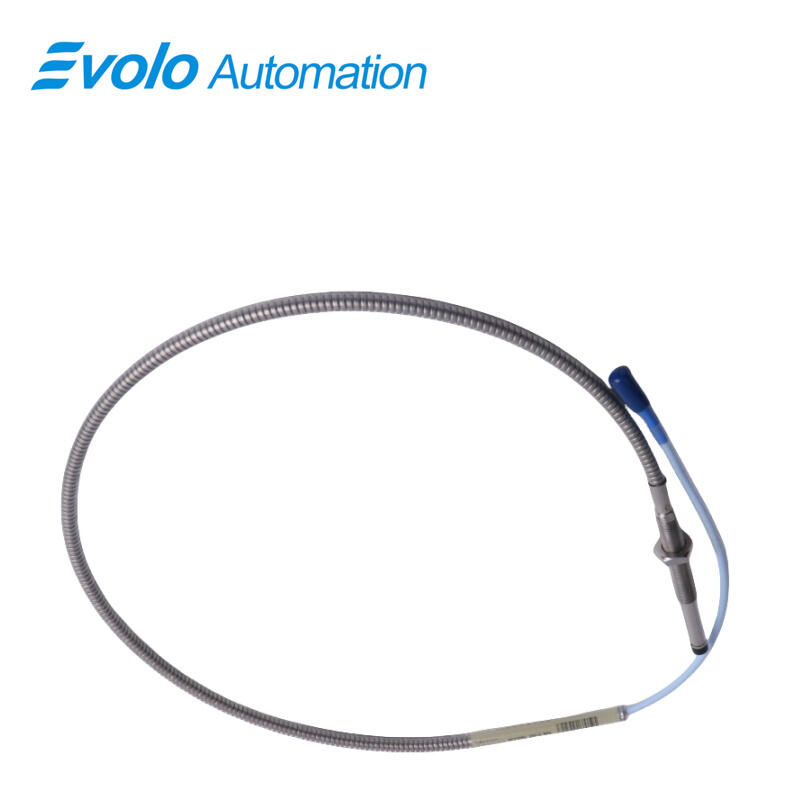

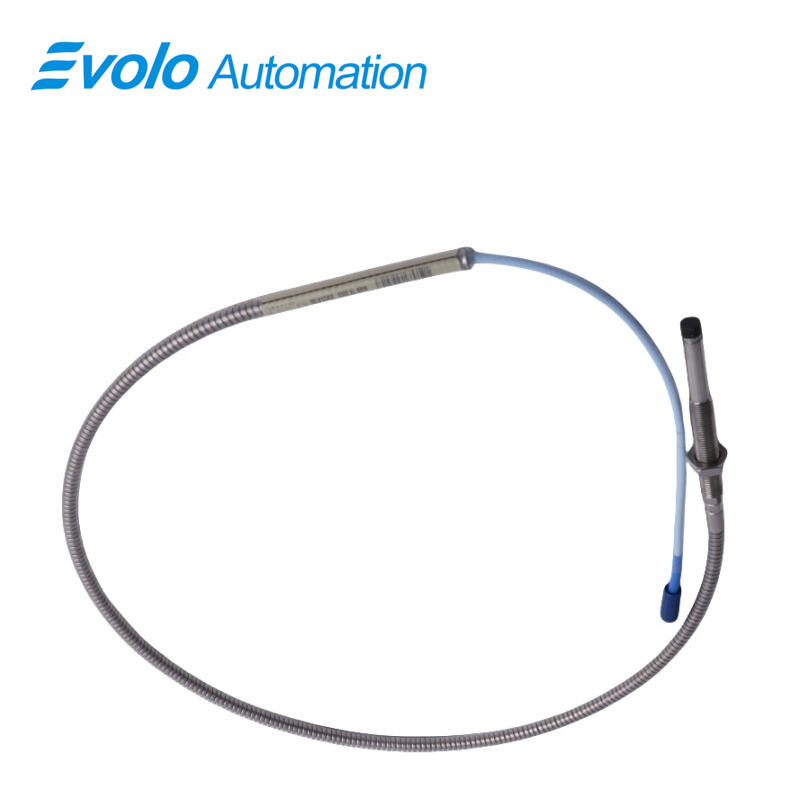

330104-03-09-05-02-05 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330104-03-09-05-02-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330104-03-09-05-02-05 3300 XL 8 mm Proximity Probe is designed for precision vibration measurement and position monitoring in advanced industrial automation systems. As part of the 3300 XL proximity transducer platform, this 8 mm probe converts the distance between the probe tip and a rotating conductive surface into a proportional voltage signal, allowing accurate analysis of both static shaft displacement and dynamic vibration behavior on turbomachinery, compressors, pumps, and process equipment. Certified for hazardous industrial environments with CSA, ATEX, and IECEx approvals, the model incorporates an M10×1 threaded housing, a miniature ClickLoc coaxial connector, and a 2 mm linear measurement range suitable for mission-critical automation tasks. With backward interchangeable functionality across 3300 XL and earlier 3300 series components, the 330104-03-09-05-02-05 probe eliminates calibration matching, simplifies field maintenance, and supports API 670 alignment in mechanical configuration and temperature stability. Enhanced reliability technologies—including TipLoc bonding and CableLoc tensile reinforcements—enable stronger mechanical retention and long-term insulation integrity, ensuring consistent performance in predictive maintenance,

Applications

Rotating Machinery Monitoring
The 330104-03-09-05-02-05 measures axial and radial shaft vibration with a 2 mm linear range, detecting misalignment, imbalance, or early wear in turbines, motors, and compressors.

Medium-Depth Installations
With a 90 mm overall case and 30 mm unthreaded length, the 330104-03-09-05-02-05 is ideal for machinery locations that require moderate probe extension without sacrificing accuracy.

Hazardous Environment Operation
CSA, ATEX, and IECEx approvals, combined with the -52°C to +177°C operating range, allow the 330104-03-09-05-02-05 to operate safely in extreme industrial conditions.

Specifications

Competitive Advantage

Certified for Hazardous Operations (CSA / ATEX / IECEx)
Suitable for explosive and flammable process areas without additional enclosure requirements, supporting deployment in oil, gas, and chemical plants.

Robust Temperature Capability (−52°C to +177°C)
Maintains stable output in extreme thermal environments, reducing measurement drift during plant startups, process transients, or outdoor operation.

Precise Linear Range (2 mm / 80 mils)
Ensures reliable displacement and vibration measurement for condition-based maintenance programs and compliance with API 670 performance expectations.

Mechanical Retention Improvements via TipLoc & CableLoc
Patented retention methods deliver up to 330 N tensile strength, improving cable durability in high-vibration systems and lowering field failure rates.

Backward Interchangeability Across 3300 Series
Compatible with non-XL 5 mm and 8 mm components, reducing spare part inventory and eliminating calibration matching during system upgrades or retrofits.
