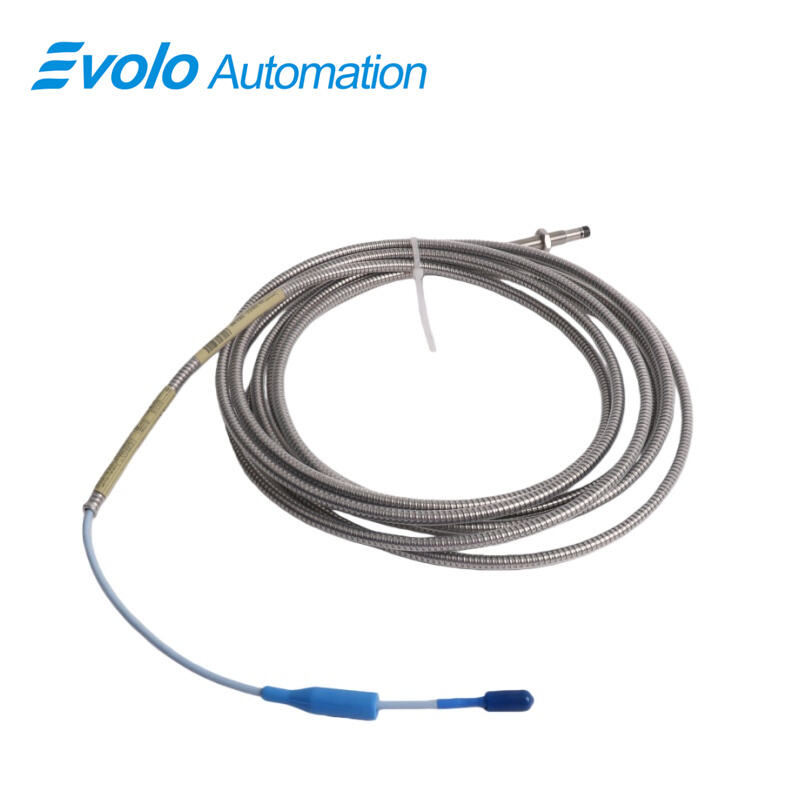

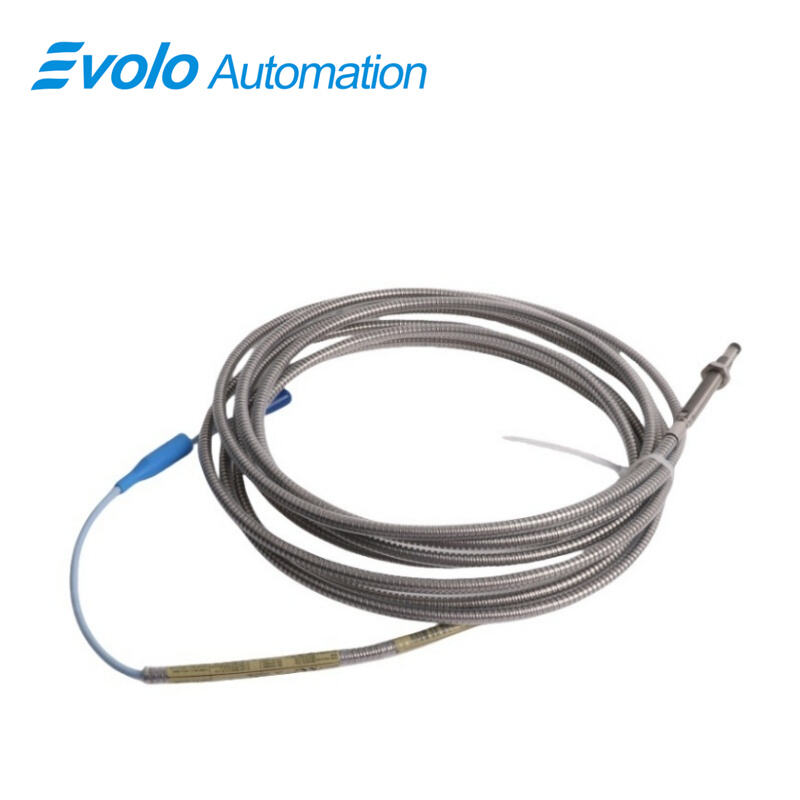

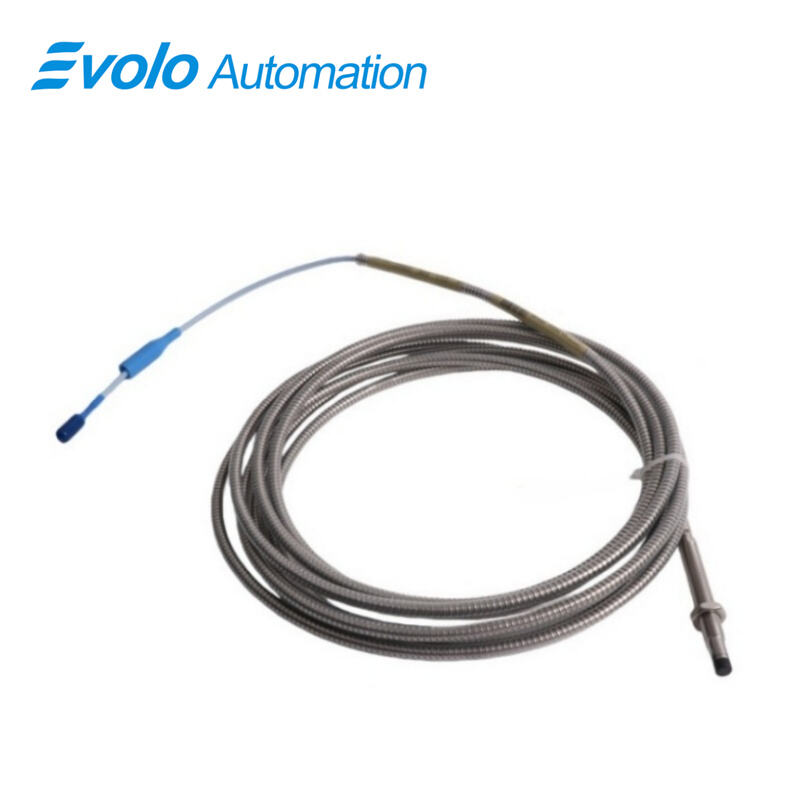

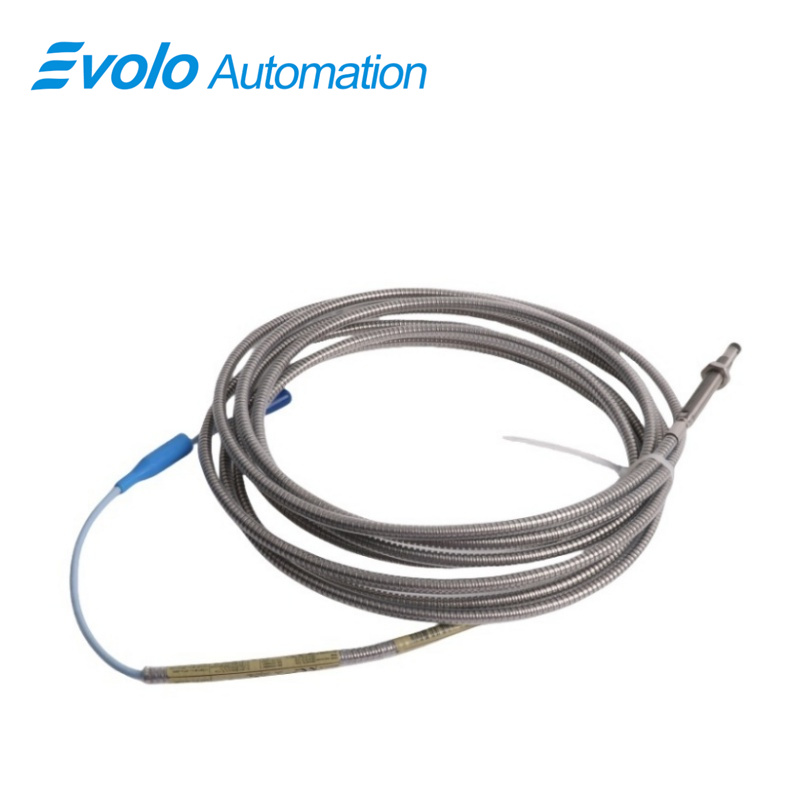

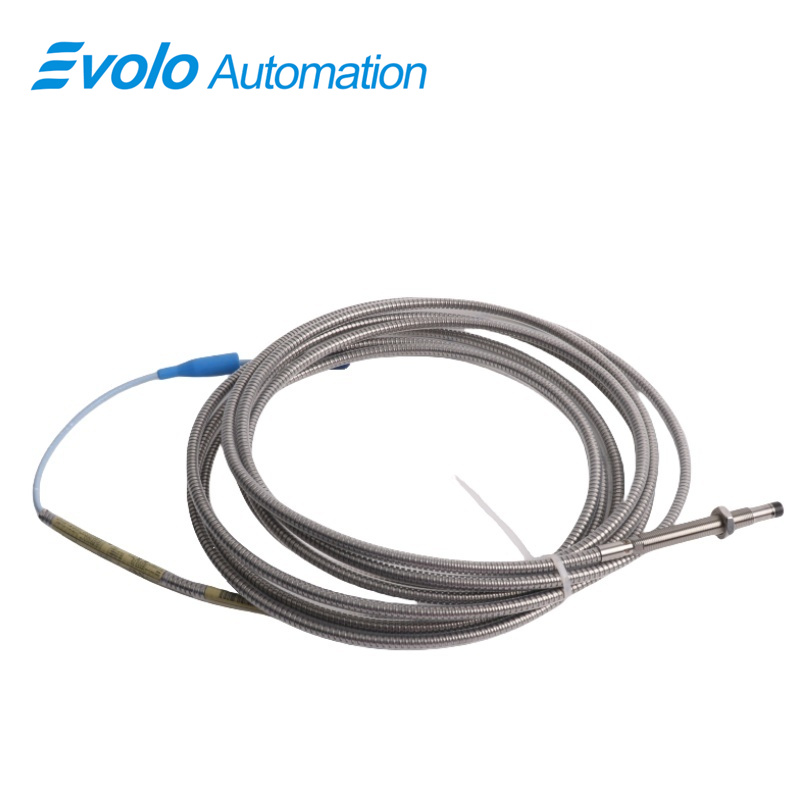

330104-01-14-10-01-CN 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330104-01-14-10-01-CN
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330104-01-14-10-01-CN 3300 XL 8 mm Proximity Probe provides precise measurement of distance and vibration on conductive surfaces for automated systems. With a linear range of 2 mm, output resistance of 50 Ω, and supply sensitivity under 2 mV per volt, the 330104-01-14-10-01-CN 3300 XL 8 mm Proximity Probe accurately monitors position and dynamic motion in industrial machinery. The probe features a 10 mm minimum unthreaded length, M10x1 thread, 140 mm case length, and supports 1.0-meter standard cable with a miniature coaxial ClickLoc connector. Operating temperatures span -52°C to +177°C, with CSA, ATEX, and IECEx approvals. Extension cables have 69.9 pF/m capacitance, compatible with 0.2–1.5 mm² field wiring. Designed for vibration monitoring, Keyphasor speed signals, and fluid-film bearing measurements, the 330104-01-14-10-01-CN 3300 XL 8 mm Proximity Probe supports interchangeability with 3300 series components. Its TipLoc probe molding and CableLoc cable design provide secure attachment, with optional FluidLoc cables preventing fluid leakage. Ideal for automated monitoring, the 330104-01-14-10-01-CN 3300 XL 8 mm Proximity Probe ensures accurate, repeatable measurements in challenging industrial environments.

Applications

Application – Monitor Vibration on Bearings
Use the 330104-01-14-10-01-CN 3300 XL 8 mm Proximity Probe to measure vibration amplitudes on fluid-film bearings in turbines and pumps. Its 2 mm linear range allows precise monitoring of rotor motion, helping automate maintenance schedules.

Application – Measure Shaft Position
Install the 330104-01-14-10-01-CN 3300 XL 8 mm Proximity Probe to track shaft displacement in compressors and generators. The 50 Ω output resistance ensures consistent signal transmission to control systems for automated alignment checks.

Application – Detect Keyphasor Speed Signals
Use the 330104-01-14-10-01-CN 3300 XL 8 mm Proximity Probe as a Keyphasor sensor to generate rotor speed signals for automated control and diagnostics in high-speed machinery.

Specifications

Competitive Advantage

Competitive Advantage – Secure Probe-Cable Attachment
Patented CableLoc design on the 330104-01-14-10-01-CN 3300 XL 8 mm Proximity Probe provides 330 N pull strength, ensuring probe and cable remain connected under high vibration, with minimal signal variation due to 50 Ω output impedance.

Competitive Advantage – Prevent Fluid Leakage
Optional FluidLoc cables on the 330104-01-14-10-01-CN 3300 XL 8 mm Proximity Probe block oil escape from the machine through the cable, maintaining clean operation areas and protecting sensor electronics.

Competitive Advantage – Interchangeable Components
The 330104-01-14-10-01-CN 3300 XL 8 mm Proximity Probe is fully compatible with 3300 series probes, extension cables, and Proximitor sensors, supporting automated system upgrades and reducing downtime for component replacements.

Competitive Advantage – Operate in Extreme Conditions
With a temperature range of -52°C to +177°C, supply sensitivity below 2 mV per volt, and 69.9 pF/m extension cable capacitance, the 330104-01-14-10-01-CN 3300 XL 8 mm Proximity Probe maintains accurate measurement in harsh industrial environments.
