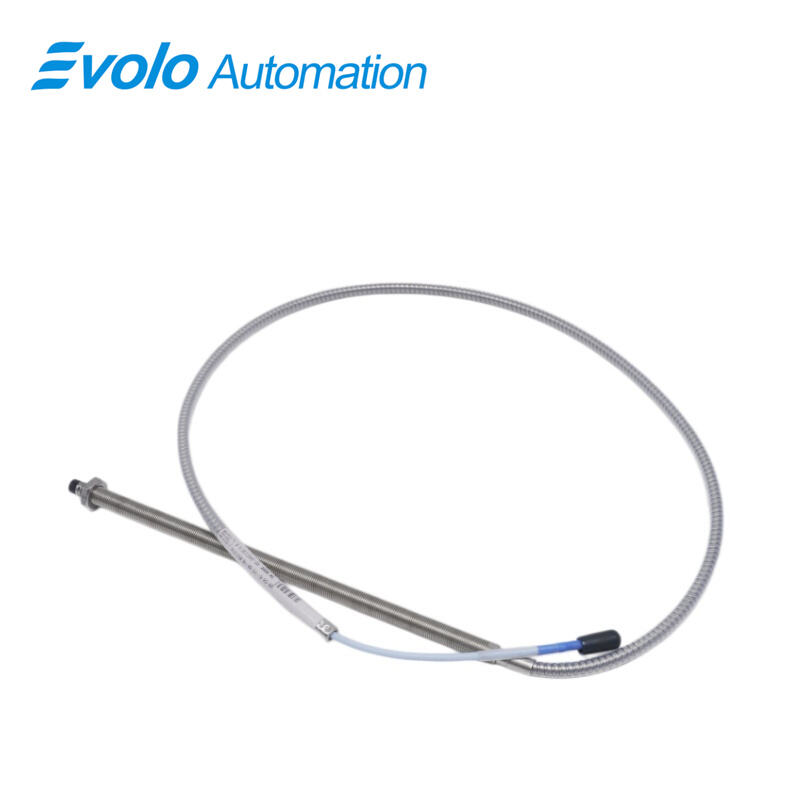

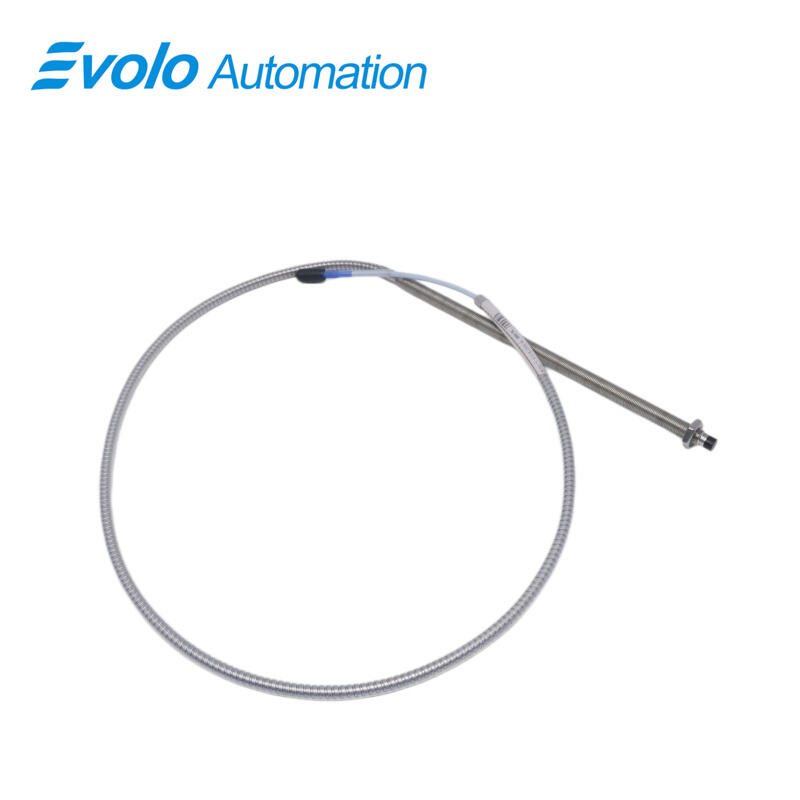

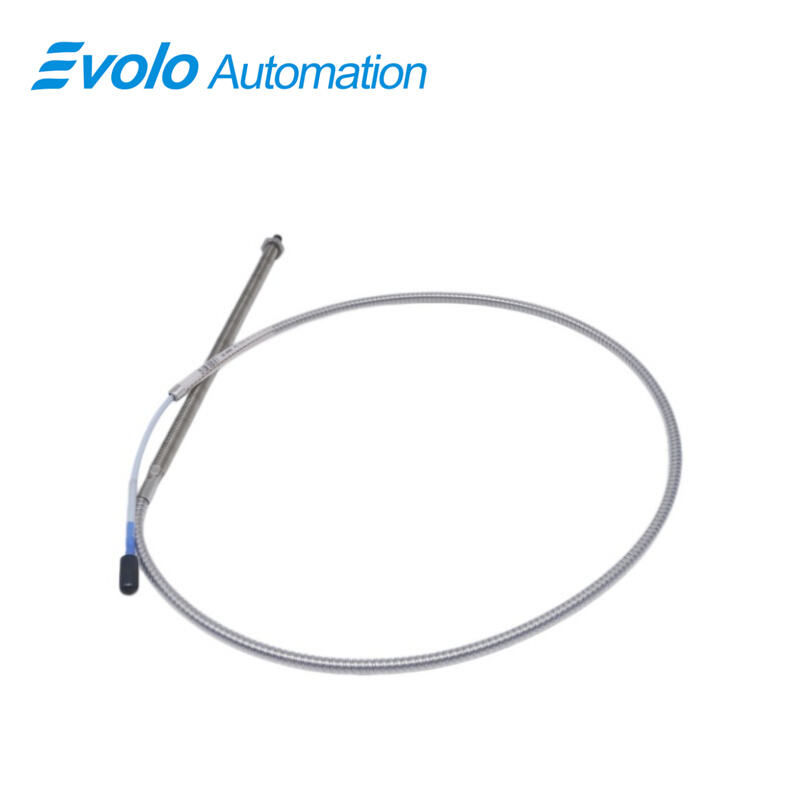

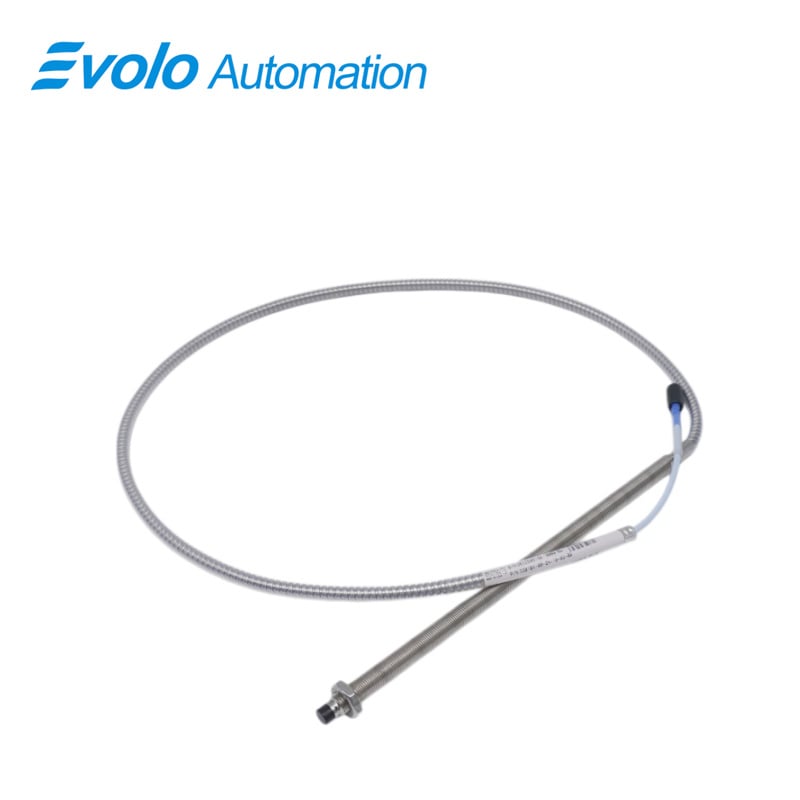

330104-00-24-10-02-00 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330104-00-24-10-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330104-00-24-10-02-00 3300 XL 8 mm Proximity Probes measure displacement by generating an output voltage proportional to the gap between the probe tip and the conductive surface. With a linear range of 2 mm (80 mils) and an output resistance of 50 Ω, the 330104-00-24-10-02-00 3300 XL 8 mm Proximity Probes accurately capture static and dynamic signals in industrial automation systems. The probe case measures 240 mm with M10x1 threading and a maximum 15 mm thread engagement. Operating temperatures span -52°C to +177°C (-62°F to +350°F), while supply sensitivity remains below 2 mV per volt input variation. Standard 1 m (3.3 ft) total length includes miniature coaxial ClickLoc connectors and cables with 69.9 pF/m capacitance. Designed for Keyphasor, speed, position, and vibration monitoring on fluid-film bearings, the 330104-00-24-10-02-00 3300 XL 8 mm Proximity Probes integrate TipLoc-molded tips and CableLoc-strengthened cables for 330 N pull resistance. Optional FluidLoc cables prevent oil leakage. Fully interchangeable with other 3300 series 5 mm and 8 mm components, the 330104-00-24-10-02-00 3300 XL 8 mm Proximity Probes supports easy installation, automation monitoring, and data acquisition in demanding industrial environments.

Applications

Measure Shaft Vibration within 2 mm Linear Range

The 3300 XL 8 mm Proximity Probes measure shaft vibration on fluid-film bearings with a 2 mm (80 mils) linear range and 50 Ω output resistance. Supply sensitivity below 2 mV per volt allows detection of vibration amplitude changes as small as ±0.05 mm. The probe’s 240 mm overall case and M10x1 thread with 15 mm engagement ensure precise alignment for repeatable readings in high-speed shafts.

Track Rotor Position with 1 m ClickLoc Coaxial Cable

The 3300 XL 8 mm delivers accurate rotor position for Keyphasor applications using its 1 m (3.3 ft) miniature coaxial ClickLoc cable. Extension cable capacitance of 69.9 pF/m maintains high-fidelity signals for speed measurements up to 12,000 RPM, while field wiring from 0.2 to 1.5 mm² (16–24 AWG) simplifies integration into automation systems.

Monitor High-Temperature Motion from -52°C to +177°C

The 3300 XL 8 mm Proximity Probes operate reliably in temperatures from -52°C to +177°C (-62°F to +350°F). Voltage output deviation remains under 2 mV per volt input, supporting precise tracking of dynamic components in extreme industrial environments.

Specifications

Competitive Advantage

Rapid Installation with TipLoc Molded Probe

The 3300 XL 8 mm probe tip uses TipLoc molding and 15 mm maximum thread engagement. Installation without bench calibration reduces setup time by up to 30% and ensures correct positioning for ±0.05 mm measurement resolution.

Cable Strength and Fluid Protection

CableLoc design on the 3300 XL 8 mm withstands 330 N pull force. Optional FluidLoc cable prevents oil leakage, ensuring measurement accuracy in lubricated machinery at operational speeds above 10,000 RPM.

Interchangeable 3300 Series Components

All 3300 XL 8 mm Proximity Probes and extension cables are fully interchangeable with 5 mm and 8 mm 3300 series components. The 1 m cable length, 69.9 pF/m capacitance, and standardized connector allow rapid component replacement and reduce automation downtime by up to 25%.
