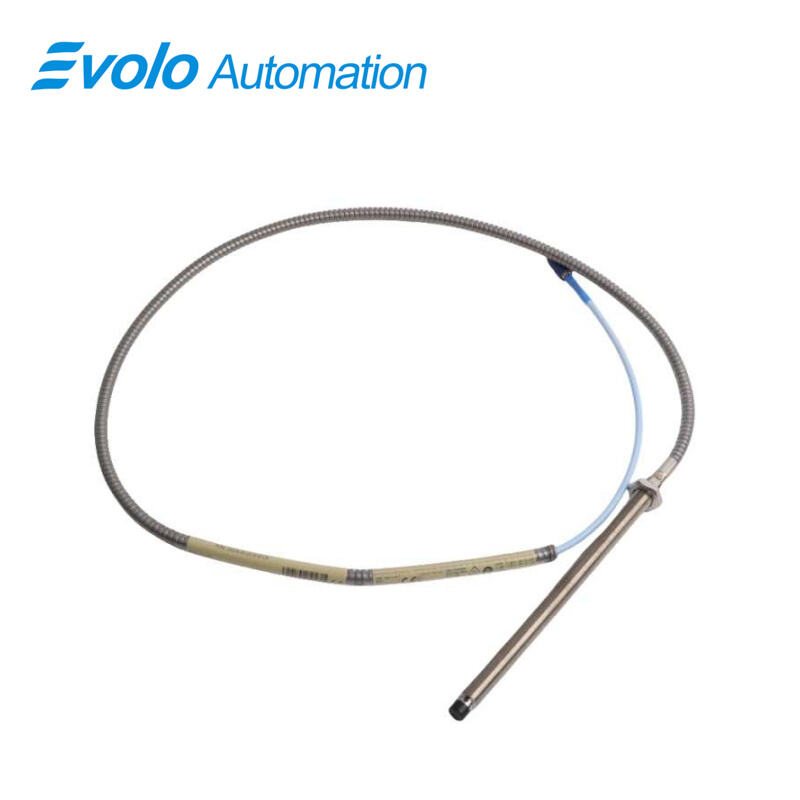

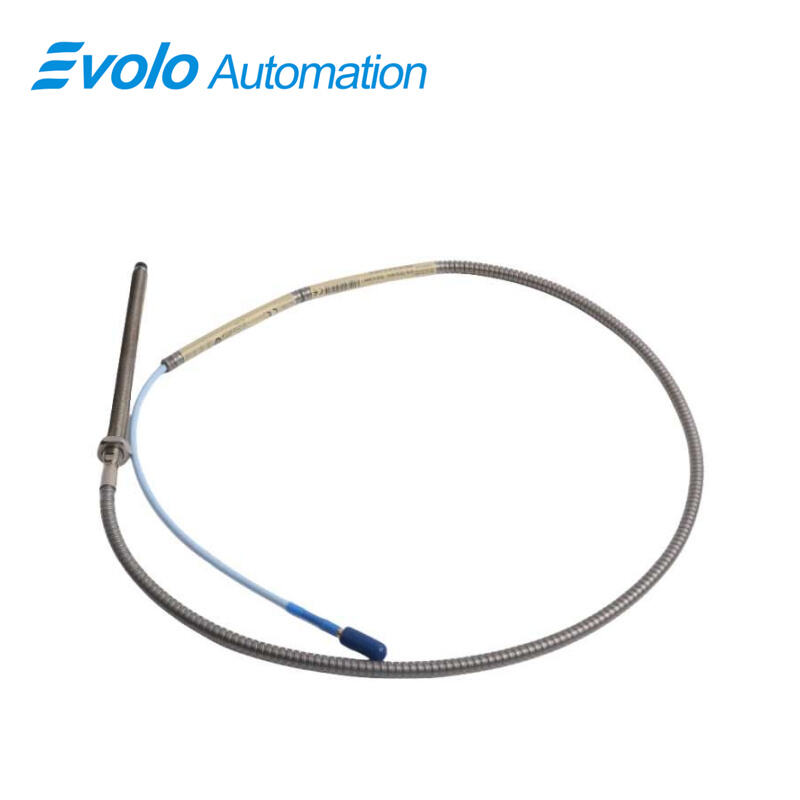

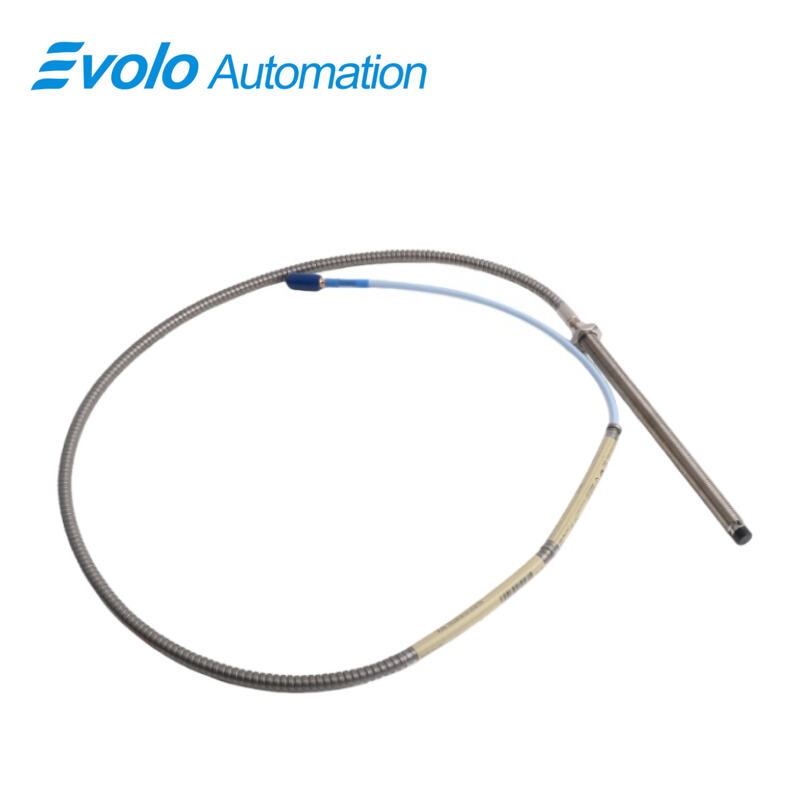

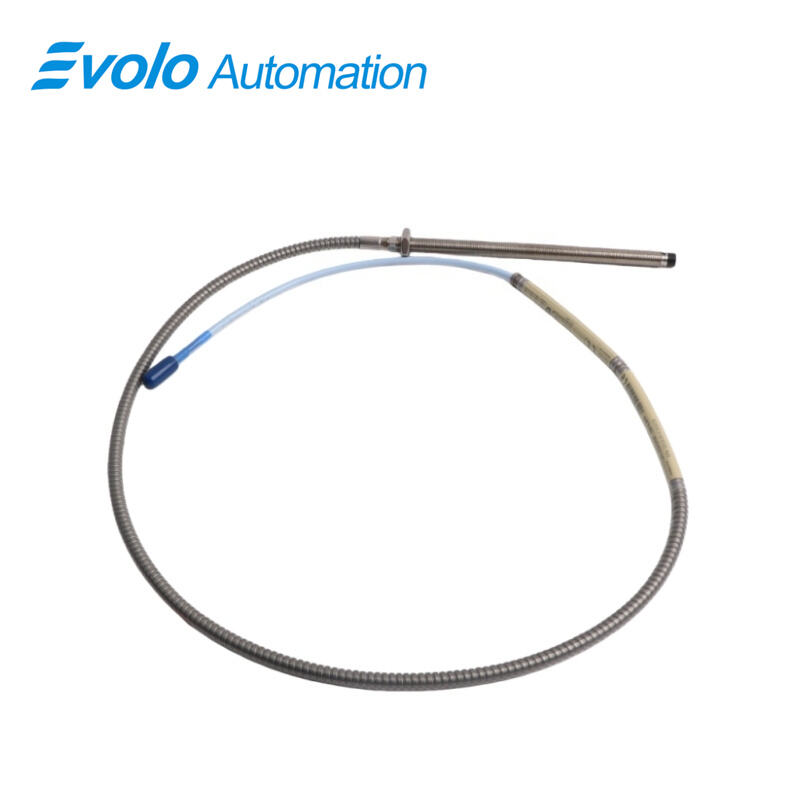

330104-00-16-05-02-05 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330104-00-16-05-02-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330104-00-16-05-02-05 3300 XL 8 mm Proximity Transducer System delivers an output voltage directly proportional to the distance between the probe tip and the conductive surface, supporting both static position and dynamic vibration measurements. With a 160 mm overall case length, 2 mm linear range, and M10x1 probe thread with 15 mm engagement, the 330104-00-16-05-02-05 3300 XL 8 mm probe is ideal for axial position and rod drop monitoring on fluid-film bearings. Its miniature coaxial ClickLoc connector and 0.5-meter standard cable ensure precise signal transmission with 69.9 pF/m capacitance and 50 Ω output resistance. Operating from -52°C to +177°C, the 330104-00-16-05-02-05 3300 XL 8 mm supports vibration monitoring, Keyphasor reference, and speed measurements on rotating machinery. Optional FluidLoc cables prevent oil or fluid leakage through the probe interior, enhancing operational reliability. CSA, ATEX, and IECEx approvals allow the 330104-00-16-05-02-05 3300 XL 8 mm to be deployed in industrial environments requiring strict safety compliance, while backward compatibility with 3300 series components simplifies upgrades without recalibration.

Applications

Axial Position Measurement on Bearings
The 330104-00-16-05-02-05 3300 XL 8 mm probe measures shaft axial displacement up to 2 mm. Using the 330104-00-16-05-02-05 3300 XL 8 mm, operators can monitor bearing positions in fluid-film machines and detect any axial shifts in real time. Its operating range of -52°C to +177°C ensures consistent measurements across varying industrial conditions.

Rod Drop Detection on Reciprocating Compressors
With the 330104-00-16-05-02-05 3300 XL 8 mm, the precise 2 mm linear range allows detection of piston rod drop and abnormal movements. The probe’s 50 Ω output resistance and 69.9 pF/m extension cable capacitance maintain signal accuracy during extended cable runs.

Vibration Monitoring on Rotating Equipment
The 330104-00-16-05-02-05 3300 XL 8 mm captures dynamic vibration data, providing direct voltage output proportional to shaft movement. Its FluidLoc cable option prevents fluid leakage, preserving measurement integrity in lubricated machinery.

Keyphasor and Speed Signal Generation
The 330104-00-16-05-02-05 3300 XL 8 mm delivers accurate Keyphasor signals for speed and phase monitoring. Miniature coaxial ClickLoc connectors ensure secure electrical connections for critical rotational measurements.

Specifications

Competitive Advantage

High-Temperature Operation and Wide Range
The 330104-00-16-05-02-05 3300 XL 8 mm operates reliably from -52°C to +177°C, enabling installation in high-heat environments. Its performance remains consistent, with less than 2 mV change in output voltage per volt of input fluctuation.

Robust Probe Tip and Cable Connection
The 330104-00-16-05-02-05 3300 XL 8 mm uses patented TipLoc molding and CableLoc designs to provide a 330 N pull strength, securing the probe tip and cable for demanding industrial conditions.

FluidLoc Cable Option Prevents Leaks
The 330104-00-16-05-02-05 3300 XL 8 mm with FluidLoc cable prevents oil and other liquid ingress, maintaining the machine environment and protecting signal quality over time.

Compact and Flexible Installation
The 330104-00-16-05-02-05 3300 XL 8 mm has a 160 mm case and 0.5-meter cable, enabling tight installation while maintaining a 2 mm linear range for precise measurements.

Backward Compatibility with 3300 Series
The 330104-00-16-05-02-05 3300 XL 8 mm is fully interchangeable with other 3300 series 5 mm and 8 mm probes and extension cables, simplifying maintenance and reducing system downtime.
