Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330104-00-13-10-01-CN |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option(Minimum unthreaded length): |
00 mm |
|
Overall Case Length Option(Minimum case length): |
130 mm |
|
Total Length Option: |
1.0 meter (3.3 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector with connector protector, standard cable |
|
Agency Approval Option: |
CSA, ATEX, IECEx Approvals |
|
Probe Case Thread: |
M10x1 |
|
Maximum Length of Thread Engagement: |
15 mm |
|
Dimension: |
1.8x1.6x123cm |
|
Weight: |
0.18kg |
Description

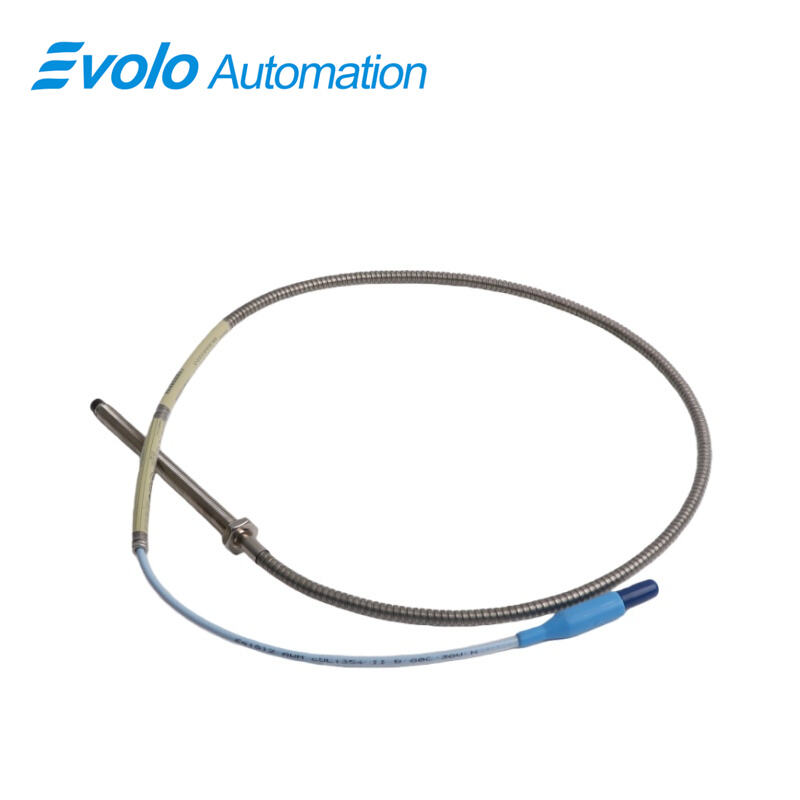

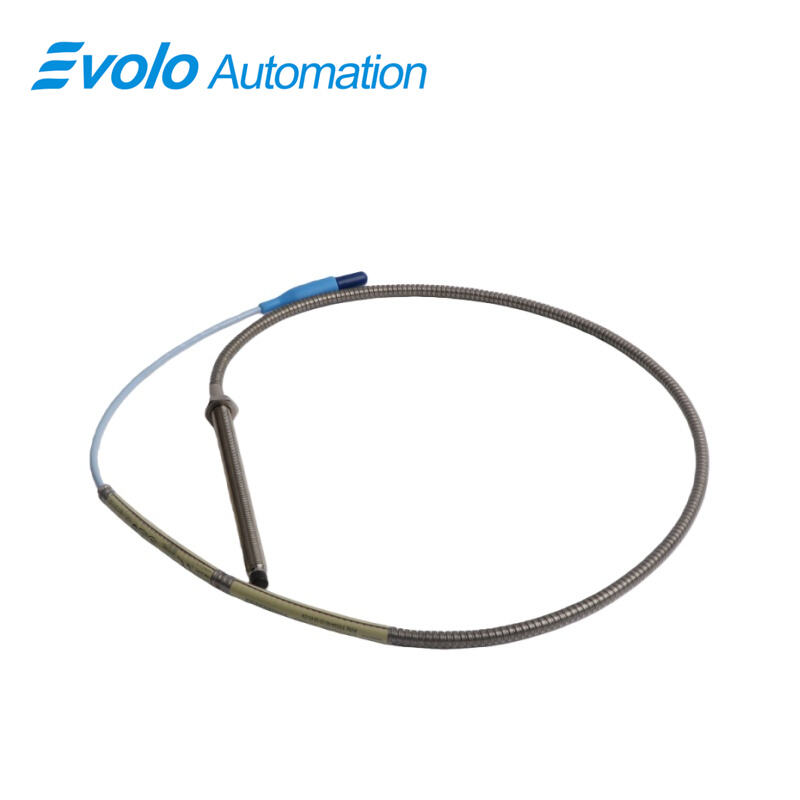

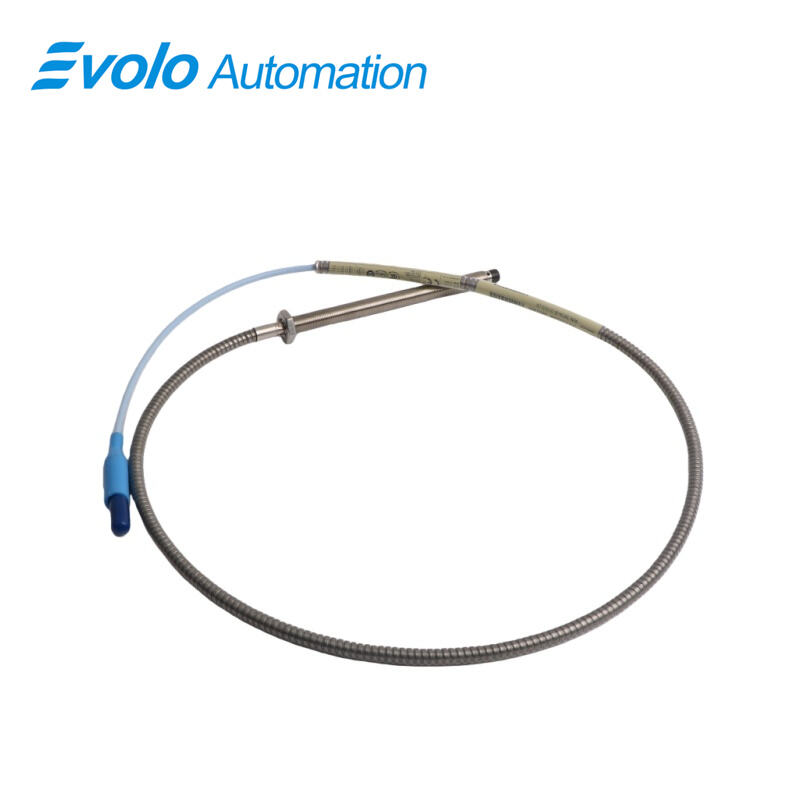

The 330104-00-13-10-01-CN 3300 XL 8 mm Proximity Probe provides voltage output proportional to the distance between the probe tip and a conductive surface, capturing both static position and dynamic vibration data. Designed with a 2 mm linear range, 50 Ω output resistance, and 69.9 pF/m extension cable capacitance, the 330104-00-13-10-01-CN 3300 XL 8 mm reliably transmits signals to automation and monitoring systems. Its 130 mm case length and M10×1 threaded design allow secure mounting in tight bearing housings. The 1.0-meter ClickLoc cable with connector protector ensures accurate data transfer for real-time speed measurement, Keyphasor reference, and vibration analysis. Operating between –52°C and +177°C, the 330104-00-13-10-01-CN 3300 XL 8 mm supports high-temperature environments while CSA, ATEX, and IECEx approvals enable use in industrial automation systems worldwide. This probe is backward compatible with other 3300 XL components, allowing flexible installation and field upgrades.
Applications
Measure fluid-film bearing vibration: The 330104-00-13-10-01-CN 3300 XL 8 mm probe captures dynamic vibration signals within a 2 mm linear range, transmitting voltage data through its 1.0-meter ClickLoc cable for real-time monitoring of rotating machinery.
Monitor shaft position: Using the 330104-00-13-10-01-CN 3300 XL 8 mm, engineers can detect static shaft displacement within ±2 mm with 50 Ω output resistance and 69.9 pF/m cable capacitance, feeding position data to automation control systems.
Keyphasor reference and speed measurement: The 330104-00-13-10-01-CN 3300 XL 8 mm generates consistent output proportional to distance, enabling speed calculation and Keyphasor reference signals for turbine and compressor automation.
Specifications
|
Operating and Storage Temperature: |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
Competitive Advantage
High-temperature operation: The 330104-00-13-10-01-CN 3300 XL 8 mm operates between –52°C and +177°C, allowing continuous monitoring in high-temperature industrial environments.
Robust mechanical mounting: With a 130 mm case and M10×1 threaded design, the 330104-00-13-10-01-CN 3300 XL 8 mm probe ensures secure installation in tight bearing housings and minimizes probe movement during operation.
Field-ready cable design: The 330104-00-13-10-01-CN 3300 XL 8 mm ClickLoc connector with protector and 1.0-meter standard cable enables quick field installation, reduces signal interference, and supports automation integration without bench calibration.
Interchangeability and backward compatibility: All 330104-00-13-10-01-CN 3300 XL 8 mm probes and extension cables are interchangeable with other 3300 XL components, allowing upgrades or replacements without modifying automation systems.
