Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330104-00-10-10-02-00 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option(Minimum unthreaded length): |
00 mm |
|
Overall Case Length Option(Minimum case length): |
100 mm |
|
Total Length Option: |
1.0 meter (3.3 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option: |
Not required |
|
Probe Case Thread: |
M10x1 |
|
Maximum Length of Thread Engagement: |
15 mm |
|
Dimension: |
1.8x1.6x119cm |
|
Weight: |
0.14kg |
Description

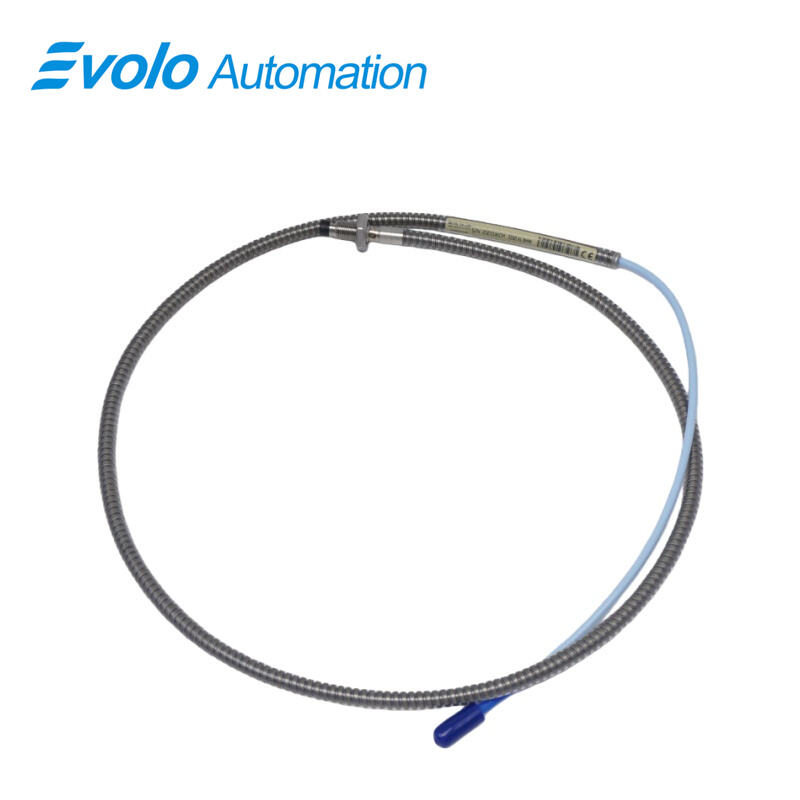

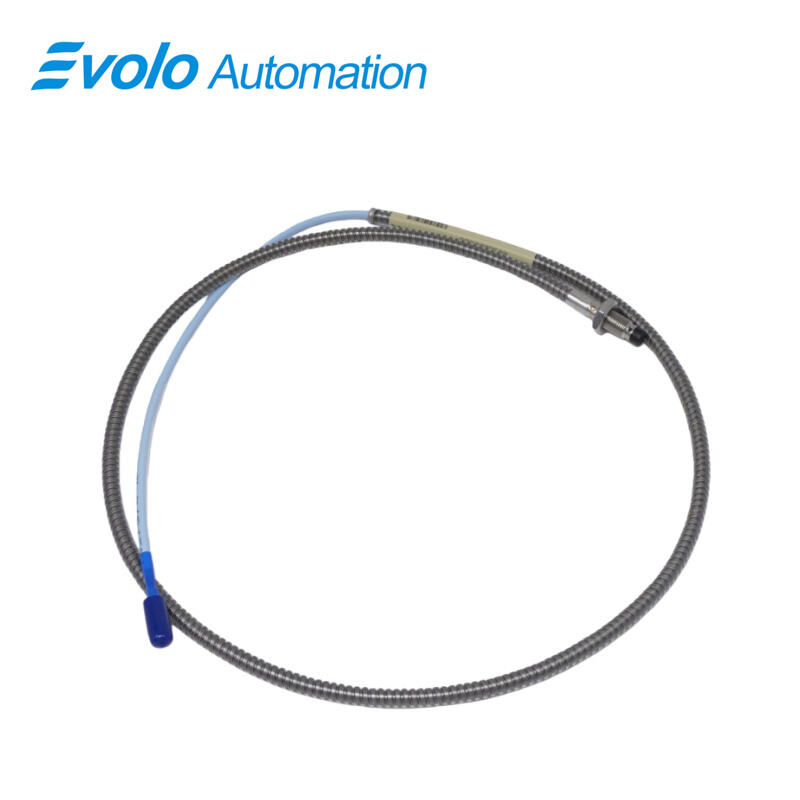

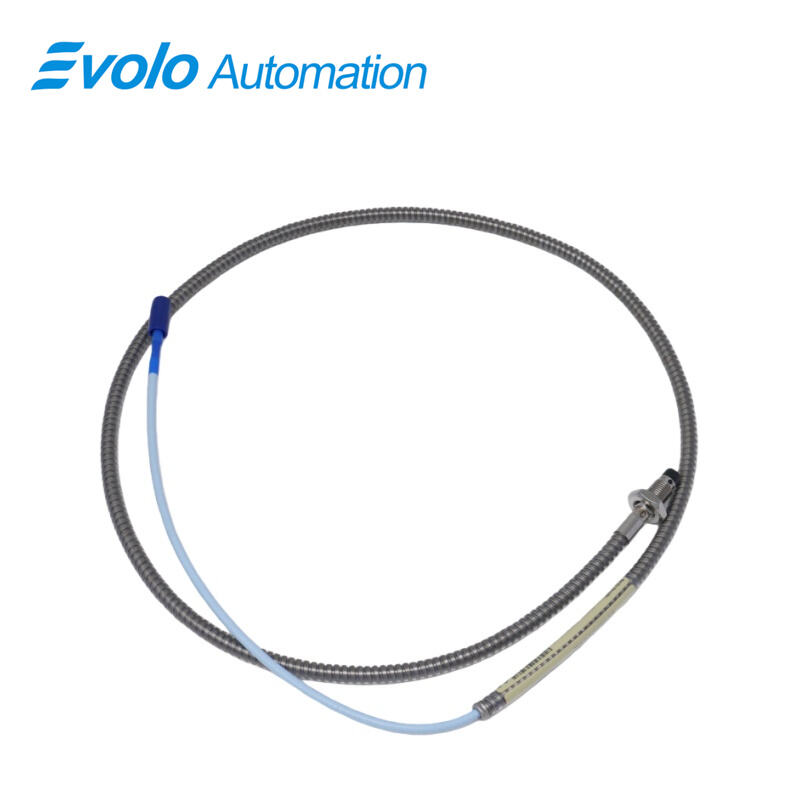

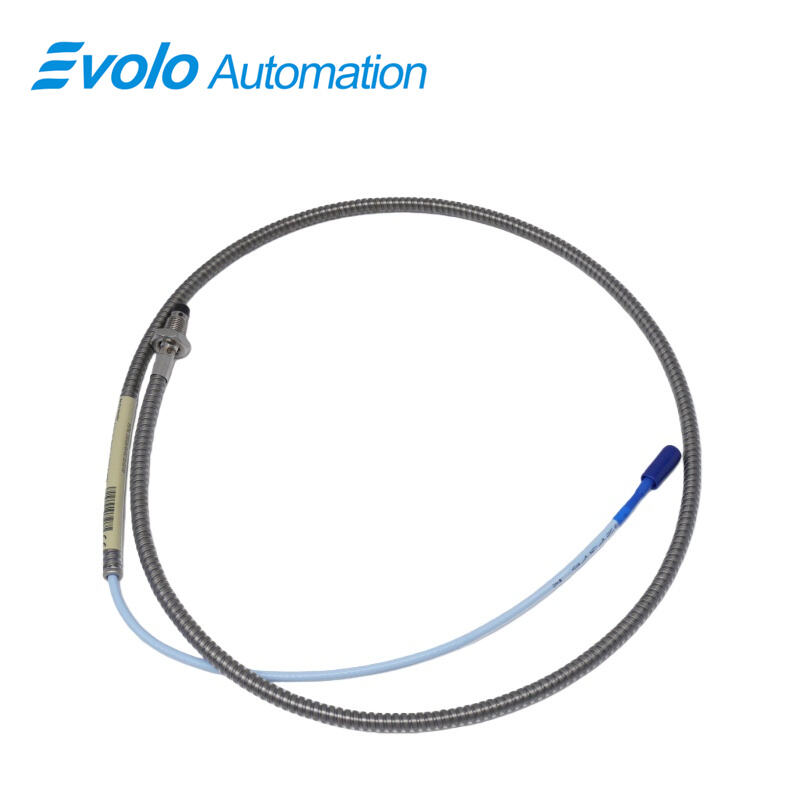

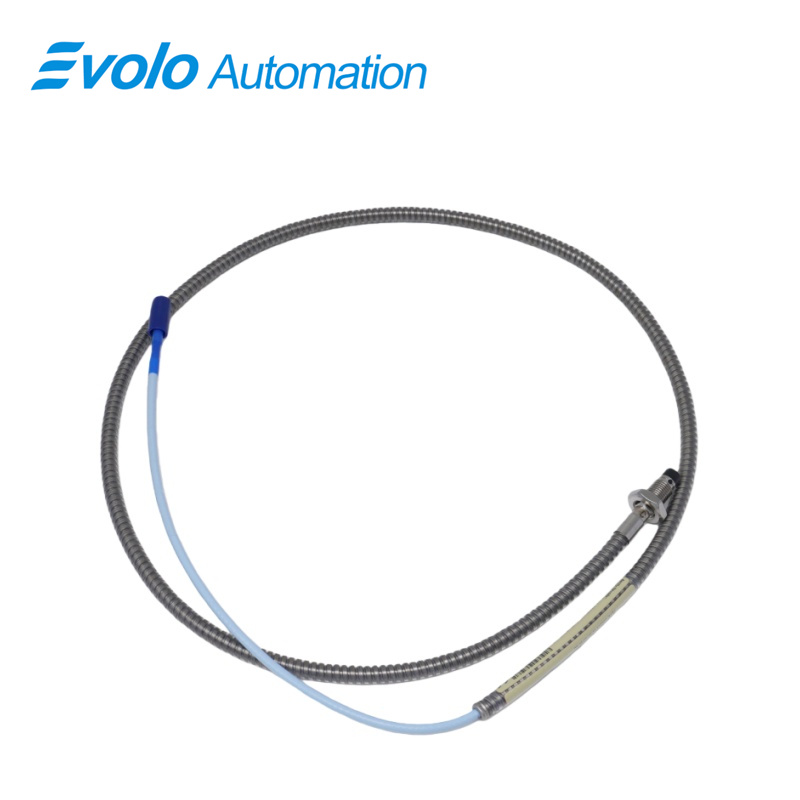

The 330104-00-10-10-02-00 3300 XL 8 mm Proximity Probe is an eddy current sensor designed for displacement and vibration measurement in automated rotating machinery. The 330104-00-10-10-02-00 converts the gap between the probe tip and a conductive surface into a proportional voltage signal, allowing automation systems to track shaft movement in real time.
The 330104-00-10-10-02-00 features an M10×1 threaded probe body with zero unthreaded length and a maximum thread engagement of 15 mm, supporting controlled installation near bearings and shafts. With an overall case length of 100 mm and a 1.0-meter standard cable, the 330104-00-10-10-02-00 is suitable for compact machine layouts where short cable routing is required. The miniature coaxial ClickLoc connector ensures secure signal transfer to monitoring modules.
Operating from –52°C to +177°C, the 330104-00-10-10-02-00 can be mounted close to hot bearing housings. A 2 mm linear range, 50 Ω output resistance, supply sensitivity below 2 mV/V, and typical cable capacitance of 69.9 pF/m allow the 330104-00-10-10-02-00 to deliver repeatable signals for shaft position tracking, vibration monitoring, and speed reference input in industrial automation systems.
Applications
Measure axial shaft position in compact turbine systems
The 330104-00-10-10-02-00 is installed near thrust bearings to measure axial shaft movement. The 2 mm linear range allows control systems to detect shaft position changes and trigger alarms when preset limits are exceeded.
Monitor radial vibration in short-distance installations
Mounted adjacent to journal bearings, the 330104-00-10-10-02-00 captures radial vibration signals where space is limited. The 1.0-meter cable length and 50 Ω output resistance help deliver clean vibration data to nearby monitoring modules.
Provide speed reference signals for small rotating machines
When used with a reference target, the 330104-00-10-10-02-00 supplies speed-related signals for pumps and compressors. Low supply sensitivity below 2 mV/V supports accurate speed signal output during voltage variation.
Specifications
|
Operating and Storage Temperature: |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
Competitive Advantage
Enable installation in confined machinery spaces
The 100 mm case length, zero unthreaded section, and M10×1 thread allow the 330104-00-10-10-02-00 to be mounted in compact housings where longer probes cannot fit.
Support operation near high-temperature bearings
With an operating limit up to +177°C, the 330104-00-10-10-02-00 can be positioned close to hot bearing zones without relocating the sensor away from the shaft.
Deliver defined electrical output for monitoring modules
The 50 Ω output resistance and controlled cable capacitance allow the 330104-00-10-10-02-00 to provide predictable voltage signals, simplifying signal scaling in automated protection systems.
