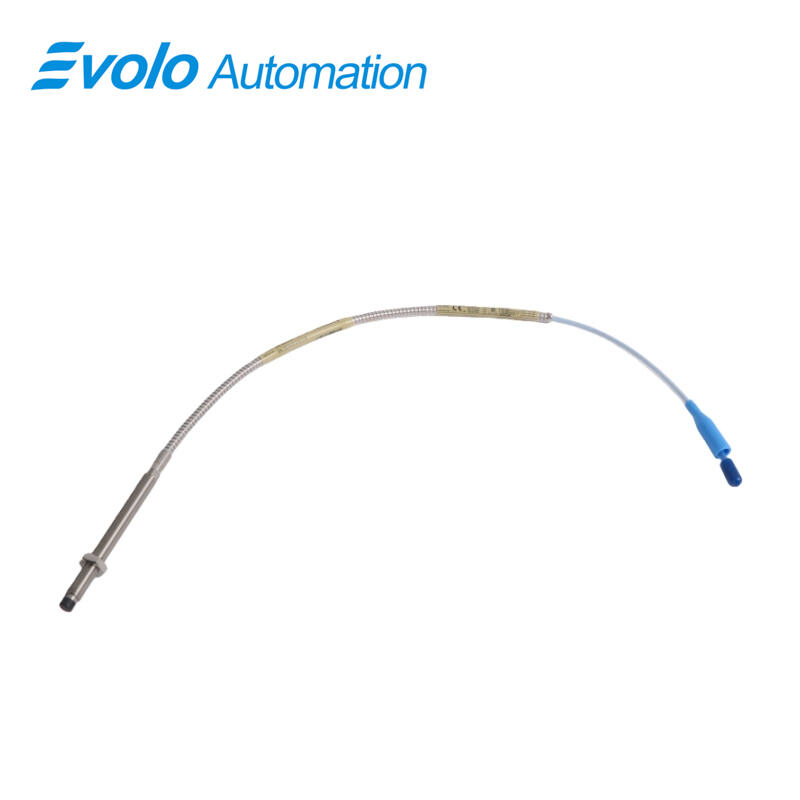

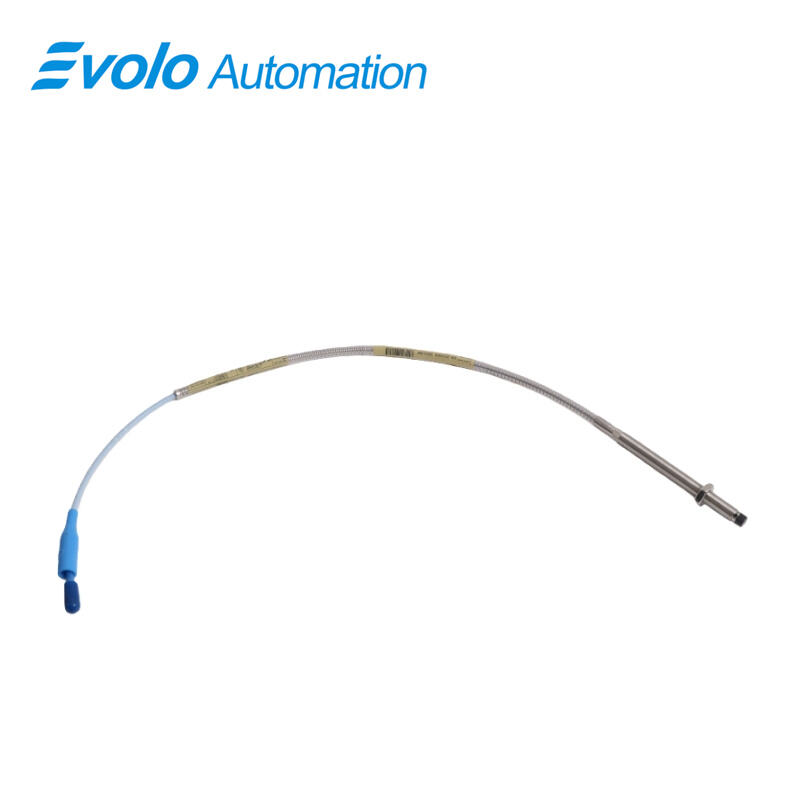

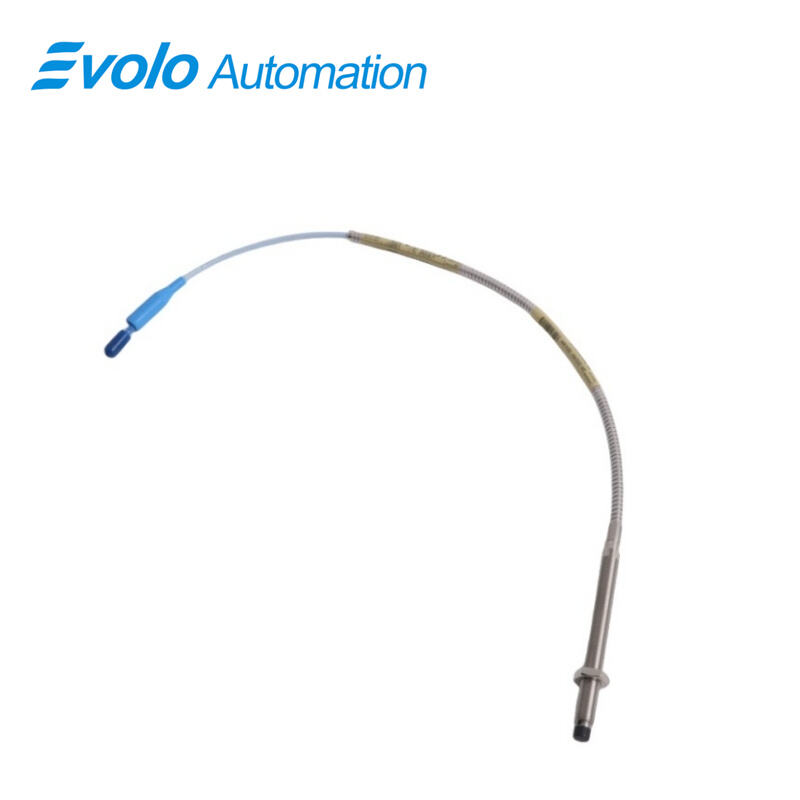

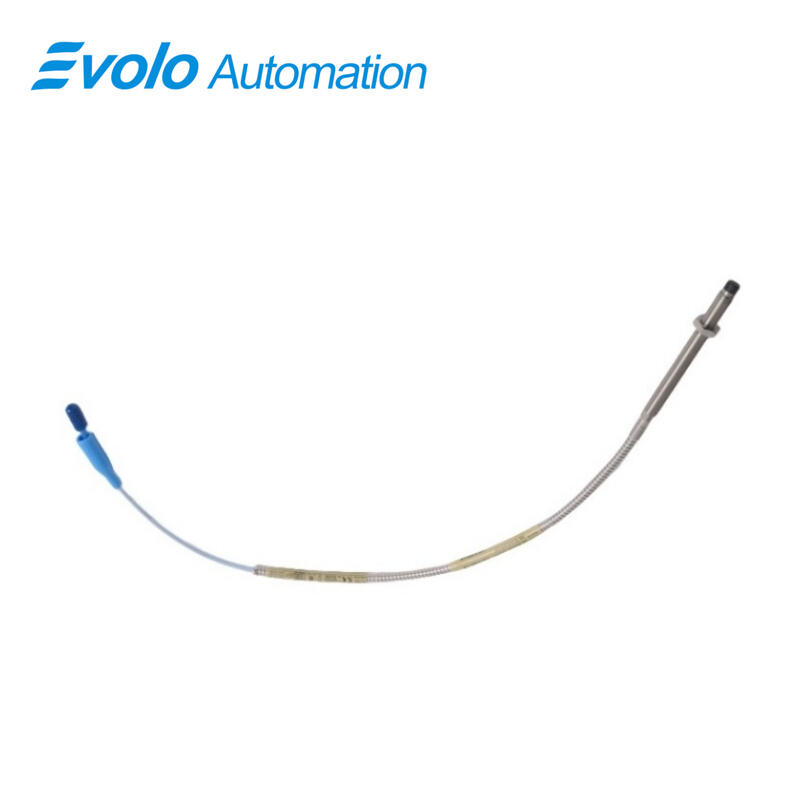

330104-00-10-05-02-05 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330104-00-10-05-02-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330104-00-10-05-02-05 3300 XL 8 mm Proximity Probe provides a voltage output directly proportional to the distance between the probe tip and a conductive surface. Designed for precise measurement of both static (position) and dynamic (vibration) values, the 330104-00-10-05-02-05 3300 XL 8 mm supports Keyphasor reference and speed measurements on fluid-film bearing machines. The probe features a 0.5-meter total cable length, M10x1 case thread with 15 mm engagement, and operates from -52°C to +177°C (-62°F to +350°F). Output resistance is 50 Ω, and extension cable capacitance is 69.9 pF/m (21.3 pF/ft). The 330104-00-10-05-02-05 3300 XL 8 mm includes a Miniature coaxial ClickLoc connector with standard cable, optional FluidLoc cable for preventing oil leakage, and holds CSA, ATEX, and IECEx approvals. The patented TipLoc and CableLoc designs provide 330 N pull strength, securing the probe and cable during operation. All 330104-00-10-05-02-05 3300 XL 8 mm components are backward-compatible with existing 3300 series transducer systems, allowing direct replacement without recalibration, making installation and maintenance efficient in automated machinery monitoring.

Applications

Axial Position Measurement on Fluid-Film Bearings
The 330104-00-10-05-02-05 3300 XL 8 mm probe measures shaft axial displacement with 2 mm (80 mils) linear range, providing a 4–20 mA proportional output for machinery control systems. Its M10x1 threaded probe fits tight spaces in compressors and turbines.

Vibration Monitoring on Rotating Equipment
The 330104-00-10-05-02-05 3300 XL 8 mm probe captures dynamic vibration signals up to high frequencies, using its miniature coaxial ClickLoc connector and extension cable capacitance of 69.9 pF/m for accurate signal transmission.

Keyphasor Reference and Speed Measurement
The 330104-00-10-05-02-05 3300 XL 8 mm probe provides Keyphasor signals for turbine and motor speed synchronization, enabling automated control logic and phase reference for monitoring systems.

Fluid Leak Prevention Monitoring
When ordered with the optional FluidLoc cable, the 330104-00-10-05-02-05 3300 XL 8 mm prevents oil or fluid from leaking through the probe cable, ensuring reliable operation in high-humidity or lubricated environments.

Specifications

Competitive Advantage

Quick Installation with Pre-Threaded Design
The 330104-00-10-05-02-05 3300 XL 8 mm comes with an M10x1 threaded probe and 15 mm maximum engagement, allowing fast and secure mounting without additional hardware.

High Pull-Strength Cable Connection
The patented CableLoc design on the 330104-00-10-05-02-05 3300 XL 8 mm provides 330 N pull strength, preventing cable disconnections during maintenance or machine operation.

Broad Temperature Operation
Operating from -52°C to +177°C, the 330104-00-10-05-02-05 3300 XL 8 mm supports extreme environments, including heated turbines and cryogenic compressors, without output voltage deviation beyond 2 mV per input volt.

Backward Compatibility with Existing 3300 Series
All 330104-00-10-05-02-05 3300 XL 8 mm probes and extension cables are interchangeable with other 3300 XL and non-XL 5 mm/8 mm components, simplifying upgrades without recalibration.

Signal Accuracy in Harsh Environments
The 330104-00-10-05-02-05 3300 XL 8 mm maintains accurate 50 Ω output resistance and minimal extension cable capacitance effect (69.9 pF/m), ensuring precise measurements for automated control and monitoring systems.
