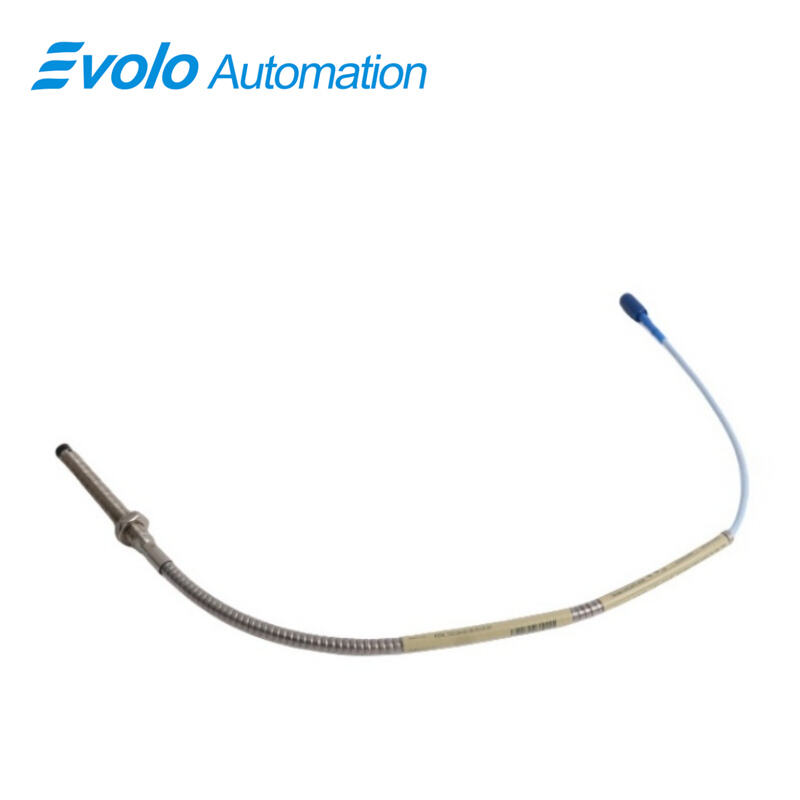

330104-00-08-50-01-05 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330104-00-08-50-01-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330104-00-08-50-01-05 3300 XL 8 mm Proximity Transducer System provides a voltage output directly proportional to the distance between the probe tip and the measured conductive surface. The 330104-00-08-50-01-05 3300 XL 8 mm can measure static position and dynamic vibration, making it ideal for monitoring fluid-film bearing machines and capturing Keyphasor reference and speed signals. With a 5.0-meter total cable length, 50 Ω output resistance, 2 mm linear range, and 69.9 pF/m extension cable capacitance, the 330104-00-08-50-01-05 3300 XL 8 mm ensures accurate signal transmission over long distances. The probe features an 80 mm case length, M10x1 thread, and optional ClickLoc connector with protector. It operates in temperatures from -52°C to +177°C while maintaining less than 2 mV change per volt input variation. Fully compliant with API 670 standards, the 330104-00-08-50-01-05 3300 XL 8 mm allows interchangeability with other 3300 series probes and Proximitor sensors, eliminating individual calibration needs. Optional FluidLoc cable prevents oil and fluid leakage, and patented TipLoc and CableLoc designs secure the probe tip and cable with 330 N pull strength, supporting safe and reliable industrial automation installations.

Applications

Measure Shaft Vibration on Fluid-Film Bearings
The 330104-00-08-50-01-05 3300 XL 8 mm probe monitors vibration on fluid-film bearings with its 2 mm linear range and high sensitivity, allowing operators to detect movement changes in real time and prevent machinery damage.

Capture Keyphasor Signals for Rotating Equipment
The 330104-00-08-50-01-05 3300 XL 8 mm provides precise Keyphasor output for turbine and compressor speed monitoring. Its 50 Ω output resistance and 69.9 pF/m extension cable capacitance maintain accurate signal transmission over the 5-meter cable length.

Monitor Position of Rotating Shafts
Using the 330104-00-08-50-01-05 3300 XL 8 mm, operators can track shaft displacement in critical machinery. The M10x1 threaded probe and 80 mm case length allow secure mounting even in tight industrial spaces.

Specifications

Competitive Advantage

Secure Probe Mounting for High-Vibration Machines
The 330104-00-08-50-01-05 3300 XL 8 mm uses TipLoc molding and CableLoc design to provide 330 N pull strength, ensuring the probe tip and cable stay firmly attached during high-speed or high-vibration operation.

Compatible with Other 3300 Series Components
The 330104-00-08-50-01-05 3300 XL 8 mm supports interchangeability with other 3300 series probes, extension cables, and Proximitor sensors, simplifying installation and eliminating the need for custom calibration.

Measure Shaft Position and Vibration Accurately
The 330104-00-08-50-01-05 3300 XL 8 mm provides a 2 mm linear range and 50 Ω output resistance, ensuring precise detection of shaft displacement and vibration in fluid-film bearing machines.

Ensure Compliance with API 670 Standards
All 330104-00-08-50-01-05 3300 XL 8 mm probes are designed to meet API 670 specifications for mechanical configuration, linear range, and operating temperatures (-52°C to +177°C), enabling immediate deployment in industrial automation systems.
