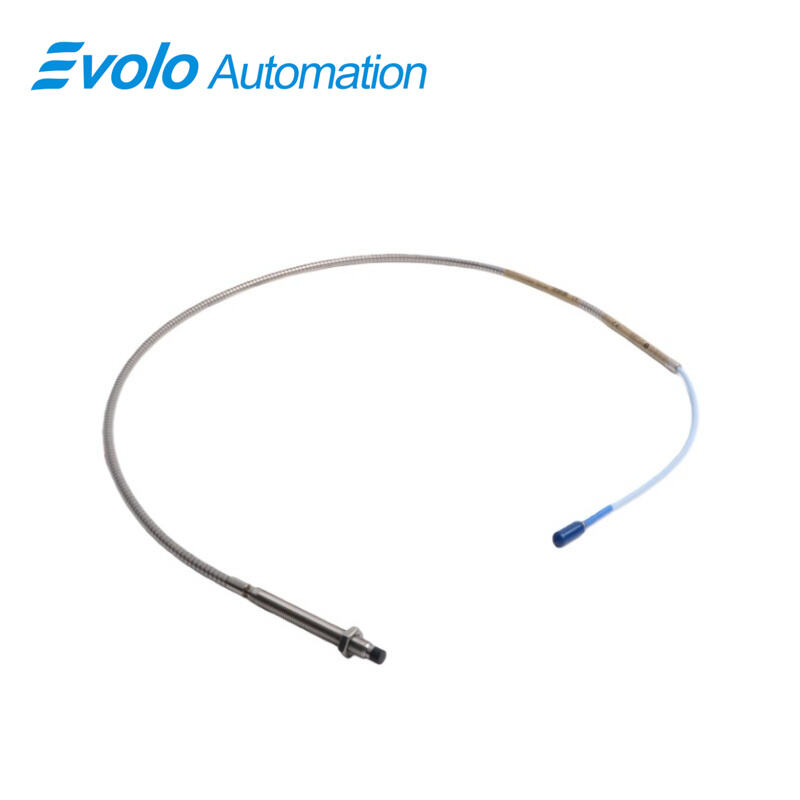

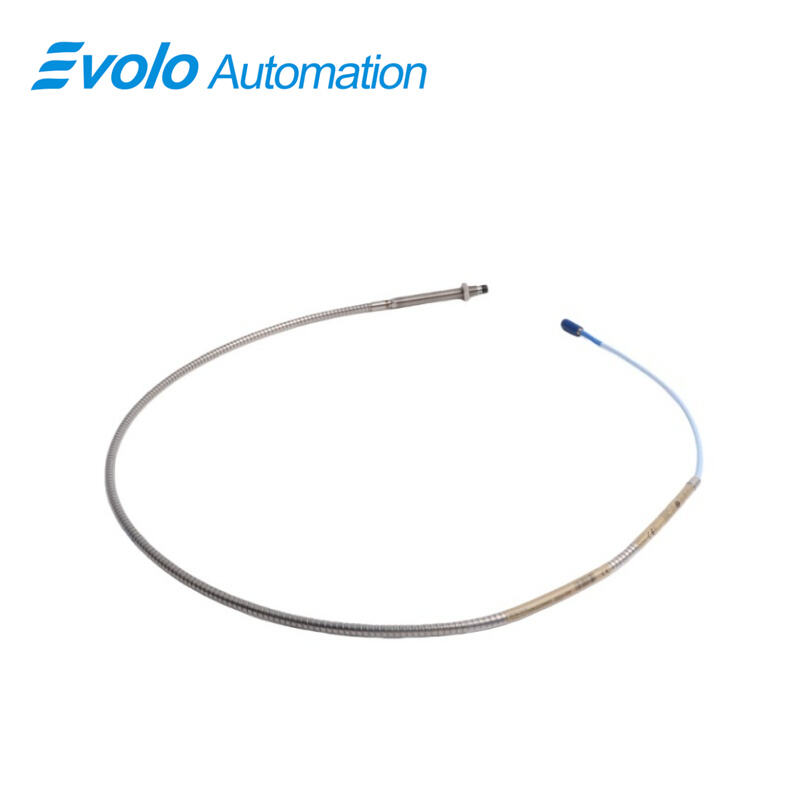

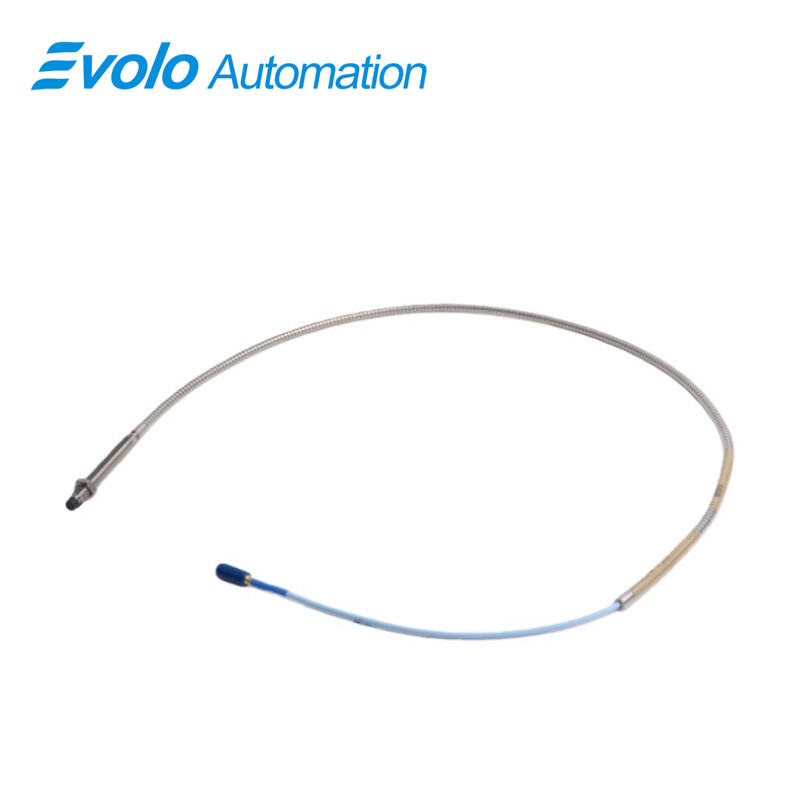

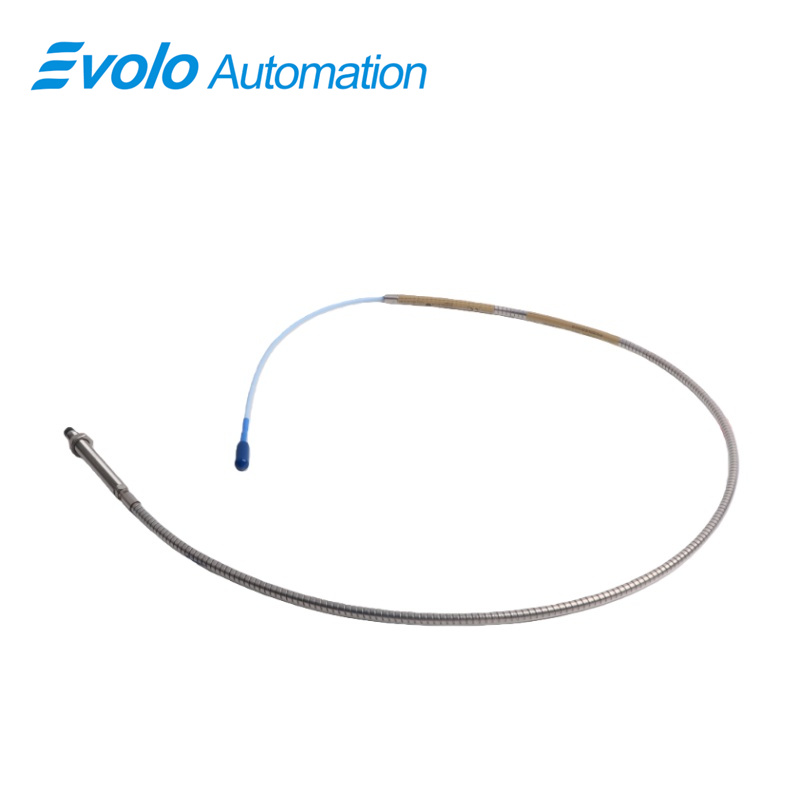

330104-00-08-10-01-05 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330104-00-08-10-01-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330104-00-08-10-01-05 3300 XL 8 mm Proximity Probes are high-precision eddy current transducers engineered for industrial automation and machinery monitoring. The 330104-00-08-10-01-05 provides a 2 mm (80 mil) linear range with output voltage proportional to the distance between the probe tip and conductive surfaces, allowing both static position and dynamic vibration measurement. Operating from −52 °C to +177 °C and with M10x1 probe threading, the 330104-00-08-10-01-05 can withstand harsh industrial environments while maintaining signal accuracy.

The 330104-00-08-10-01-05 features a 50 Ω output resistance, extension cable capacitance of 69.9 pF/m, and field wiring support for 0.2–1.5 mm² (16–24 AWG). Its miniature coaxial ClickLoc connector with protector and optional FluidLoc cable ensures secure connections and prevents oil or fluid leakage. Certified to CSA, ATEX, and IECEx standards, the 330104-00-08-10-01-05 meets API 670 mechanical and measurement specifications, and is fully interchangeable with 3300 series 5 mm and 8 mm probes and Proximitor sensors, simplifying installation and reducing calibration requirements.

Applications

Measure shaft vibration in high-speed machinery

The 330104-00-08-10-01-05 3300 XL 8 mm Proximity Probes provide a linear range of 2 mm (80 mils) with output voltage proportional to shaft displacement. Operators use 330104-00-08-10-01-05 to monitor turbine, pump, and compressor vibrations, enabling early detection of mechanical issues.

Monitor axial and radial shaft position

With M10x1 threading and 15 mm maximum thread engagement, the 330104-00-08-10-01-05 measures shaft position accurately. Its 50 Ω output resistance and extension cable capacitance of 69.9 pF/m ensure precise position signals for control loops in automated systems.

Generate Keyphasor signals for speed reference

The 330104-00-08-10-01-05 delivers Keyphasor output for speed and phase reference, supporting high-speed machinery monitoring. It operates from −52 °C to +177 °C, making it suitable for extreme temperature environments.

Integrate with Proximitor modules and 3500 racks

The 330104-00-08-10-01-05 connects via ClickLoc miniature coaxial connectors with 0.2–1.5 mm² field wiring. It is fully interchangeable with 3300 series 5 mm and 8 mm probes, allowing integration with 3500 rack systems without recalibration.

Specifications

Competitive Advantage

High linear accuracy for precise automation

The 330104-00-08-10-01-05 maintains linear output over 2 mm range with less than 2 mV change per volt input variation, providing precise data for automated machinery control and predictive maintenance.

Wide operational and storage temperature range

Rated −52 °C to +177 °C and stored at the same range, the 330104-00-08-10-01-05 operates in extreme industrial conditions, allowing continuous monitoring of turbines, compressors, and pumps.

Robust mechanical and cable design

The 330104-00-08-10-01-05 uses patented TipLoc molding for a strong bond between tip and body and CableLoc design providing 330 N pull strength. Optional FluidLoc cables prevent fluid leakage, ensuring safe operation in lubricated environments.

Backward-compatible and interchangeable with 3300 series

The 330104-00-08-10-01-05 integrates with existing 3300 series probes, extension cables, and Proximitor sensors, allowing upgrades or replacements without bench calibration or component matching.

Certified for industrial safety and API 670 compliance

The 330104-00-08-10-01-05 holds CSA, ATEX, and IECEx approvals and meets API 670 standards for linear range, mechanical configuration, and measurement accuracy, ensuring reliable automation and machinery monitoring.
