Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330104-00-07-05-02-00 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option(Minimum unthreaded length): |
00 mm |
|
Overall Case Length Option(Minimum case length): |
70 mm |
|
Total Length Option: |
0.5 meter (1.6 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option: |
Not required |
|
Probe Case Thread: |
M10x1 |
|
Maximum Length of Thread Engagement: |
15 mm |
|
Dimension: |
2x1.5x58cm |
|
Weight: |
0.08kg |
Description

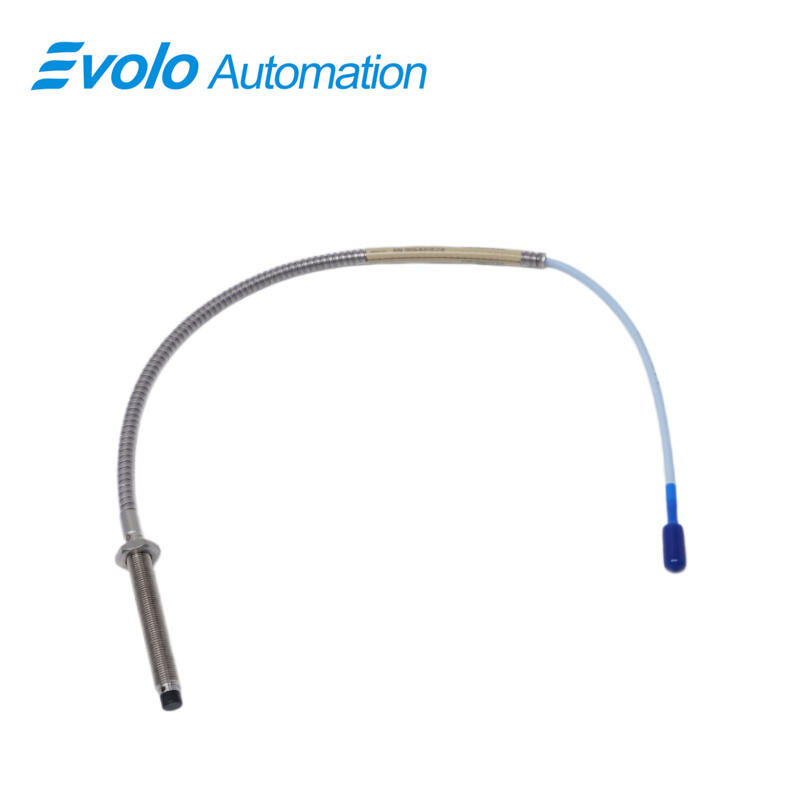

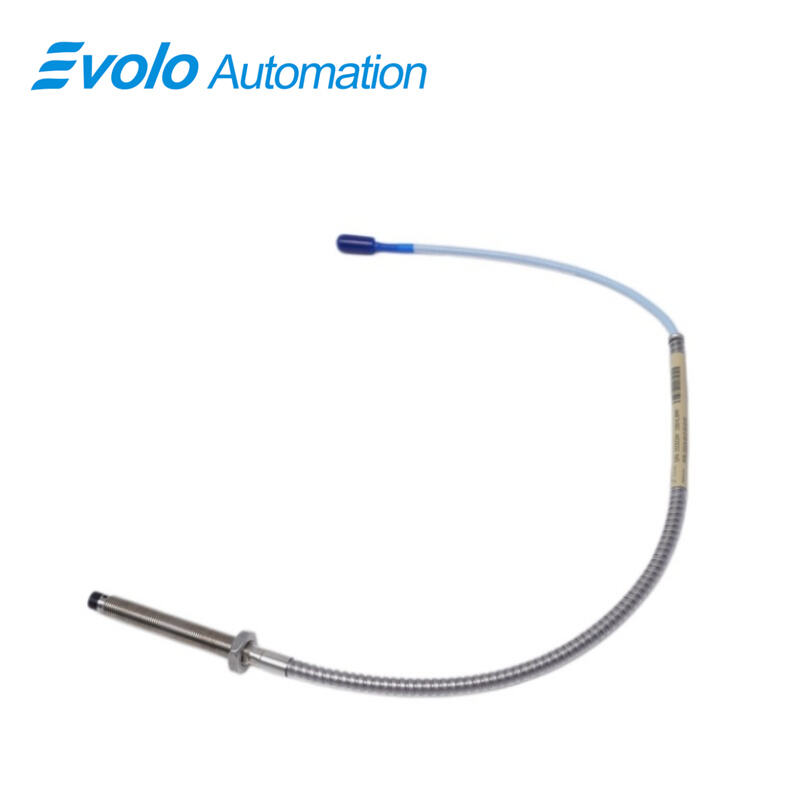

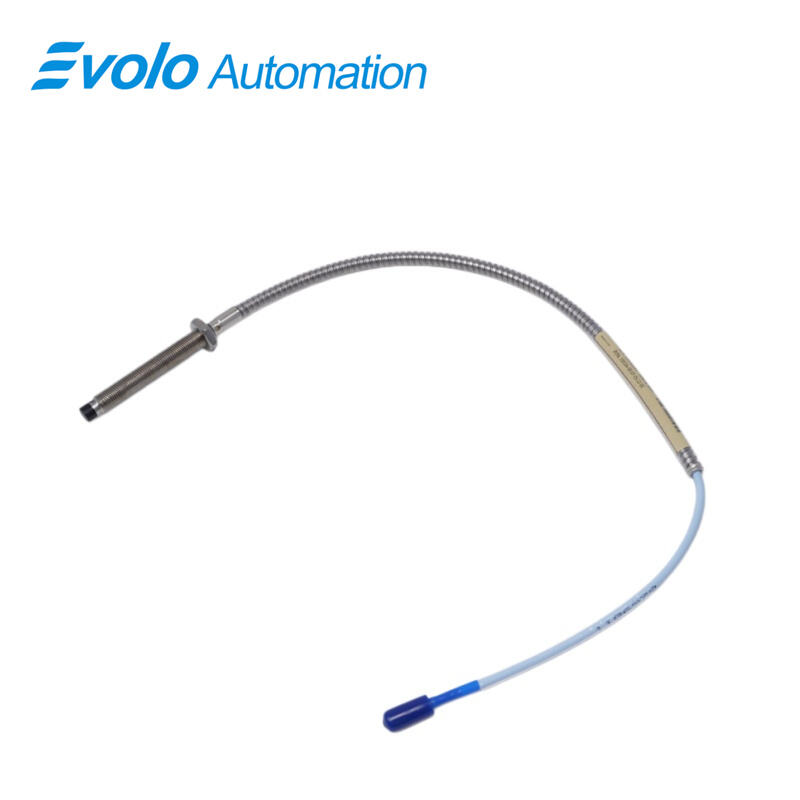

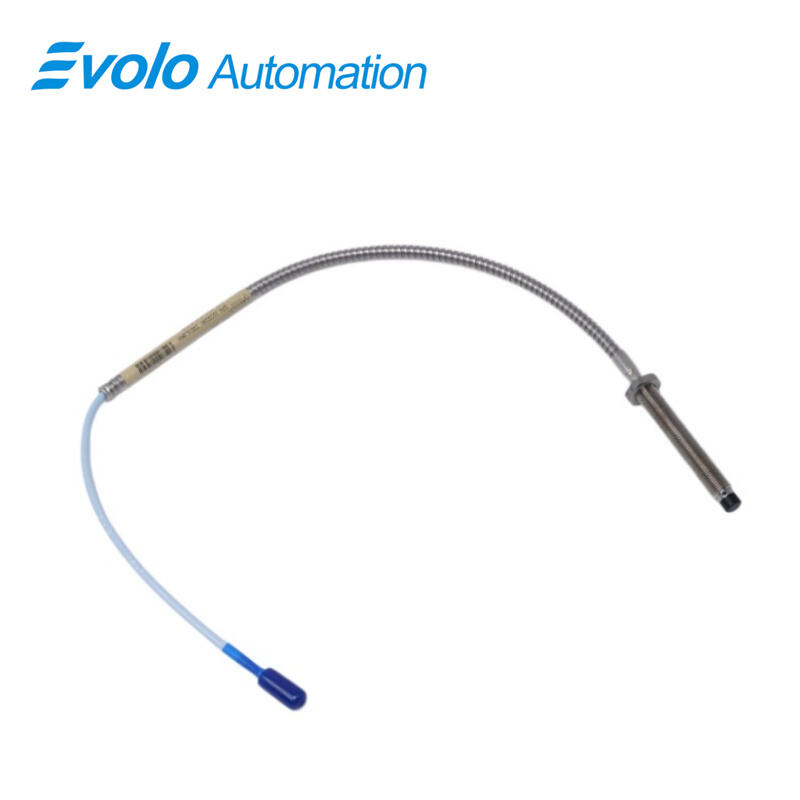

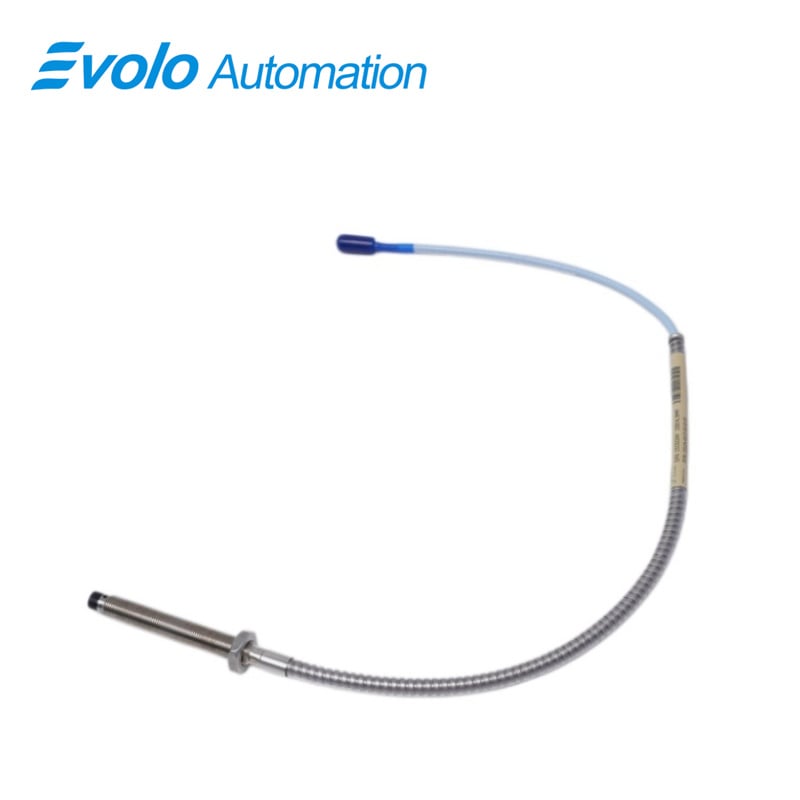

The 330104-00-07-05-02-00 3300 XL 8 mm Proximity Probes provide precise measurement of position and vibration for automated systems. With a 2 mm linear range, M10x1 threaded probe case, and 0.5-meter total cable length, the 330104-00-07-05-02-00 3300 XL 8 mm Proximity Probes connect via Miniature coaxial ClickLoc connectors. Operating from -52°C to +177°C, with output resistance of 50 Ω and supply sensitivity below 2 mV per volt, the 330104-00-07-05-02-00 3300 XL 8 mm Proximity Probes deliver accurate distance-based voltage output. Extension cables have 69.9 pF/m capacitance and support 16–24 AWG wiring. Patented TipLoc and CableLoc designs provide secure probe-cable attachment, and optional FluidLoc cables prevent oil leaks.
Applications
Position Monitoring on Fluid-Film Bearings
Use 330104-00-07-05-02-00 3300 XL 8 mm Proximity Probes to monitor the shaft position in fluid-film bearing machines. The 2 mm linear range allows accurate measurement of both static and dynamic shaft displacement, enabling automated systems to track equipment alignment in real time. The 330104-00-07-05-02-00 3300 XL 8 mm Proximity Probes support direct integration with extension cables and Keyphasor systems for automated monitoring.
Speed Measurement with Keyphasor Signal
The 330104-00-07-05-02-00 3300 XL 8 mm Proximity Probes provide high-quality Keyphasor signals for rotational speed measurement. With low supply sensitivity and 50 Ω output resistance, the 330104-00-07-05-02-00 3300 XL 8 mm Proximity Probes ensure precise timing signals for automated control systems.
Vibration Detection in Turbines
Install 330104-00-07-05-02-00 3300 XL 8 mm Proximity Probes on turbines to capture vibration amplitude and frequency. The operating temperature range from -52°C to +177°C allows the 330104-00-07-05-02-00 3300 XL 8 mm Proximity Probes to function in harsh industrial environments without recalibration.
Specifications
|
Operating and Storage Temperature: |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
Competitive Advantage
Easy Probe Installation and Replacement
The 330104-00-07-05-02-00 3300 XL 8 mm Proximity Probes feature M10x1 threaded cases with 15 mm maximum thread engagement, enabling quick installation and removal. Miniature ClickLoc connectors simplify field wiring for 330104-00-07-05-02-00 3300 XL 8 mm Proximity Probes without complex calibration procedures.
Secure Probe-Cable Connection
Patented TipLoc molding and CableLoc design provide firm attachment between probe tip and cable. The 330104-00-07-05-02-00 3300 XL 8 mm Proximity Probes can sustain up to 330 N pull force, reducing downtime due to cable detachment.
Prevent Fluid Leakage
Optional FluidLoc extension cables for the 330104-00-07-05-02-00 3300 XL 8 mm Proximity Probes prevent oil and other fluids from escaping through probe cables. Using 330104-00-07-05-02-00 3300 XL 8 mm Proximity Probes in lubricated or wet environments ensures safe automated operation.
