Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330104-00-06-50-01-00 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option(Minimum unthreaded length): |
00 mm |
|
Overall Case Length Option(Minimum case length): |
60 mm |
|
Total Length Option: |
5.0 meters (16.4 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector with connector protector, standard cable |
|
Agency Approval Option: |
Not required |
|
Probe Case Thread: |
M10x1 |
|
Maximum Length of Thread Engagement: |
15 mm |
|
Dimension: |
113x2x1.5cm |
|
Weight: |
0.14kg |
Description

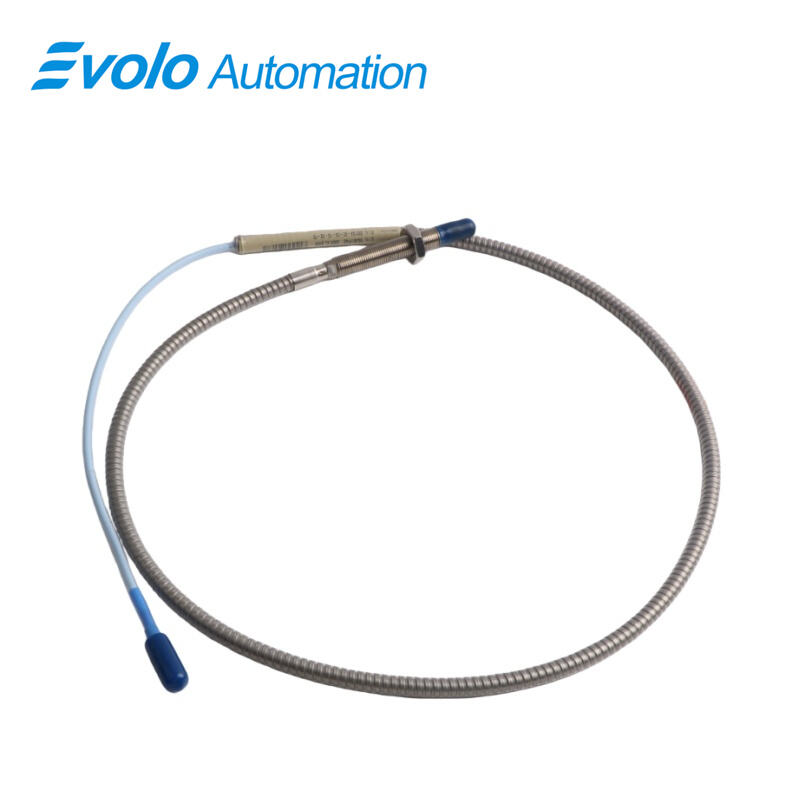

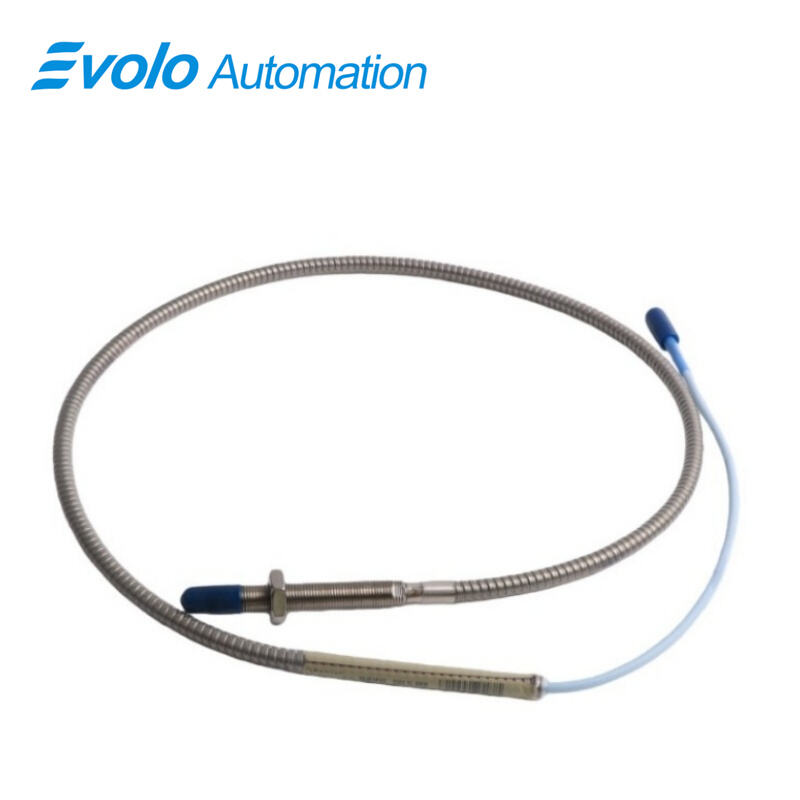

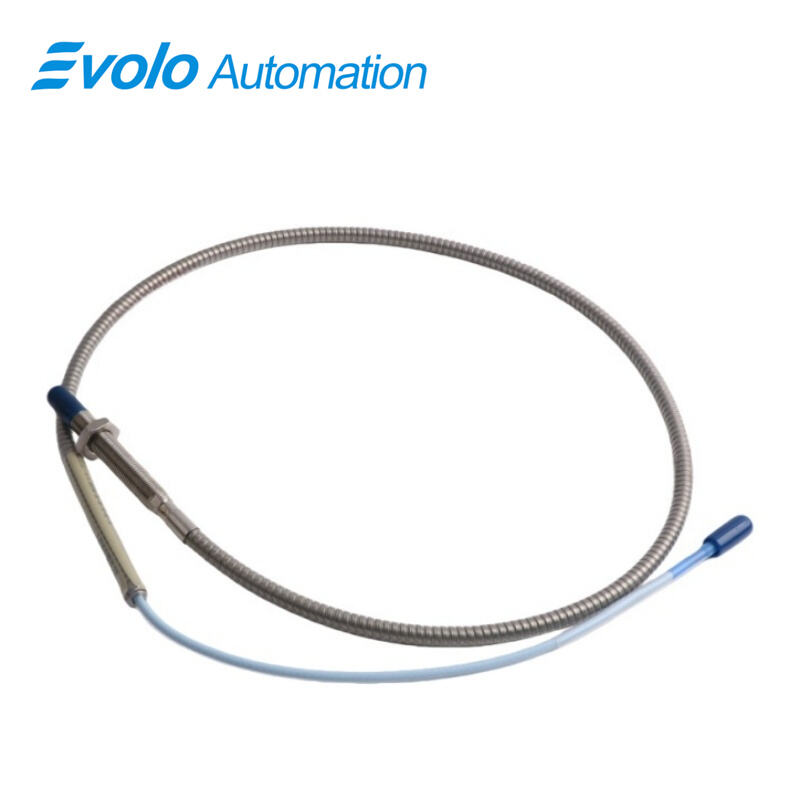

The 330104-00-06-50-01-00 3300 XL 8 mm Proximity Probe delivers a voltage output proportional to the distance between the probe tip and conductive surfaces, accurately capturing both static (position) and dynamic (vibration) signals. With a 60 mm case length, M10x1 thread, and 5-meter cable, the 330104-00-06-50-01-00 3300 XL is optimized for automated monitoring of fluid-film bearings and rotating equipment. Its 2 mm linear range, 50 Ω output resistance, and <2 mV/V supply sensitivity ensure precise data collection for automated control and condition monitoring systems. The miniature ClickLoc connector with protector and standard cable allows secure, maintenance-free integration, while the 69.9 pF/m extension cable capacitance supports high-fidelity signal transmission. Operating from -52°C to +177°C, the 330104-00-06-50-01-00 3300 XL provides reliable readings across extreme environments. This probe supports Keyphasor reference and speed measurement applications, ensuring seamless integration into automated vibration analysis and predictive maintenance workflows. Optional FluidLoc cabling prevents oil ingress, maintaining automated system performance without downtime.
Applications
Track Bearing Vibration in Turbines
The 330104-00-06-50-01-00 3300 XL measures high-frequency vibrations on fluid-film bearings. Its 2 mm linear range and <2 mV/V supply sensitivity ensure small displacements are detected accurately, feeding automated monitoring systems to prevent rotor imbalance.
Measure Rotor Position in Pumps
With 50 Ω output resistance and a 5-meter extension cable, the 330104-00-06-50-01-00 3300 XL transmits precise rotor position signals to automated pump control systems, enabling real-time adjustments.
Generate Keyphasor Speed Reference
The 69.9 pF/m extension cable capacitance and stable output voltage allow the 330104-00-06-50-01-00 3300 XL to provide reliable Keyphasor signals for automated speed and phase monitoring.
Enable Automated Predictive Maintenance
By integrating data from the 330104-00-06-50-01-00 3300 XL into predictive analytics, operators can reduce manual inspections and downtime. Its operating range of -52°C to +177°C ensures continuous performance even in extreme conditions.
Specifications
|
Operating and Storage Temperature: |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
Competitive Advantage
High-Fidelity Signal Acquisition
The 330104-00-06-50-01-00 3300 XL’s 2 mm linear range, 50 Ω output resistance, and <2 mV/V supply sensitivity provide accurate and repeatable data for automated vibration analysis.
Wide Temperature Operation
The 330104-00-06-50-01-00 3300 XL functions reliably from -52°C to +177°C, ensuring automated monitoring systems capture correct readings under extreme heat or cold.
Secure Connector and Cable Design
Miniature ClickLoc connector with protector and 5-meter standard cable maintain signal integrity in automated systems, even under mechanical stress.
