Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330104-00-06-10-01-CN |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option(Minimum unthreaded length): |
00 mm |
|
Overall Case Length Option(Minimum case length): |
60 mm |
|
Total Length Option: |
1.0 meter (3.3 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector with connector protector, standard cable |
|
Agency Approval Option: |
CSA, ATEX, IECEx Approvals |
|
Probe Case Thread: |
M10x1 |
|
Maximum Length of Thread Engagement: |
15 mm |
|
Dimension: |
113x2x1.5cm |
|
Weight: |
0.14kg |
Description

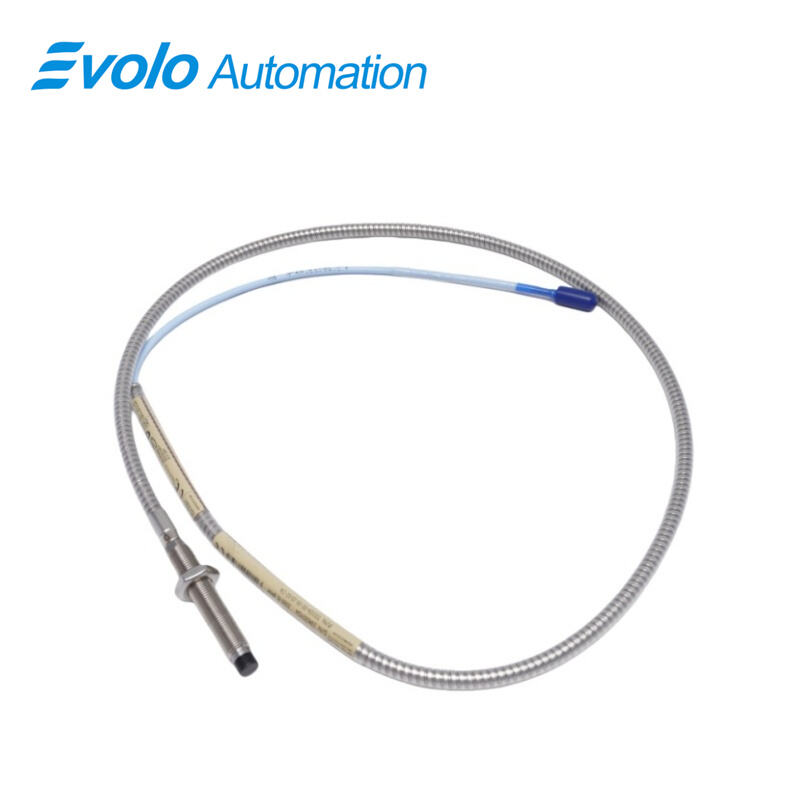

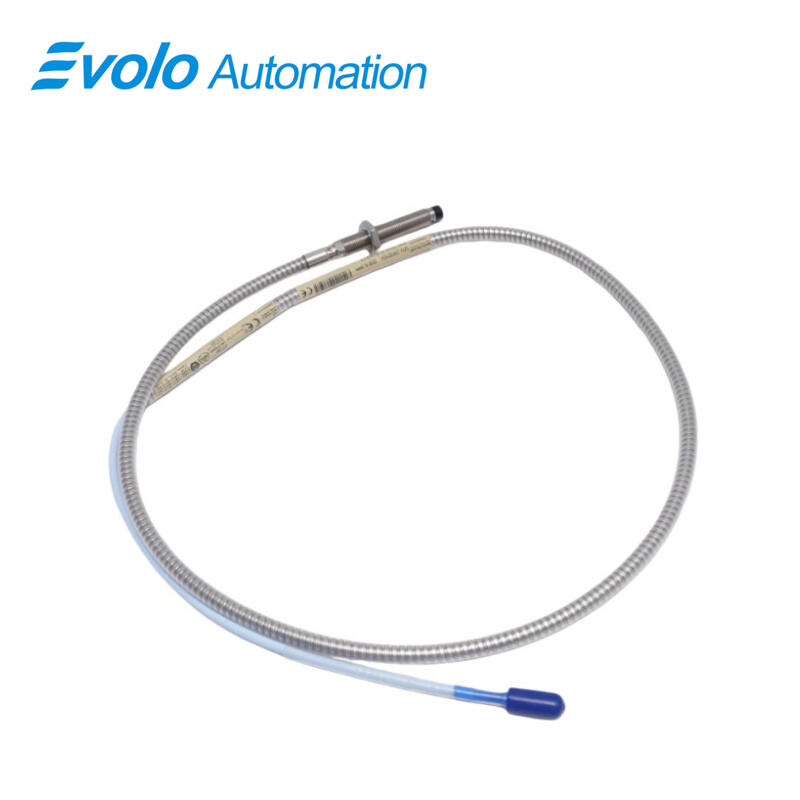

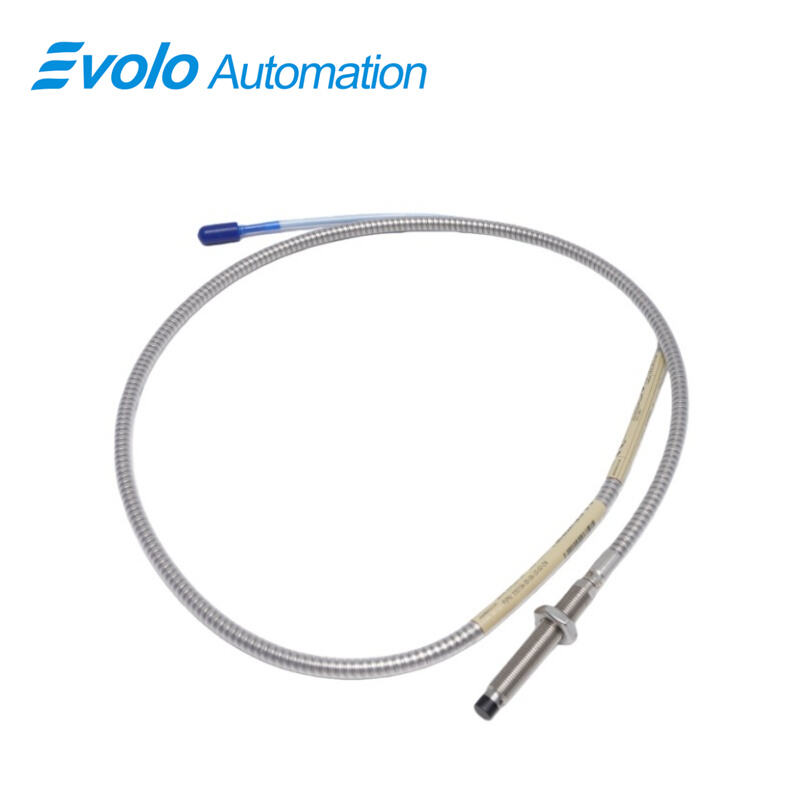

The 330104-00-06-10-01-CN 3300 XL 8 mm Proximity Probe provides precise static position and dynamic vibration measurements for automated machinery. With a 2 mm linear range (80 mils) and output resistance of 50 Ω, the probe generates voltage directly proportional to shaft displacement. Its 60 mm case length and M10x1 thread allow secure installation in fluid-film bearing machines. Operating from -52°C to +177°C with 69.9 pF/m extension cable capacitance, the 330104-00-06-10-01-CN ensures consistent signal output across temperature and voltage variations. CSA, ATEX, and IECEx approvals enable deployment in hazardous automation environments. Patented TipLoc and CableLoc designs deliver 330 N pull strength, while optional FluidLoc cables prevent fluid ingress, supporting long-term automated monitoring. The miniature coaxial ClickLoc connector with protector ensures reliable connection to extension cables up to 1.0 meter. Supply sensitivity under 2 mV/V minimizes signal drift for integration into automated feedback and predictive maintenance systems.
Applications
Measure Fluid-Film Bearing Vibration
The 330104-00-06-10-01-CN 3300 XL 8 mm Proximity Probe captures shaft vibration up to ±2 mm linear range. Its 50 Ω output and <2 mV/V supply sensitivity allow automated monitoring systems to detect early mechanical wear in real time.
Monitor Shaft Position for Automated Control
The 330104-00-06-10-01-CN provides high-precision shaft displacement measurements. The 60 mm case length and M10x1 thread enable secure installation for continuous feedback to PLCs and automated positioning systems.
Generate Keyphasor Timing Signals
Use the 330104-00-06-10-01-CN to produce reference signals for turbine speed and phase detection. Its linear output and 69.9 pF/m cable capacitance maintain signal integrity over 1-meter extension cables.
Feed Data to Predictive Maintenance Systems
The 330104-00-06-10-01-CN supplies consistent vibration and position signals under -52°C to +177°C operating temperatures. Integration into condition monitoring software enables automated alerts before failures occur.
Specifications
|
Operating and Storage Temperature: |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
Competitive Advantage
High Pull-Strength Probe Connection
TipLoc and CableLoc designs on the 330104-00-06-10-01-CN provide 330 N pull strength, ensuring secure attachment of probe and cable during automated operations.
Operate in Hazardous Automated Environments
The 330104-00-06-10-01-CN meets CSA, ATEX, and IECEx approvals and functions in extreme temperatures (-52°C to +177°C), making it suitable for oil, gas, and chemical automation systems.
Fast Installation and Replacement
With 60 mm case length, M10x1 thread, and ClickLoc connectors, the 330104-00-06-10-01-CN allows rapid mounting and replacement without manual recalibration in automated plants.
