Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330104-00-05-10-02-00 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option(Minimum unthreaded length): |
00 mm |
|
Overall Case Length Option(Minimum case length): |
50 mm |
|
Total Length Option: |
1.0 meter (3.3 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option: |
Not required |
|
Probe Case Thread: |
M10x1 |
|
Maximum Length of Thread Engagement: |
15 mm |
|
Dimension: |
20.5x22.4x3.3cm |
|
Weight: |
0.18kg |
Description

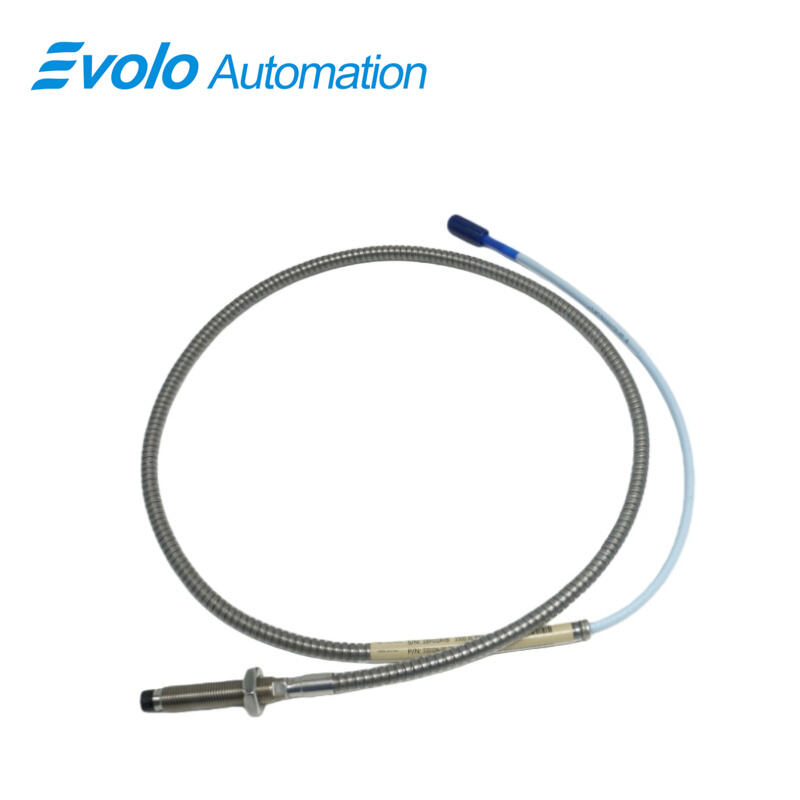

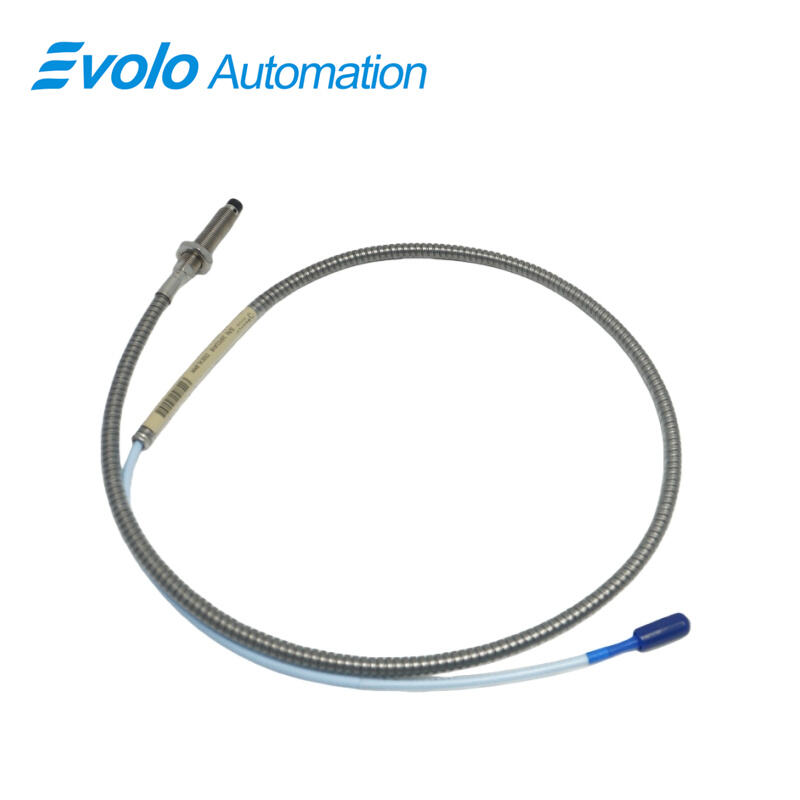

The 330104-00-05-10-02-00 3300 XL 8 mm Proximity Probe is a high-precision eddy current probe designed for automated machinery monitoring and condition-based maintenance in industrial applications. Its 50 mm case length, M10x1 threaded mount, and 2 mm (80 mils) linear range provide reliable measurements of both static position and dynamic vibration on fluid-film bearing machines, motors, pumps, and compressors. Constructed with durable materials and operating across a wide temperature range of -52°C to +177°C, this probe withstands harsh industrial environments. The probe uses ClickLoc miniature coaxial connectors and standard cables, and features Bently Nevada’s patented TipLoc and CableLoc designs, offering a robust mechanical bond and 330 N pull strength. Fully compatible with other 3300 XL system components, including extension cables and Proximitor sensors, it ensures easy interchangeability and avoids the need for bench calibration. An optional FluidLoc cable prevents oil or liquid leakage from the machine, further enhancing reliability in automated monitoring setups.
Applications
1. Vibration Monitoring on Fluid-Film Bearings
Accurately measures radial and axial vibrations on fluid-film bearings to support automated machinery condition monitoring.
2. Shaft Position Measurement
Provides precise displacement data for automated control of motors, pumps, and compressors.
3. Keyphasor and Speed Reference Signals
Generates phase reference signals for advanced automation systems, ensuring accurate speed and rotational monitoring.
4. Harsh Industrial Environment Operation
Withstands temperatures from -52°C to +177°C, making it suitable for extreme industrial applications in refineries, power plants, and chemical processing.
5. Flexible Machine Integration
Compatible with other 3300 XL components, enabling seamless upgrades or replacements in existing automated monitoring systems
Specifications
|
Operating and Storage Temperature: |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
Competitive Advantage
1. High Precision and Reliability
2 mm linear range and low supply sensitivity (<2 mV change per volt input) provide accurate, stable measurements for automated monitoring.
2. Robust Mechanical Design
Patented TipLoc and CableLoc designs secure the probe tip and cable with 330 N pull strength, reducing maintenance and signal errors.
3. Wide Operating Temperature Range
Operates reliably from -52°C to +177°C, allowing use in extreme industrial conditions.
4. System Interchangeability
Backward compatible with non-XL 3300 5 mm and 8 mm probes, extension cables, and Proximitor sensors, reducing integration time and costs.
5. Optional FluidLoc Cable
Prevents oil and liquid leakage, enhancing system reliability and ensuring uninterrupted automated operation in fluid-handling machinery.
