Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330104-00-05-05-02-05 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option(Minimum unthreaded length): |
00 mm |
|
Overall Case Length Option(Minimum case length): |
50 mm |
|
Total Length Option: |
0.5 meter (1.6 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option: |
CSA, ATEX, IECEx Approvals |
|
Probe Case Thread: |
M10x1 |
|
Maximum Length of Thread Engagement: |
15 mm |
|
Dimension: |
20.4x22x3.7cm |
|
Weight: |
0.1kg |
Description

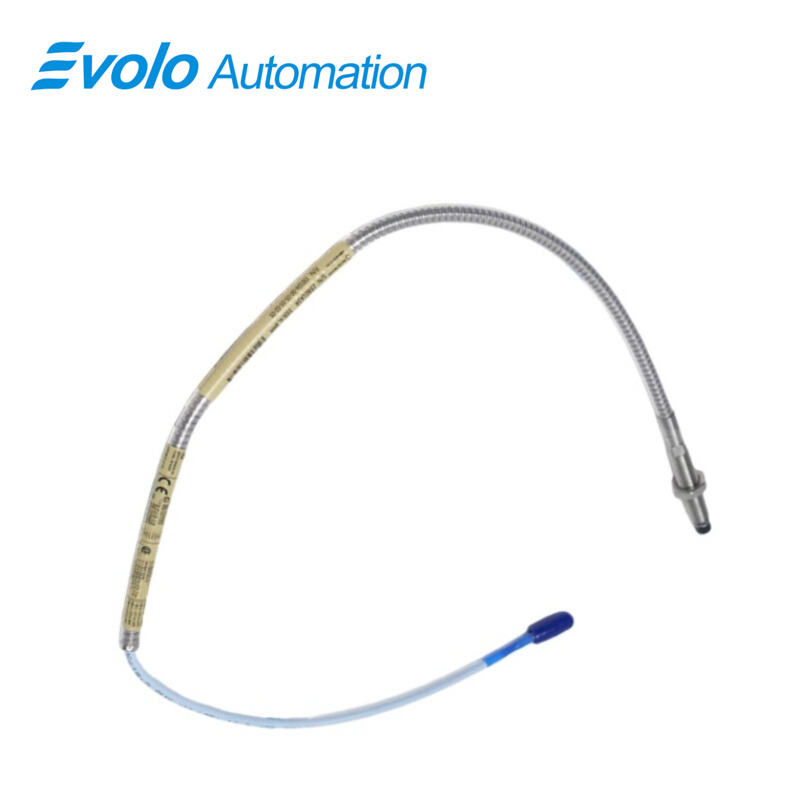

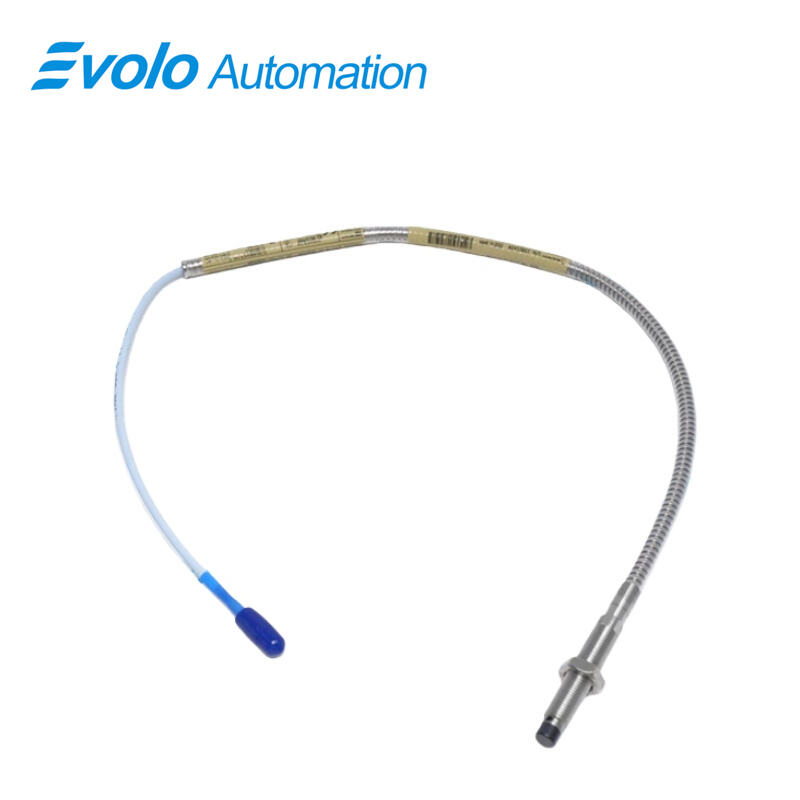

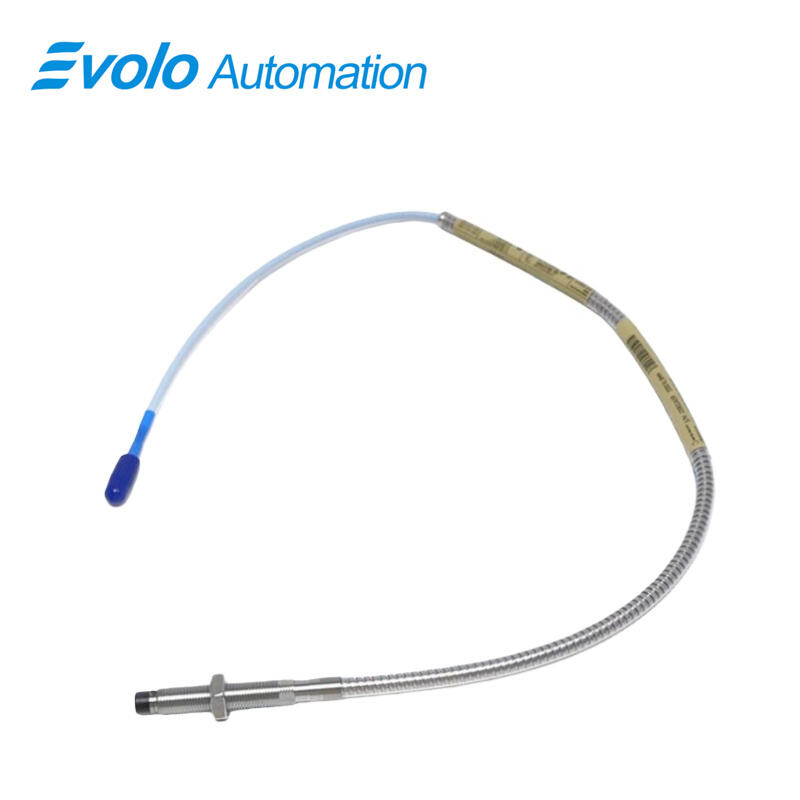

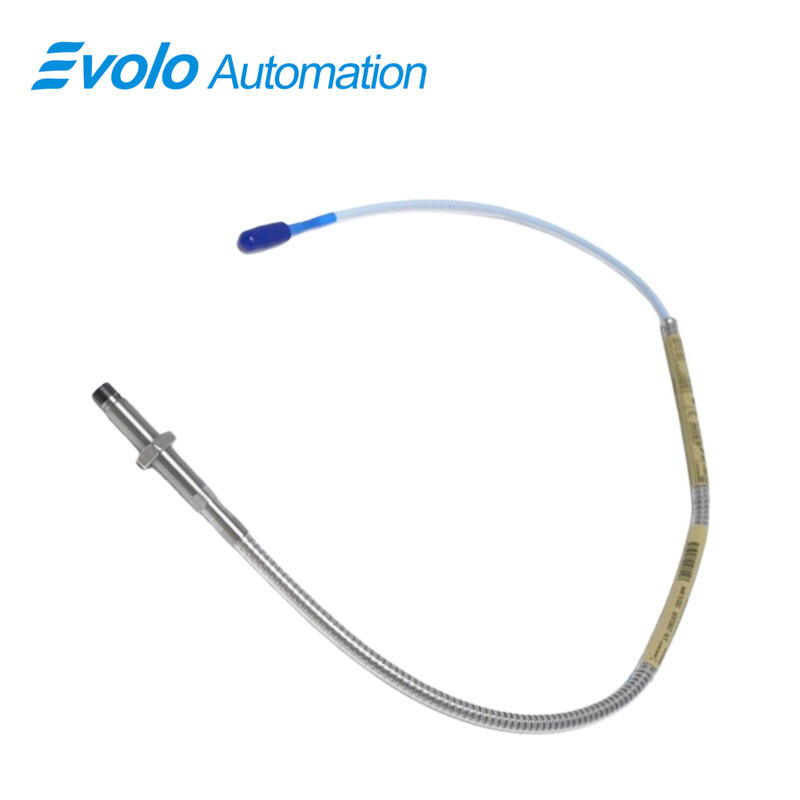

The 330104-00-05-05-02-05 3300 XL 8 mm Proximity Probe provides a voltage output proportional to the distance between the probe tip and a conductive surface, supporting both static position and dynamic vibration measurements. The probe has a minimum unthreaded length of 0 mm, overall case length of 50 mm, and total cable length of 0.5 meter (1.6 ft), with a 50 Ω output resistance. Its Miniature coaxial ClickLoc connector with standard cable and less than 2 mV/V supply sensitivity ensures reliable integration into automated monitoring systems. The 330104-00-05-05-02-05 3300 XL 8 mm operates across -52°C to +177°C (-62°F to +350°F) and supports field wiring from 0.2 to 1.5 mm² (16–24 AWG). With a linear range of 2 mm (80 mils) and M10x1 probe case thread, this probe is ideal for Keyphasor reference, speed measurement, and vibration monitoring on fluid-film bearing machines. Optional FluidLoc cable prevents leakage of oil or liquids, and patented TipLoc and CableLoc designs provide 330 N (75 lbf) pull strength to secure the probe tip and cable, ensuring long-term automated measurement reliability.
Applications
Vibration Measurement on Rotating Shafts
Radial and axial vibration monitoring on fluid-film bearing machines using the 330104-00-05-05-02-05 3300 XL 8 mm, with precise 2 mm linear range and high-temperature operation.
Speed and Phase Reference
Measures rotational speed and Keyphasor signals in compressors and turbines, leveraging the probe’s 50 Ω output and 0.5-meter cable for integration into automation systems.
Position Monitoring
Detects axial position changes on targets smaller than 15 mm (0.6 in) using the 330104-00-05-05-02-05 3300 XL 8 mm, enabling precise automated control and data acquisition.
Specifications
|
Operating and Storage Temperature: |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
Competitive Advantage
Strong Probe-Cable Connection
Patented TipLoc and CableLoc designs provide 330 N (75 lbf) pull strength, preventing accidental disconnections during operation.
Leak Prevention Option
Optional FluidLoc cable ensures oil and liquid do not interfere with probe readings, enhancing measurement accuracy in process environments.
Flexible Integration
Miniature ClickLoc connector and standard cable simplify connection to existing 3300 XL systems or PLC/DCS setups, reducing installation effort.
High-Temperature Operation
Operating range of -52°C to +177°C (-62°F to +350°F) allows deployment in heat-exposed compressors, turbines, and bearing machines.
