Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330104-00-03-05-02-05 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option(Minimum unthreaded length): |
00 mm |
|
Overall Case Length Option(Minimum case length): |
30 mm |
|
Total Length Option: |
0.5 meter (1.6 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option: |
CSA, ATEX, IECEx Approvals |
|
Probe Case Thread: |
M10x1 |
|
Maximum Length of Thread Engagement: |
15 mm |
|
Dimension: |
20.5x22.4x3.3cm |
|
Weight: |
0.2 kg |
Description

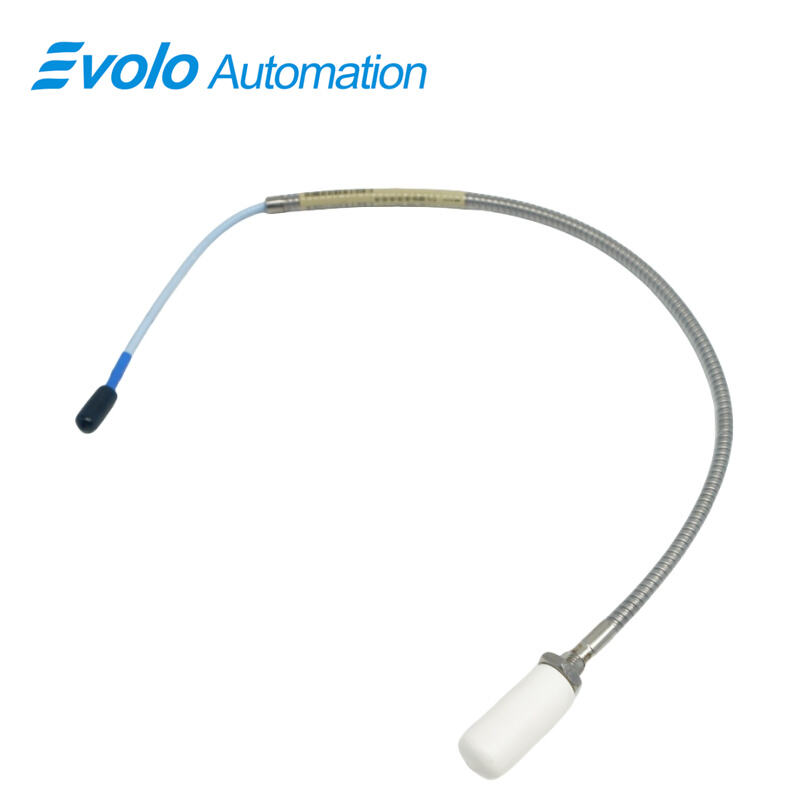

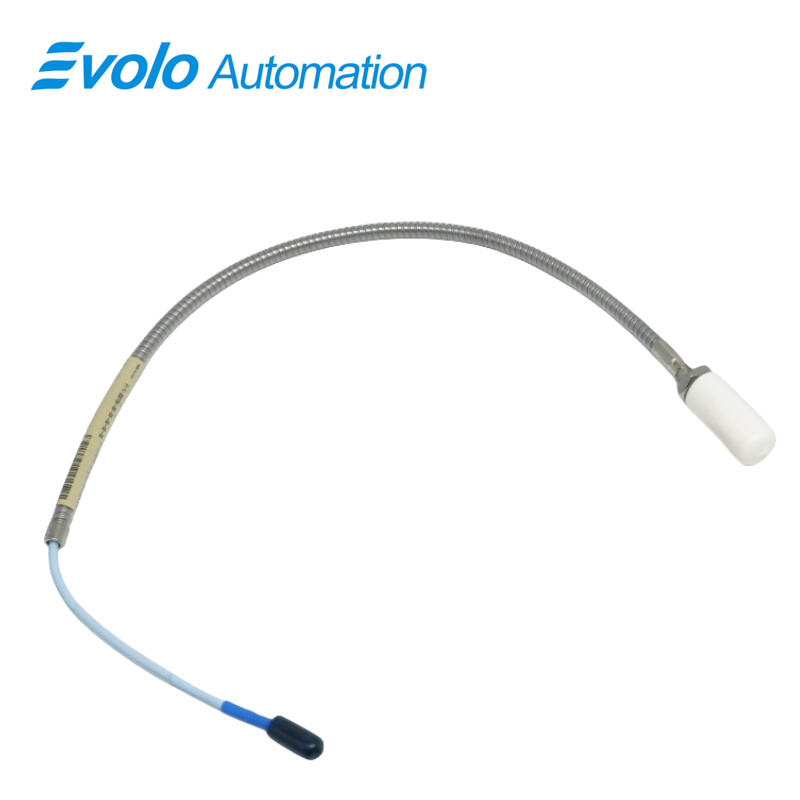

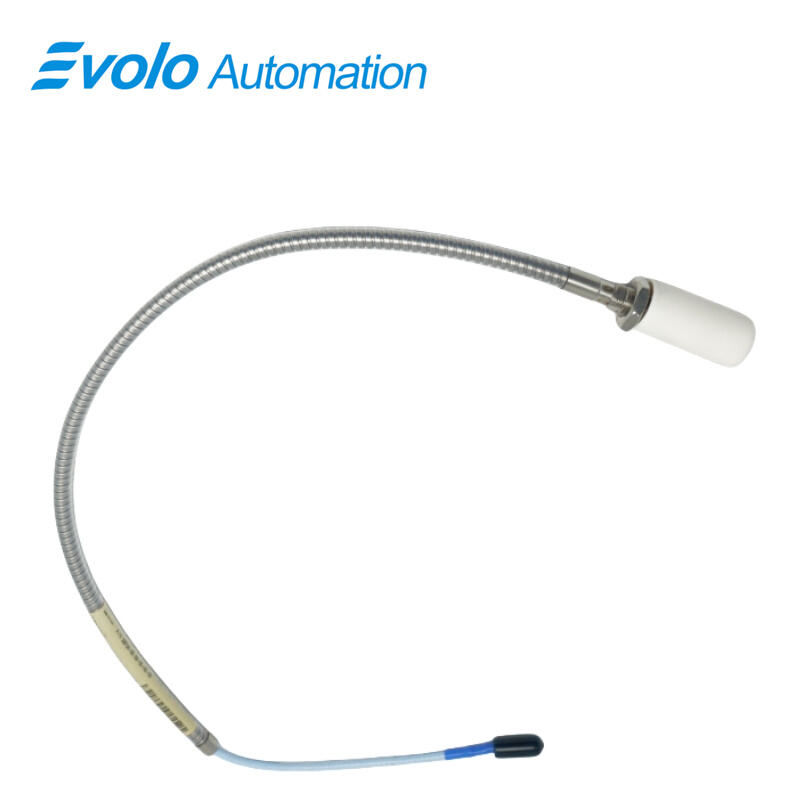

The 330104-00-03-05-02-05 3300 XL 8 mm Proximity Probe is an advanced eddy-current sensor engineered for precise monitoring in automated industrial systems. Designed to measure both static shaft positions and dynamic vibration, it provides an output voltage directly proportional to the gap between the probe tip and the conductive surface. Ideal for high-speed rotating machinery, turbines, compressors, and fluid-film bearing equipment, this probe ensures accurate detection of displacements and vibrations critical to operational safety and predictive maintenance. With an M10×1 threaded probe body, a 0.5-meter standard cable, and miniature ClickLoc connectors, the 3300 XL 8 mm probe integrates seamlessly into automation systems. Its robust construction includes patented TipLoc and CableLoc technologies for superior probe tip bonding and 330 N cable pull strength. Optional FluidLoc cabling prevents oil or liquid leakage, enabling reliable operation in lubrication-intensive environments. The probe complies with CSA, ATEX, and IECEx approvals for hazardous locations, supports extreme temperatures from −52°C to +177°C, and is fully compatible with other 3300 series 5 mm and 8 mm components, simplifying system upgrades and maintenance.
Applications
Compact Shaft and Vibration Monitoring
The 330104-00-03-05-02-05 accurately measures axial and radial shaft displacement, detecting misalignment, imbalance, or wear in motors, compressors, and turbines to prevent mechanical failures.
Tight-Space Installations
With a 30 mm case and 0.5-meter cable, the 330104-00-03-05-02-05 is ideal for machinery layouts where probe placement requires compact design without compromising measurement precision.
Reliable Operation in Harsh Conditions
CSA, ATEX, and IECEx certifications and a -52°C to +177°C operating range allow the 330104-00-03-05-02-05 to operate dependably in extreme or hazardous industrial environments.
Specifications
|
Operating and Storage Temperature: |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
Competitive Advantage
Precise Measurement with 2 mm Linear Range
Ensures accurate static and dynamic monitoring for critical machinery, fully supporting API 670 compliance.
Extreme Temperature Capability (−52°C to +177°C)
Operates reliably in harsh industrial environments with wide thermal fluctuations.
Global Hazardous Location Compliance
Certified CSA, ATEX, and IECEx for deployment in flammable and explosive environments, meeting international safety standards.
Enhanced Mechanical Integrity (TipLoc & CableLoc, 330 N)
Patented technologies provide superior probe tip bonding and cable retention, minimizing maintenance and operational risk.
