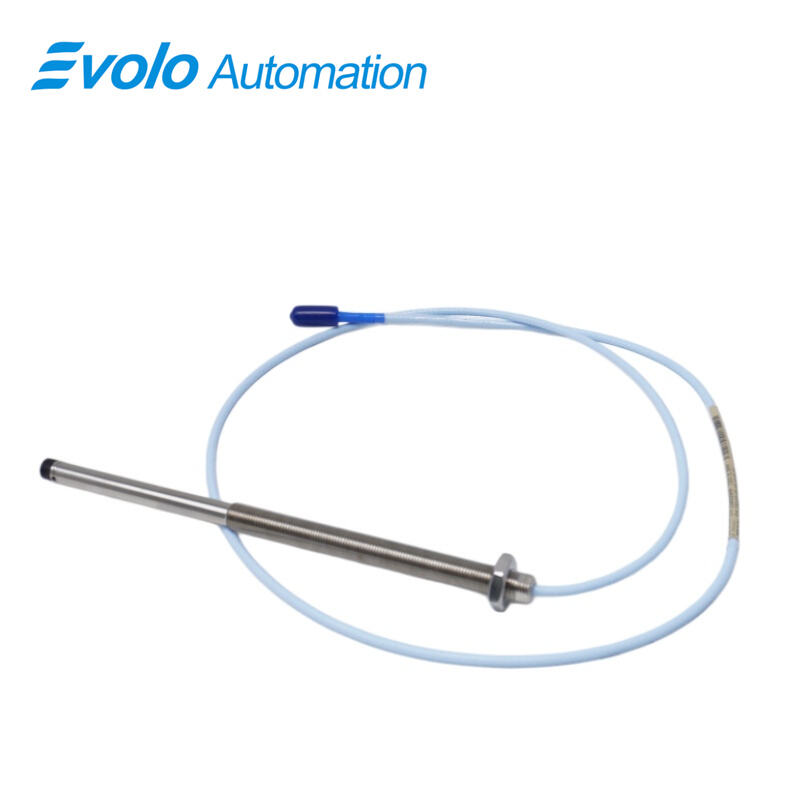

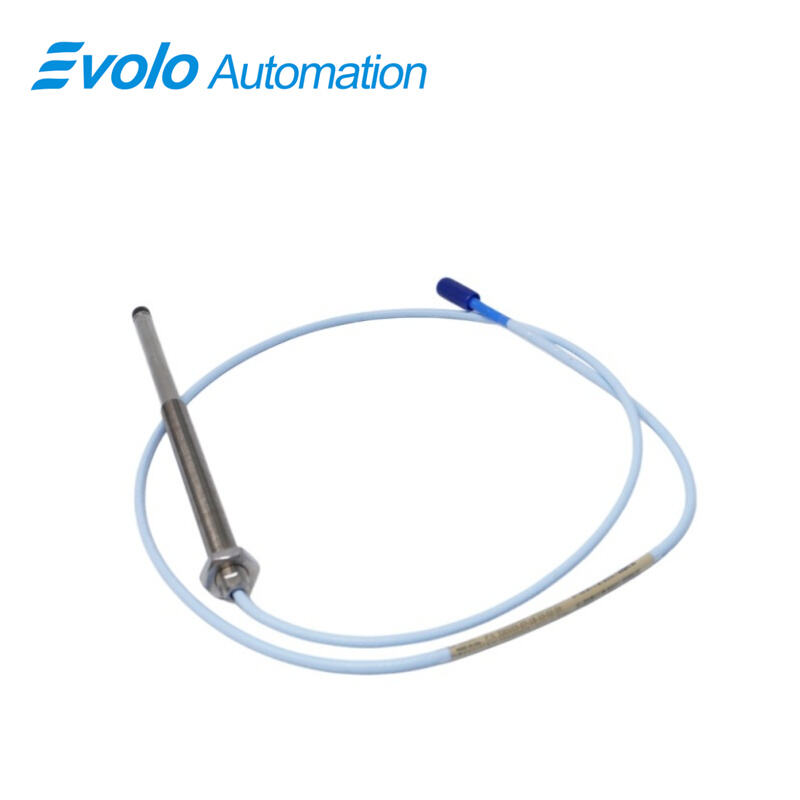

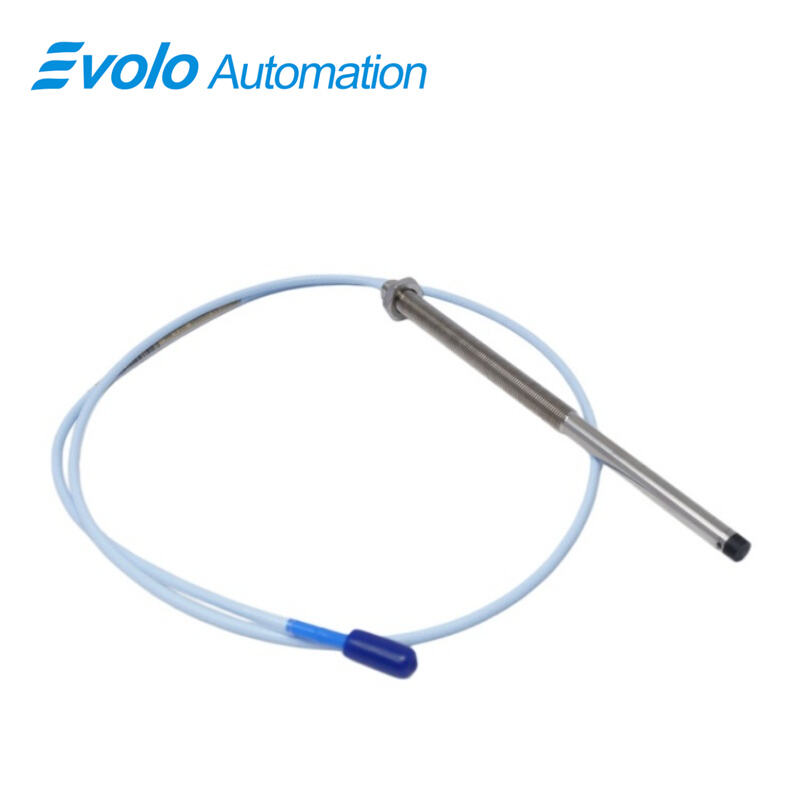

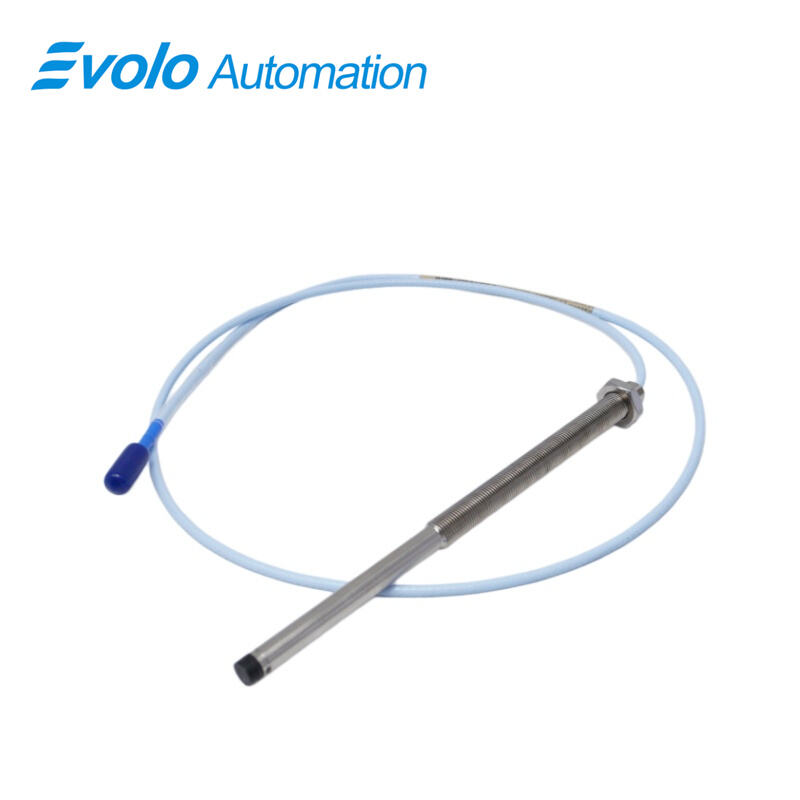

330103-07-18-10-02-00 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330103-07-18-10-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330103-07-18-10-02-00 3300 XL 8 mm Proximity Probe is built for automated shaft displacement and vibration monitoring in rotating equipment. 330103-07-18-10-02-00 uses an M10x1 threaded case with 70 mm unthreaded length and 180 mm minimum case length, allowing direct installation on bearing housings with up to 15 mm thread engagement. The 1.0 meter standard cable with miniature coaxial ClickLoc connector supports cabinet wiring in PLC and DCS systems.

With a 2 mm linear range (80 mils) and 50 Ω output resistance, 330103-07-18-10-02-00 converts shaft distance into proportional voltage for position and vibration input modules. Extension cable capacitance is 69.9 pF/m, supporting accurate signal transmission. Operating from -52°C to +177°C, 330103-07-18-10-02-00 functions in turbine, compressor, and pump environments. Supply sensitivity remains below 2 mV output change per volt input, enabling precise integration of 330103-07-18-10-02-00 into industrial automation protection systems.

Applications

Measure shaft vibration for turbine protection
330103-07-18-10-02-00 converts dynamic displacement up to 2 mm into proportional voltage signals. Using a 50 Ω output, vibration exceeding 0.1 mm triggers alarms or automatic shutdown in automated systems.

Track axial shaft position in thrust bearings
330103-07-18-10-02-00 monitors axial movement up to ±2 mm and sends continuous voltage input to control modules, supporting real-time thrust bearing protection.

Generate Keyphasor and speed reference signals
330103-07-18-10-02-00 detects once-per-revolution shaft events with ±0.01 mm accuracy, providing timing pulses for speed monitoring and phase detection in automated machinery.

Provide displacement input for DCS trending
With 0.2–1.5 mm² field wiring and less than 2 mV per volt supply sensitivity, 330103-07-18-10-02-00 supplies consistent signals for trending shaft position and automated trip logic.

Specifications

Competitive Advantage

Direct M10x1 threaded mounting for secure installation
330103-07-18-10-02-00 engages threads up to 15 mm, enabling precise mounting on bearing housings without custom brackets.

Compact 1.0 meter cable with ClickLoc connector for fast wiring
330103-07-18-10-02-00 reduces installation time and supports extension cable capacitance of 69.9 pF/m, improving signal quality in control racks.

Extended temperature operation for high-temperature environments
Rated -52°C to +177°C, 330103-07-18-10-02-00 maintains output within ±2 mV under extreme thermal conditions.

Low supply sensitivity for accurate automation signals
330103-07-18-10-02-00 maintains output voltage change below 2 mV per volt input variation, enabling predictable integration with PLC and DCS modules.

TipLoc and CableLoc design for mechanical attachment
330103-07-18-10-02-00 improves probe tip bond and provides 330 N cable pull strength, reducing detachment risk in high-vibration machinery.
