Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330103-00-10-05-02-00 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option(Minimum unthreaded length): |
00 mm |
|
Overall Case Length Option(Minimum case length): |
100 mm |
|
Total Length Option: |
0.5 meter (1.6 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option: |
Not required |
|
Probe Case Thread: |
M10x1 |
|
Maximum Length of Thread Engagement: |
15 mm |
|
Dimension: |
1.8x1.5x68cm |
|
Weight: |
0.05kg |
Description

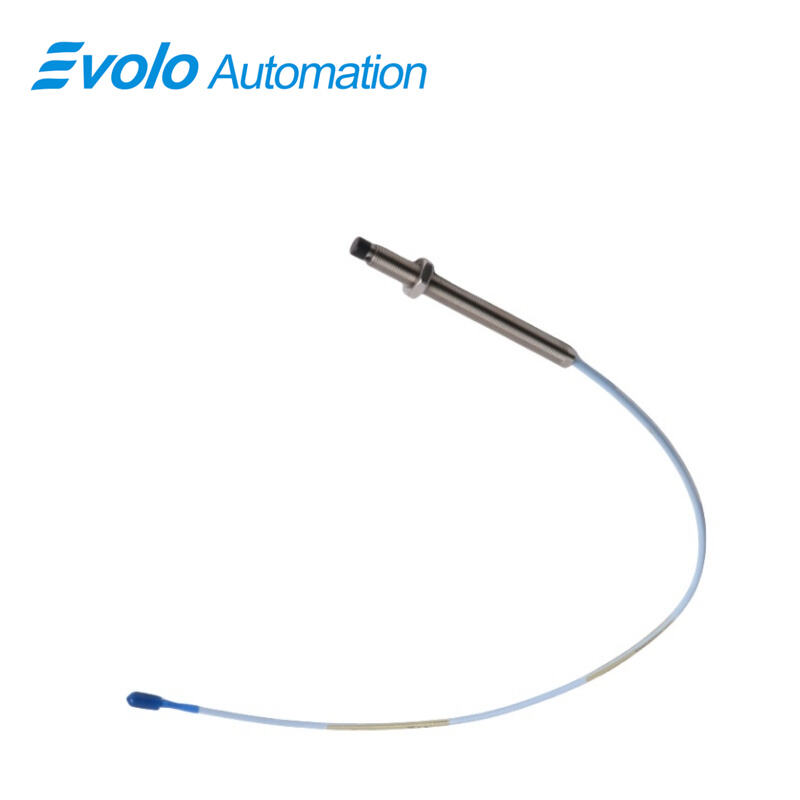

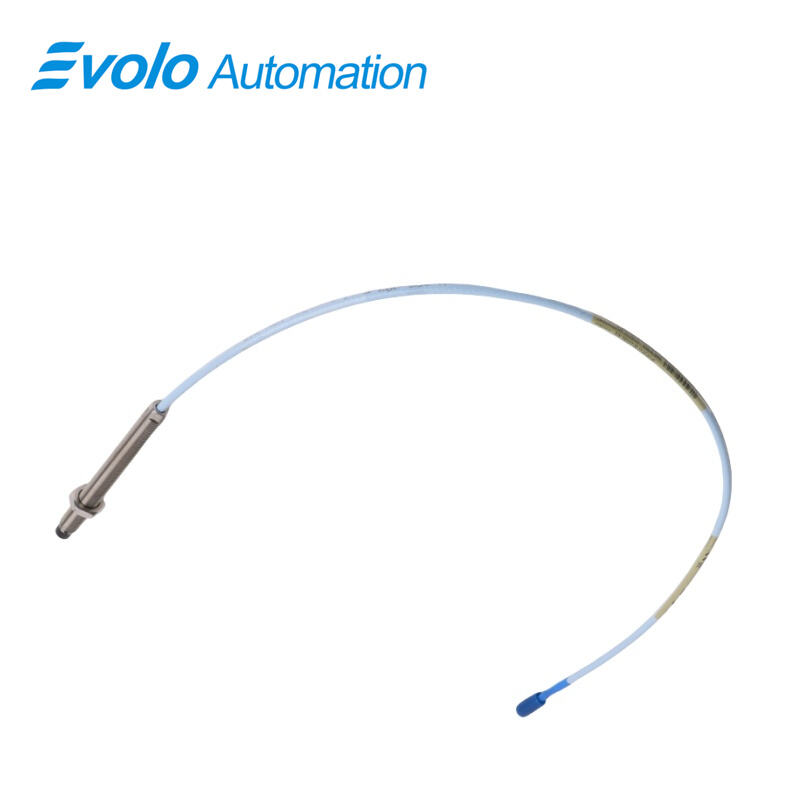

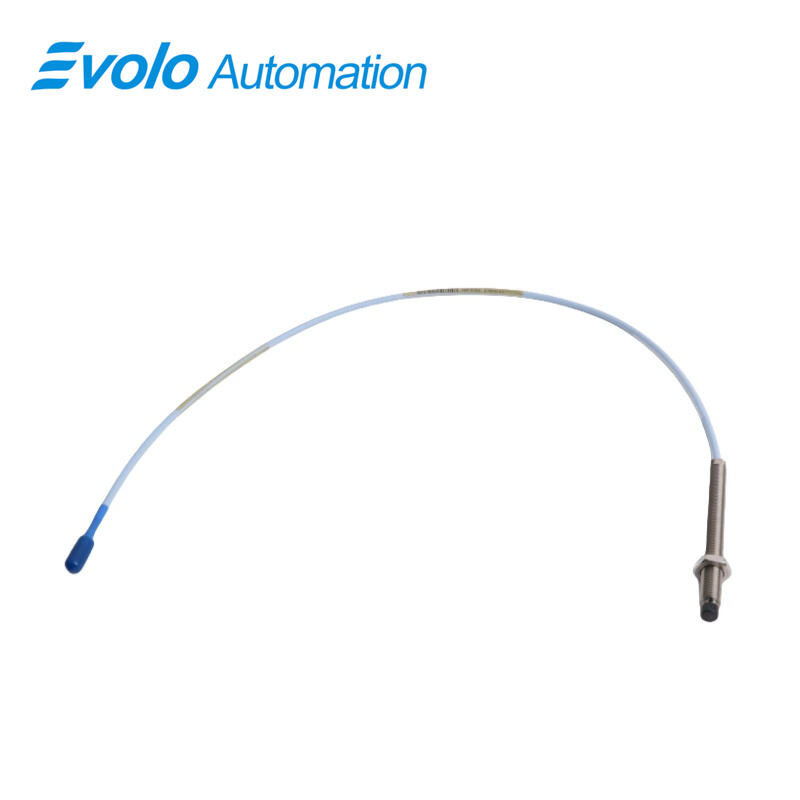

The 330103-00-10-05-02-00 3300 XL 8 mm Proximity Probe is a high-precision automation sensor designed for non-contact measurement of vibration and shaft displacement in fluid-film bearing machinery. The 330103-00-10-05-02-00 probe features a 2 mm linear range, M10x1 threaded mounting, and a robust 100 mm case length, ensuring reliable integration with industrial control systems. With a 0.5 meter total cable and miniature coaxial ClickLoc connector, the 330103-00-10-05-02-00 probe provides stable 50 Ω output resistance and less than 2 mV per volt supply sensitivity, delivering highly accurate position and vibration data for automated monitoring and predictive maintenance. This 330103-00-10-05-02-00 3300 XL 8 mm probe supports CSA, ATEX, and IECEx approvals and is optimized for harsh industrial environments.
Applications
Vibration Monitoring on Fluid-Film Bearings
The 330103-00-10-05-02-00 probe measures high-frequency vibration in turbines and pumps, using 2 mm linear range and 50 Ω output, feeding signals directly into automated DCS and PLC systems.
Axial and Shaft Position Measurement
With M10x1 threaded mounting and 100 mm case length, the 330103-00-10-05-02-00 probe provides accurate static position monitoring, preventing misalignment or mechanical failure in automated industrial machinery.
Keyphasor and Speed Detection
The 330103-00-10-05-02-00 probe supports Keyphasor reference and speed measurement, ensuring precise rotor phase monitoring with less than 2 mV/V supply sensitivity in automated monitoring setups.
Specifications
|
Operating and Storage Temperature: |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
Competitive Advantage
Automation-Ready Design
The 330103-00-10-05-02-00 probe’s ClickLoc connector and FluidLoc optional cable enable direct integration into SCADA and DCS systems without additional calibration.
High Accuracy & Stability
Operating from −52°C to +177°C, the 330103-00-10-05-02-00 probe provides consistent measurement in extreme industrial conditions.
Robust & Reliable
The TipLoc molding and CableLoc design with 330 N pull strength ensure mechanical durability and long-term reliability for automation applications.
Full Interchangeability
The 330103-00-10-05-02-00 3300 XL 8 mm probe is backward compatible with other 3300 series probes, allowing easy upgrades and replacements without system recalibration.
