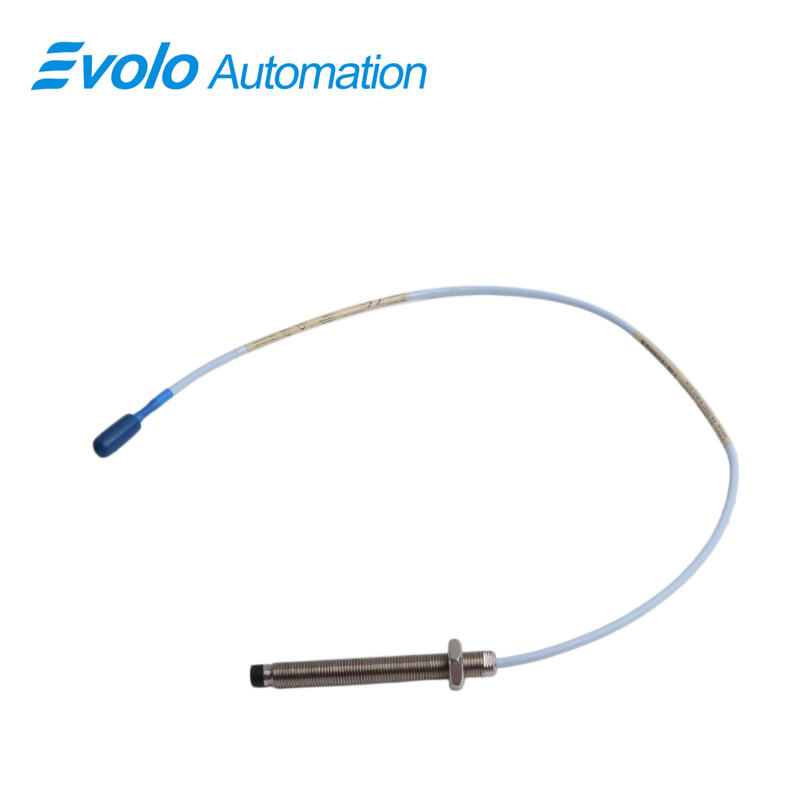

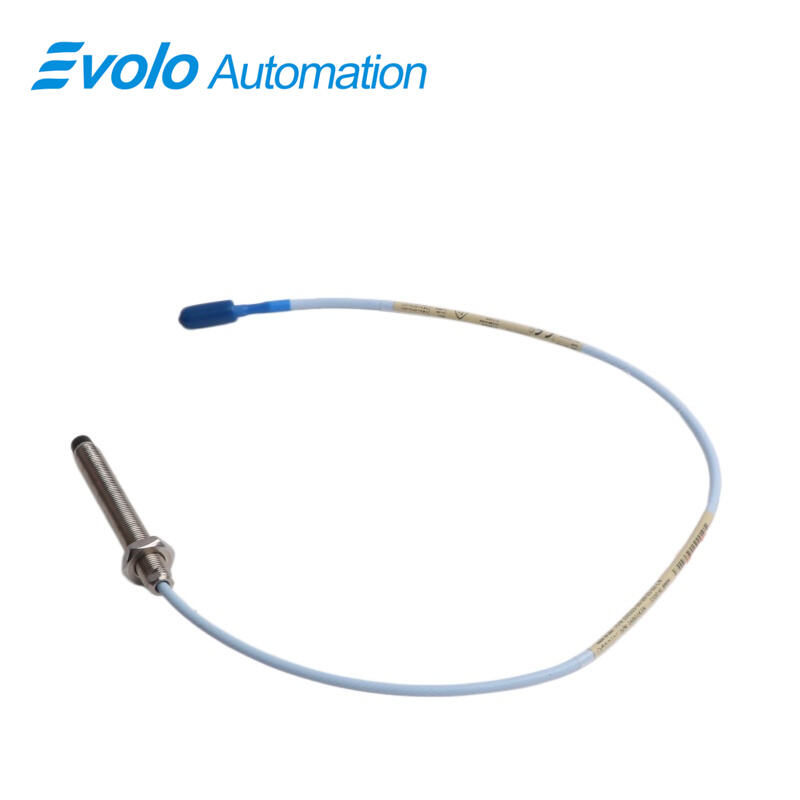

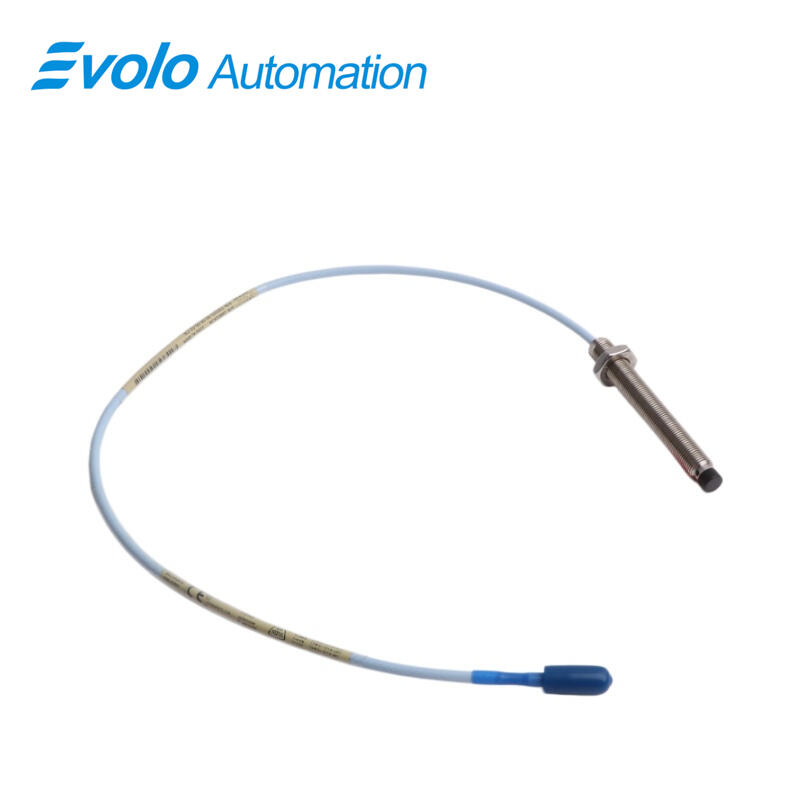

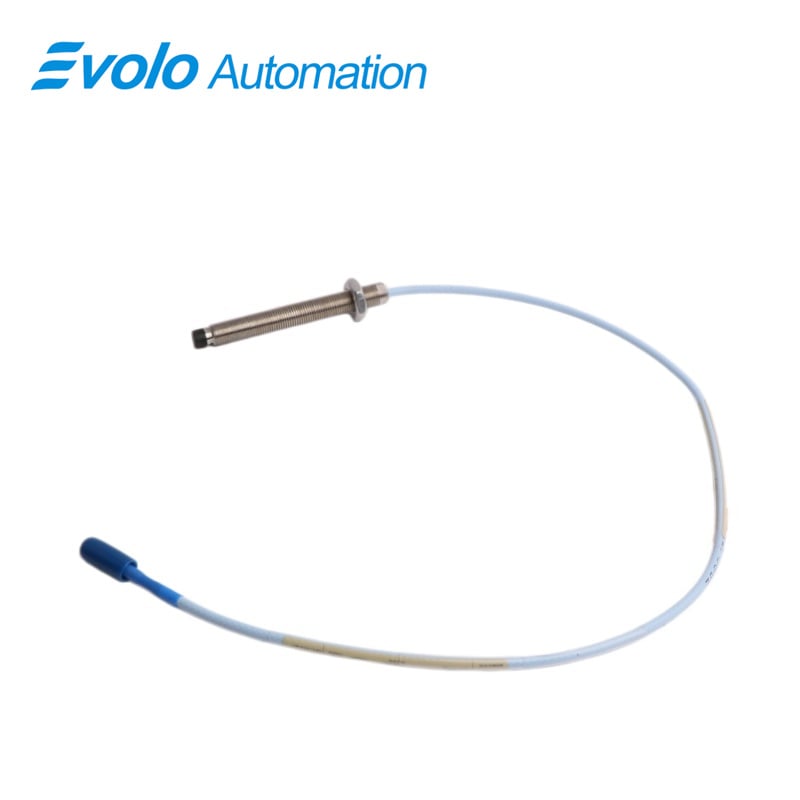

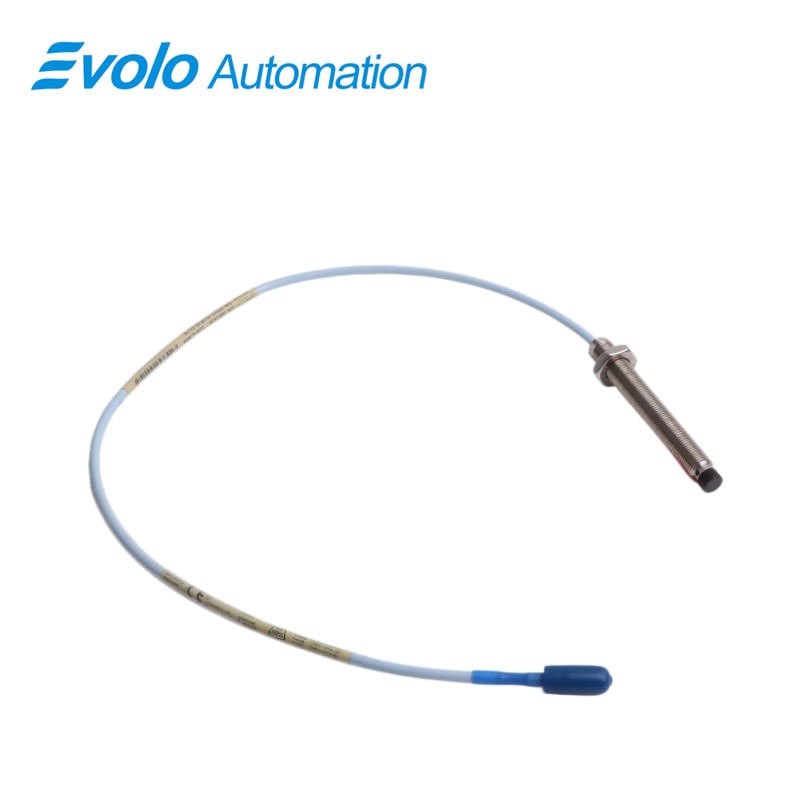

330103-00-08-05-02-CN 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330103-00-08-05-02-CN
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330103-00-08-05-02-CN 3300 XL 8 mm Proximity Probe is designed for precise position and vibration measurements in automated machinery. With a linear range of 2 mm and output resistance of 50 Ω, the 3300 XL 8 mm probe delivers voltage proportional to distance from conductive surfaces. The probe features an M10x1 threaded case with 15 mm maximum engagement and operates from -52°C to +177°C. The standard 0.5 m (1.6 ft) total length system uses a Miniature Coaxial ClickLoc connector and 69.9 pF/m extension cable capacitance, supporting field wiring from 0.2 to 1.5 mm². The 3300 XL 8 mm system measures Keyphasor reference signals and speed in automated turbines and fluid-film bearing machines. Optional FluidLoc cables prevent fluid leakage, while patented TipLoc and CableLoc designs secure probe tip and cable connections, maintaining consistent output under voltage variations (<2 mV/V). Each 3300 XL 8 mm probe is interchangeable with standard 5 mm and 8 mm 3300 series components, supporting seamless integration into existing automation systems. Ideal for real-time monitoring, dynamic diagnostics, and automated control applications, the 330103-00-08-05-02-CN 3300 XL 8 mm ensures reliable signal capture in industrial automation environments.

Applications

Measure Shaft Position in Rotating Machinery
The 330103-00-08-05-02-CN 3300 XL 8 mm probe provides an output voltage proportional to the distance from the shaft surface. With a linear range of 2 mm and output resistance of 50 Ω, it accurately tracks rotor position in turbines and fluid-film bearings for automated monitoring.

Capture Vibration Signals in Bearings
Using its total 0.5 m (1.6 ft) length and Miniature Coaxial ClickLoc connector, the 330103-00-08-05-02-CN 3300 XL 8 mm probe detects dynamic vibration in pumps and compressors. The field wiring supports 0.2–1.5 mm² conductors for precise signal transmission.

Record Keyphasor and Speed Signals
The 330103-00-08-05-02-CN 3300 XL 8 mm probe is ideal for generating Keyphasor reference pulses and measuring shaft speed in automated industrial systems. Extension cable capacitance of 69.9 pF/m ensures clean signal capture over the connection.

Monitor Fluid-Film Bearing Clearance
With M10x1 probe thread and 15 mm maximum engagement, the 330103-00-08-05-02-CN 3300 XL 8 mm probe monitors bearing clearance directly, supporting real-time automation control and preventive maintenance operations.

Specifications

Competitive Advantage

Secure Probe Tip and Cable Connection
The 330103-00-08-05-02-CN 3300 XL 8 mm probe features patented TipLoc and CableLoc designs. With 330 N (75 lbf) pull strength, the 330103-00-08-05-02-CN 3300 XL 8 mm probe ensures the probe tip and cable remain connected under high-vibration conditions in industrial automation systems.

Operate in Extreme Temperature Range
The 330103-00-08-05-02-CN 3300 XL 8 mm operates from -52°C to +177°C (-62°F to +350°F). This wide temperature range allows the 330103-00-08-05-02-CN 3300 XL 8 mm to capture accurate position and vibration signals without signal drift in hot or cold environments.

Prevent Oil and Liquid Leakage
With optional FluidLoc cables, the 330103-00-08-05-02-CN 3300 XL 8 mm blocks fluid migration through the probe cable. The 330103-00-08-05-02-CN 3300 XL 8 mm maintains clean voltage output (50 Ω resistance) while preventing oil contamination in automated bearing or pump systems.

Interchangeable with 5 mm and 8 mm 3300 Series Probes
The 330103-00-08-05-02-CN 3300 XL 8 mm probe, extension cable, and Proximitor sensor are fully interchangeable with standard 5 mm and 8 mm 3300 series components. Field wiring (0.2–1.5 mm²) and 0.5 m cable length allow the 330103-00-08-05-02-CN 3300 XL 8 mm to replace existing probes without recalibration, reducing maintenance time.

Deliver Accurate Voltage Output under Input Variation
The 330103-00-08-05-02-CN 3300 XL 8 mm probe maintains less than 2 mV change per 1 V change in input voltage. This precise output ensures the 330103-00-08-05-02-CN 3300 XL 8 mm provides reliable distance measurements over its 2 mm linear range, supporting automated monitoring and control applications.
