Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330103-00-04-50-02-00 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option(Minimum unthreaded length): |
00 mm |
|
Overall Case Length Option(Minimum case length): |
40 mm |
|
Total Length Option: |
5.0 meters (16.4 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option: |
Not required |
|
Probe Case Thread: |
M10x1 |
|
Maximum Length of Thread Engagement: |
15 mm |
|
Dimension: |
19x19x2cm |
|
Weight: |
0.2kg |
Description

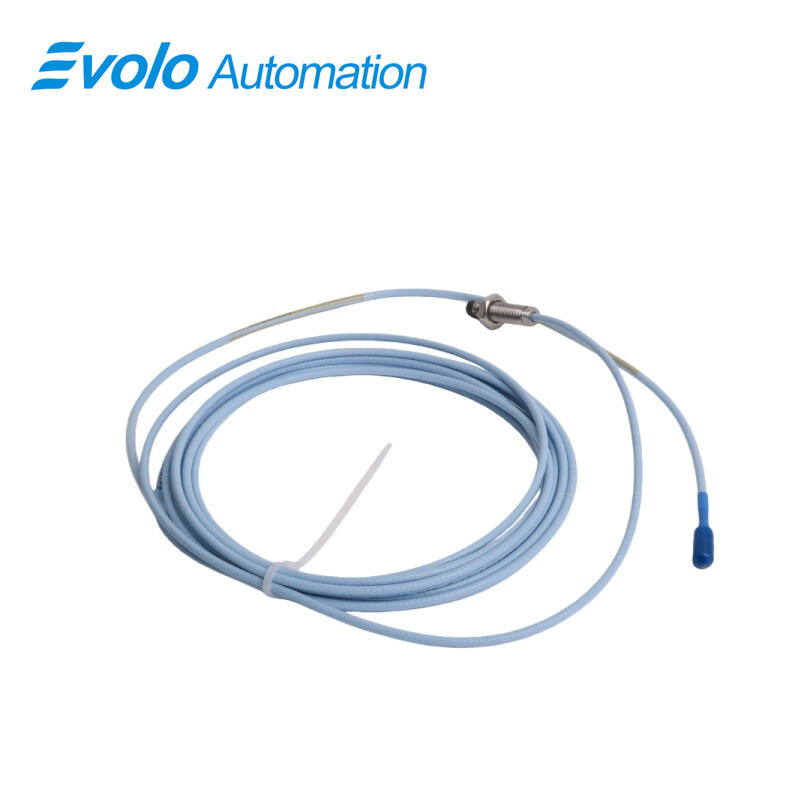

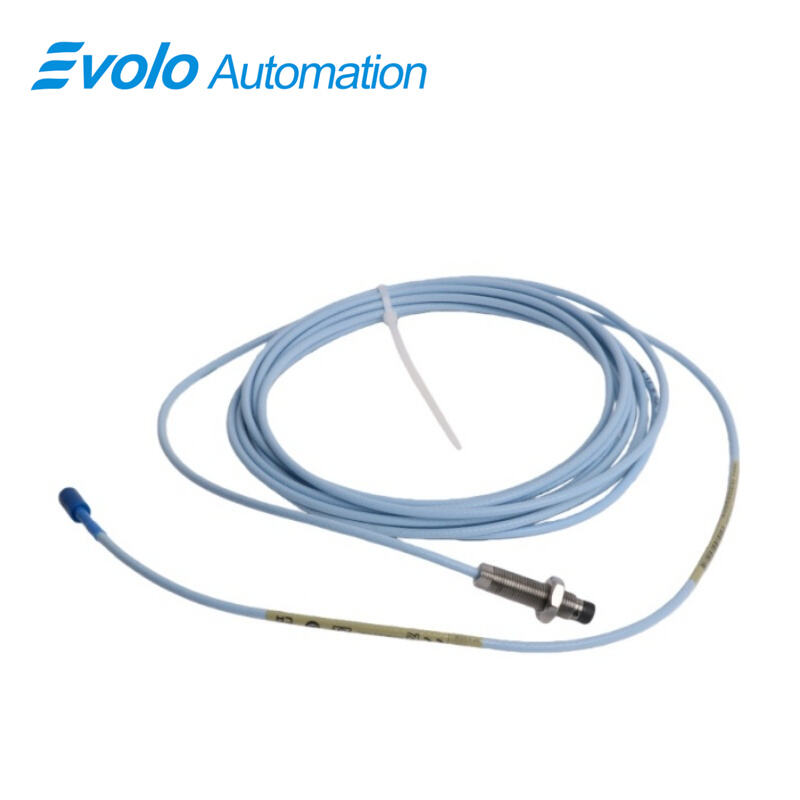

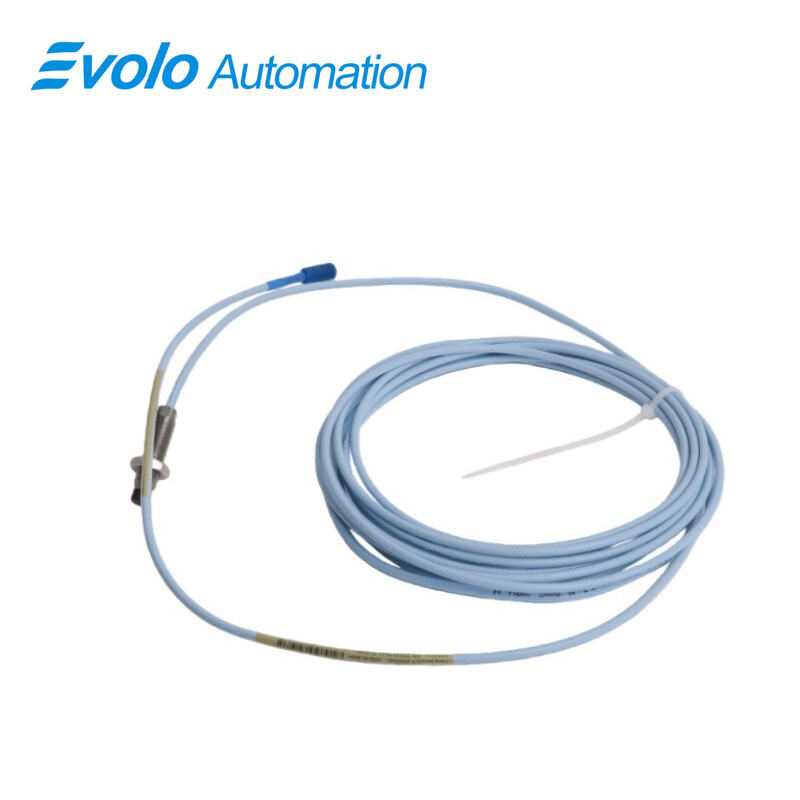

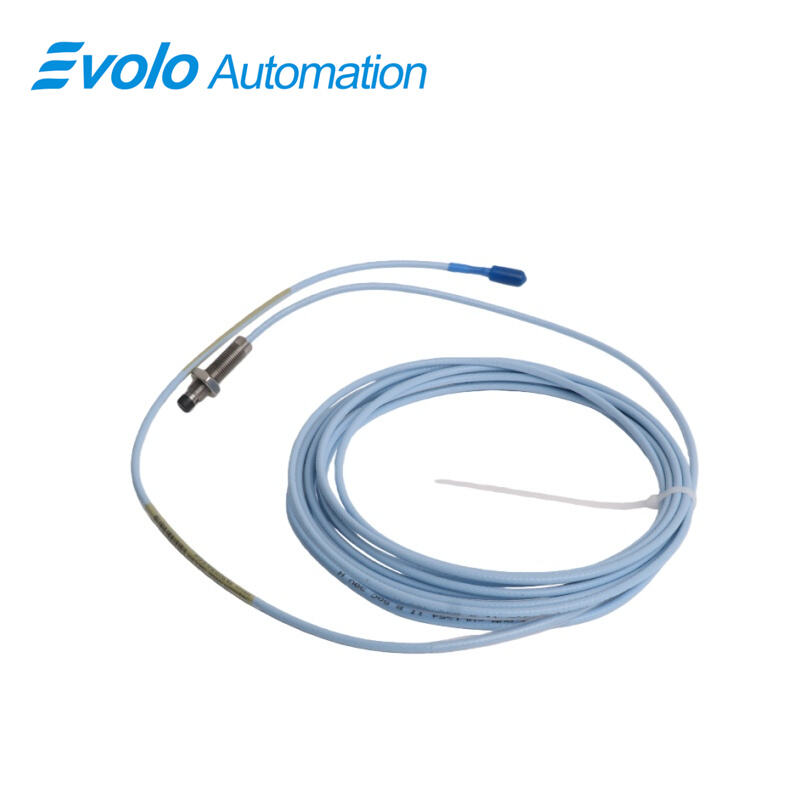

330103-00-04-50-02-00 3300 XL 8 mm Proximity Probe is designed for precise position and vibration measurement in fluid-film bearing machines and automated systems. The 330103-00-04-50-02-00 provides output voltage proportional to the distance between the probe tip and the conductive surface. It features a linear range of 2 mm, total cable length of 5.0 meters, M10x1 threaded probe case, and operating temperatures from -52°C to +177°C, making it suitable for harsh industrial environments. The polyphenylene sulfide probe tip and AISI 303/304 stainless steel case provide chemical and mechanical durability. The miniature ClickLoc connector and patented TipLoc/CableLoc designs secure the probe and cable attachment with 330 N pull strength. An optional FluidLoc cable assembly prevents oil or liquid leakage, ensuring uninterrupted automated position and vibration monitoring.
Applications
Measure Radial Shaft Vibration
330103-00-04-50-02-00 monitors radial vibration on turbines, compressors, and pumps. Its 2 mm linear range and supply sensitivity less than 2 mV per volt ensure accurate signals for automated vibration monitoring.
Track Axial Shaft Position
The 330103-00-04-50-02-00 measures axial movement on fluid-film bearings. The polyphenylene sulfide tip and AISI 303/304 stainless steel case allow precise axial position detection for automated control.
Provide Keyphasor and Speed Signals
330103-00-04-50-02-00 transmits Keyphasor reference and speed signals through its 5-meter ClickLoc cable, enabling automated phase and rotational speed monitoring.
Specifications
|
Operating and Storage Temperature: |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
Competitive Advantage
Mount in Tight Spaces
The M10x1 threaded probe case and minimum unthreaded length 0 mm allow 330103-00-04-50-02-00 to be installed in restricted areas without reducing measurement accuracy.
Secure Probe and Cable Connection
Patented TipLoc and CableLoc designs provide 330 N pull strength, keeping the 330103-00-04-50-02-00 probe and cable firmly attached in automated systems.
Operate in Harsh Conditions
330103-00-04-50-02-00 functions in temperatures from -52°C to +177°C and resists chemical and mechanical wear due to its stainless steel case and PPS probe tip.
