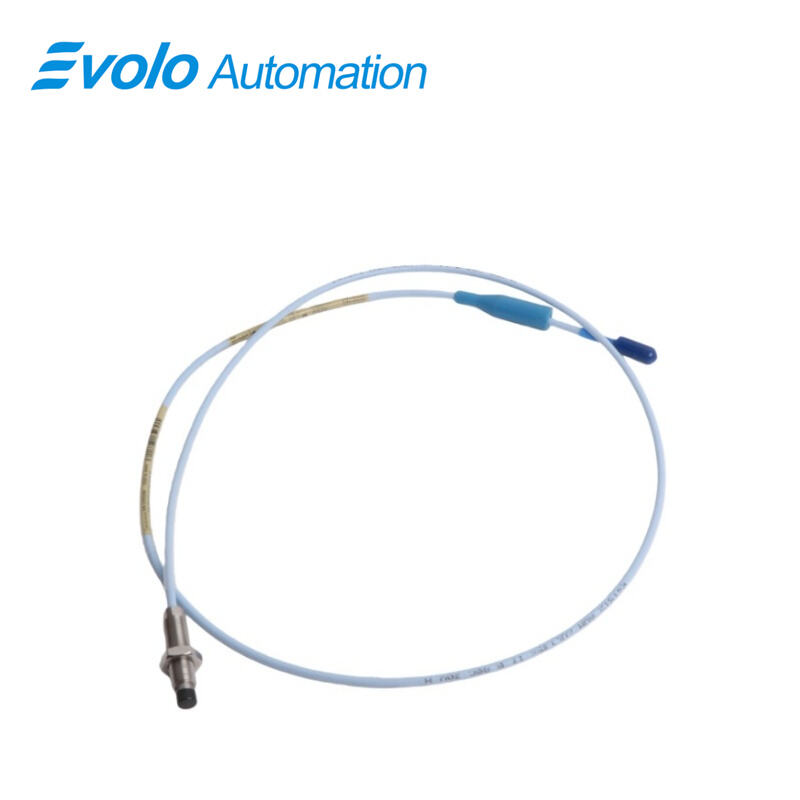

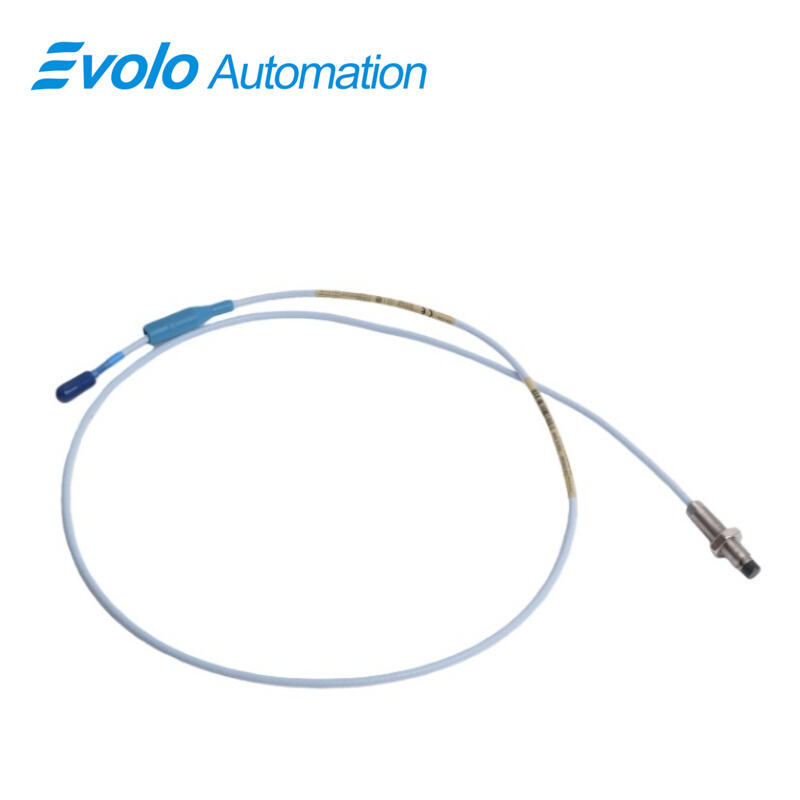

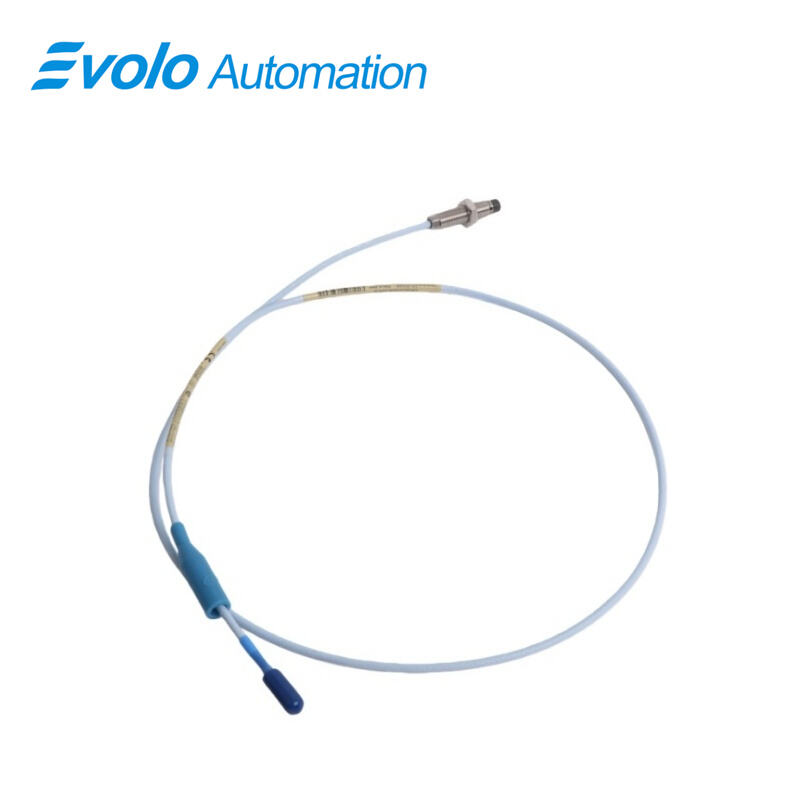

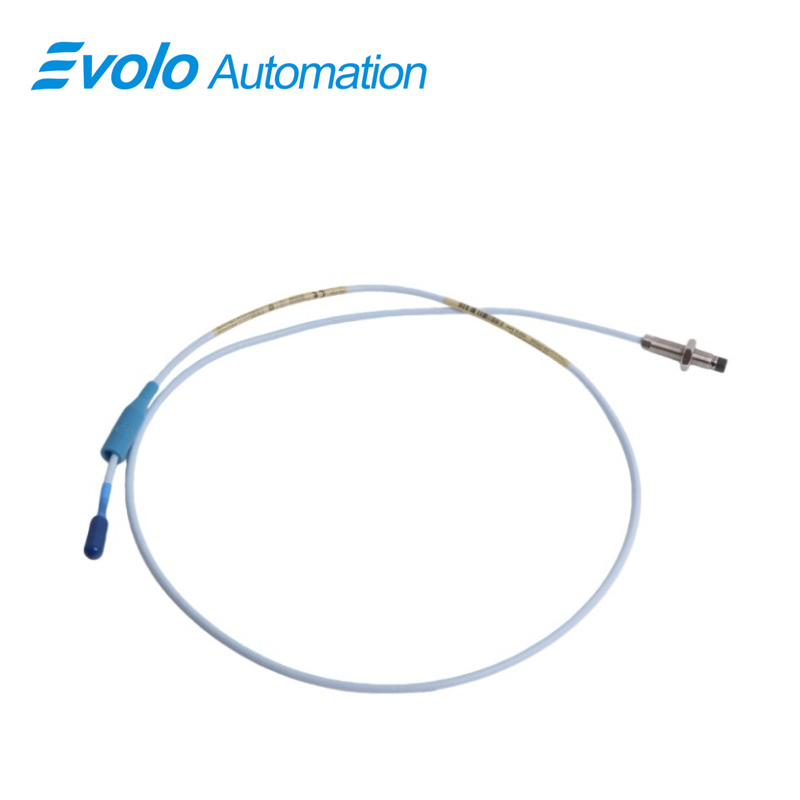

330103-00-04-10-01-00 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330103-00-04-10-01-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330103-00-04-10-01-00 3300 XL 8 mm Proximity Probe is designed for automated vibration and position measurement on rotating machinery. The 330103-00-04-10-01-00 converts the distance between the probe tip and a conductive target into a proportional voltage signal, supporting both static shaft position and dynamic vibration tracking in automation systems.

With a defined linear range of 2 mm (80 mils), the 330103-00-04-10-01-00 delivers predictable measurement output for compressors, pumps, and turbines using fluid film bearings. The probe features an M10x1 mounting thread with 15 mm maximum thread engagement and a compact 40 mm minimum case length, allowing direct installation in confined machine housings.

The 330103-00-04-10-01-00 includes a 1.0 meter standard cable with a miniature coaxial ClickLoc connector and connector protector, supporting secure signal transfer to monitoring modules. Typical cable capacitance of 69.9 pF/m and a 50 Ω output resistance support clean signal transmission in automation cabinets.

Operating from -52°C to +177°C, the 330103-00-04-10-01-00 supports continuous machinery monitoring in high-temperature industrial environments, making it suitable for automated condition monitoring and protection systems.

Applications

Shaft Vibration Monitoring on Fluid Film Bearing Machines
The 330103-00-04-10-01-00 is used to measure dynamic shaft vibration within a defined 2 mm linear range, converting shaft movement into proportional voltage signals for turbines, compressors, and pumps equipped with fluid film bearings.

Shaft Position Tracking in Rotating Equipment
With a 50 Ω output resistance and controlled cable capacitance of 69.9 pF/m, the 330103-00-04-10-01-00 supports continuous shaft position measurement for automated control systems that require real-time displacement feedback.

Integration with Machinery Protection Systems
The 330103-00-04-10-01-00 connects directly to proximity monitoring and protection modules using its miniature coaxial ClickLoc connector, enabling automated alarm and trip logic based on vibration and position thresholds.

High-Temperature Machinery Monitoring
Operating from -52°C to +177°C, the 330103-00-04-10-01-00 is applied in hot zones such as steam turbines and process compressors where sensor placement near rotating shafts is required.

Specifications

Competitive Advantage

Accurate Measurement within a Defined 2 mm Range
The 330103-00-04-10-01-00 delivers predictable voltage output across its 2 mm (80 mils) linear range, allowing precise vibration and position interpretation in automated monitoring systems.

Compact Probe Body for Tight Mounting Areas
With a minimum case length of 40 mm and an M10x1 thread, the 330103-00-04-10-01-00 fits into limited mounting spaces where larger probes cannot be installed.

Secure Signal Transmission over Standard Cable Length
The 330103-00-04-10-01-00 uses a 1.0 meter standard cable with controlled capacitance and a protected ClickLoc connector to maintain clean signal delivery to automation cabinets.

Operation in Wide Temperature Conditions
Rated for continuous operation from -52°C to +177°C, the 330103-00-04-10-01-00 supports machinery monitoring in both cold start conditions and elevated process temperatures.

Reduced Installation Time in Automation Projects
The defined thread engagement of 15 mm and standard wiring range of 0.2 to 1.5 mm² allow the 330103-00-04-10-01-00 to be installed quickly during automation system deployment or retrofit projects.
