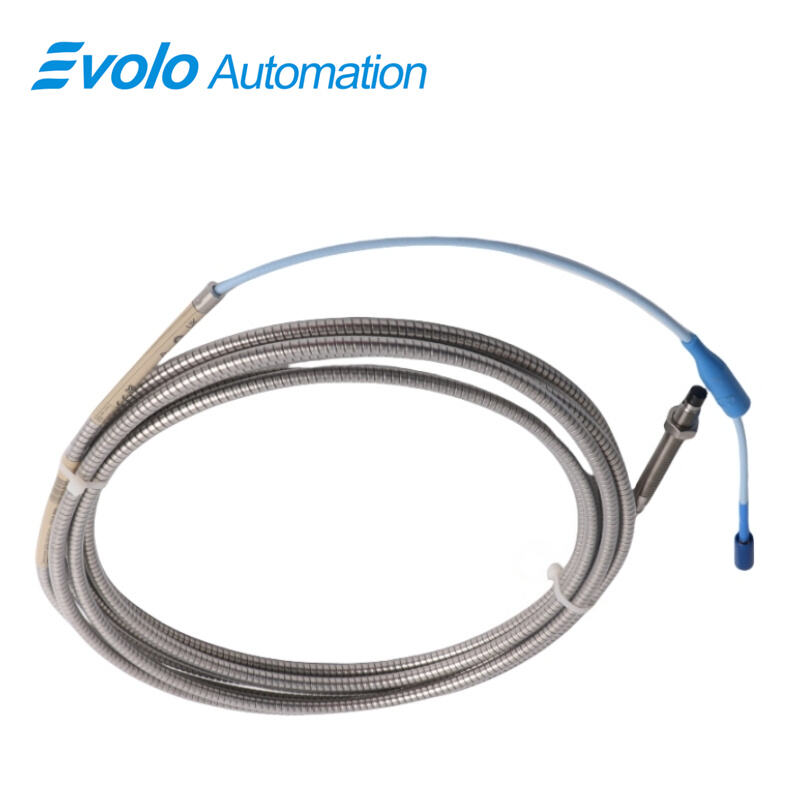

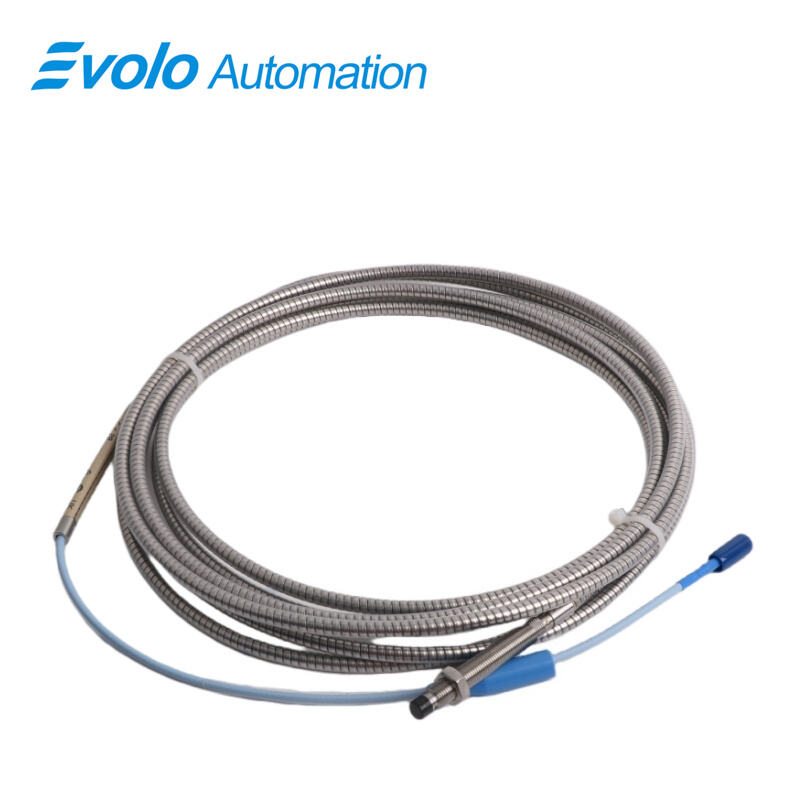

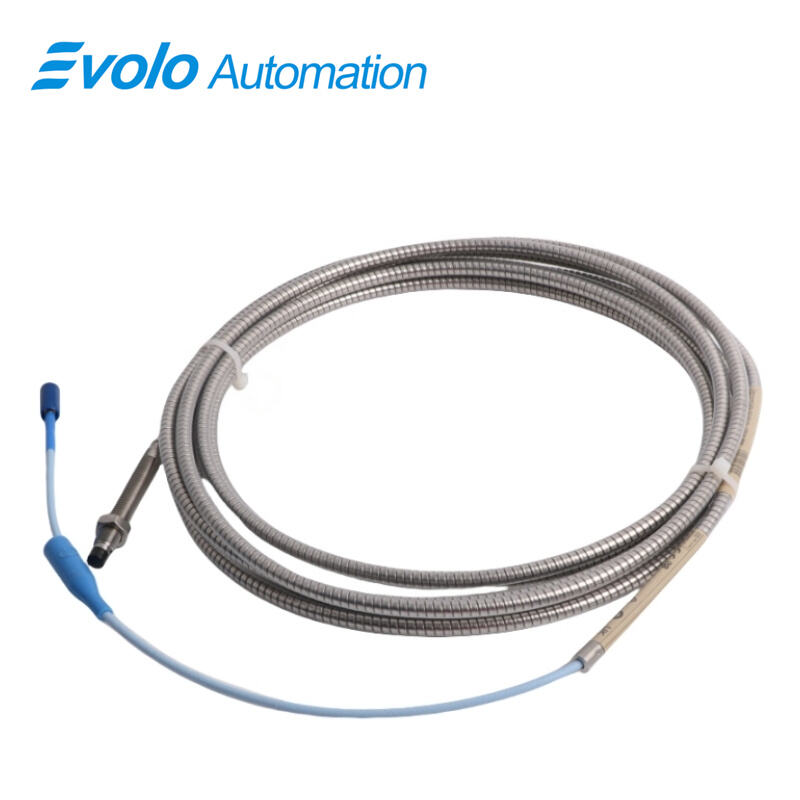

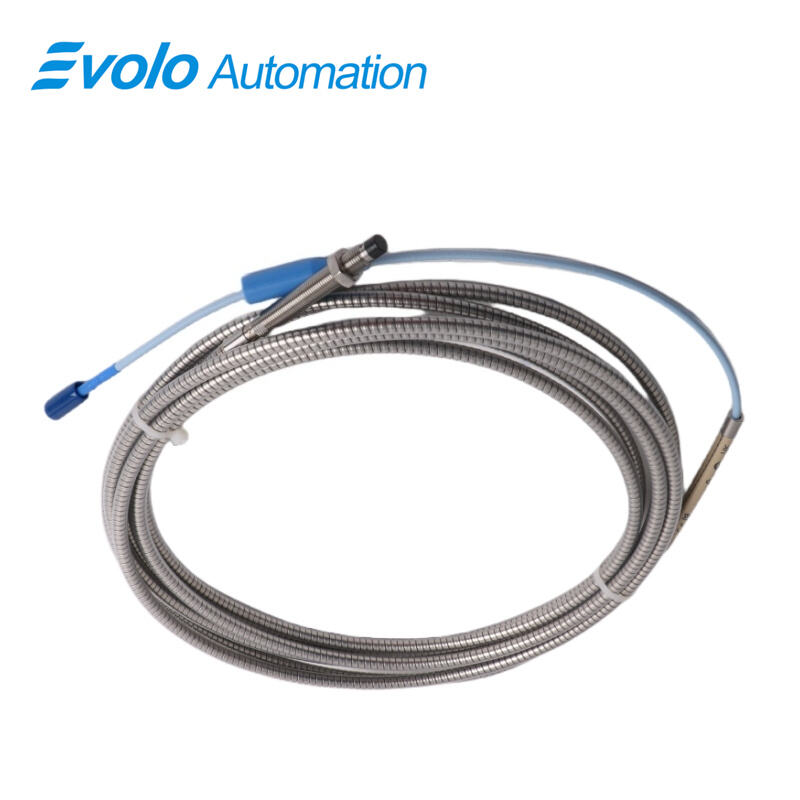

330102-00-25-10-02-CN 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330102-00-25-10-02-CN
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330102-00-25-10-02-CN 3300 XL 8 mm Proximity Probe is engineered for high-precision vibration and position monitoring in automated industrial systems. Designed for fluid-film bearing machines, this probe delivers a voltage output directly proportional to the distance between the probe tip and the target conductive surface, enabling accurate dynamic (vibration) and static (position) measurements. Its 2 mm linear range ensures high-resolution readings, while compliance with CSA, ATEX, and IECEx approvals makes it suitable for use in hazardous areas.

With a total cable length of 1.0 meter (3.3 ft), a 3/8-24 UNF probe thread, and a robust ClickLoc miniature coaxial connector, the 3300 XL probe ensures secure connections and reliable signal transmission. The probe incorporates TipLoc molded bonding and CableLoc pull-strength designs, providing 330 N (75 lbf) cable retention and a durable tip attachment. Optional FluidLoc cables prevent leakage of oil or other liquids, ensuring safe operation in automated machinery environments. Fully compatible with existing 3300 series transducers, this probe enables complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need for individual component calibration and supporting streamlined installation and maintenance.

Applications

1. Fluid-Film Bearing Vibration Monitoring
Measures radial and axial vibrations on fluid-film bearings with high accuracy in automated turbines, pumps, and compressors.

2. Static Position Measurement
Provides precise shaft position tracking in high-speed machinery with 2 mm linear range for real-time automation control.

3. Keyphasor and Speed Measurement
Supports Keyphasor signals and shaft speed monitoring in rotating equipment, ensuring accurate phase reference for predictive maintenance.

4. Hazardous Area Monitoring
CSA, ATEX, and IECEx approvals allow the probe to operate safely in hazardous industrial zones, including chemical and petrochemical plants.

5. Maintenance Optimization
Interchangeable with other 3300 XL components, enabling quick probe replacement and cable adjustments without extensive machine disassembly.

Specifications

Competitive Advantage

1. High-Precision Measurement
Offers a 2 mm linear range with less than 2 mV supply sensitivity variation, ensuring accurate vibration and position data in automated systems.

2. Robust Mechanical Design
Incorporates TipLoc molding and CableLoc pull-strength design providing 330 N (75 lbf) retention for cable and tip stability under harsh operational conditions.

3. Hazardous Area Compatibility
Certified for CSA, ATEX, and IECEx, supporting safe monitoring in explosive or high-risk industrial environments.

4. Full Component Interchangeability
Compatible with 3300 series probes, extension cables, and Proximitor sensors, eliminating calibration mismatches and reducing installation complexity.

5. Optional FluidLoc Cable
Prevents oil or liquid leakage into machinery, enhancing operational safety and reducing potential contamination in automated processes.
