Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330102-00-20-10-02-05 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option(Minimum unthreaded length): |
0.0 in |
|
Overall Case Length Option(Minimum case length): |
2.0 in |
|
Total Length Option: |
1.0 meter (3.3 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option: |
CSA, ATEX, IECEx Approvals |
|
Probe Case Thread: |
3/8-24 UNF thread |
|
Maximum Length of Thread Engagement: |
0.563 in |
|
Dimension: |
1.5x1.2x120cm |
|
Weight: |
0.15kg |
Description

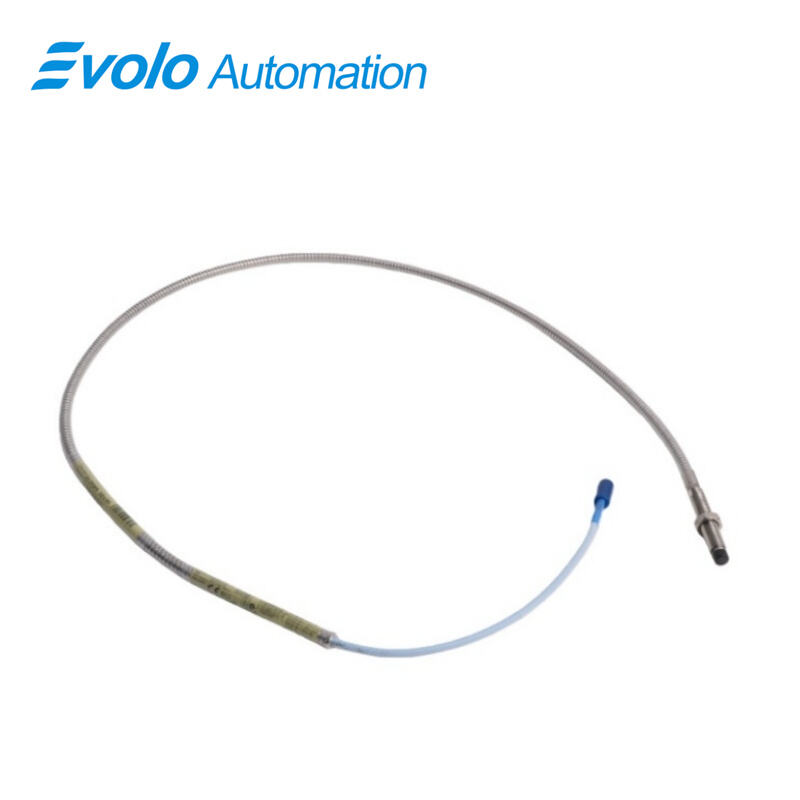

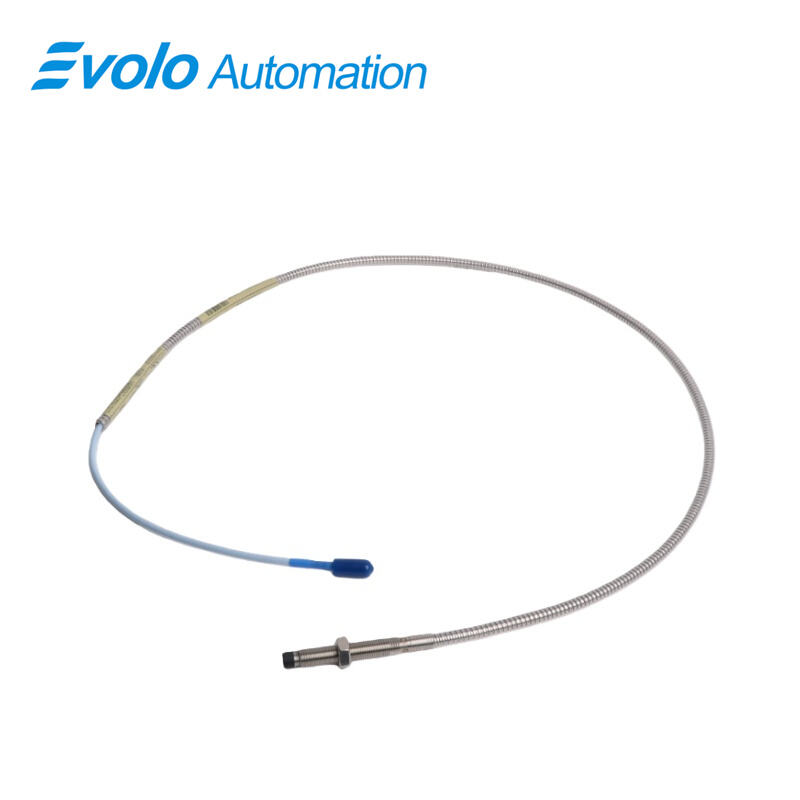

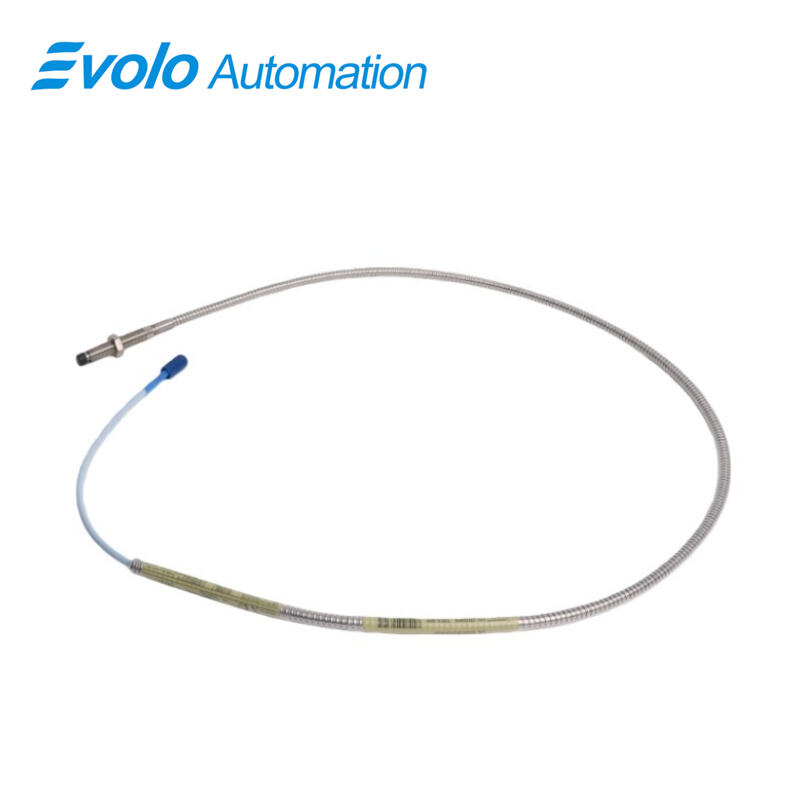

The 330102-00-20-10-02-05 3300 XL 8 mm Proximity Probe is an advanced automation sensor engineered for precise non-contact measurement of vibration and shaft displacement in fluid-film bearing machinery. The 330102-00-20-10-02-05 3300 XL 8 mm probe features a 2 mm linear range, 3/8-24 UNF threaded mounting, and 2.0 in overall case length, delivering highly reliable data for automated monitoring systems. With a 1.0 meter total cable and miniature coaxial ClickLoc connector, the 330102-00-20-10-02-05 probe ensures stable 50 Ω output resistance and less than 2 mV per volt supply sensitivity. Fully compliant with CSA, ATEX, and IECEx standards, the 330102-00-20-10-02-05 3300 XL 8 mm probe is ideal for automation applications requiring high precision, durability, and ease of integration into DCS and PLC systems.
Applications
Vibration Monitoring for Fluid-Film Bearings
The 330102-00-20-10-02-05 3300 XL 8 mm probe captures high-frequency vibrations in turbines, pumps, and motors. Its 2 mm linear range and 50 Ω output provide precise data for automated process control and predictive maintenance systems.
Static and Dynamic Shaft Position Measurement
The 3/8-24 UNF threaded probe with 2.0 in case length allows accurate measurement of axial and radial shaft positions in industrial automation setups.
Keyphasor and Speed Detection
The 330102-00-20-10-02-05 probe supports Keyphasor reference and tachometer measurements, enabling precise rotor phase monitoring for automated monitoring systems.
Specifications
|
Operating and Storage Temperature: |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
Competitive Advantage
Automation-Ready Integration
The 330102-00-20-10-02-05 3300 XL 8 mm probe is designed with ClickLoc connectors and optional FluidLoc cables, enabling plug-and-play integration into SCADA, PLC, and DCS platforms.
High Accuracy & Thermal Stability
Operating reliably from −52°C to +177°C, the 330102-00-20-10-02-05 probe maintains measurement accuracy under extreme industrial conditions.
Robust Mechanical Design
With TipLoc molding and CableLoc attachment strength of 330 N, the 330102-00-20-10-02-05 probe ensures long-term mechanical durability.
Backward Compatibility
The 330102-00-20-10-02-05 3300 XL 8 mm probe is fully compatible with other 3300 series probes, allowing seamless upgrades without recalibration.
