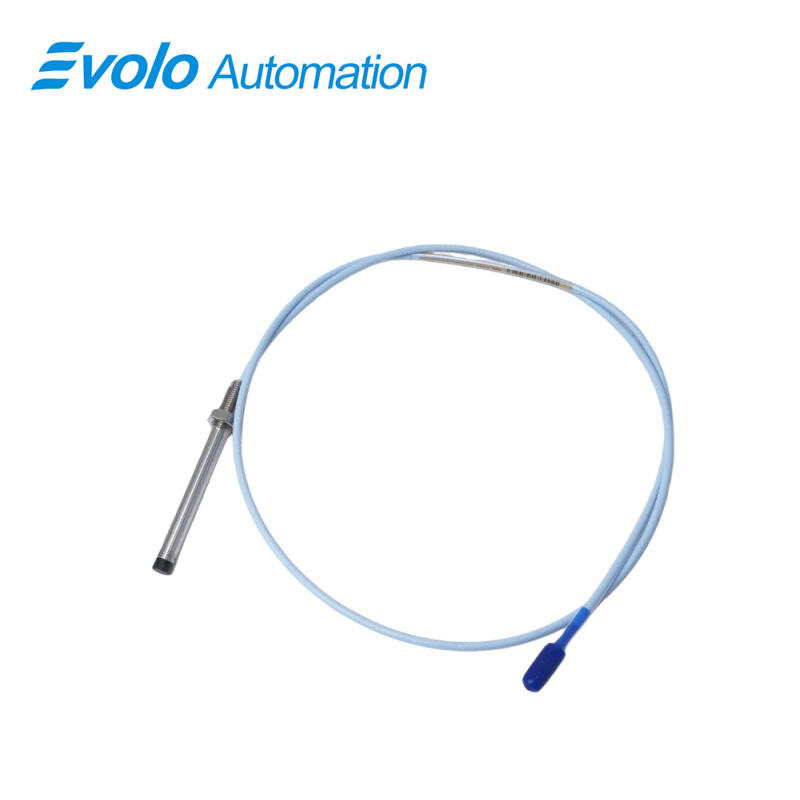

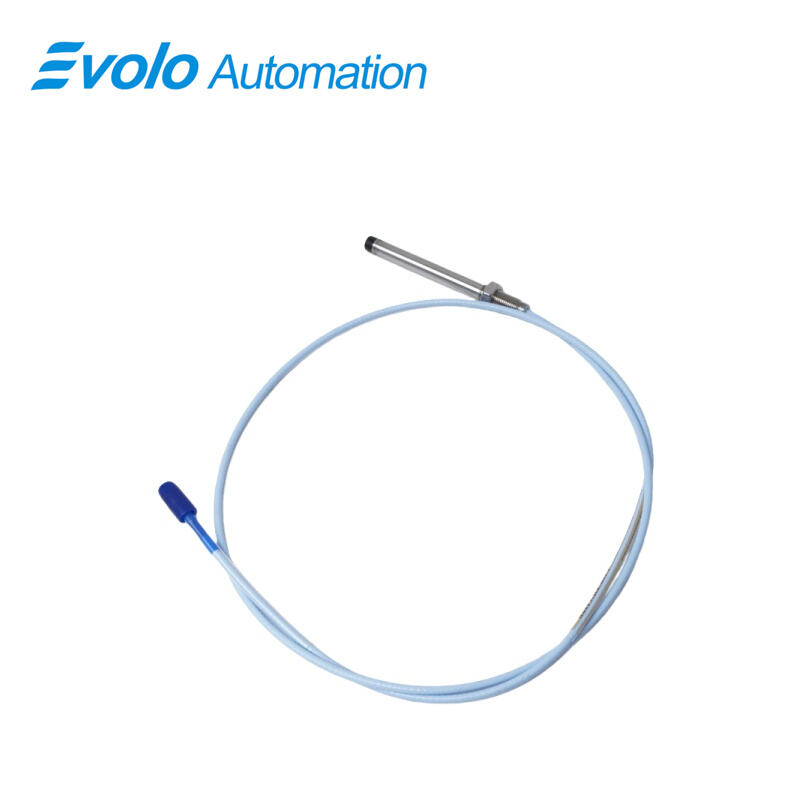

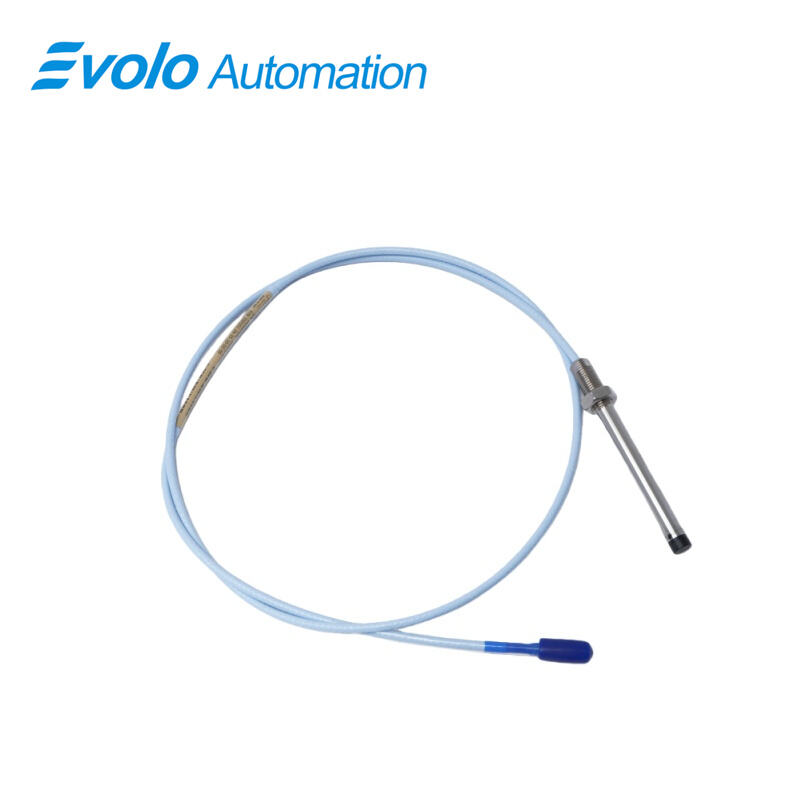

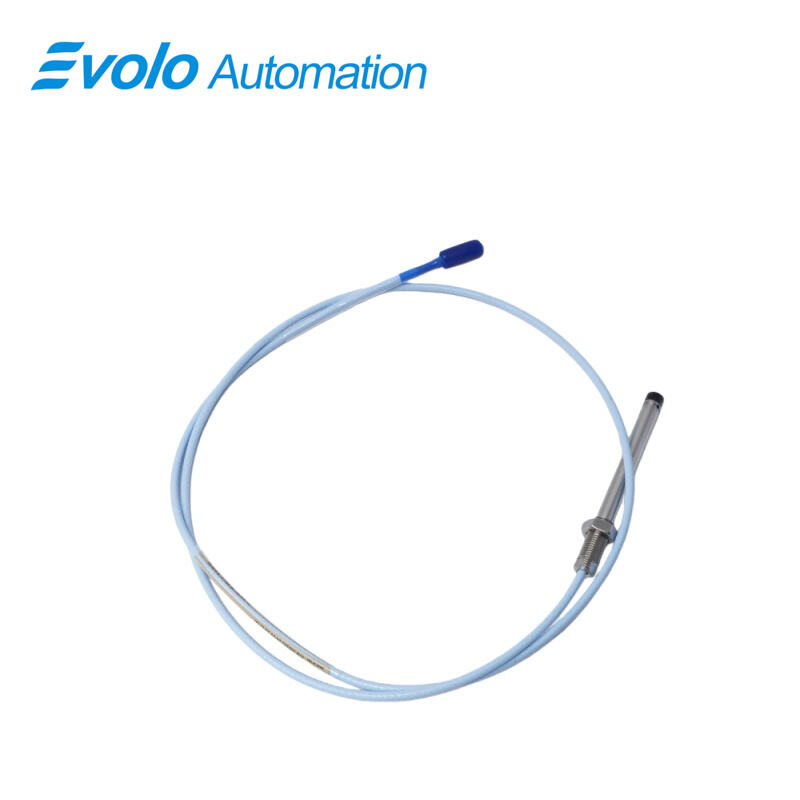

330101-24-35-10-02-00 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-24-35-10-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330101-24-35-10-02-00 3300 XL 8 mm Proximity Probe is designed for precise shaft vibration and position monitoring in automated machinery. The 330101-24-35-10-02-00 provides a 2 mm (80 mils) linear range, converting radial and axial shaft movement into proportional voltage output for turbines, pumps, and compressors. With a 2.4 in unthreaded tip and 3.5 in minimum case length, the 330101-24-35-10-02-00 fits shallow to medium bearing housings while maintaining correct probe positioning.

The 330101-24-35-10-02-00 uses a 3/8-24 UNF thread with 0.563 in maximum engagement for direct mounting. Its 1.0 meter cable with 69.9 pF/m capacitance and 50 Ω output resistance ensures accurate signal transfer to automated monitoring systems. Operating from –52°C to +177°C, the 330101-24-35-10-02-00 performs in high-temperature environments. With less than 2 mV per volt supply variation, the 330101-24-35-10-02-00 supports Keyphasor reference, speed measurement, and continuous vibration tracking in industrial automation.

Applications

Measure Radial Shaft Vibration in Shallow to Medium Bearings

The 330101-24-35-10-02-00 has a 3.5 in minimum case length and 2.4 in unthreaded tip, allowing installation in shallow to medium-depth bearing housings. Its 2 mm (80 mils) linear range converts shaft vibration into proportional voltage output, supporting automated monitoring of turbines, pumps, and compressors.

Track Axial Shaft Movement on Thrust Collars

Using its 3/8-24 UNF thread and 0.563 in maximum engagement, the 330101-24-35-10-02-00 measures axial shaft displacement. The 50 Ω output resistance enables direct connection to monitoring modules for real-time position and motion analysis.

Generate Keyphasor Pulses for Rotor Phase Reference

The 330101-24-35-10-02-00 detects once-per-turn shaft marks and generates pulses for orbit and phase calculations. With supply sensitivity under 2 mV/V, the 330101-24-35-10-02-00 minimizes output variation caused by minor power fluctuations, supporting precise automated phase tracking.

Measure Rotational Speed in High-Temperature Automation Equipment

Operating from –52°C to +177°C, the 330101-24-35-10-02-00 performs speed measurement inside turbines and compressors. Its 1.0 meter cable with 69.9 pF/m capacitance ensures accurate transmission of signals to vibration monitoring modules.

Capture Shaft Motion During Startup and Shutdown

During machine acceleration and deceleration, the 330101-24-35-10-02-00 records dynamic shaft displacement within its 2 mm range, providing automation systems with detailed transient vibration data.

Specifications

Competitive Advantage

Fit Shallow and Medium Bearing Housings With 3.5 in Case Length

The 330101-24-35-10-02-00 compact case and 2.4 in unthreaded tip enable direct installation without additional extension adapters.

Operate Across –52°C to +177°C for Extreme Temperature Environments

The 330101-24-35-10-02-00 can measure vibration and position in high-heat turbine or cold outdoor conditions, supporting continuous automated monitoring.

Limit Output Drift to Less Than 2 mV Per Volt Supply Change

With supply sensitivity under 2 mV/V, the 330101-24-35-10-02-00 ensures consistent voltage output for automated monitoring modules during supply fluctuations.

Deliver Accurate High-Frequency Signals With 50 Ω Output Resistance

The 330101-24-35-10-02-00 maintains 50 Ω output impedance, combined with 69.9 pF/m cable capacitance, providing precise transmission of vibration and position signals to monitoring equipment.

Support Direct Field Wiring From 0.2 to 1.5 mm² Conductors

The 330101-24-35-10-02-00 accommodates 16–24 AWG wiring, allowing easy
