Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330101-00-88-10-02-05 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option(Minimum unthreaded length): |
0.0 in |
|
Overall Case Length Option(Minimum case length): |
8.8 in |
|
Total Length Option: |
1.0 meter (3.3 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option: |
CSA, ATEX, IECEx Approvals |
|
Probe Case Thread: |
3/8-24 UNF thread |
|
Maximum Length of Thread Engagement: |
0.563 in |
|
Dimension: |
1.5x1.3x66cm |
|
Weight: |
0.1kg |
Description

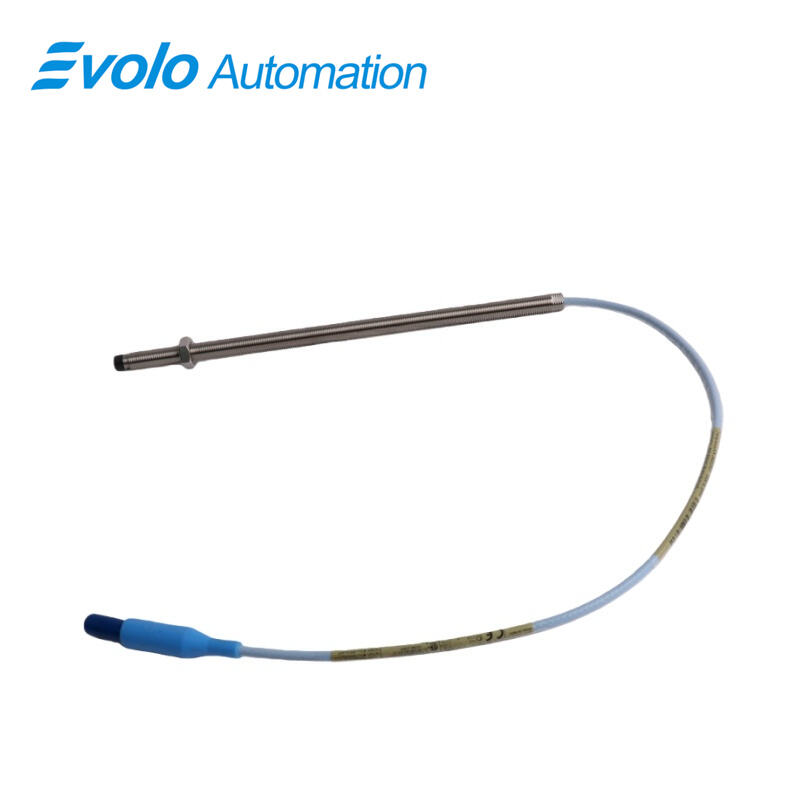

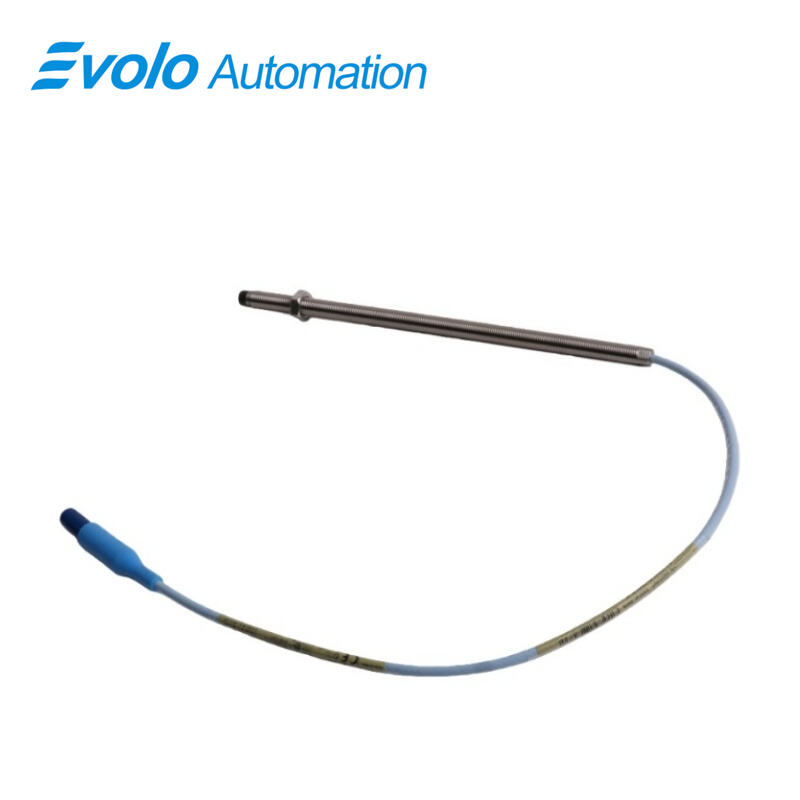

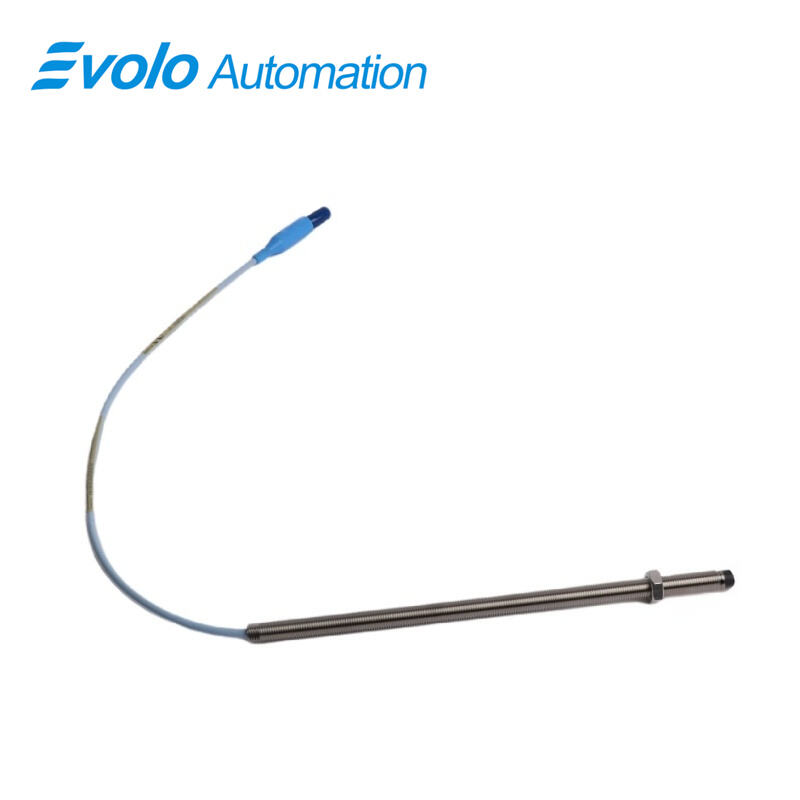

The 330101-00-88-10-02-05 3300 XL 8 mm Proximity Probe is a high-precision automation sensor engineered for non-contact vibration and displacement measurement in critical industrial systems. The 330101-00-88-10-02-05 probe produces an output voltage directly proportional to the distance between the probe tip and the target conductive surface, enabling both static (position) and dynamic (vibration) monitoring. With an 8.8 in overall case length, 3/8-24 UNF thread, 1.0 meter total cable length, and miniature coaxial ClickLoc connector, the 330101-00-88-10-02-05 3300 XL probe integrates effortlessly into PLC, SCADA, and DCS automation platforms. CSA, ATEX, and IECEx approvals ensure reliability in harsh industrial environments, and operating temperatures from −52°C to +177°C guarantee continuous performance. Supply sensitivity is less than 2 mV/V, output resistance is 50 Ω, and linear range is 2 mm, providing precise feedback for automated process control, predictive maintenance, and condition monitoring systems.
Applications
Rotor Axial and Radial Position Sensing
With a 2 mm linear range, the 330101-00-88-10-02-05 3300 XL probe enables precise shaft displacement tracking for automated rotor control and diagnostic systems.
Keyphasor and Speed Signal Generation
The 330101-00-88-10-02-05 probe delivers accurate Keyphasor outputs and speed references for real-time automated synchronization of rotating equipment.
Automation of Condition Monitoring
The 330101-00-88-10-02-05 3300 XL probe integrates seamlessly into SCADA and DCS platforms, feeding data for automated alerts, shutdowns, and process optimization.
Specifications
|
Operating and Storage Temperature: |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
Competitive Advantage
High Durability and Reliability
Patented TipLoc molding ensures a robust bond between the probe tip and body, while CableLoc provides 330 N pull strength, minimizing failure in automated systems.
Environmental Resilience
CSA, ATEX, and IECEx approvals, coupled with −52°C to +177°C operating range, make the 330101-00-88-10-02-05 probe suitable for extreme industrial automation environments.
Plug-and-Play Integration
Miniature coaxial ClickLoc connectors with optional FluidLoc cables simplify integration into PLC, SCADA, and DCS systems, preventing leaks and reducing maintenance downtime.
API 670 Compliance
Meets API 670 standards for linearity, accuracy, mechanical configuration, and temperature stability, ensuring reliable automated monitoring and process control.
