330101-00-75-05-01-05 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-00-75-05-01-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

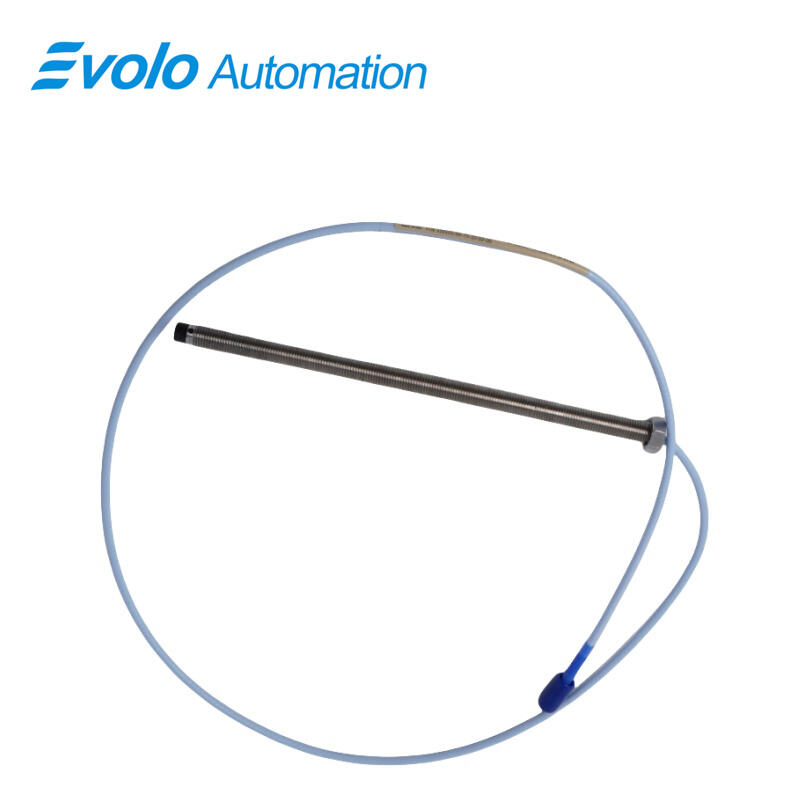

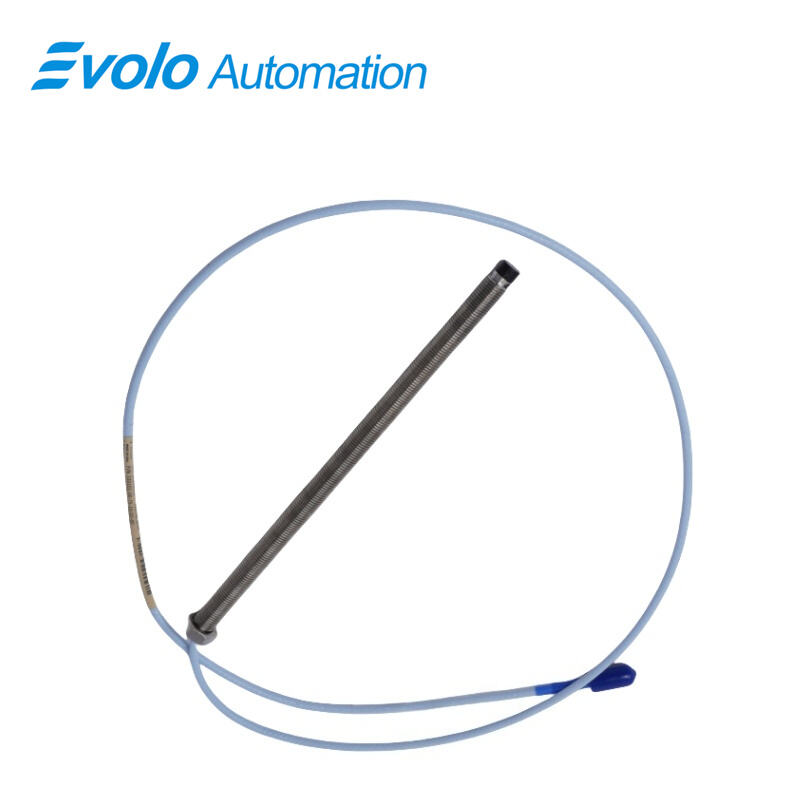

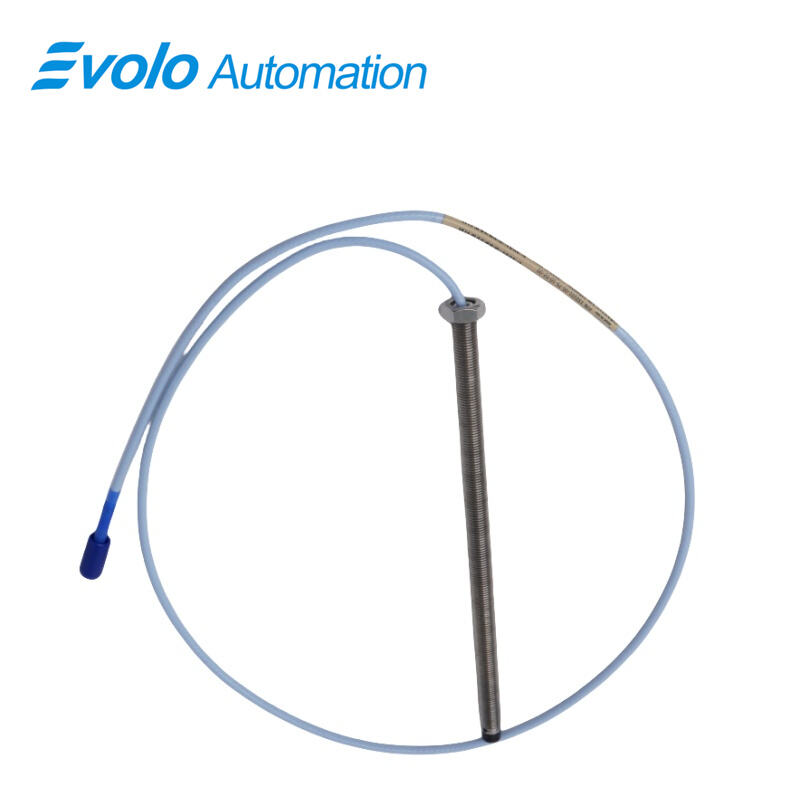

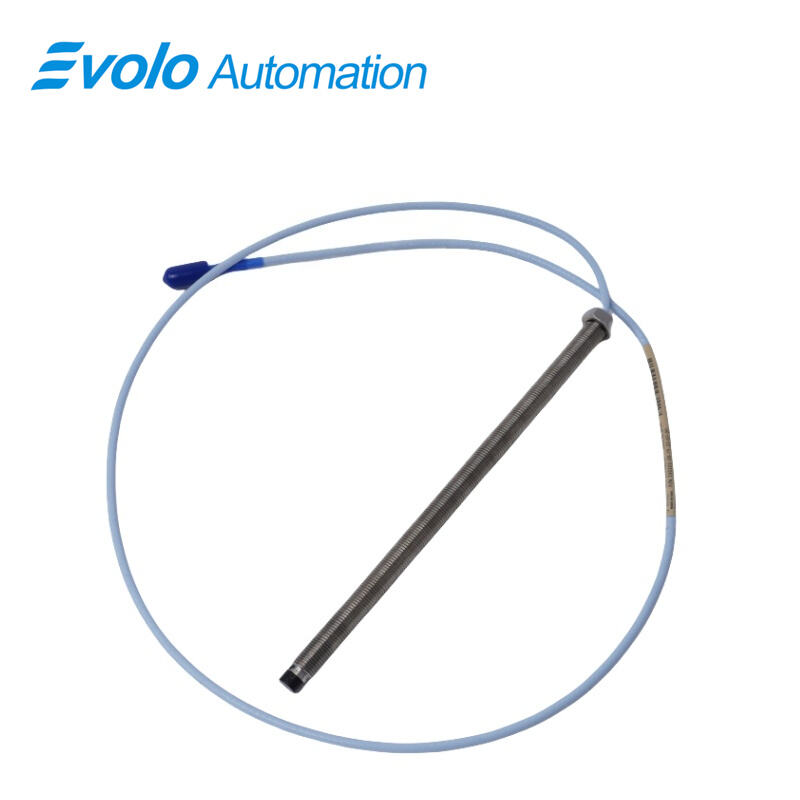

The 330101-00-75-05-01-05 3300 XL 8 mm Proximity Probe delivers precise measurement of both static (position) and dynamic (vibration) values for industrial automation applications. With a 2 mm (80 mils) linear range and supply sensitivity of less than 2 mV per volt, the 330101-00-75-05-01-05 3300 XL 8 mm Proximity Probe maintains consistent output for fluid-film bearing machines and Keyphasor speed reference systems. The probe features a 3/8-24 UNF threaded case with 0.563 in maximum thread engagement, a 0.5-meter (1.6 ft) total length, and a miniature coaxial ClickLoc connector with protector for secure connections. The extension cable capacitance is 69.9 pF/m (21.3 pF/ft), supporting 0.2 to 1.5 mm² (16–24 AWG) field wiring. Operating temperatures range from -52°C to +177°C (-62°F to +350°F), allowing deployment in harsh industrial environments. Patented TipLoc molding secures the probe tip, and CableLoc design provides 330 N (75 lbf) pull strength for the cable connection. Optional FluidLoc cables prevent leakage of oil or other liquids, maintaining reliable probe operation. The 330101-00-75-05-01-05 3300 XL 8 mm Proximity Probe is fully compatible with other 3300 XL system components and meets API 670 standards for mechanical configuration, linear range, and temperature performance.

Applications

Measure Shaft Vibration on Fluid-Film Bearings
The 330101-00-75-05-01-05 3300 XL 8 mm Proximity Probe detects vibration amplitudes up to 2 mm (80 mils) linear range, enabling automated monitoring of bearing health in pumps, compressors, and motors.

Provide Keyphasor Reference for Rotating Machinery
Use the 330101-00-75-05-01-05 3300 XL 8 mm Proximity Probe to generate precise position signals for Keyphasor systems. The probe’s miniature coaxial ClickLoc connector ensures accurate signal transmission for speed measurement automation.

Monitor Position in Tight Industrial Spaces
The 330101-00-75-05-01-05 3300 XL 8 mm Proximity Probe has a 0.5-meter total length and 3/8-24 UNF threaded case, allowing installation in compact or confined automation setups without interfering with adjacent machinery.

Specifications

Competitive Advantage

Secure Probe Tip Attachment
Patented TipLoc molding in the 330101-00-75-05-01-05 3300 XL 8 mm Proximity Probe provides a robust bond between probe tip and body, preventing displacement during high-vibration operation.

Strong Cable Connection
The CableLoc design provides 330 N (75 lbf) pull strength to maintain the connection of the 330101-00-75-05-01-05 3300 XL 8 mm Proximity Probe cable, reducing maintenance needs in automated systems.

Support Long-Term Field Wiring
The 330101-00-75-05-01-05 3300 XL 8 mm Proximity Probe operates over 0.2 to 1.5 mm² (16–24 AWG) field wiring with extension capacitance of 69.9 pF/m, allowing integration into long cable runs for distributed automation monitoring.
