Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330101-00-60-10-02-05 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option(Minimum unthreaded length): |
0.0 in |
|
Overall Case Length Option(Minimum case length): |
6.0 in |
|
Total Length Option: |
1.0 meter (3.3 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option: |
CSA, ATEX, IECEx Approvals |
|
Probe Case Thread: |
3/8-24 UNF thread |
|
Maximum Length of Thread Engagement: |
0.563 in |
|
Dimension: |
113x2x1.5cm |
|
Weight: |
0.08 kg |
Description

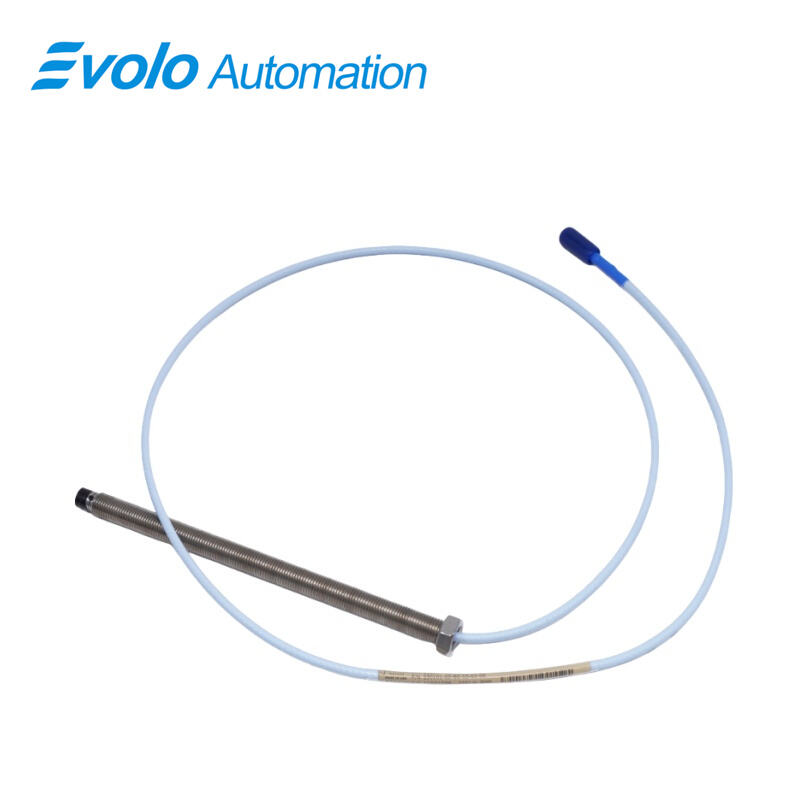

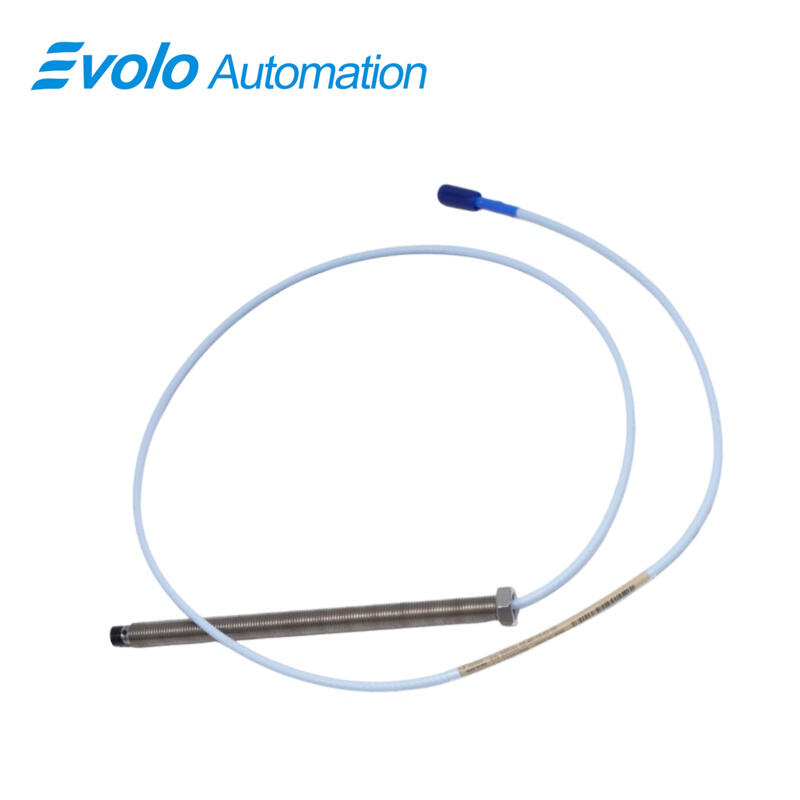

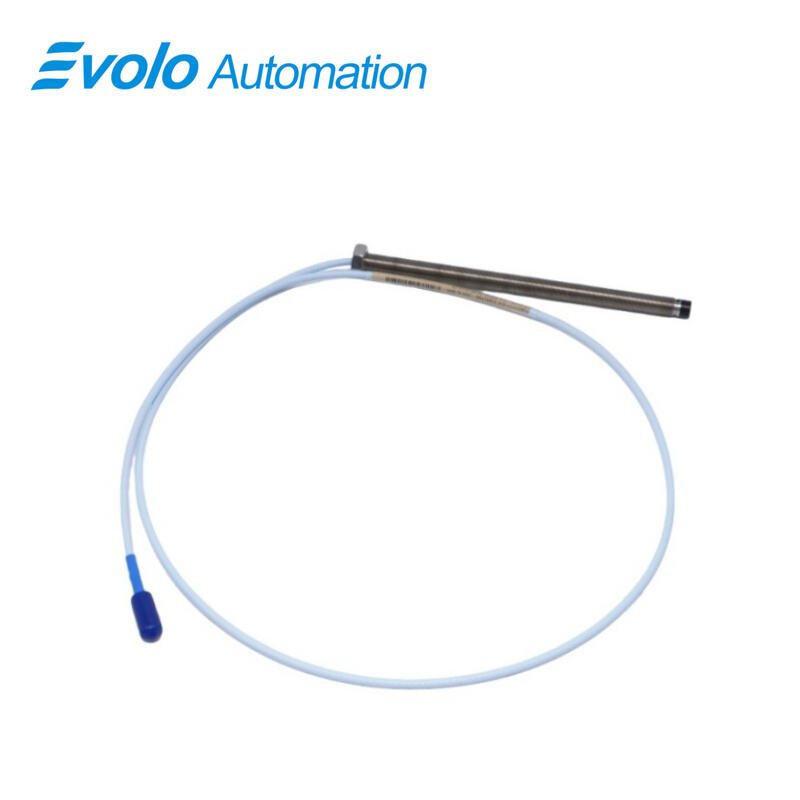

The 330101-00-60-10-02-05 3300 XL 8 mm Proximity Probe is a high-performance automation sensor designed for precise non-contact vibration and displacement measurements in industrial machinery. The 330101-00-60-10-02-05 probe provides an output voltage directly proportional to the distance between the probe tip and the conductive surface, supporting both static (position) and dynamic (vibration) monitoring. With a 6.0 in overall case length, 3/8-24 UNF probe thread, 1.0 meter total cable, and miniature coaxial ClickLoc connector, the 330101-00-60-10-02-05 3300 XL 8 mm probe integrates seamlessly into PLC, SCADA, and DCS automation systems. Rated for CSA, ATEX, and IECEx approvals, it ensures reliable operation in harsh environments from −52°C to +177°C. Supply sensitivity is below 2 mV/V, output resistance is 50 Ω, and linear range is 2 mm, guaranteeing high-precision data for automated condition monitoring, predictive maintenance, and industrial process optimization.
Applications
Vibration Monitoring of Rotating Machinery
The 330101-00-60-10-02-05 3300 XL 8 mm probe captures high-frequency vibration signals from pumps, compressors, and turbines, supporting automated predictive maintenance.
Rotor Position Measurement
With a 2 mm linear range, the 330101-00-60-10-02-05 probe provides accurate radial and axial shaft displacement data for real-time process automation.
Keyphasor and Speed Reference Signals
This 330101-00-60-10-02-05 3300 XL probe delivers precise Keyphasor outputs and speed monitoring signals for automated rotor phase tracking in critical industrial systems.
Specifications
|
Operating and Storage Temperature: |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
Competitive Advantage
High Integration Capability
ClickLoc connectors and optional FluidLoc cable enable plug-and-play integration into PLC, DCS, or SCADA automation systems without recalibration.
Robust Mechanical and Thermal Performance
TipLoc molding and CableLoc design ensure 330 N pull strength, maintaining reliable operation from −52°C to +177°C.
API 670 Compliance
Meets API 670 standards for linearity, mechanical configuration, accuracy, and temperature stability, guaranteeing reliable automated monitoring in industrial environments.
