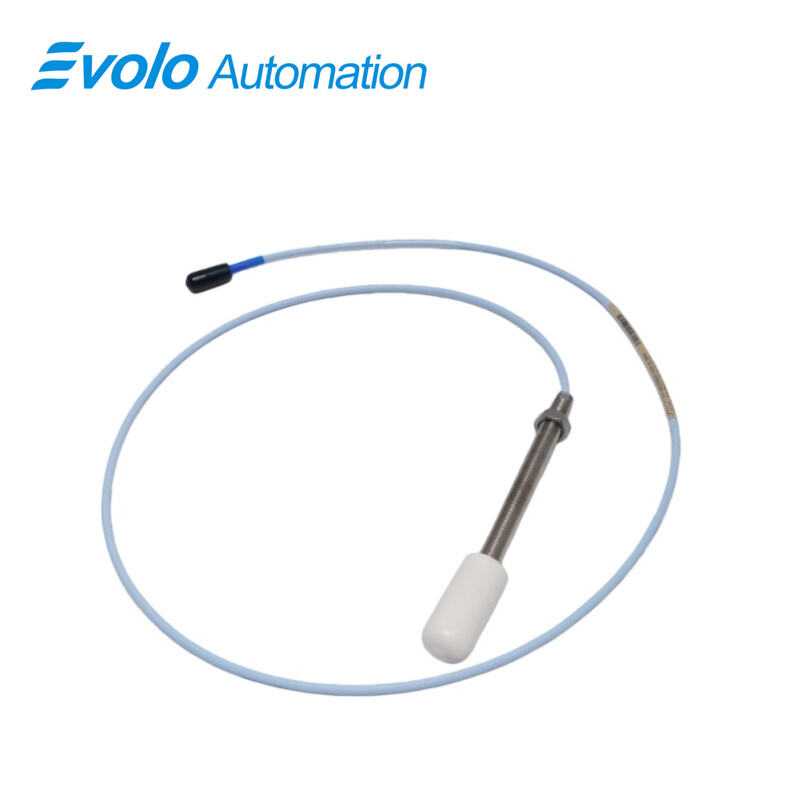

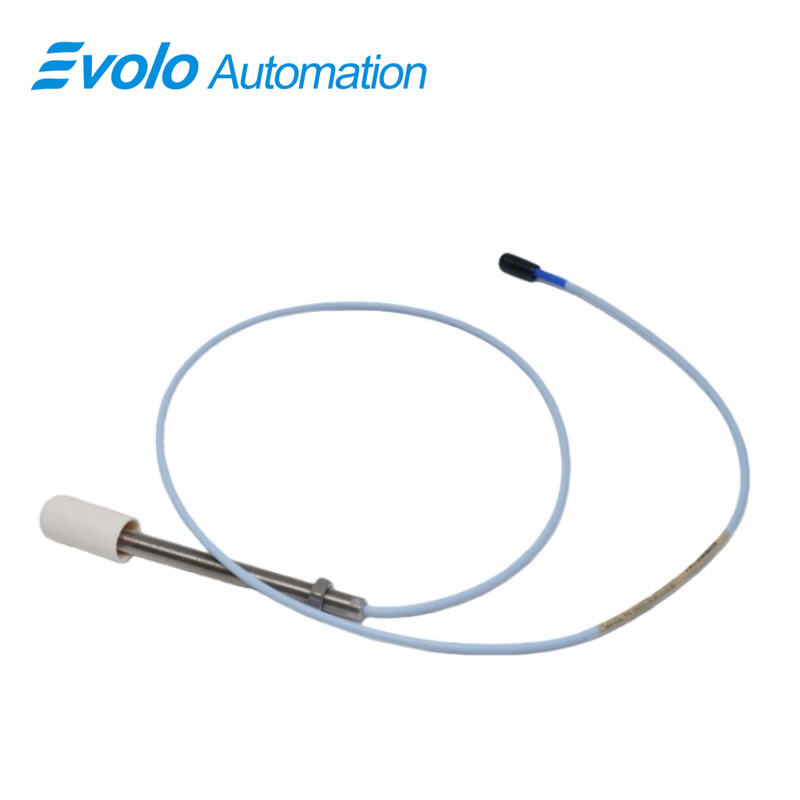

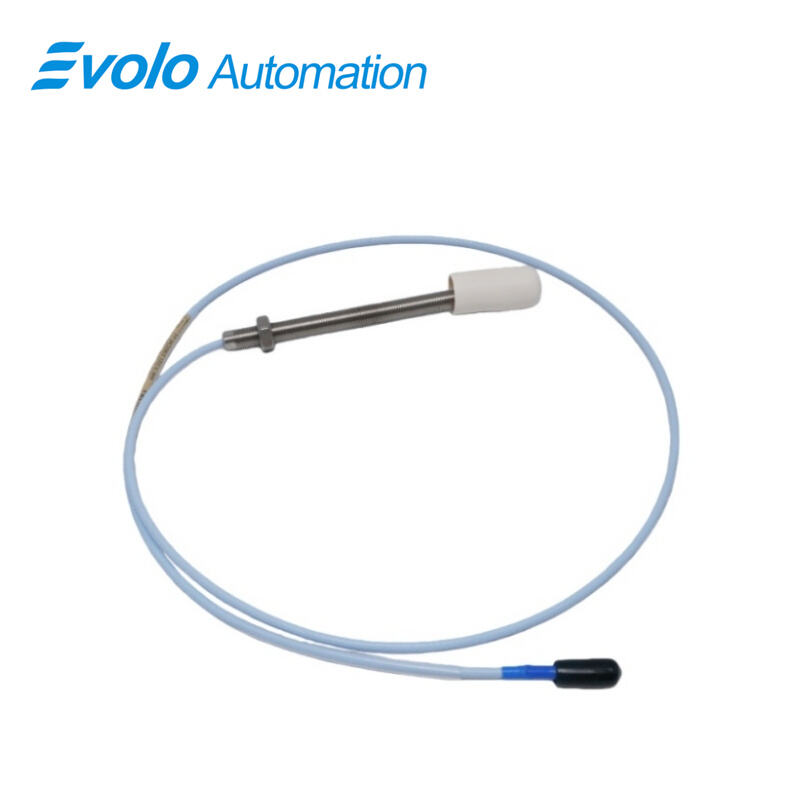

330101-00-50-10-02-05 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-00-50-10-02-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330101-00-50-10-02-05 3300 XL 8 mm Proximity Probe is a high-precision eddy current transducer for non-contact vibration and displacement measurement in industrial automation. Featuring a 5-inch case length, 3/8-24 UNF threaded housing, and 1-meter miniature coaxial ClickLoc cable, the 330101-00-50-10-02-05 3300 XL 8 mm Proximity Probe provides linear output proportional to tip-to-surface distance for accurate static and dynamic measurements. Operating from -52°C to +177°C, with 50 Ω output resistance and <2 mV/V supply sensitivity, it ensures low-noise signal transmission with 69.9 pF/m cable capacitance and field wiring support of 0.2–1.5 mm². CSA, ATEX, and IECEx approvals make the 330101-00-50-10-02-05 3300 XL 8 mm Proximity Probe suitable for hazardous locations, while patented TipLoc and CableLoc designs provide 330 N pull strength, and optional FluidLoc cabling prevents fluid ingress in high-vibration, lubrication-rich environments.

Applications

Monitor Bearing Vibration in Pumps, Compressors, and Turbines
The 330101-00-50-10-02-05 3300 XL 8 mm Proximity Probe captures both low and high amplitude vibrations with its 2 mm linear range (80 mils), providing accurate data for predictive maintenance to identify potential failures early.

Measure Axial and Radial Shaft Movement
The 330101-00-50-10-02-05 3300 XL 8 mm Proximity Probe precisely tracks both axial and radial displacement, allowing machinery control systems to detect subtle shaft misalignment. Its 3/8-24 threaded housing and ClickLoc connector ensure secure installation in tight spaces.

Generate Keyphasor and Tachometer Signals
The 330101-00-50-10-02-05 3300 XL 8 mm Proximity Probe delivers reliable Keyphasor outputs for phase reference applications, supporting high-speed rotational machinery and zero-speed monitoring, essential for turbine and compressor synchronization.

Install in Limited-Clearance Machinery
With a compact 8 mm tip and 5-inch case length, the 330101-00-50-10-02-05 3300 XL 8 mm Proximity Probe fits into restricted spaces where larger probes cannot, maintaining signal integrity and accurate linear measurement.

Specifications

Competitive Advantage

Measure Small Shaft Movements Accurately
The 330101-00-50-10-02-05 3300 XL 8 mm Proximity Probe delivers precise measurements over a 2 mm linear range, outperforming standard 5 mm probes for detecting subtle axial and radial shaft motions.

Operate Reliably in Harsh Industrial Conditions
With IP67-rated connectors and an operating range from -52°C to +177°C, the 330101-00-50-10-02-05 3300 XL 8 mm Proximity Probe performs consistently in high-vibration, high-humidity, and extreme temperature environments.

Prevent Cable and Connector Failures
Patented TipLoc and CableLoc designs provide 330 N (75 lb) pull strength, while ClickLoc connectors and optional FluidLoc cables ensure secure mechanical and electrical connections, minimizing signal loss or disconnection.

Deploy Safely in Hazardous Locations
The 330101-00-50-10-02-05 3300 XL 8 mm Proximity Probe meets CSA, ATEX, and IECEx standards, making it suitable for petrochemical, energy, and process industry environments.

Upgrade Monitoring Systems Without Downtime
Fully backward-compatible with existing 3300 series systems, the 330101-00-50-10-02-05 3300 XL 8 mm Proximity Probe allows seamless replacement of older 5 mm or 8 mm transducers without recalibration, reducing maintenance time.
