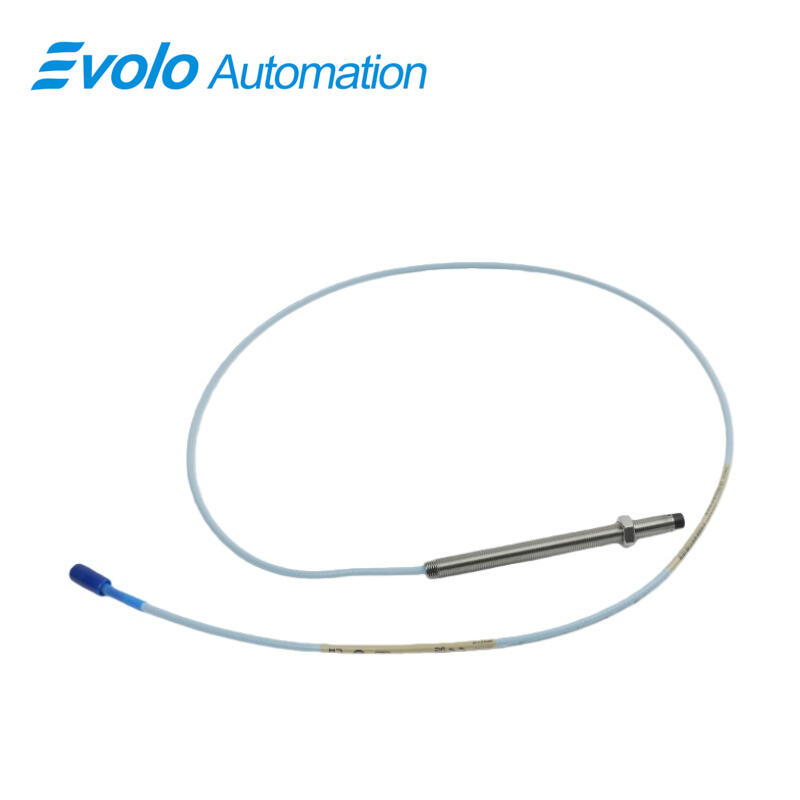

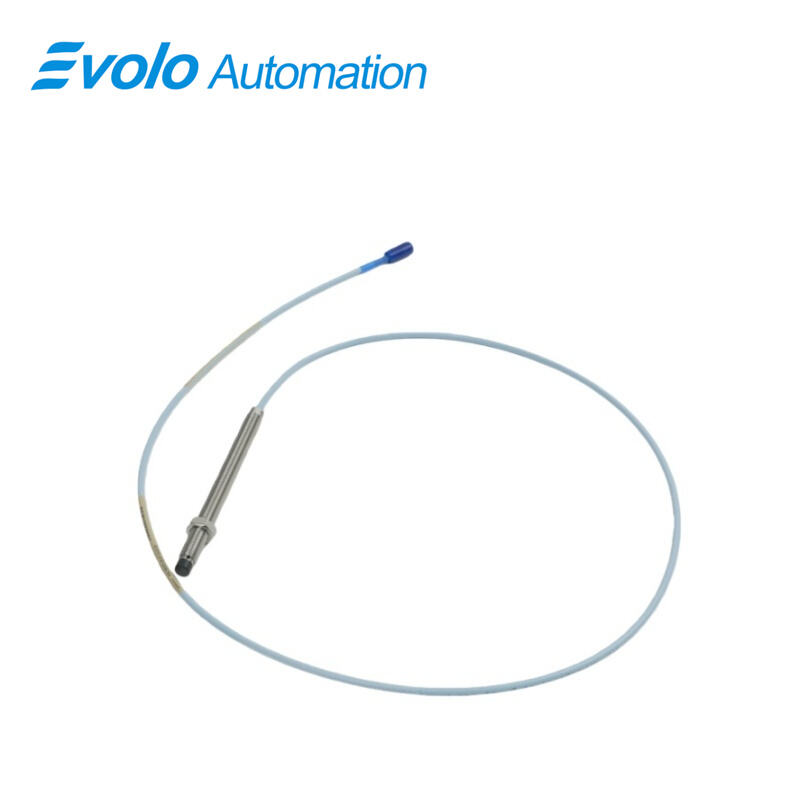

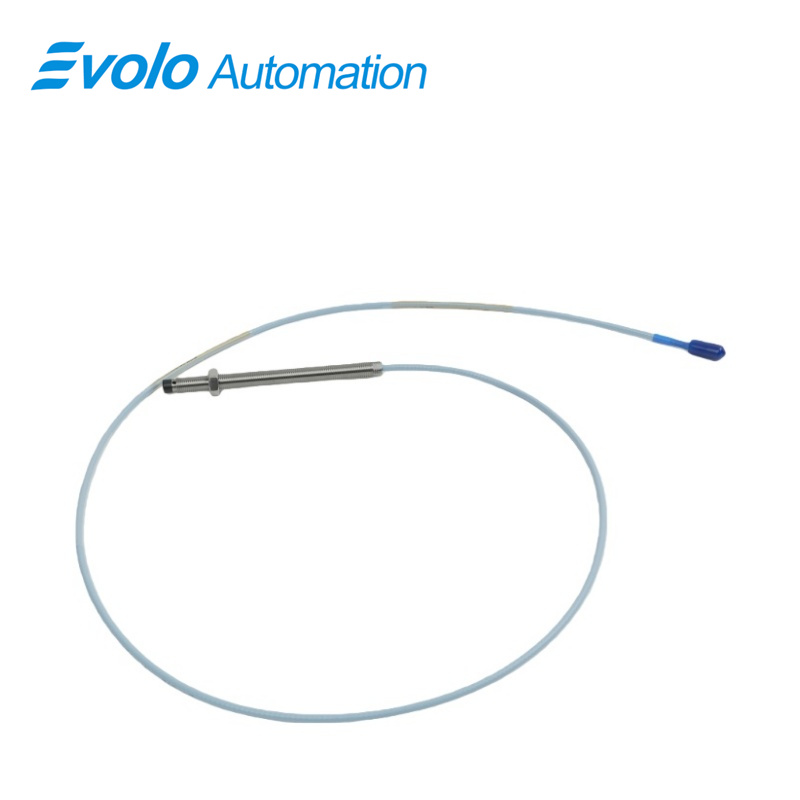

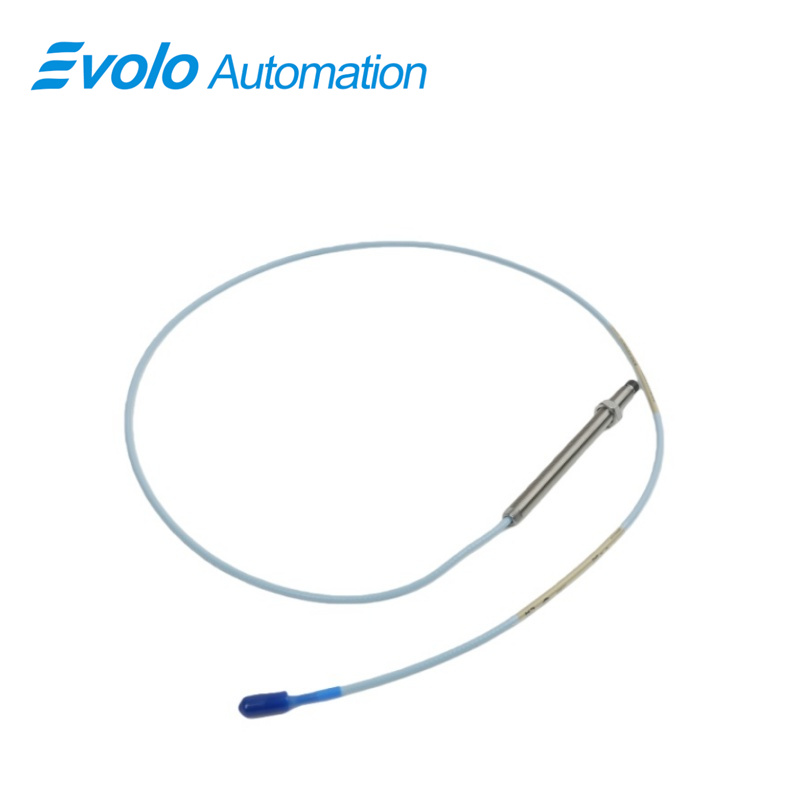

330101-00-47-10-02-00 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-00-47-10-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330101-00-47-10-02-00 3300 XL 8 mm Proximity Probe is designed for automated monitoring of fluid-film bearing machines, delivering precise static (position) and dynamic (vibration) measurements. With a linear range of 2 mm (80 mils) and recommended gap of 1.0 mm (40 mils), the 330101-00-47-10-02-00 3300 XL 8 mm Proximity Probe provides accurate distance-based output voltage. Its 69.9 pF/m (21.3 pF/ft) extension cable capacitance and 50 Ω output resistance ensure reliable signal transmission for Proximitor sensors in automated systems. Operating from -52°C to +177°C (-62°F to +350°F), the 330101-00-47-10-02-00 3300 XL 8 mm Proximity Probe can withstand high-temperature environments. Miniature coaxial ClickLoc connectors and standard cable allow quick installation and secure connections, while the patented TipLoc and CableLoc designs provide 330 N (75 lbf) pull strength to maintain probe and cable integrity. Optional FluidLoc cables prevent oil or liquid ingress, enabling accurate automated monitoring in critical industrial machinery. The 330101-00-47-10-02-00 3300 XL 8 mm Proximity Probe is compatible with existing 3300 series 5 mm and 8 mm probes, facilitating system upgrades without recalibration.

Applications

Radial Vibration Measurement
The 330101-00-47-10-02-00 3300 XL 8 mm Proximity Probe captures radial vibration on fluid-film bearing shafts with high accuracy. Its 2 mm linear range and 80 mils resolution allow precise automated monitoring of shafts as small as 50 mm.

Axial Thrust Position Tracking
Use the 330101-00-47-10-02-00 3300 XL 8 mm Proximity Probe to monitor axial (thrust) movement on rotating machinery. The recommended 1.0 mm gap ensures consistent voltage output for automated control systems.

Keyphasor Reference Signal Generation
The 330101-00-47-10-02-00 3300 XL 8 mm Proximity Probe, combined with Proximitor sensors, produces reliable Keyphasor signals. Its 50 Ω output resistance and extension cable capacitance of 69.9 pF/m ensure accurate phase and speed measurements for automated diagnostics.

System Upgrades without Recalibration
Replace older 3300 series probes with the 330101-00-47-10-02-00 3300 XL 8 mm Proximity Probe. Backward compatibility allows automated system improvements while retaining existing monitoring and control configurations.

Specifications

Competitive Advantage

Extended Temperature Operation
The 330101-00-47-10-02-00 3300 XL 8 mm Proximity Probe operates reliably between -52°C and +177°C, supporting automated processes in extreme industrial environments.

Secure Probe-to-Cable Attachment
TipLoc and CableLoc designs provide 330 N (75 lbf) pull strength, keeping the 330101-00-47-10-02-00 3300 XL 8 mm Proximity Probe securely connected to extension cables under high vibration conditions.

Fluid Ingress Protection
Optional FluidLoc cables prevent oil and liquids from entering the probe tip, ensuring uninterrupted automated measurement and reducing maintenance interventions.

Seamless System Integration
The 330101-00-47-10-02-00 3300 XL 8 mm Proximity Probe supports backward compatibility with older 3300 series 5 mm and 8 mm probes, allowing automated upgrades without reconfiguring or recalibrating Proximitor sensors.
