Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330101-00-45-15-02-00 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option(Minimum unthreaded length): |
0.0 in |
|
Overall Case Length Option(Minimum case length): |
4.5 in |
|
Total Length Option: |
1.5 meter (4.9 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option: |
Not required |
|
Probe Case Thread: |
3/8-24 UNF thread |
|
Maximum Length of Thread Engagement: |
0.563 in |
|
Dimension: |
20x20x2cm |
|
Weight: |
0.2kg |
Description

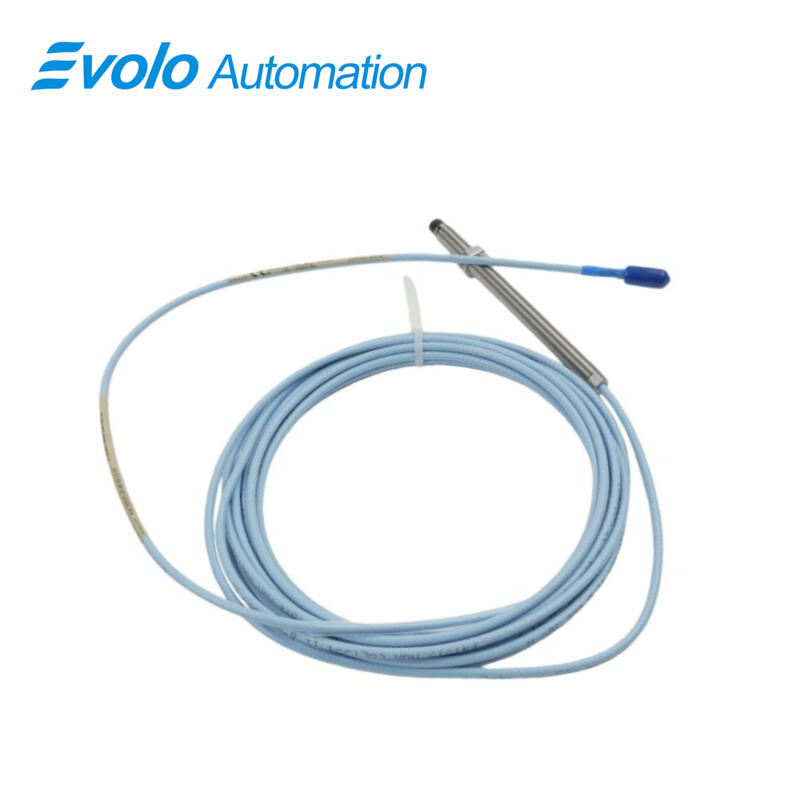

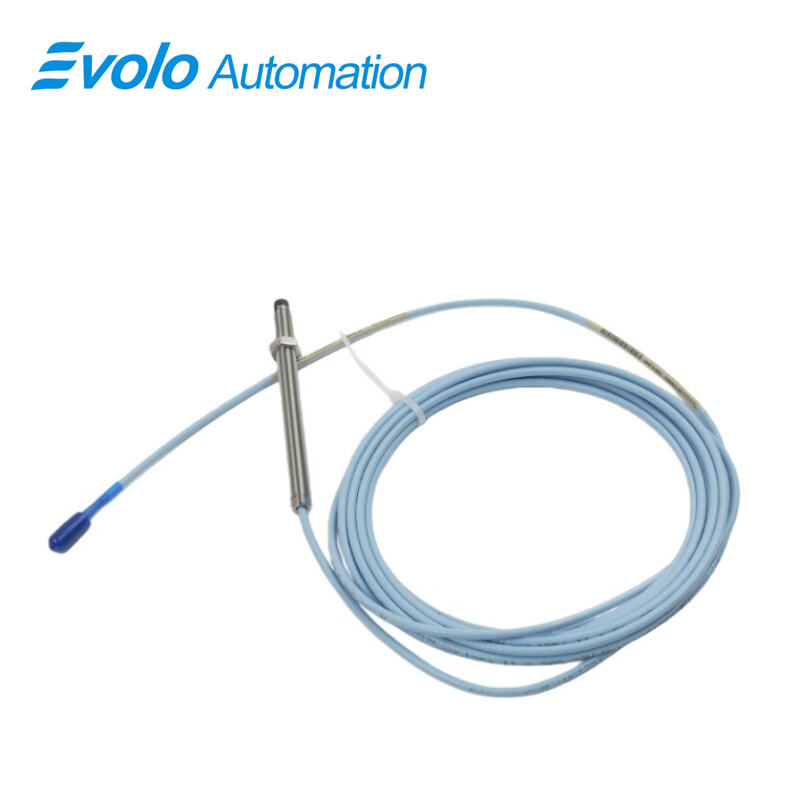

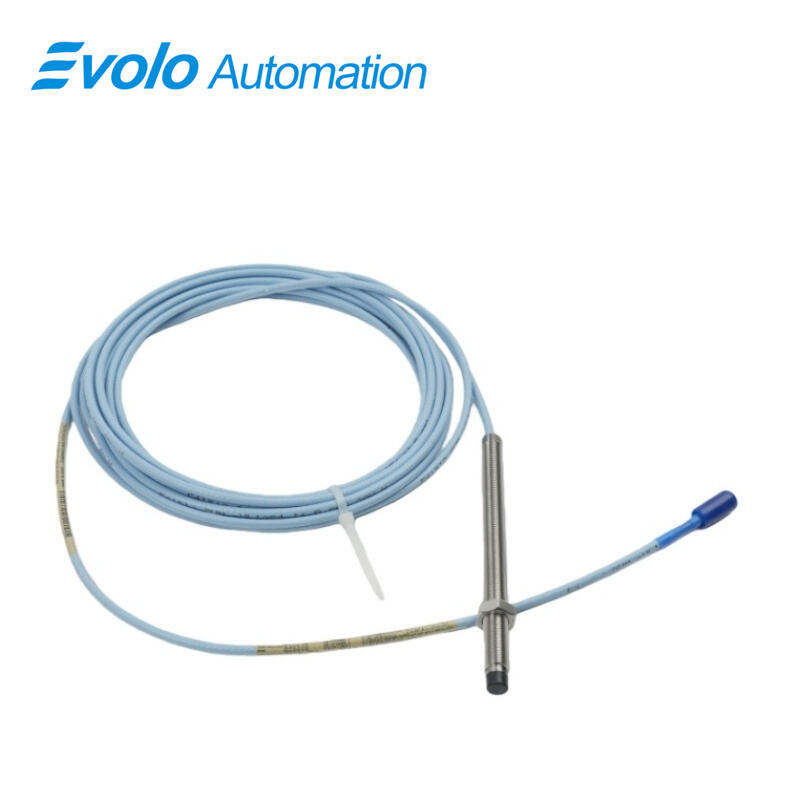

The 330101-00-45-15-02-00 3300 XL 8 mm Proximity Probe provides voltage output directly proportional to the distance between the probe tip and conductive surfaces, measuring static position and dynamic vibration. With a 2 mm linear range, 50 Ω output resistance, and less than 2 mV supply sensitivity, the 330101-00-45-15-02-00 3300 XL 8 mm Proximity Probe ensures precise readings over 0.2–1.5 mm² field wiring. Its 1.5-meter (4.9 ft) standard cable with 69.9 pF/m capacitance maintains signal accuracy. Operating from -52°C to +177°C (-62°F to +350°F), the 330101-00-45-15-02-00 3300 XL 8 mm Proximity Probe uses a 3/8-24 UNF threaded case with 0.563 in engagement for secure mounting and a miniature coaxial ClickLoc connector, supporting optional FluidLoc cable to prevent oil leakage.
Applications
Measure Shaft Vibration
Mount the 330101-00-45-15-02-00 3300 XL 8 mm Proximity Probe on rotating shafts. Its 2 mm linear range and 50 Ω output resistance provide precise vibration readings for automated monitoring.
Monitor Shaft Position
Use the 330101-00-45-15-02-00 3300 XL 8 mm Proximity Probe to track rotor displacement. The DC voltage output changes proportionally to distance, supporting real-time position feedback.
Generate Keyphasor Reference Signals
Connect the 330101-00-45-15-02-00 3300 XL 8 mm Proximity Probe to produce timing pulses. Its 1.5-meter cable with 69.9 pF/m capacitance ensures accurate speed measurement for automated control.
Specifications
|
Operating and Storage Temperature: |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
Competitive Advantage
Secure Threaded Mounting
The 330101-00-45-15-02-00 3300 XL 8 mm Proximity Probe features a 3/8-24 UNF threaded case with 0.563 in maximum engagement, maintaining precise probe placement during high-speed machine operation.
Consistent Signal Transmission
With less than 2 mV change per volt supply variation and 1.5-meter cable, the 330101-00-45-15-02-00 3300 XL 8 mm Proximity Probe delivers reliable voltage output for control systems.
Prevent Machine Fluid Leakage
The optional FluidLoc cable on the 330101-00-45-15-02-00 3300 XL 8 mm Proximity Probe prevents oil and liquids from entering the probe or machine, protecting measurement accuracy.
Operate Across Wide Temperatures
The 330101-00-45-15-02-00 3300 XL 8 mm Proximity Probe functions from -52°C to +177°C (-62°F to +350°F), supporting continuous use in harsh industrial conditions.
