330101-00-43-10-02-05 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-00-43-10-02-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

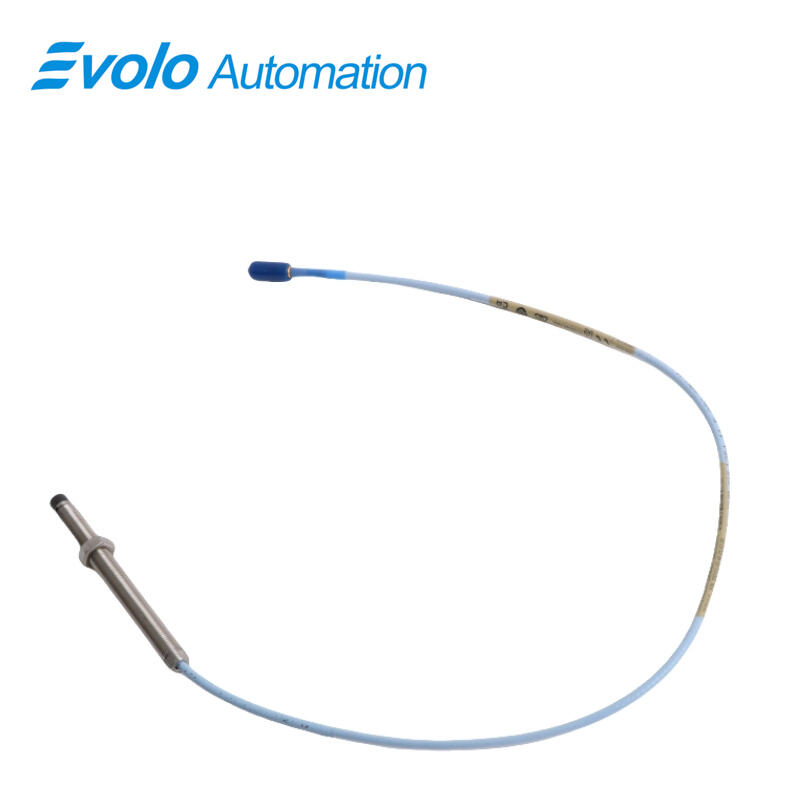

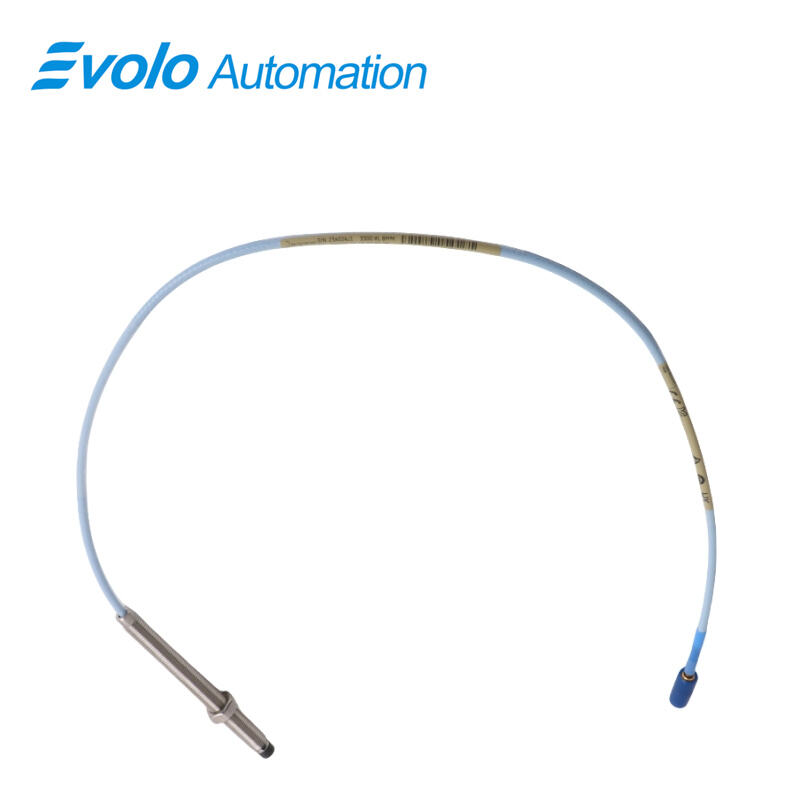

The 330101-00-43-10-02-05 3300 XL 8 mm Proximity Probe is a high-precision eddy-current transducer engineered for industrial automation and machinery monitoring. This probe converts displacement into an output voltage directly proportional to the distance between the probe tip and a conductive target, enabling accurate measurement of both static position and dynamic vibration. Featuring a 4.3-inch overall case length and 1.0-meter total cable length, the probe operates reliably in extreme temperatures from -52°C to +177°C (-62°F to +350°F). Its miniature coaxial ClickLoc connector and standard cable with 69.9 pF/m capacitance provide stable, low-noise signal transmission, while the 3/8-24 UNF threaded case ensures secure mounting. Designed for automation systems, the 3300 XL 8 mm probe fully complies with API 670 standards, offering exceptional linearity within 2 mm (80 mils), minimal supply sensitivity (<2 mV per volt), and an output resistance of 50 Ω. Patented TipLoc and CableLoc technologies strengthen the probe-tip bond and cable attachment, with 330 N (75 lbf) pull strength, ensuring long-term reliability. Optional FluidLoc protection prevents oil or liquid leakage, ideal for lubrication-heavy industrial machinery. Fully interchangeable with 3300 XL and standard 3300 series components, this probe supports seamless upgrades, backward compatibility, and precise automation performance across vibration, position, and speed sensing applications.

Applications

1. Vibration Monitoring of High-Speed Rotating Machinery
Measures dynamic vibrations in fluid-film bearings with precision, detecting movements as small as 2 µm, enabling predictive maintenance on turbines, compressors, and generators.

2. Shaft Position and Alignment Verification
Provides accurate static displacement measurements for shaft runout and radial alignment within ±2 mm, critical for automation-driven machinery.

3. Speed Measurement and Keyphasor Signal Generation
Supports rotational speed monitoring up to 20,000 RPM and delivers reliable Keyphasor reference signals for advanced automation and control systems.

4. Compliance with API 670 Machinery Standards
Ensures vibration and position monitoring meet strict American Petroleum Institute standards, making it suitable for refineries, power plants, and chemical processing facilities.

5. Hazardous Environment Automation
With CSA, ATEX, and IECEx approvals, it can be safely deployed in explosive atmospheres for critical machine monitoring without compromising performance.

Specifications

Competitive Advantage

1. Wide Operating Temperature Range
Maintains reliable performance from -52°C to +177°C, suitable for extreme industrial conditions.

2. Enhanced Mechanical Strength and Cable Security
Patented TipLoc and CableLoc designs offer 330 N (75 lbf) pull strength, reducing downtime due to mechanical failures.

3. Full Interchangeability
Compatible with XL and non-XL 3300 series probes, extension cables, and Proximitor sensors, simplifying inventory management and system upgrades.

4. High Measurement Accuracy and Signal Stability
Less than 2 mV change in output per volt of input ensures precise gap-to-voltage measurements for critical automation applications.

5. Optional Fluid Protection
FluidLoc option prevents leakage of lubricants, ensuring clean operation and protecting sensitive machinery components in automated systems.
