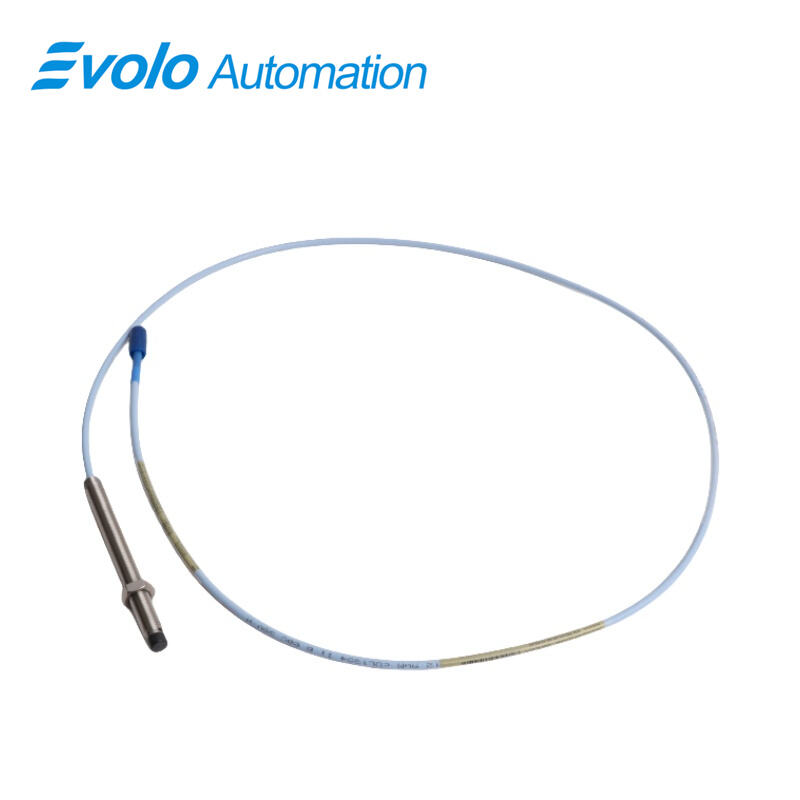

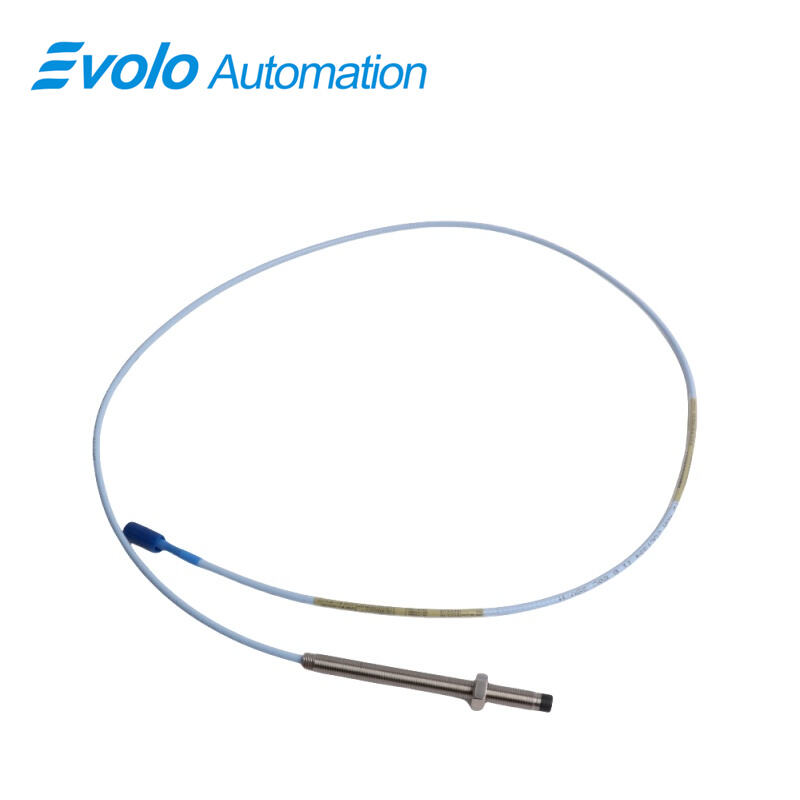

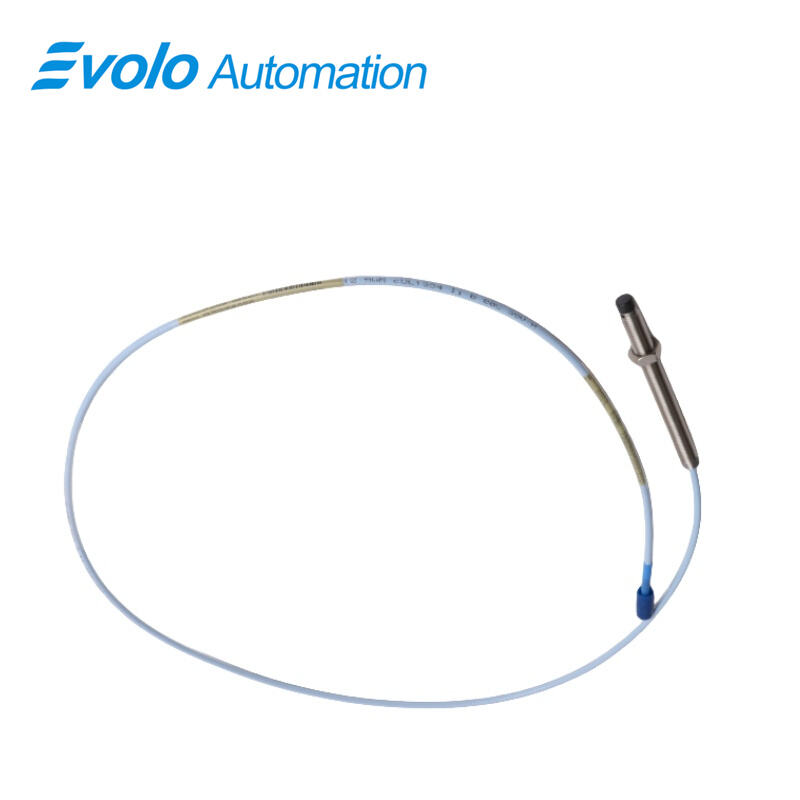

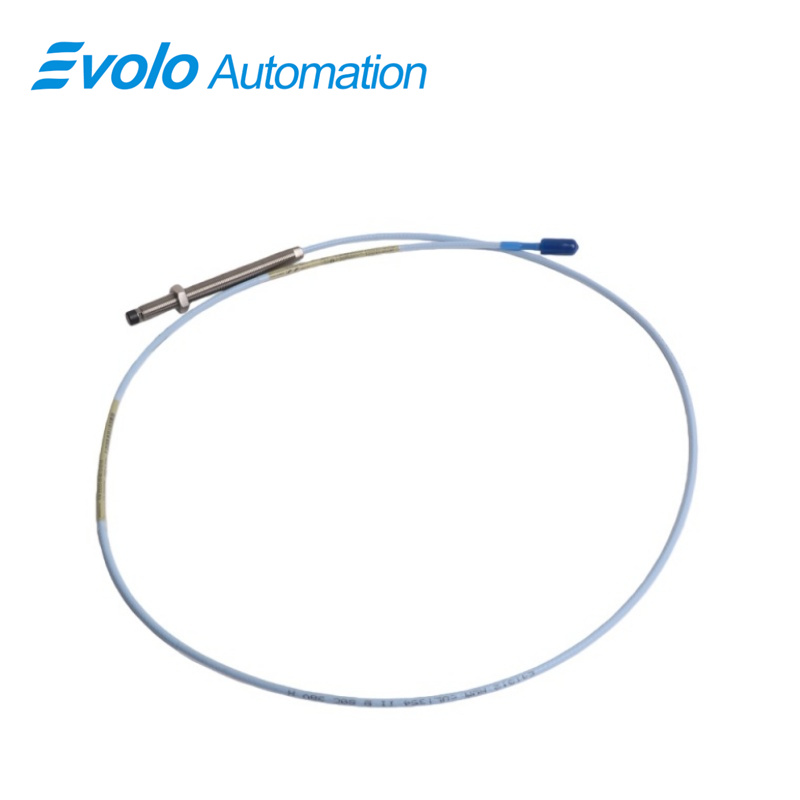

330101-00-40-10-02-00 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-00-40-10-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330101-00-40-10-02-00 3300 XL 8 mm Proximity Probe delivers an output voltage directly proportional to the distance between its probe tip and the monitored conductive surface. With a linear range of 2 mm (80 mils), output resistance of 50 Ω, and extension cable capacitance of 69.9 pF/m (21.3 pF/ft), the 330101-00-40-10-02-00 3300 XL 8 mm Proximity Probe accurately measures both static positions and dynamic vibrations in fluid-film bearing machines. The probe features a 3/8-24 UNF threaded case, ClickLoc miniature coaxial connector, and 1-meter standard cable, supporting field wiring 0.2–1.5 mm² (16–24 AWG) across -52°C to +177°C (-62°F to +350°F). Patented TipLoc and CableLoc designs provide secure bonding and 330 N (75 lbf) pull strength, while the optional FluidLoc cable prevents oil and liquid ingress. The 330101-00-40-10-02-00 3300 XL 8 mm Proximity Probe is compatible with other 3300 series probes and Proximitor sensors, allowing rapid installation in automated systems without bench calibration.

Applications

Measure Rotor Vibrations with 2 mm Linear Range
The 330101-00-40-10-02-00 3300 XL 8 mm Proximity Probe accurately tracks rotor vibrations on fluid-film bearing machines. Its 2 mm linear range and output resistance of 50 Ω ensure precise dynamic displacement measurements for automated monitoring.

Monitor Shaft Position at High Temperature
With operating temperatures from -52°C to +177°C, the 330101-00-40-10-02-00 3300 XL 8 mm Proximity Probe captures real-time rotor position feedback, enabling automated control in extreme conditions.

Keyphasor Signal Generation for Speed Synchronization
The 330101-00-40-10-02-00 3300 XL 8 mm Proximity Probe provides reliable AC voltage output to generate Keyphasor pulses for turbine and motor speed synchronization in automated systems.

Extended Cable Automation Integration
Featuring a 1-meter standard cable with 69.9 pF/m capacitance and 0.2–1.5 mm² wiring capability, the 330101-00-40-10-02-00 3300 XL 8 mm Proximity Probe integrates seamlessly into existing automated measurement setups.

Specifications

Competitive Advantage

High Pull Strength and Secure Bond
The CableLoc design provides 330 N (75 lbf) pull strength, keeping the 330101-00-40-10-02-00 3300 XL 8 mm Proximity Probe cable and tip firmly attached during high-speed machine operation.

Optional Fluid Prevention for Continuous Operation
Optional FluidLoc cabling prevents oil or liquid ingress, maintaining accurate signals from the 330101-00-40-10-02-00 3300 XL 8 mm Proximity Probe in harsh industrial environments.

Backward Compatibility Reduces Downtime
All 330101-00-40-10-02-00 3300 XL 8 mm Proximity Probe components are compatible with non-XL 3300 series probes and Proximitor sensors, allowing rapid automated system replacement without bench calibration.

Compact Design for Tight Industrial Spaces
With a 4-inch overall case and miniature ClickLoc connector, the 330101-00-40-10-02-00 3300 XL 8 mm Proximity Probe fits constrained machine areas while providing precise distance measurement.
